NSN 5305-01-527-8141 AN526C632R10, AN526C-632R10, 01-527-8141
Product Details | MACHINE SCREW
5305-01-527-8141 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN526C632R10, AN526C-632R10, 5305-01-527-8141, 01-527-8141, 5305015278141, 015278141
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 FEB 2005 | 01-527-8141 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-527-8141
Demand History | NSN 5305-01-527-8141
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN526C632R10 | 2011-11-319 | 100 | US |
Cross Reference | NSN 5305-01-527-8141
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN526C-632R10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-527-8141
Technical Data | NSN 5305-01-527-8141
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.188 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| NONSTANDARD THREAD PITCH DIAMETER | 0.1073 TO 0.1109 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| FASTENER LENGTH | 0.625 INCHES NOMINAL |
| SCREW MATERIAL | STEEL CORROSION RESISTING |
| SCREW SURFACE TREATMENT | PASSIVATE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A30 TRUSS |
| HEAD DIAMETER | 0.448 INCHES NOMINAL |
| HEAD HEIGHT | 0.118 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |

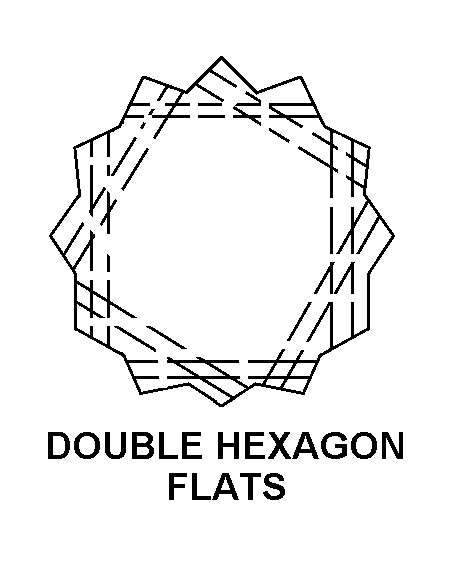

| HEAD HOLE CONFIGURATION STYLE | C3 DOUBLE HEXAGON FLATS |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN526C-632R10 |
