NSN 5305-01-531-7190 7117164C406, 7117164C-406, 01-531-7190
Product Details | SOCKET HEAD CAP SCREW
5305-01-531-7190 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 7117164C406, 7117164C-406, 5305-01-531-7190, 01-531-7190, 5305015317190, 015317190
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 2005 | 01-531-7190 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

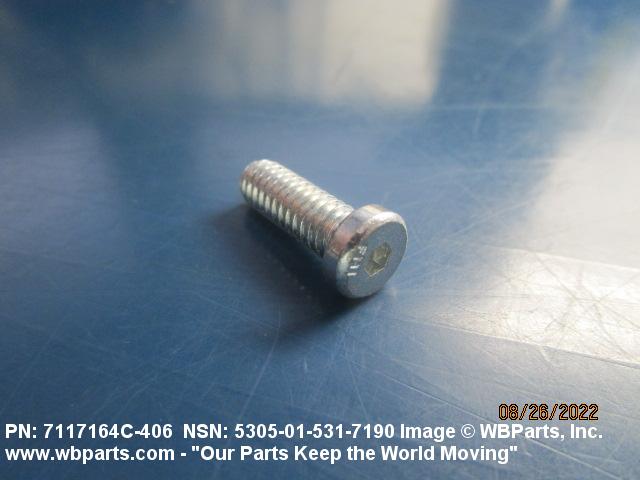

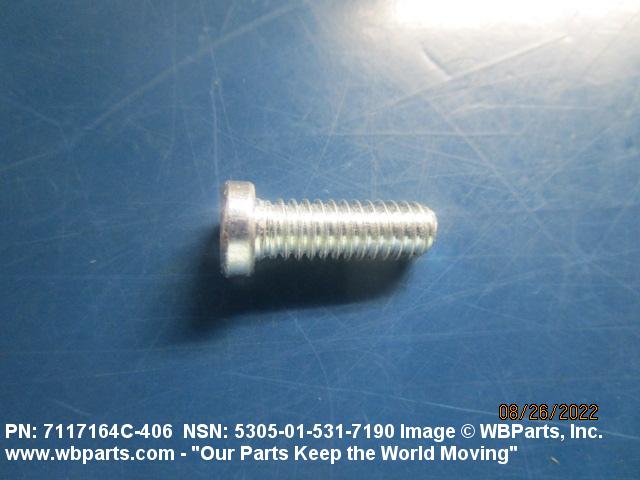

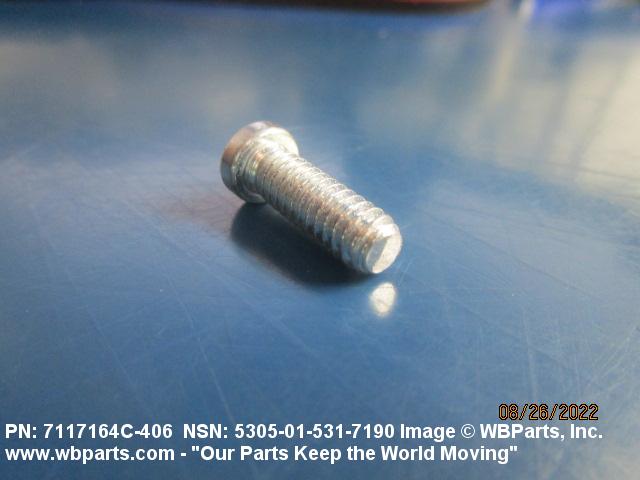

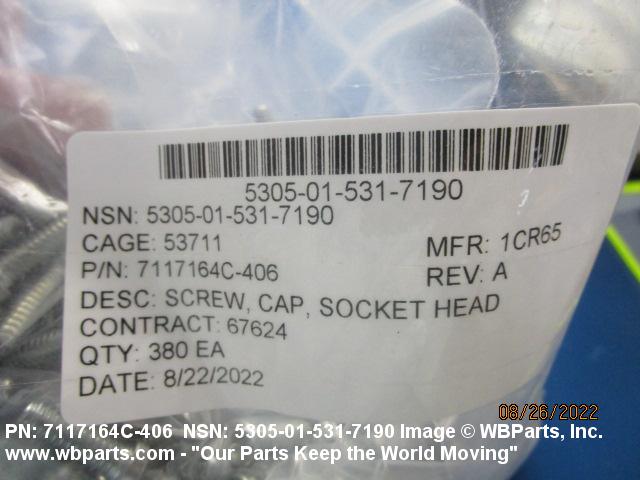

Drawings & Photos | NSN 5305-01-531-7190
Demand History | NSN 5305-01-531-7190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7117164C406 | 2022-05-145 | 14448 | US |
| 5305-01-531-7190 | 2022-04-96 | 500 | United States |
| 7117164C-406 | 2022-03-75 | 4522 | DIBBS |
| 5305-01-531-7190 | 2020-10-303 | 4335 | United States |
| 7117164C-406 | 2020-04-99 | 3030 | DIBBS |
| 7117164C-406 | 2019-05-140 | 438 | DIBBS |
| 7117164C-406 | 2019-04-107 | 6927 | DIBBS |
| 7117164C-406 | 2019-02-41 | 1000 | DIBBS |
| 7117164C-406 | 2019-02-38 | 431 | DIBBS |
| 5305-01-531-7190 | 2018-12-346 | 200 | DIBBS |
| 5305-01-531-7190 | 2018-08-242 | 225 | DIBBS |
| 5305-01-531-7190 | 2018-07-182 | 500 | DIBBS |
| 5305-01-531-7190 | 2018-04-109 | 1100 | DIBBS |
| 5305-01-531-7190 | 2018-01-16 | 625 | DIBBS |
| 5305-01-531-7190 | 2017-08-241 | 600 | DIBBS |
| 5305-01-531-7190 | 2017-08-224 | 200 | DIBBS |
| 5305-01-531-7190 | 2017-08-215 | 200 | DIBBS |
| 5305-01-531-7190 | 2017-06-157 | 427 | DIBBS |
| 5305-01-531-7190 | 2017-05-149 | 427 | DIBBS |
| 5305-01-531-7190 | 2016-03-84 | 1700 | DIBBS |
| 5305-01-531-7190 | 2016-03-62 | 2945 | DIBBS |
| 5305-01-531-7190 | 2015-03-77 | 1618 | DIBBS |
| 5305-01-531-7190 | 2014-08-229 | 2300 | DIBBS |
| 7117164C406 | 2014-02-58 | 150 | US |
| 5305-01-531-7190 | 2013-07-203 | 100 | DIBBS |
| 5305-01-531-7190 | 2013-07-203 | 300 | DIBBS |
| 5305-01-531-7190 | 2013-07-203 | 1000 | DIBBS |
| 5305-01-531-7190 | 2012-12-345 | 350 | DIBBS |
| 5305-01-531-7190 | 2012-11-310 | 600 | DIBBS |
| 5305-01-531-7190 | 2011-12-364 | 6000 | DIBBS |
| 5305-01-531-7190 | 2011-01-03 | 500 | DIBBS |
| 5305-01-531-7190 | 2010-10-277 | 1000 | DIBBS |
| 5305-01-531-7190 | 2010-02-54 | 2300 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-531-7190
Related Products | NSN 5305-01-531-7190
Technical Data | NSN 5305-01-531-7190
| Characteristic | Specifications |
|---|---|

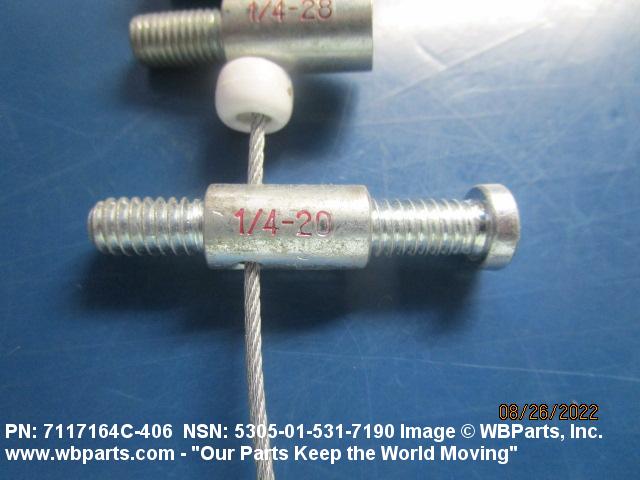

| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES NOMINAL |

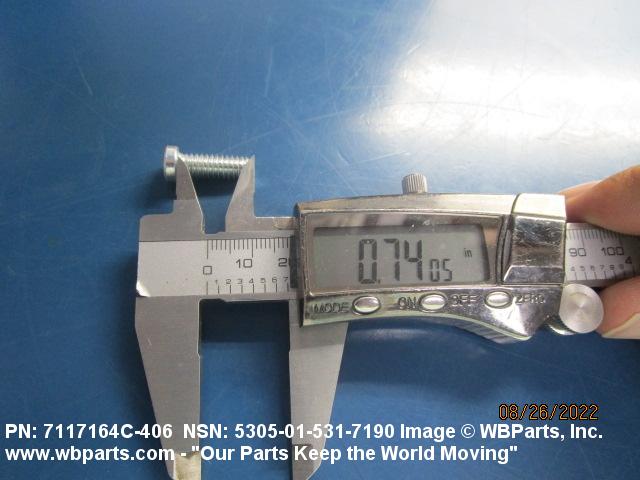

| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |

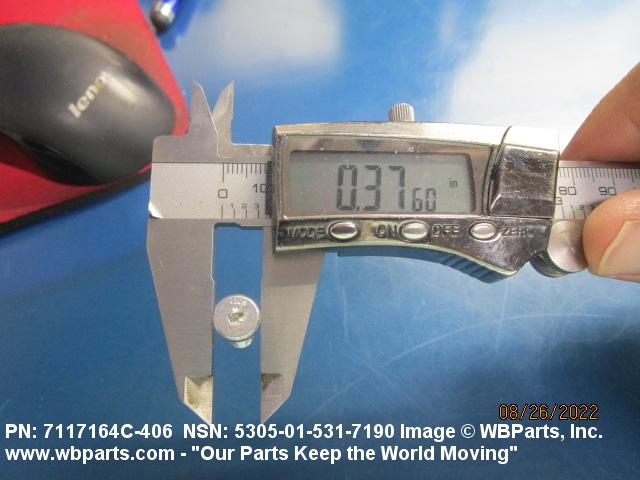

| HEAD DIAMETER | 0.375 INCHES MAXIMUM |

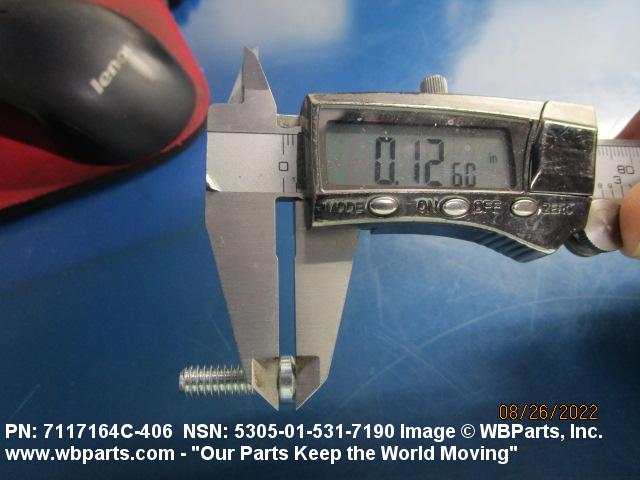

| HEAD HEIGHT | 0.127 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-531-7190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-531-7190
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
