NSN 5305-01-535-4246 NAS1352C04LE8, 01-535-4246, 015354246

Product Details | SOCKET HEAD CAP SCREW

5305-01-535-4246 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS1352C04LE8, 5305-01-535-4246, 01-535-4246, 5305015354246, 015354246

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 NOV 2005	01-535-4246	16282 ( SCREW, CAP, SOCKET HEAD )

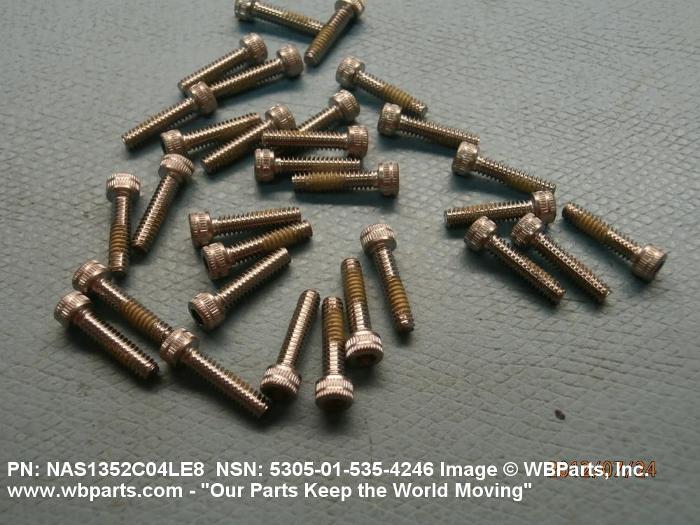

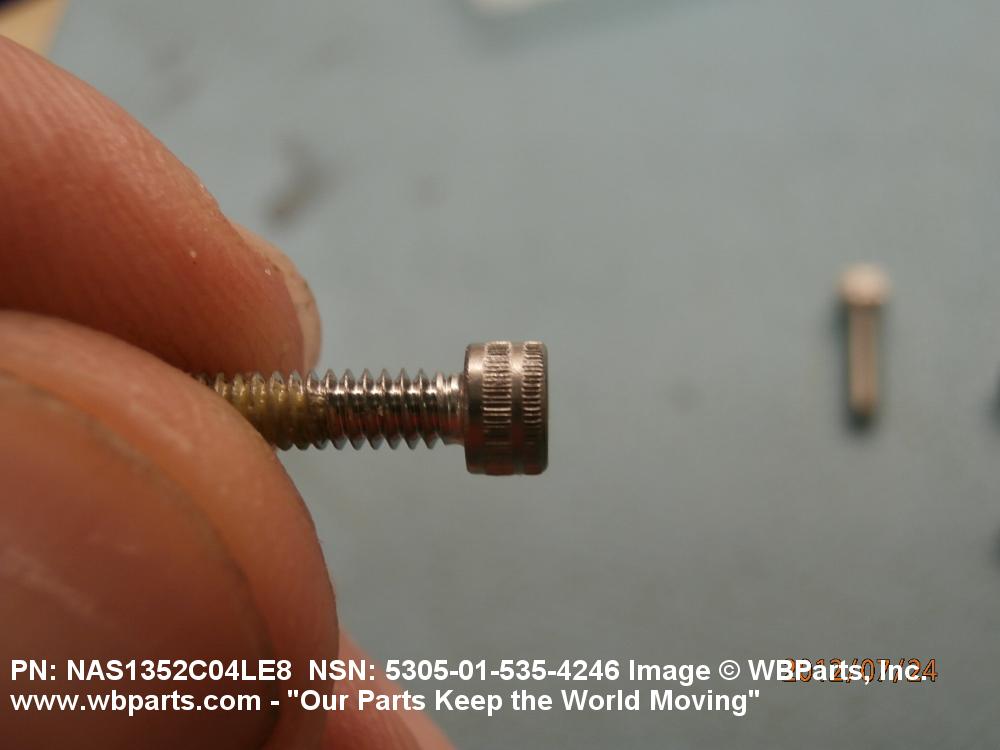

Drawings & Photos | NSN 5305-01-535-4246

Part Number	Request Date	QTY	Origin
NAS1352C04LE8	2021-01-22	16	United States
NAS1352C04LE8	2019-10-276	8	United States
NAS1352C04LE8	2018-08-235	16	United States
NAS1352C04LE8	2018-05-130	12	United States
NAS1352C04LE8	2017-01-30	50	United States
NAS1352C04LE8	2015-07-211	24	United States
NAS1352C04LE8	2014-08-217	12	United States
NAS1352C04LE8	2014-04-97	8	United States
NAS1352C04LE8	2013-10-301	4	United States
NAS1352C04LE8	2012-05-128	30	United States
NAS1352C04LE8	2010-05-138	500	US

Cross Reference | NSN 5305-01-535-4246

Part Number	Cage Code	Manufacturer
NAS1352C04LE8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-535-4246

Compare

Related Products | NSN 5305-01-535-4246

5305-01-535-4251, 5305-01-535-4324, 5305-01-535-4479, 5305-01-535-4482, 5305-01-535-4546

Technical Data | NSN 5305-01-535-4246

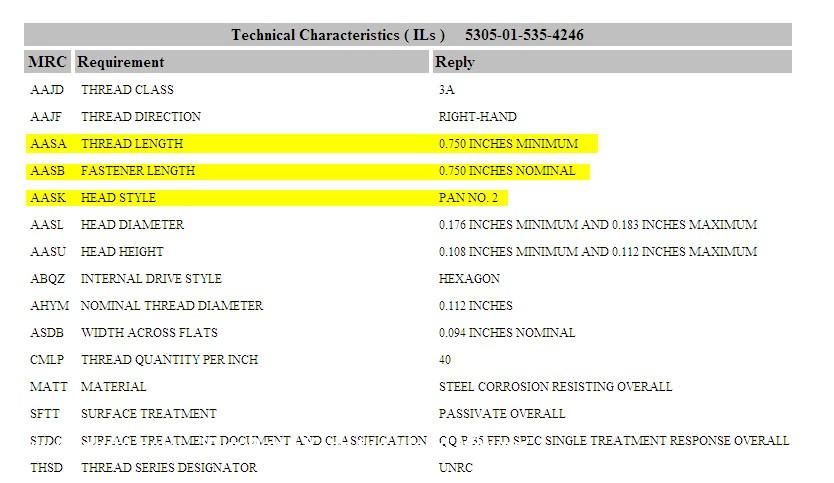

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNRC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

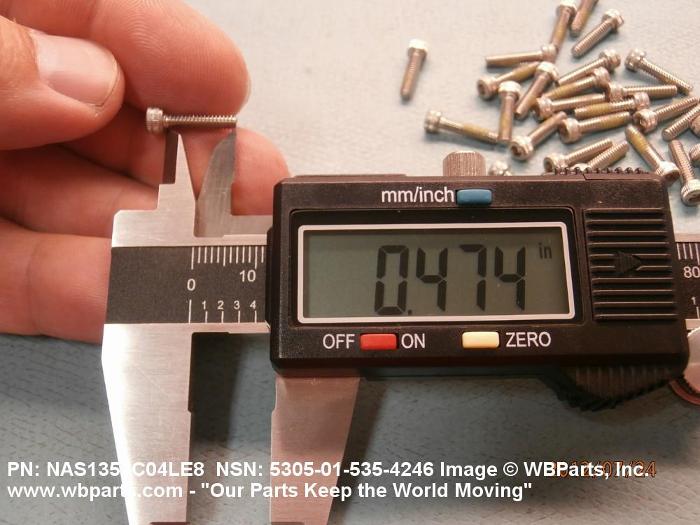

THREAD LENGTH	0.750 INCHES MINIMUM
FASTENER LENGTH	0.750 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C33 PAN NO. 2

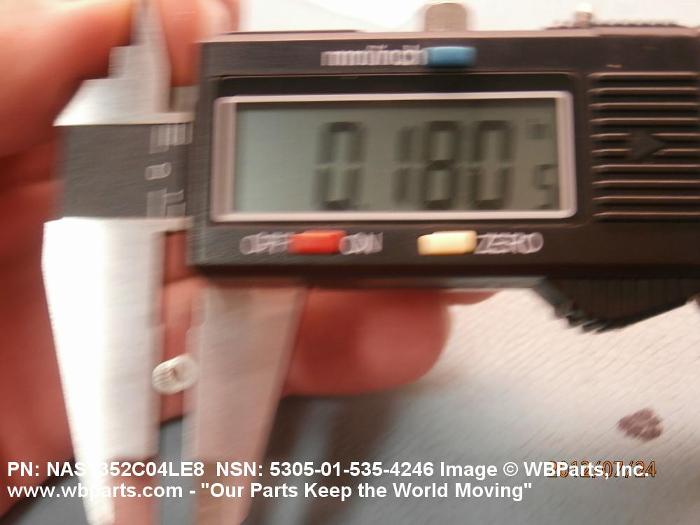

HEAD DIAMETER	0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM

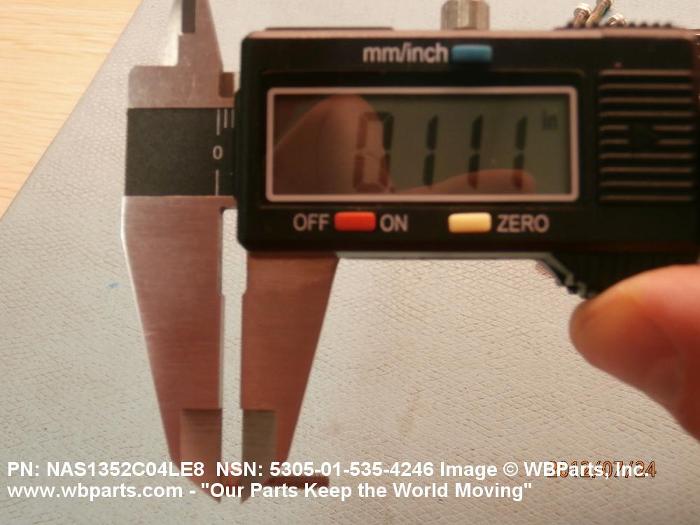

HEAD HEIGHT	0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM

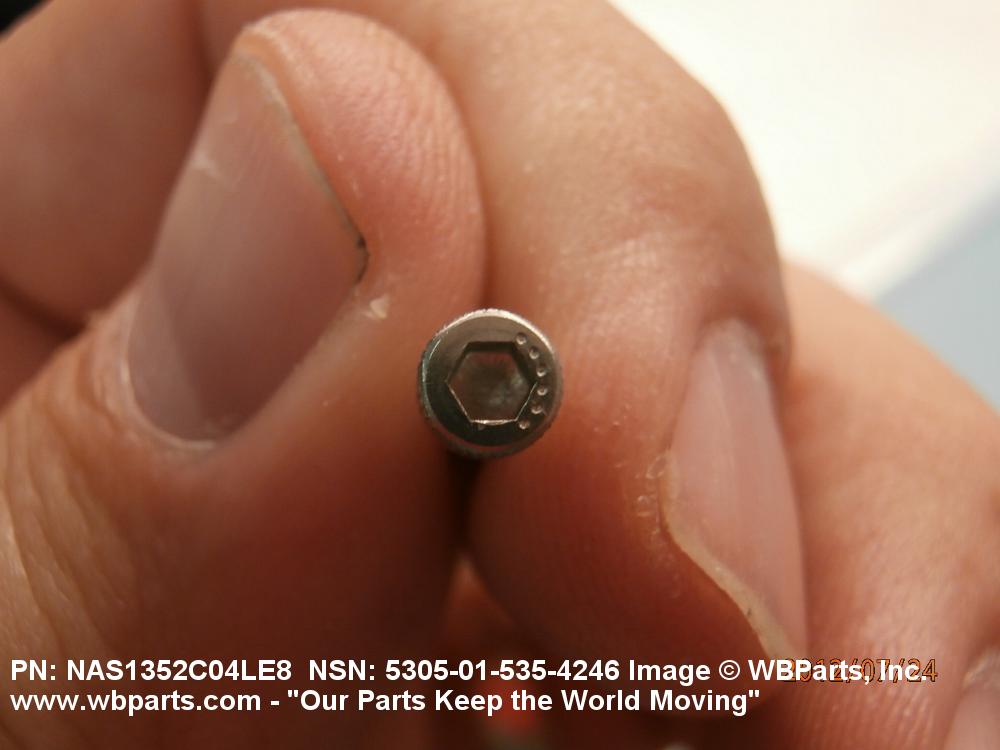

INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.094 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5305-01-535-4246

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
