NSN 5305-01-538-6897 ACNLET407988, ACNLE-T40-7988, DRSS750010B3
Product Details | MACHINE SCREW
5305-01-538-6897 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: ACNLET407988, ACNLE-T40-7988, DRSS750010B3, DRSS7500-10-B-3, 2621-209-01ITEM 173-1, 262120901ITEM1731, 4639627 ITEM 173-1, 4639627ITEM1731, 5305-01-538-6897, 01-538-6897, 5305015386897, 015386897
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAR 2006 | 01-538-6897 | 06657 ( SCREW, MACHINE ) |

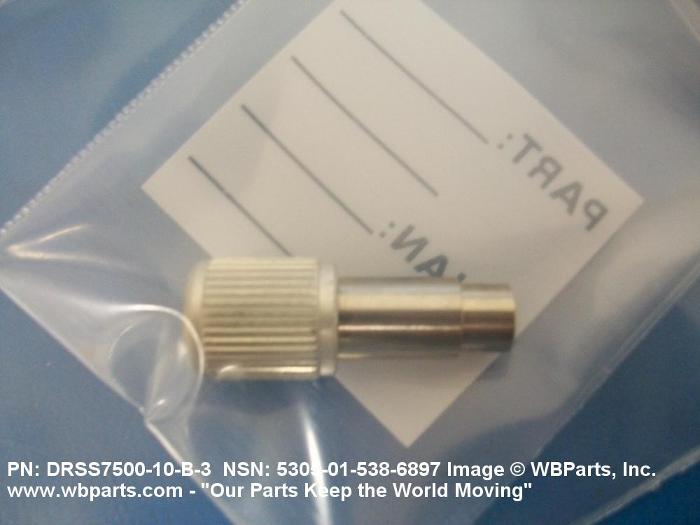

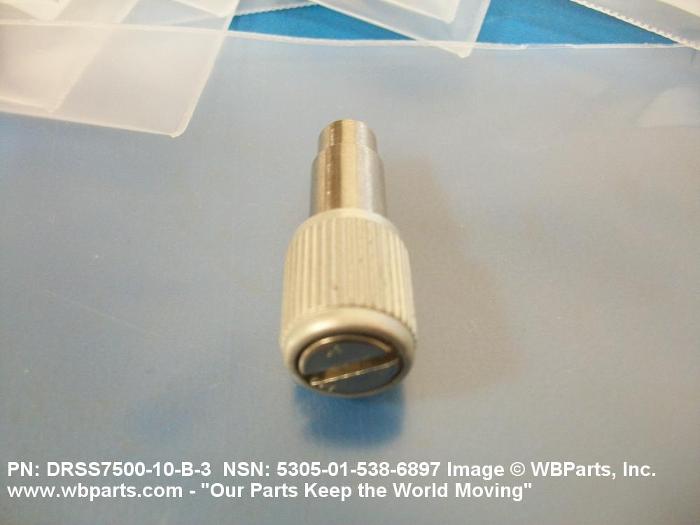

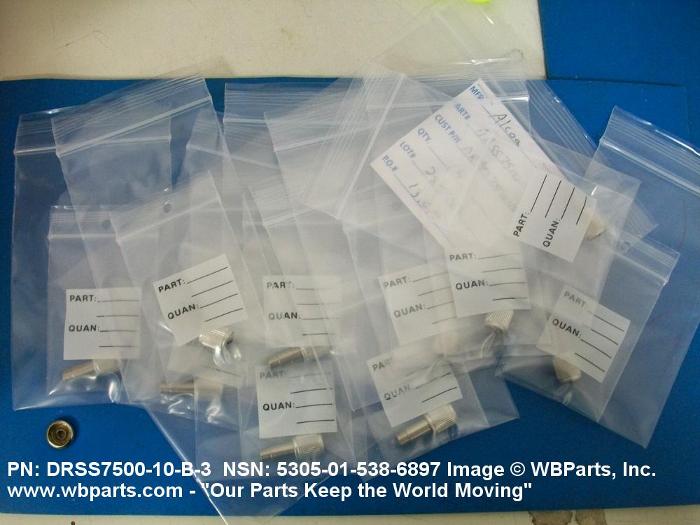

Drawings & Photos | NSN 5305-01-538-6897
Demand History | NSN 5305-01-538-6897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DRSS750010B3 | 2011-08-221 | 10 | United States |
Cross Reference | NSN 5305-01-538-6897
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-538-6897
Technical Data | NSN 5305-01-538-6897
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2A |
| SCREW MATERIAL | STEEL CORROSION RESISTING |
| SPECIAL FEATURES | 0.190-32NF-2AX1.082L0A |
| III END ITEM IDENTIFICATION | TRIDENT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW CAPTIVE, PANEL FASTNER |
Restrictions/Controls & Freight Information | NSN 5305-01-538-6897
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
