NSN 5305-01-539-4120 NAS1351C4LB16, 418750-153, 01-539-4120
Product Details | SOCKET HEAD CAP SCREW
5305-01-539-4120 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1351C4LB16, 418750-153, 5305-01-539-4120, 01-539-4120, 5305015394120, 418750153, 015394120
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 2006 | 01-539-4120 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-539-4120
Demand History | NSN 5305-01-539-4120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-539-4120 | 2013-01-30 | 100 | United States |
| 5305-01-539-4120 | 2012-01-27 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-539-4120
Technical Data | NSN 5305-01-539-4120
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

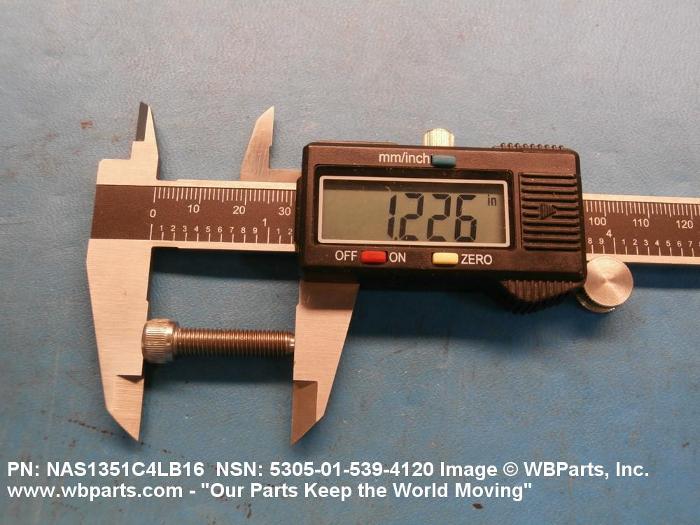

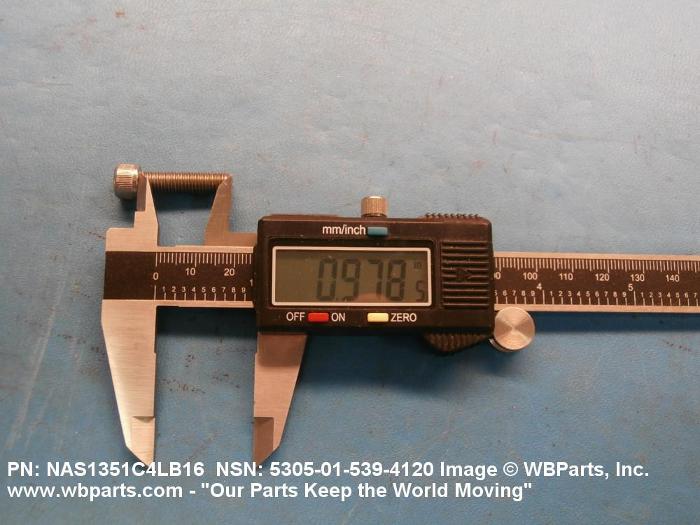

| THREAD LENGTH | 1.000 INCHES NOMINAL |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |

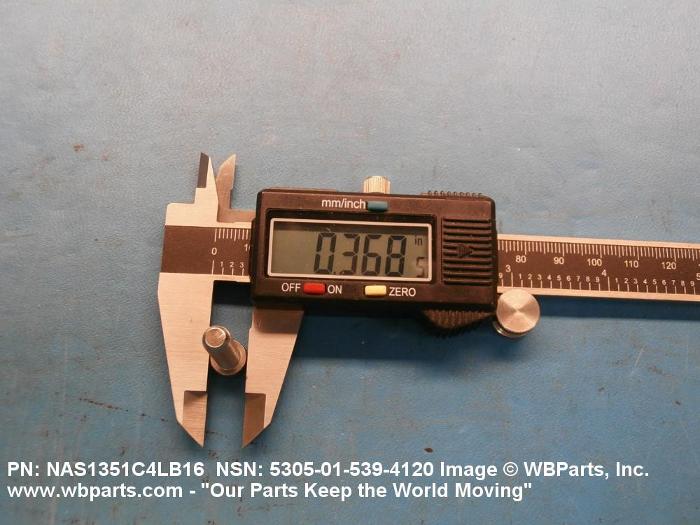

| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

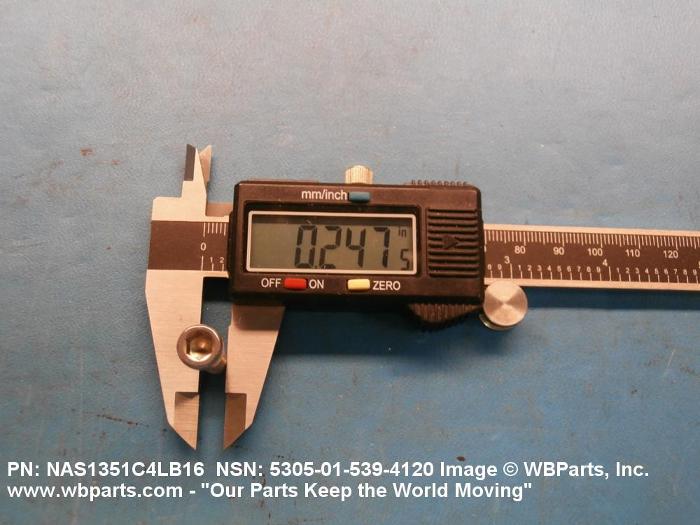

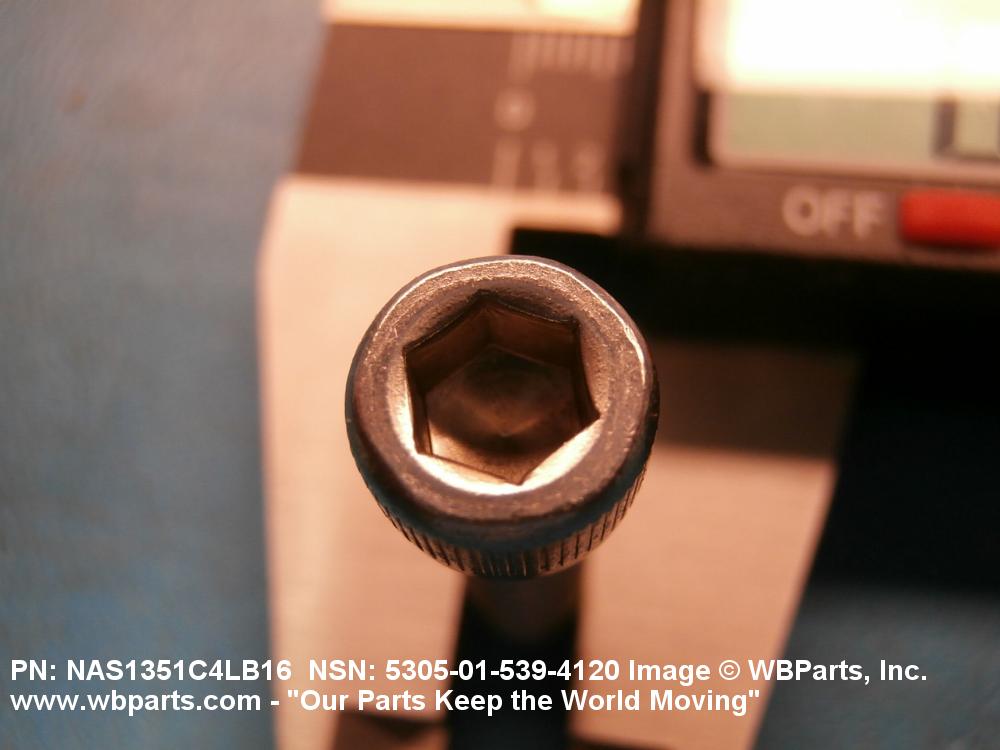

| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |

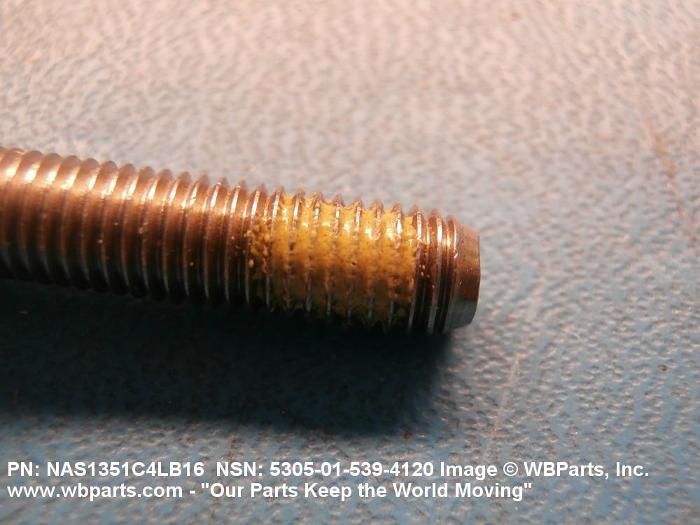

| SPECIAL FEATURES | MIN. BREAKING STRENGTH 2.910 CADMIUM PLATE IAW SPEC QQ-P-416 TY 1 CLS 2 SILVER FLASH IAW AMS2411 PASSIVATE IAW QQ-P-35 MALE THREADED FASTNER PATCH TYPE LOCKING ELEMENT IAW NAS1283 TYPE P |
