NSN 5305-01-541-9016 H0980, 91255A265, 01-541-9016
Product Details | SOCKET HEAD CAP SCREW
5305-01-541-9016 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: H0980, 91255A265, 5305-01-541-9016, 01-541-9016, 5305015419016, 015419016
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUL 2006 | 01-541-9016 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

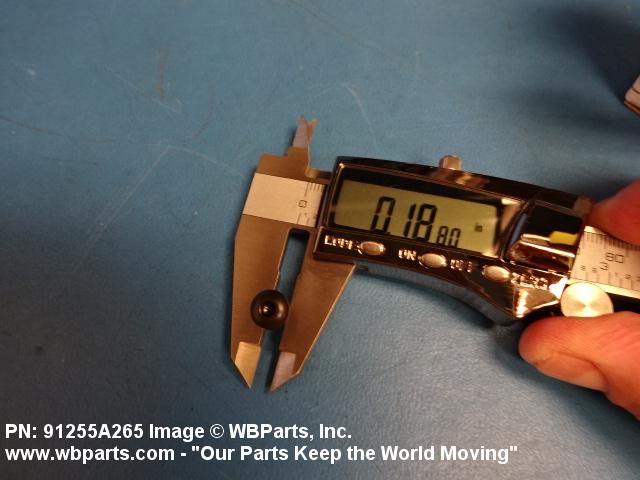

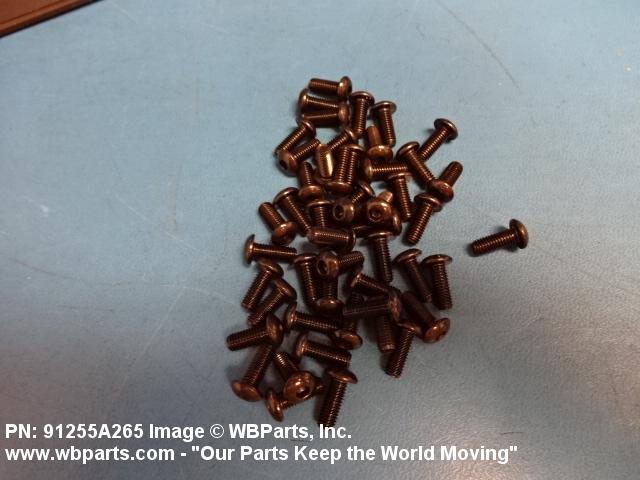

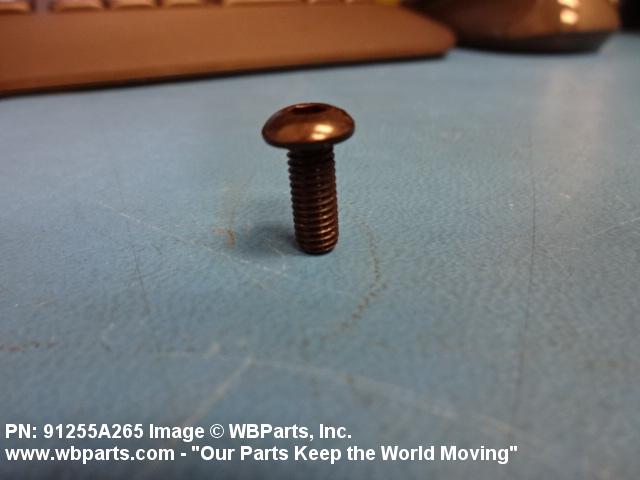

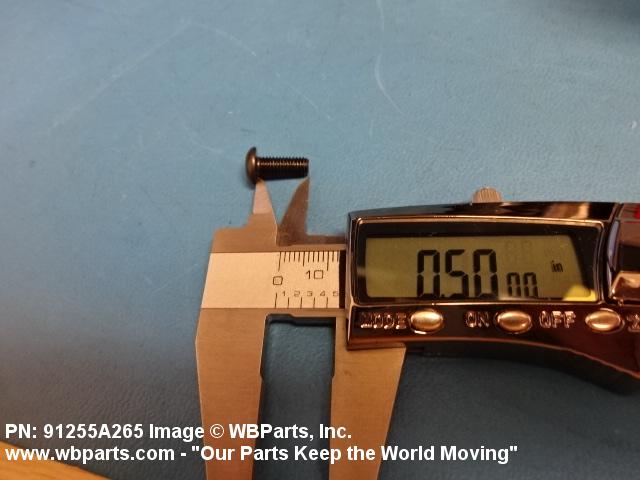

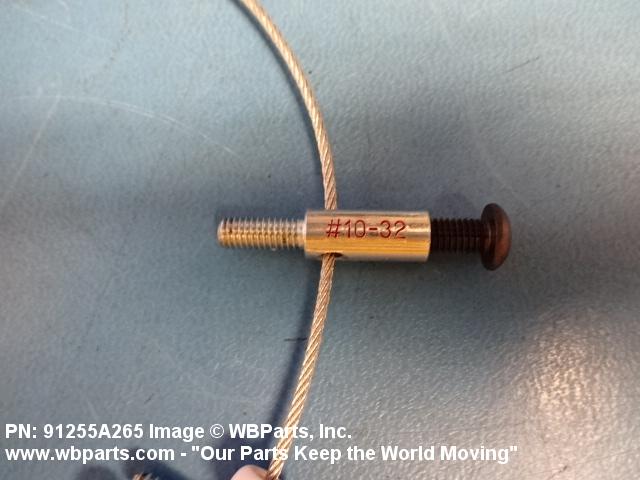

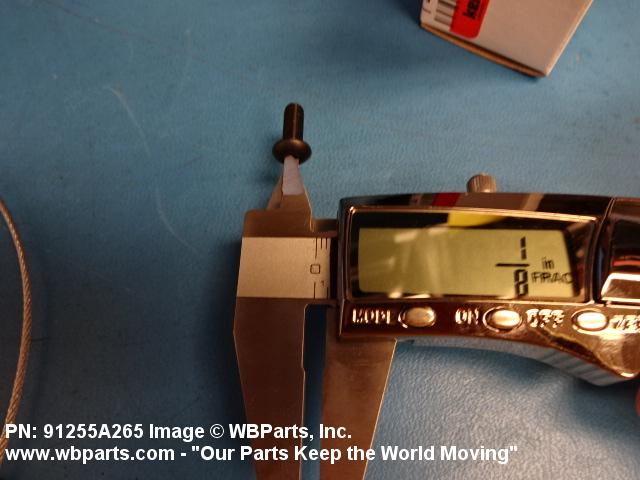

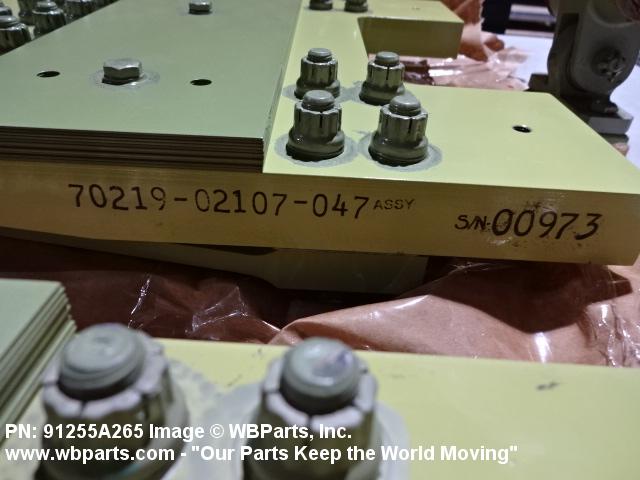

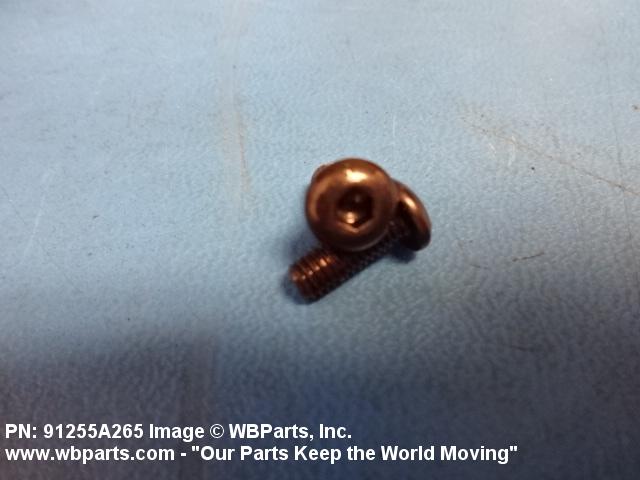

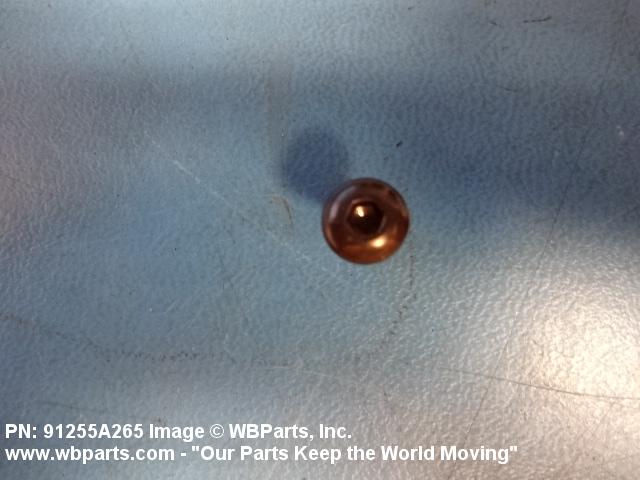

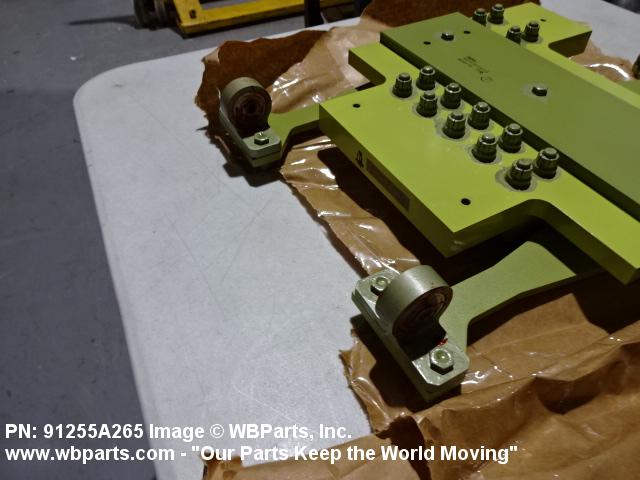

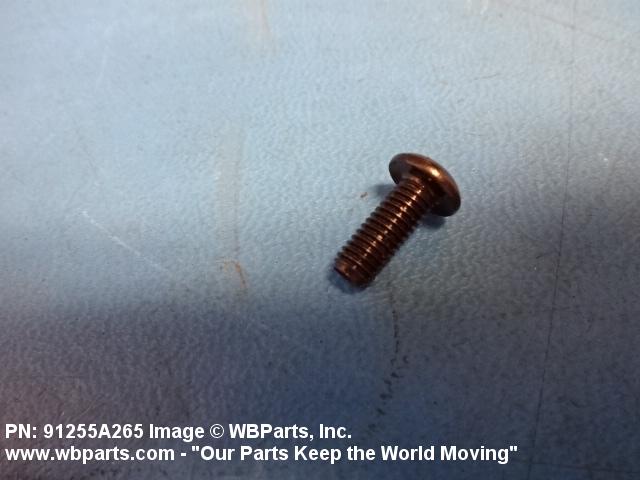

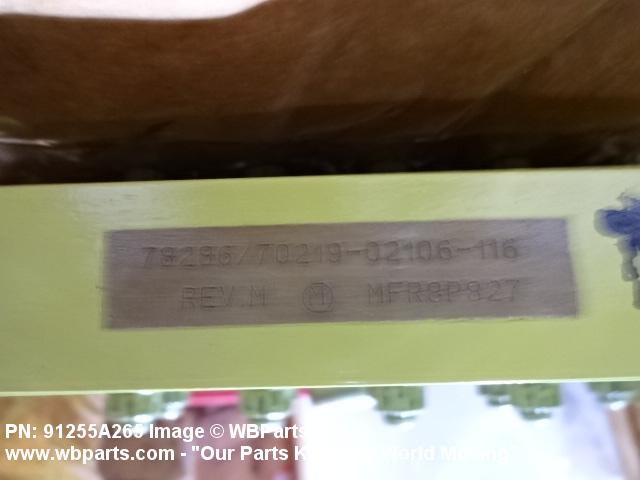

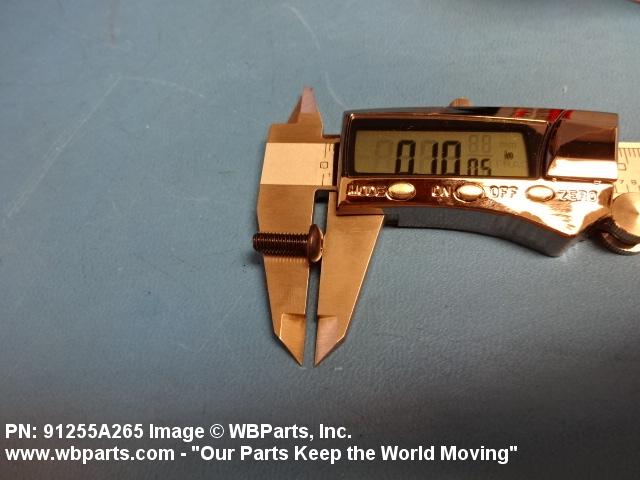

Drawings & Photos | NSN 5305-01-541-9016
Demand History | NSN 5305-01-541-9016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-541-9016 | 2024-03-86 | 42 | United States |
| 91255A265 | 2020-11-308 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-541-9016
Technical Data | NSN 5305-01-541-9016
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 37.0 ROCKWELL C NOMINAL OVERALL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |
| HEAD STYLE | BUTTON |
| HEAD DIAMETER | 0.361 INCHES NOMINAL |
| HEAD HEIGHT | 0.101 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AIR FORCE SUB-SCALE AERIAL TARGET (AFSAT) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ALLOY STEEL BUTTON-HEAD SOCKET CAP SCREW |
Restrictions/Controls & Freight Information | NSN 5305-01-541-9016
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-01-541-9016
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | RG | TC:AIR FORCE SUB-SCALE AERIAL TARGET (AFSAT) |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F63 | Composite Engineering, Inc 5281 Raley Blvd Sacramento, CA 95835-1701 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
