NSN 5305-01-546-1705 NAS1189E08T7J, 01-546-1705, 015461705
Product Details | SOCKET HEAD CAP SCREW
5305-01-546-1705 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1189E08T7J, 5305-01-546-1705, 01-546-1705, 5305015461705, 015461705
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 2006 | 01-546-1705 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

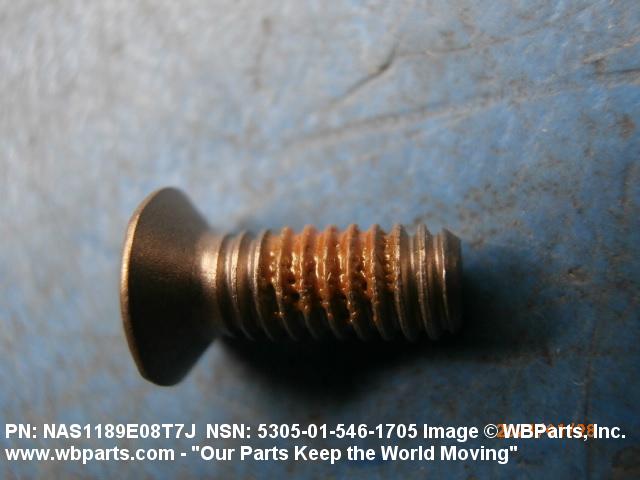

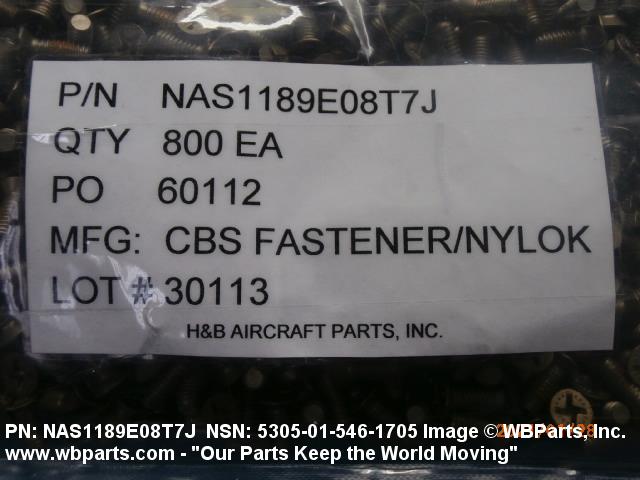

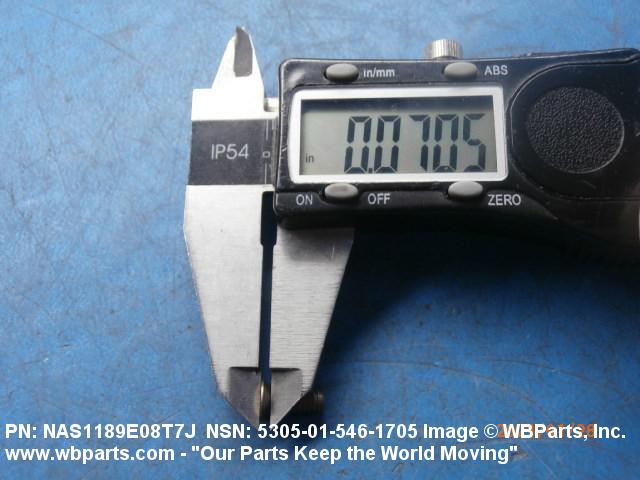

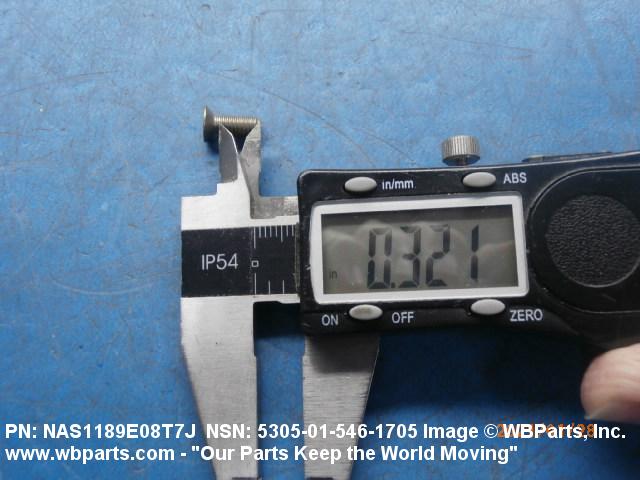

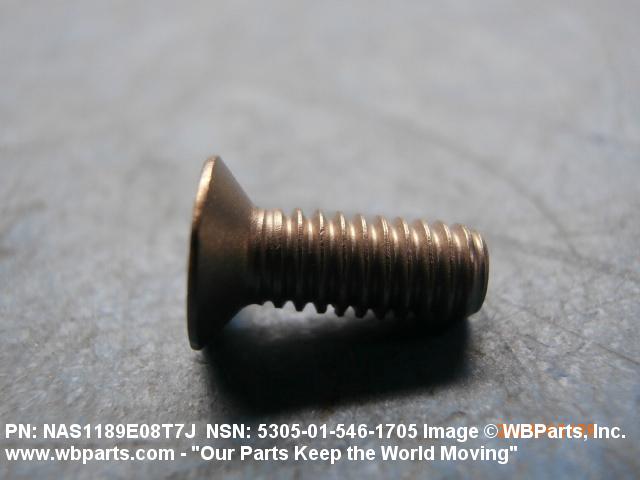

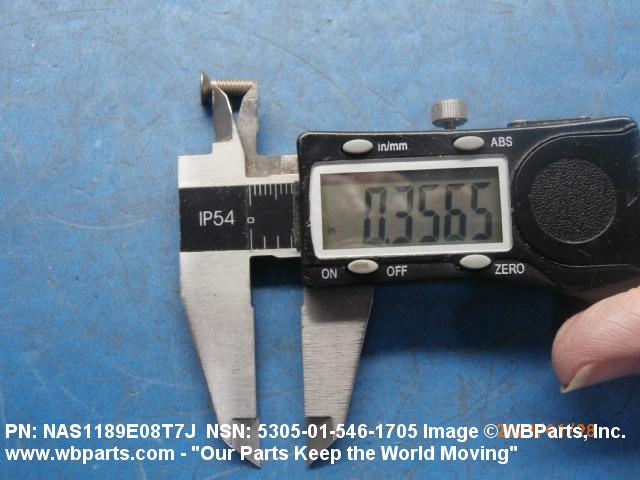

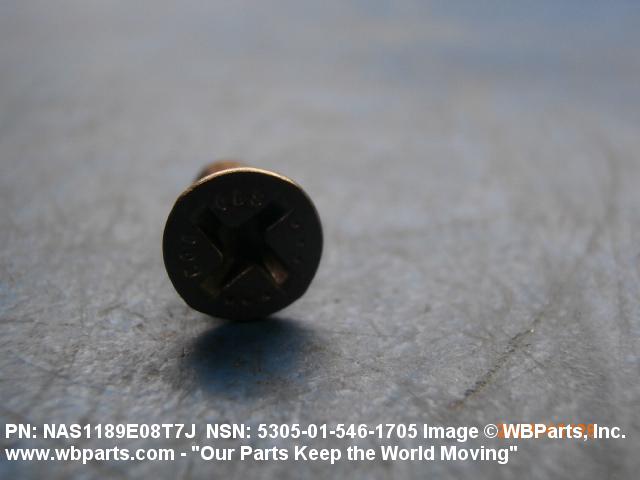

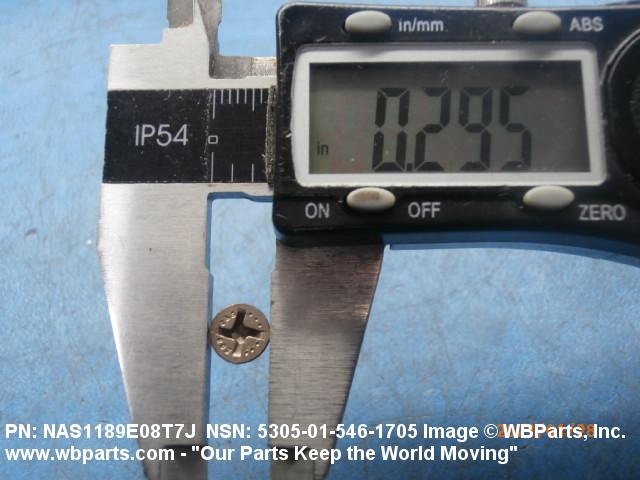

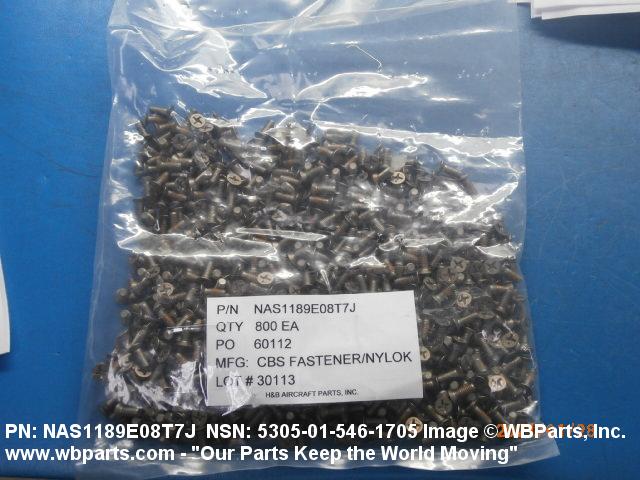

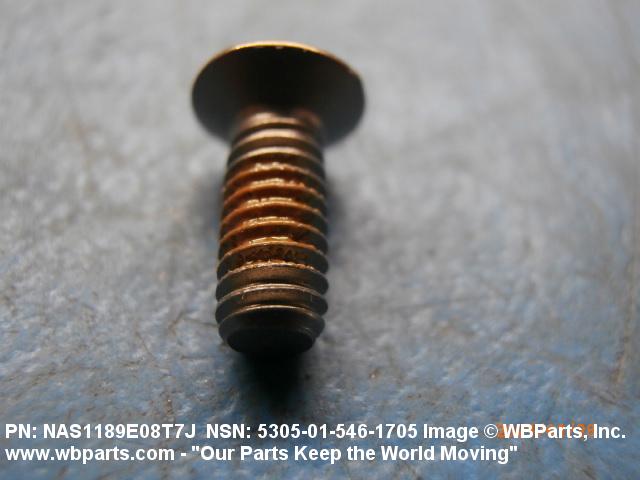

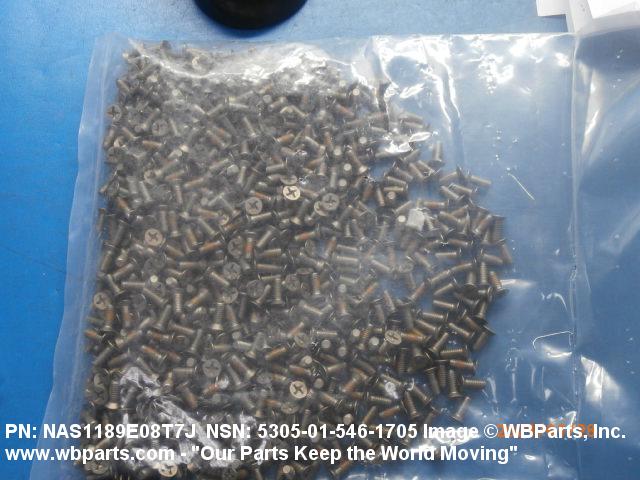

Drawings & Photos | NSN 5305-01-546-1705
Demand History | NSN 5305-01-546-1705
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-546-1705 | 2021-06-160 | 3000 | United States |
| 5305-01-546-1705 | 2020-09-254 | 800 | United States |
| 5305-01-546-1705 | 2018-12-345 | 100 | Australia |
| NAS1189E08T7J | 2014-06-169 | 1000 | United States |
| NAS1189E08T7J | 2014-03-86 | 2450 | US |
| 5305-01-546-1705 | 2013-10-295 | 22000 | US |
| NAS1189E08T7J | 2013-05-129 | 26760 | US |
| NAS1189E08T7J | 2012-11-324 | 2100 | United States |
| NAS1189E08T7J | 2012-02-58 | 100 | United States |
| 5305-01-546-1705 | 2012-02-53 | 100 | US |
| 5305-01-546-1705 | 2010-06-159 | 400 | Australia |
Cross Reference | NSN 5305-01-546-1705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1189E08T7J | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-546-1705
Technical Data | NSN 5305-01-546-1705
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |

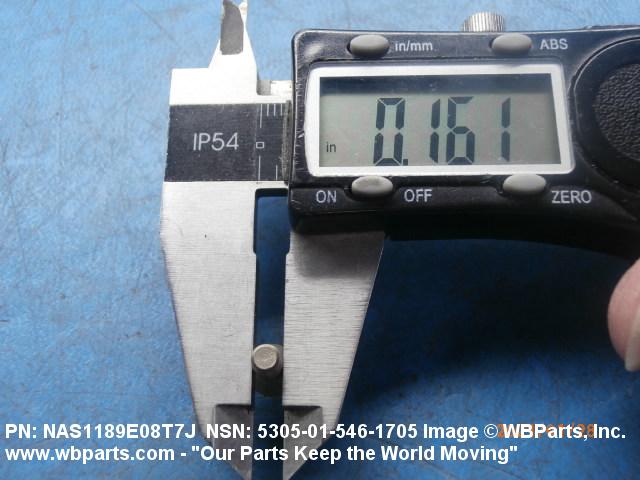

| NOMINAL THREAD DIAMETER | 0.164 INCHES |

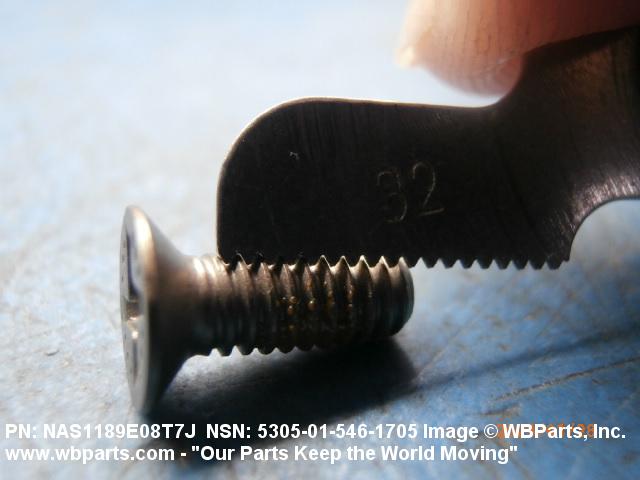

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.370 INCHES MAXIMUM |
| FASTENER LENGTH | 0.370 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL PLASTIC POLYETHYLENE LOCKING FEATURE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

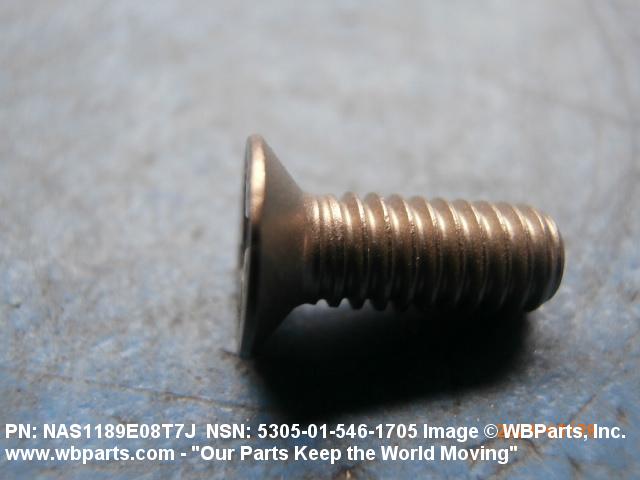

| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.319 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| HEAD HEIGHT | 0.068 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

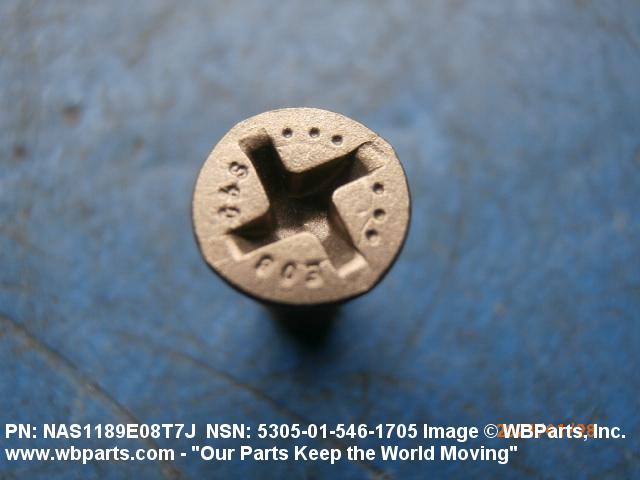

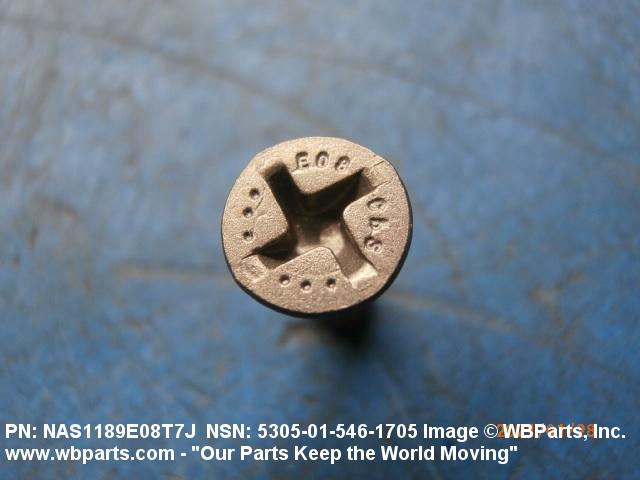

| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| LOCKING FEATURE | PATCH GRIP |
Restrictions/Controls & Freight Information | NSN 5305-01-546-1705
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
