Product Details | ASSEMBLED WASHER SCREW

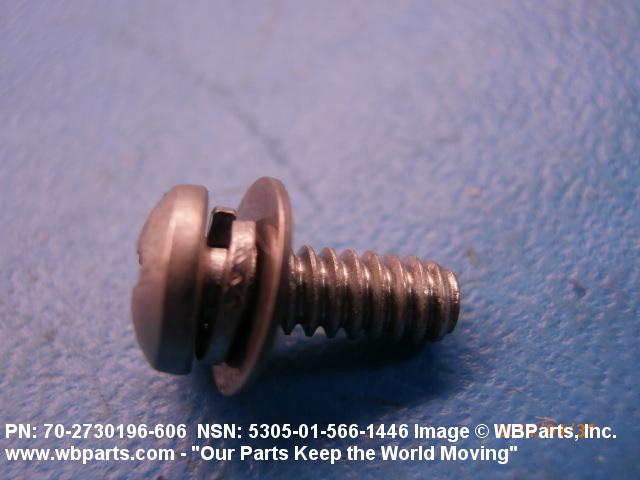

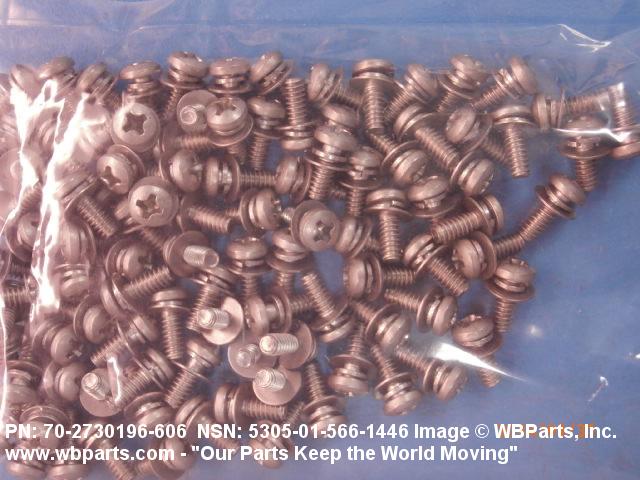

5305-01-566-1446 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 70-2730196, 702730196606, 70-2730196-606, 5305-01-566-1446, 01-566-1446, 5305015661446, 702730196, 015661446
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 2008 | 01-566-1446 | 06660 ( SCREW, ASSEMBLED WASHER ) |

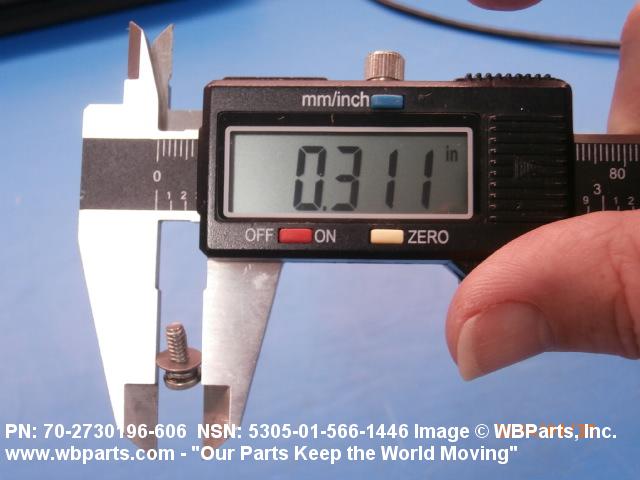

Drawings & Photos | NSN 5305-01-566-1446
Demand History | NSN 5305-01-566-1446
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70-2730196-606 | 2021-05-129 | 207 | DIBBS |
| 70-2730196-606 | 2019-10-279 | 42 | DIBBS |
| 70-2730196-606 | 2019-09-260 | 1 | DIBBS |
| 5305-01-566-1446 | 2014-01-22 | 100 | United States |
| 5305-01-566-1446 | 2014-01-17 | 100 | United States |
| 5305-01-566-1446 | 2013-08-225 | 14 | United States |
| 5305-01-566-1446 | 2013-06-179 | 14 | United States |
| 5305-01-566-1446 | 2012-07-199 | 42 | DIBBS |
| 5305-01-566-1446 | 2012-01-06 | 50 | DIBBS |
| 5305-01-566-1446 | 2011-11-327 | 42 | DIBBS |
| 5305-01-566-1446 | 2011-09-265 | 42 | DIBBS |
| 5305-01-566-1446 | 2011-08-227 | 42 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-566-1446
Related Products | NSN 5305-01-566-1446
Technical Data | NSN 5305-01-566-1446

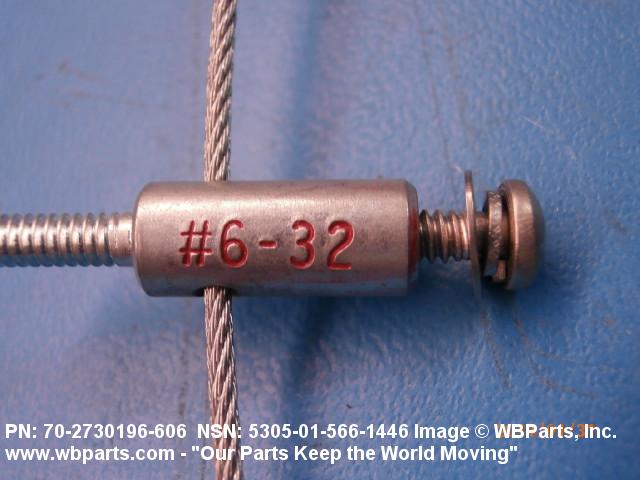

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

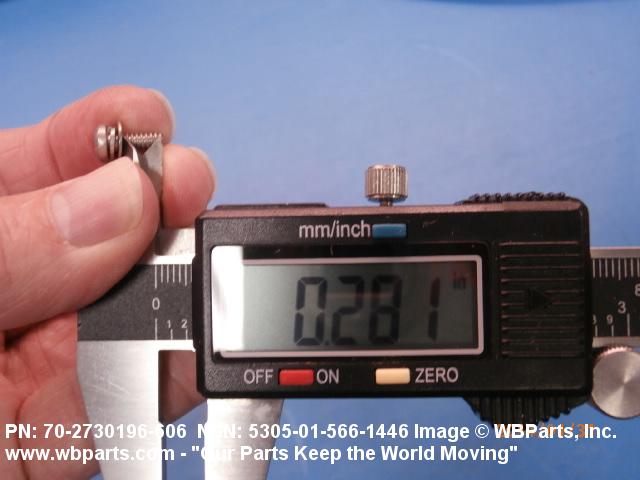

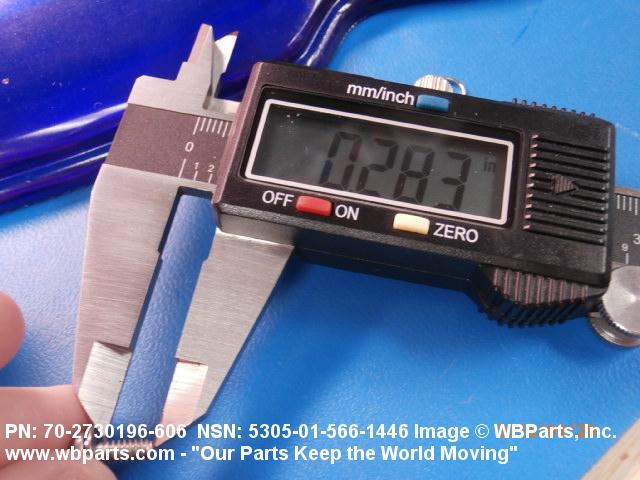

| THREAD LENGTH | 0.282 INCHES NOMINAL |

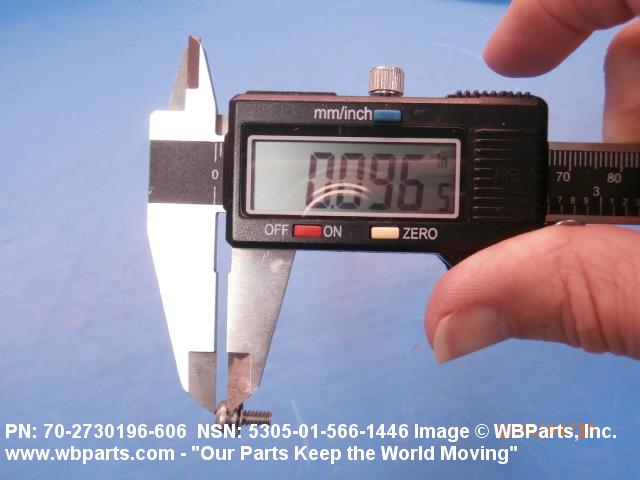

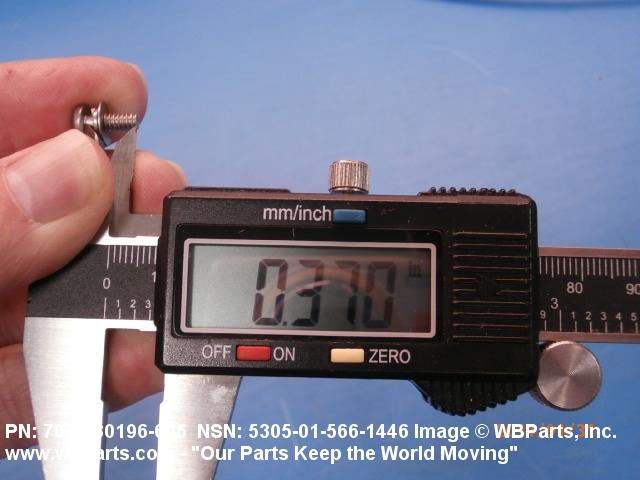

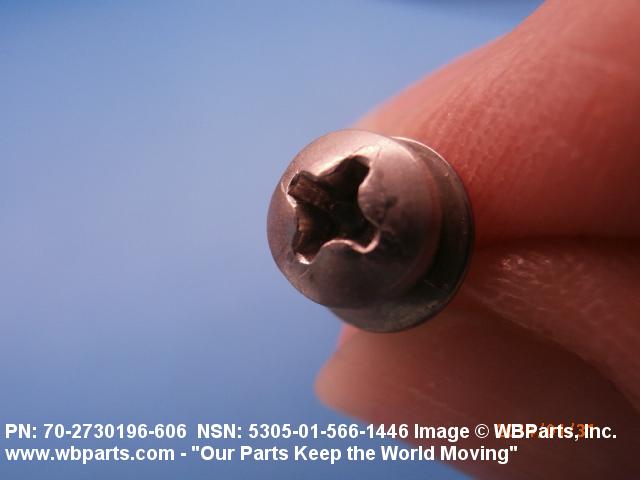

| FASTENER LENGTH | 0.343 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING SECONDARY WASHER STEEL CORROSION RESISTING PRIMARY WASHER STEEL CORROSION RESISTING FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-QQ-S-763, CLASS 302. COND B ASSN STD SINGLE MATERIAL RESPONSE OR AMS-QQ-S-763, CLASS 304. COND A ASSN STD SINGLE MATERIAL RESPONSE OR AMS-QQ-S-763, CLASS 384. COND A ASSN STD SINGLE MATERIAL RESPONSE SECONDARY WASHER NASM35338 ASSN STD SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-P-35 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C32 PAN |

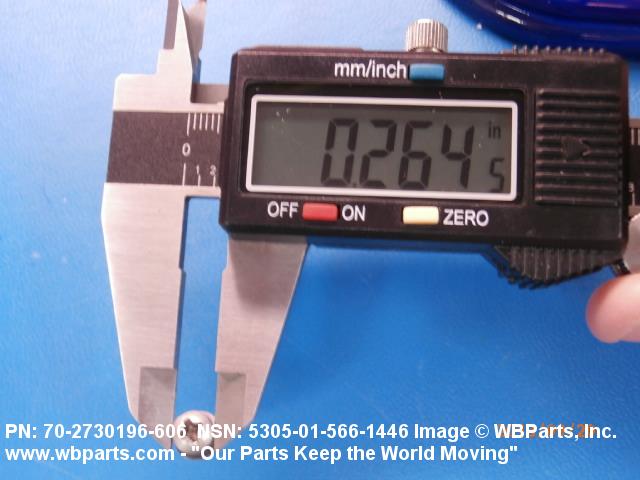

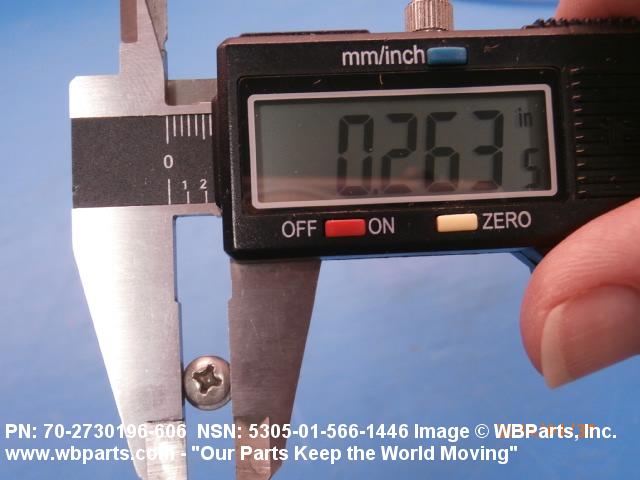

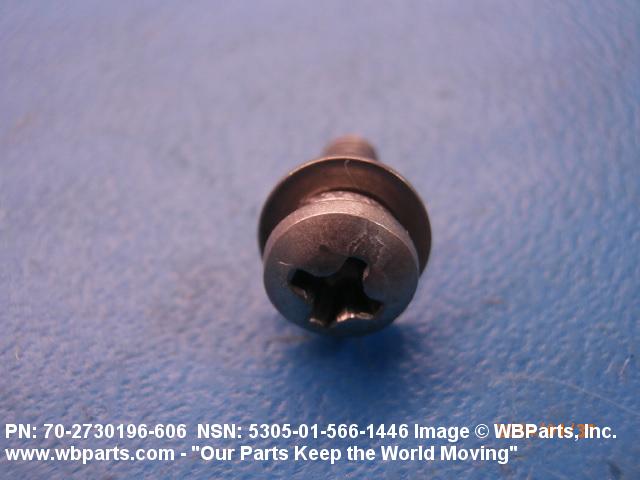

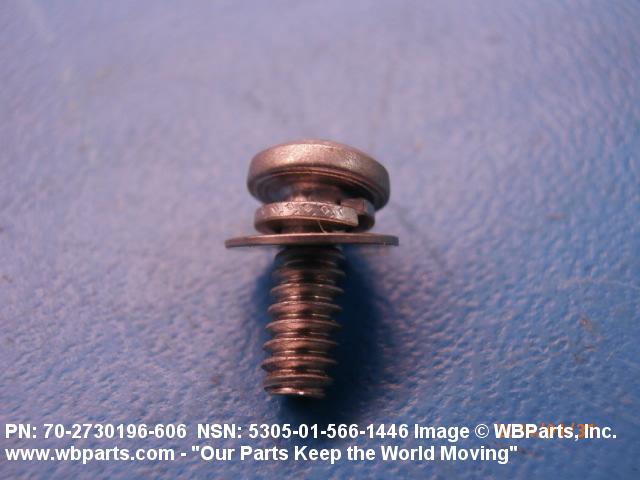

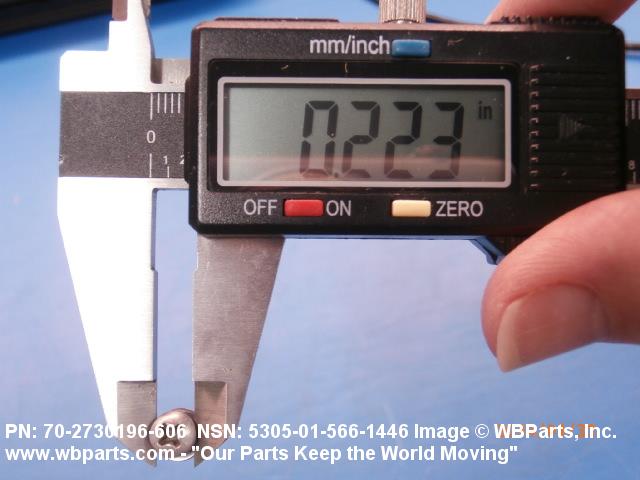

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 2 |
| PRIMARY WASHER STYLE | G9 SPLIT HELICAL RING |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.253 INCHES MAXIMUM |

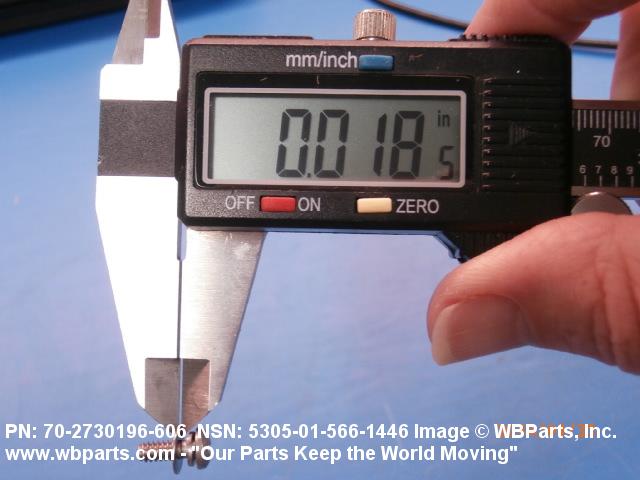

| PRIMARY WASHER MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| SECONDARY WASHER RELATIONSHIP TO PRIMARY WASHER | NOT IDENTICAL |
