NSN 5305-01-578-7546 MS5195742, MS51957-42, 01-578-7546
Product Details | MACHINE SCREW
5305-01-578-7546 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS5195742, MS51957-42, 5305-01-578-7546, 01-578-7546, 5305015787546, 015787546
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 OCT 2009 | 01-578-7546 | 06657 ( SCREW, MACHINE ) |

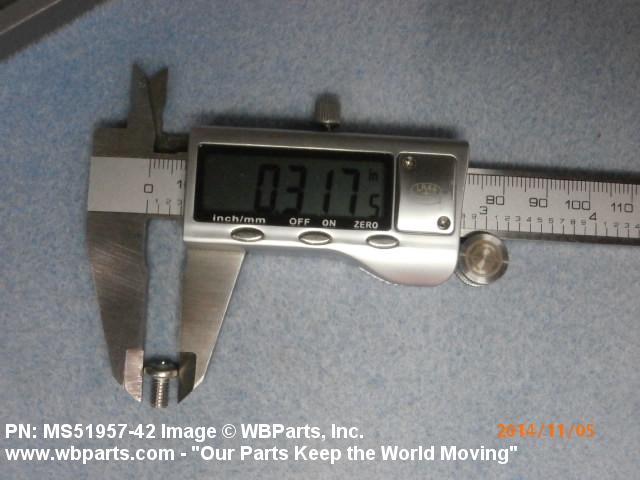

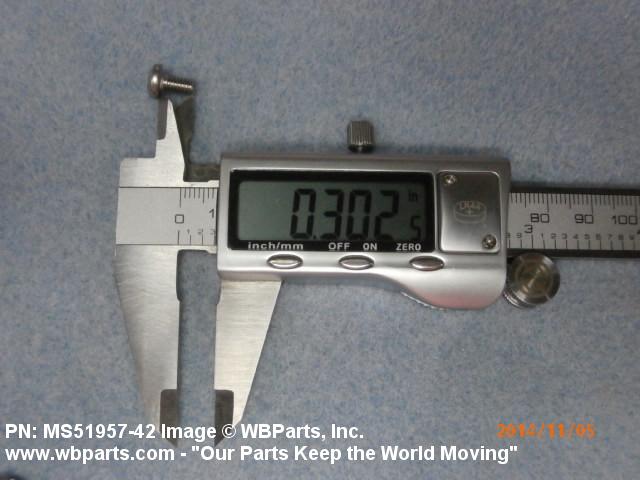

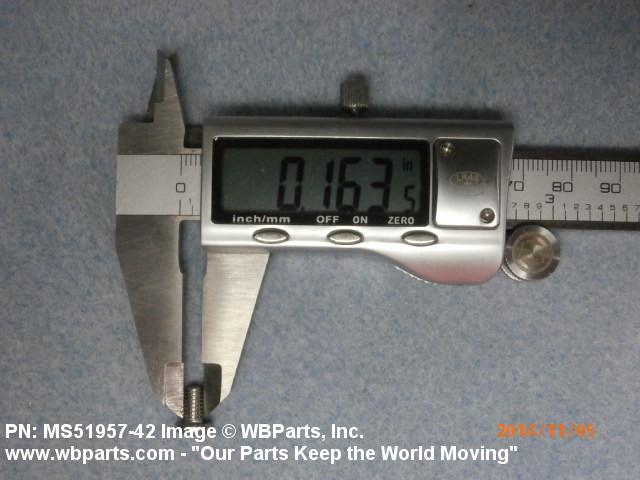

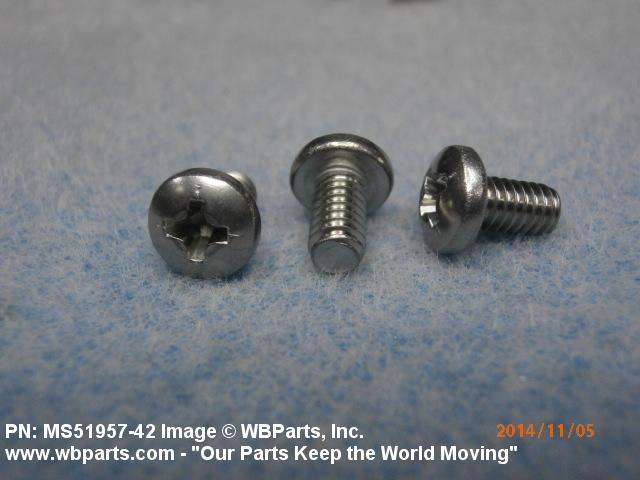

Drawings & Photos | NSN 5305-01-578-7546
Demand History | NSN 5305-01-578-7546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5195742 | 2025-04-91 | 20 | Japan |
| MS5195742 | 2023-12-352 | 26810 | United States |
| MS5195742 | 2023-12-348 | 26810 | United States |
| 5305-01-578-7546 | 2023-05-136 | 304 | DIBBS |
| MS5195742 | 2023-02-48 | 10 | US |
| 5305-01-578-7546 | 2022-11-319 | 506 | DIBBS |
| 5305-01-578-7546 | 2022-08-222 | 231 | DIBBS |
| MS5195742 | 2022-06-181 | 190 | United States |
| 5305-01-578-7546 | 2020-04-99 | 232 | DIBBS |
| MS5195742 | 2019-08-233 | 8 | United States |
| MS5195742 | 2019-07-182 | 4 | United States |
| MS5195742 | 2019-05-135 | 399 | US |
| 5305-01-578-7546 | 2019-05-128 | 8 | DIBBS |
| MS5195742 | 2016-08-222 | 25 | United States |
| MS5195742 | 2015-05-146 | 1600 | US |
| MS51957-42 | 2015-04-91 | 70 | Greece |
| MS51957-42 | 2014-09-271 | 100 | United States |
| MS5195742 | 2014-07-212 | 901 | US |
| MS51957-42 | 2014-07-199 | 100 | United States |
| MS5195742 | 2014-06-155 | 30 | United States |
| MS5195742 | 2012-06-177 | 4 | United States |
| MS5195742 | 2011-07-201 | 100 | TR |
| MS5195742 | 2008-09-247 | 184 | United States |
| MS5195742 | 2006-09-262 | 350 | United States |
Cross Reference | NSN 5305-01-578-7546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51957-42 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-578-7546
Technical Data | NSN 5305-01-578-7546
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | F-22 RAPTOR |
Restrictions/Controls & Freight Information | NSN 5305-01-578-7546
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-01-578-7546
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
