NSN 5305-01-585-9282 MS35307308, MS35307-308, B27143APART4
Product Details | HEXAGON HEAD CAP SCREW
5305-01-585-9282 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS35307308, MS35307-308, B27143APART4, B-27143-APART4, 5305-01-585-9282, 01-585-9282, 5305015859282, 015859282
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUN 2010 | 01-585-9282 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

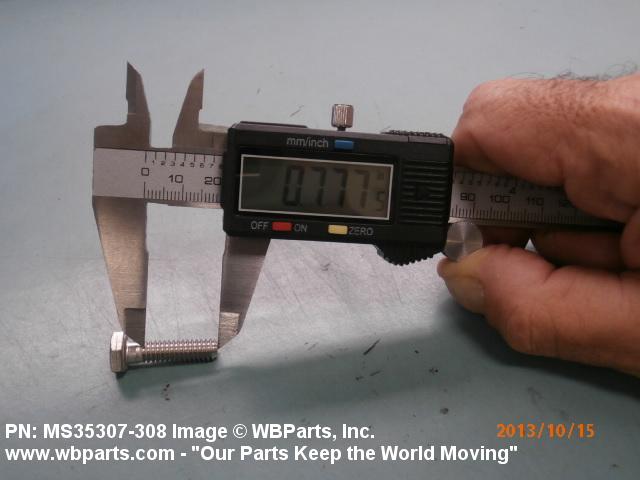

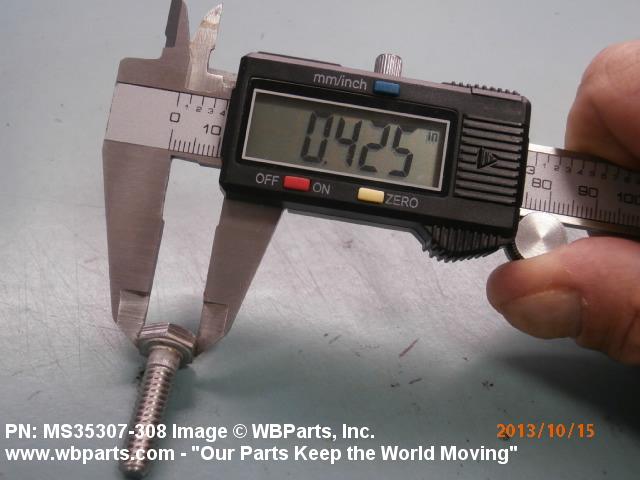

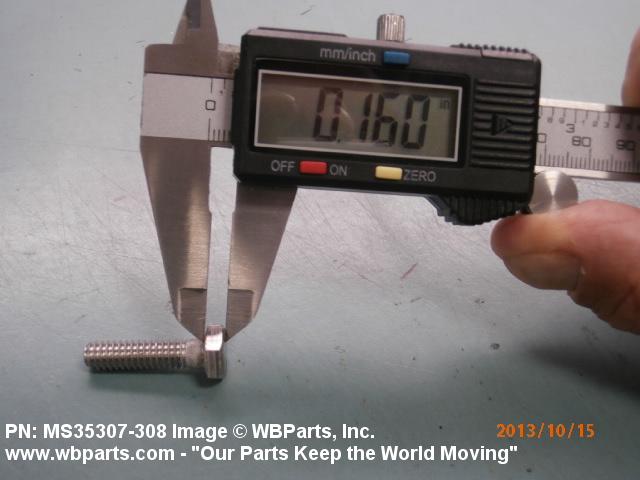

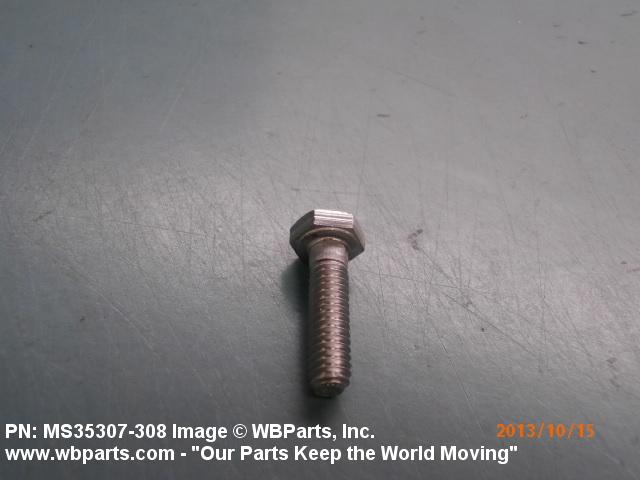

Drawings & Photos | NSN 5305-01-585-9282
Demand History | NSN 5305-01-585-9282
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS35307308 | 2023-11-310 | 2 | United States |
| MS35307-308 | 2023-06-170 | 15 | US |
| MS35307-308 | 2022-04-95 | 14 | |
| MS35307308 | 2021-04-118 | 50 | United States |
| MS35307308 | 2020-12-338 | 6 | United States |
| MS35307308 | 2017-07-201 | 12 | United States |
| MS35307308 | 2017-03-89 | 16 | United States |
| MS35307308 | 2016-11-321 | 160 | United States |
| MS35307-308 | 2014-03-71 | 46 | United States |
| MS35307308 | 2013-10-282 | 20 | United States |
| MS35307-308 | 2013-09-249 | 100 | |
| MS35307308 | 2012-06-166 | 12 | US |
| MS35307-308 | 2012-06-163 | 192 | India |
| MS35307308 | 2011-04-116 | 4 | us |
| MS35307308 | 2011-01-14 | 250 | India |
| MS35307308 | 2010-02-47 | 300 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-585-9282
Technical Data | NSN 5305-01-585-9282
| Characteristic | Specifications |
|---|---|
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| PRECIOUS MATERIAL | GOLD |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
Restrictions/Controls & Freight Information | NSN 5305-01-585-9282
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-01-585-9282
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
