NSN 5305-01-604-6143 P114128-.688-S-39, P114128688S39, 01-604-6143
Product Details | MACHINE SCREW
5305-01-604-6143 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: P114128-.688-S-39, P114128688S39, 5305-01-604-6143, 01-604-6143, 5305016046143, 016046143
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 APR 2012 | 01-604-6143 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-604-6143
Demand History | NSN 5305-01-604-6143
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P114128688S39 | 2023-03-75 | 22 | United States |
| P114128-.688-S-39 | 2020-11-309 | 1250 | DIBBS |
| P114128-.688-S-39 | 2020-09-268 | 250 | DIBBS |
| P114128-.688-S-39 | 2020-09-261 | 16 | DIBBS |
| P114128-.688-S-39 | 2020-09-253 | 50 | DIBBS |
| P114128-.688-S-39 | 2020-09-253 | 16 | DIBBS |
| P114128-.688-S-39 | 2020-09-245 | 50 | DIBBS |
| P114128-.688-S-39 | 2020-07-190 | 4 | DIBBS |
| P114128-.688-S-39 | 2020-06-182 | 4 | DIBBS |
| P114128-.688-S-39 | 2020-05-127 | 15 | DIBBS |
| P114128-.688-S-39 | 2020-04-119 | 15 | DIBBS |
| P114128-.688-S-39 | 2020-03-61 | 600 | DIBBS |
| P114128-.688-S-39 | 2019-03-72 | 100 | DIBBS |
Cross Reference | NSN 5305-01-604-6143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P114128-.688-S-39 | 51506 | ACCURATE SCREWMACHINE CORPORATION DBA A S M |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-604-6143
Technical Data | NSN 5305-01-604-6143
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |

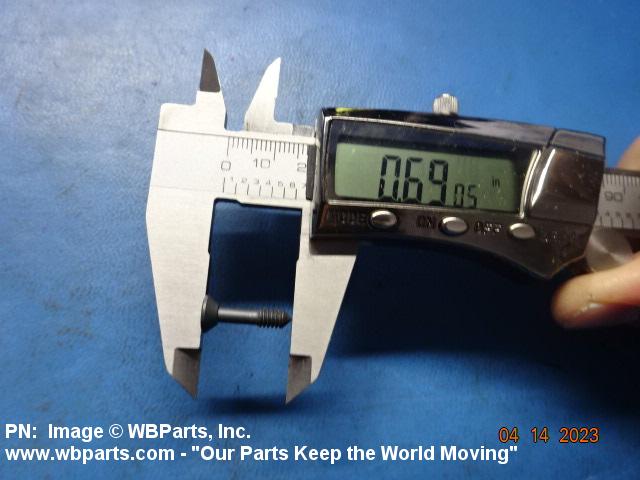

| FASTENER LENGTH | 0.688 INCHES NOMINAL |
| HEAD STYLE | FLAT COUNTERSUNK |

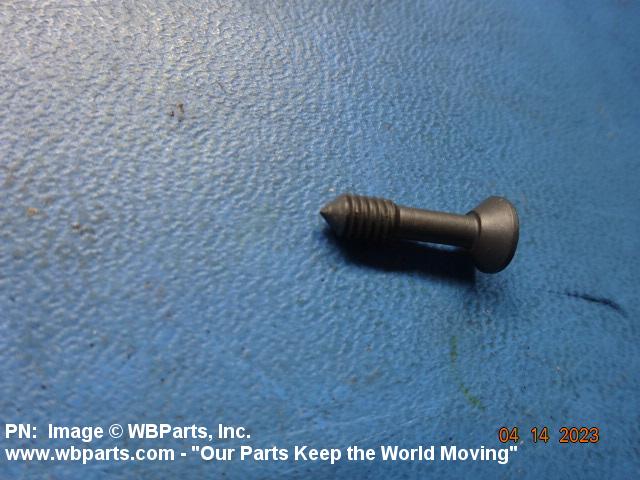

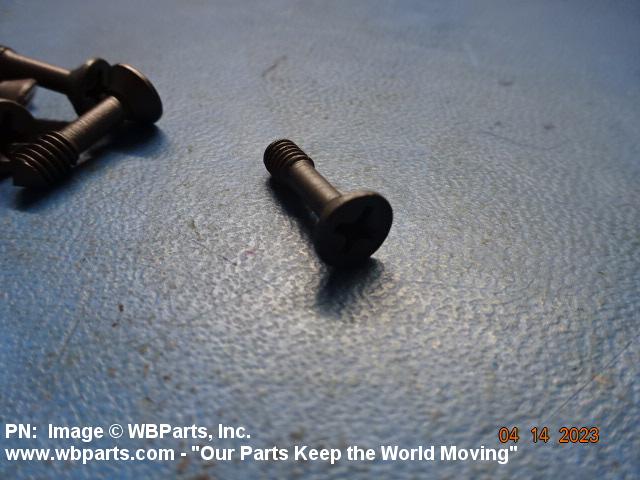

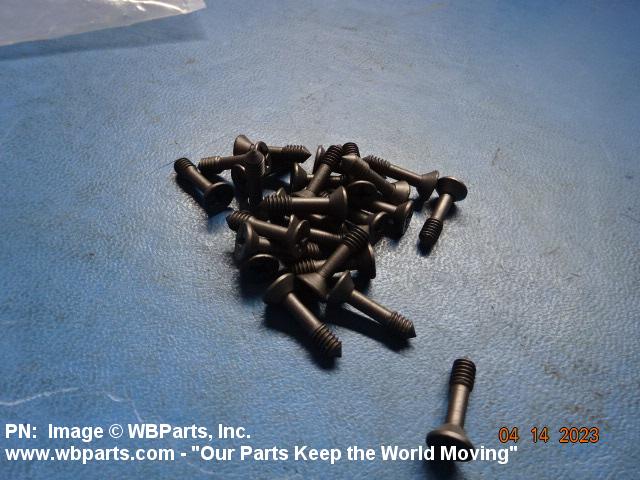

| PART NAME ASSIGNED BY CONTROLLING AGENCY | FLAT HEAD CAPTIVE MACHINE SCREW |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | FINISH LUBRICANT SOLID FILM ITEM HAS LEAD POINT |
| THREAD SERIES DESIGNATOR | UNC |
| SCREW MATERIAL | STEEL COMP 1018 |
| THREAD LENGTH | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |

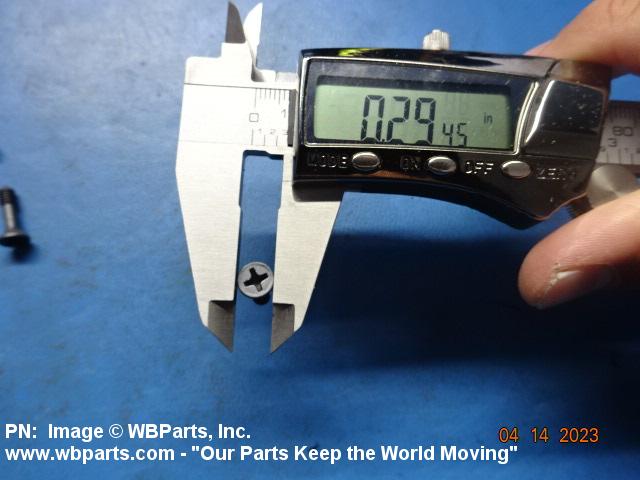

| HEAD DIAMETER | 0.292 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| THREAD CLASS | 2A |
| END ITEM IDENTIFICATION | MK 132MD 2 GUIDED MISSILE LCHR SHIPBD |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE III |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
Restrictions/Controls & Freight Information | NSN 5305-01-604-6143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-604-6143
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
