NSN 5305-20-001-6303 717671, 717-671, 836-01B-PL ITEM 41
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-20-001-6303 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 717671, 717-671, 836-01B-PL ITEM 41, 83601BPLITEM41, 5305-20-001-6303, 20-001-6303, 5305200016303, 200016303
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20-001-6303 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

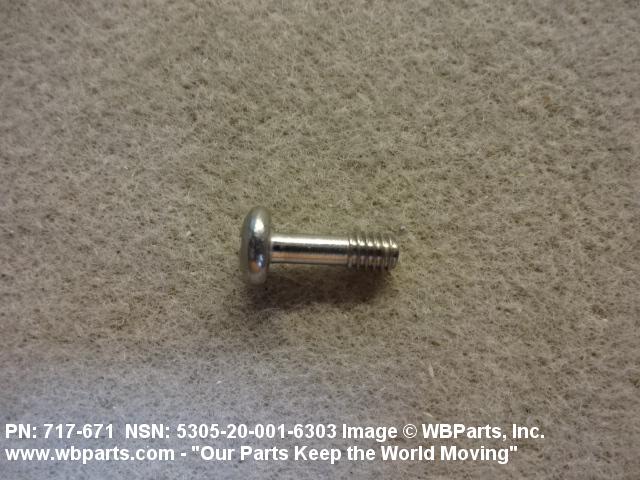

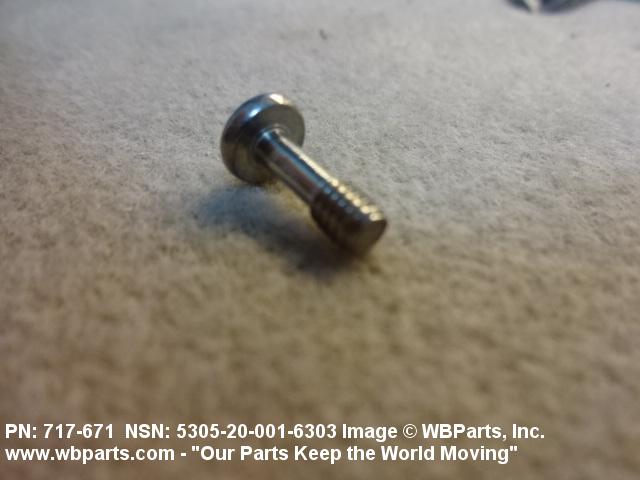

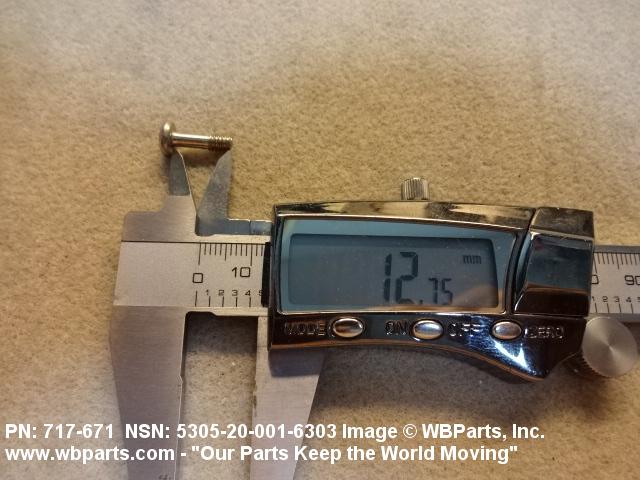

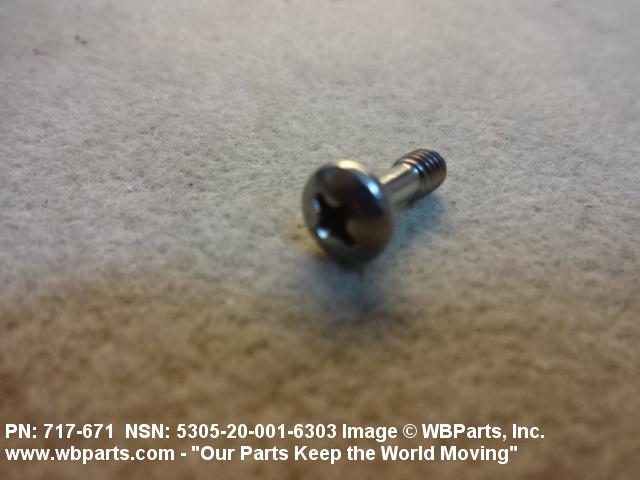

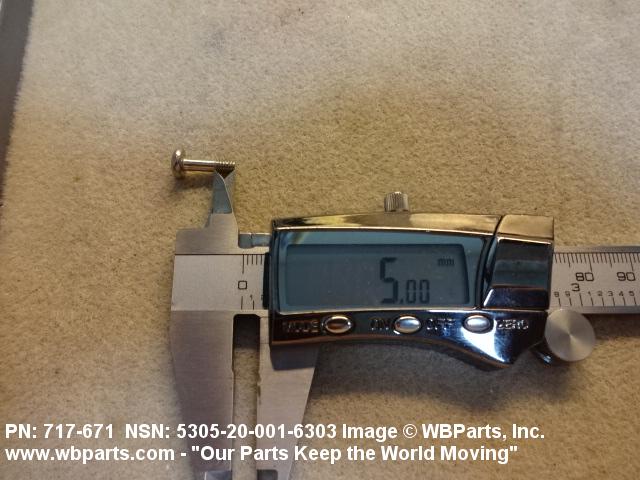

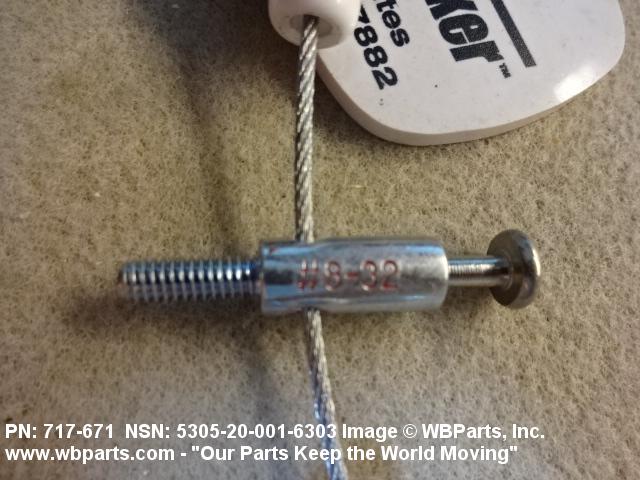

Drawings & Photos | NSN 5305-20-001-6303
Demand History | NSN 5305-20-001-6303
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 717-671 | 2022-09-255 | 279 | DIBBS |
| 836-01B-PL ITEM 41 | 2022-09-255 | 279 | DIBBS |
| 717-671 | 2021-05-143 | 835 | DIBBS |
| 836-01B-PL ITEM 41 | 2021-05-143 | 835 | DIBBS |
| 5305-20-001-6303 | 2019-03-78 | 1 | United States |
| 5305-20-001-6303 | 2012-11-333 | 207 | DIBBS |
| 5305-20-001-6303 | 2012-05-125 | 30 | DIBBS |
| 5305-20-001-6303 | 2012-05-122 | 53 | DIBBS |
| 5305-20-001-6303 | 2012-02-39 | 75 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-20-001-6303
Restrictions/Controls & Freight Information | NSN 5305-20-001-6303
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
