NSN 5306-00-007-2555 106845, 114RS3522, 114RS352-2
Product Details | SELF RETAINING BOLT
5306-00-007-2555
Part Alternates: 106845, 114RS3522, 114RS352-2, 5306-00-007-2555, 00-007-2555, 5306000072555, 000072555
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUL 1972 | 00-007-2555 | 77777 ( ) |

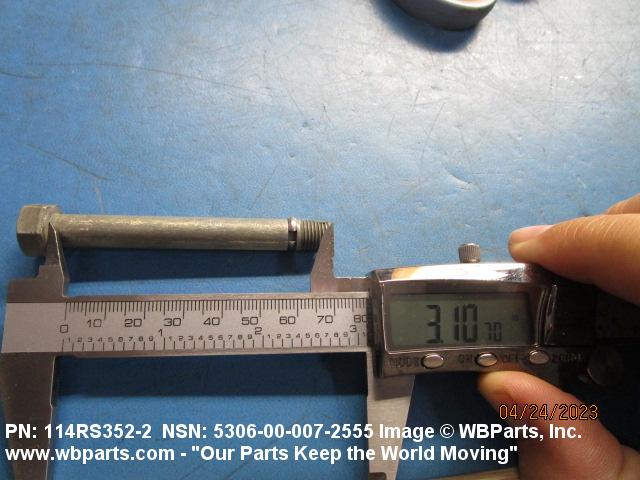

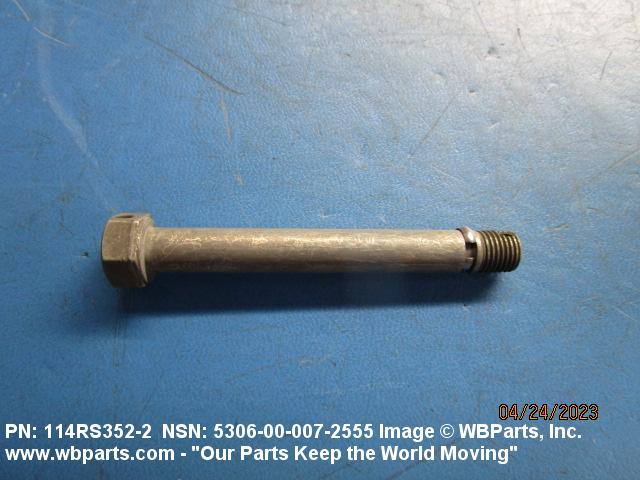

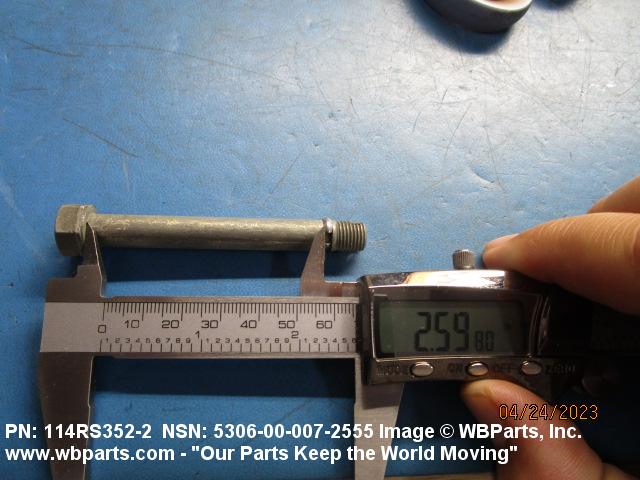

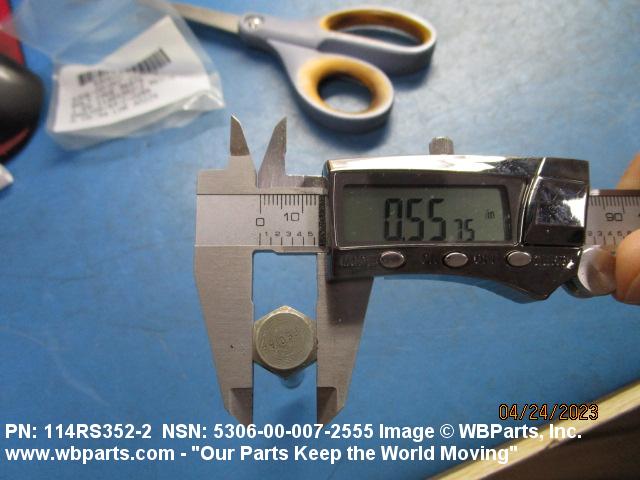

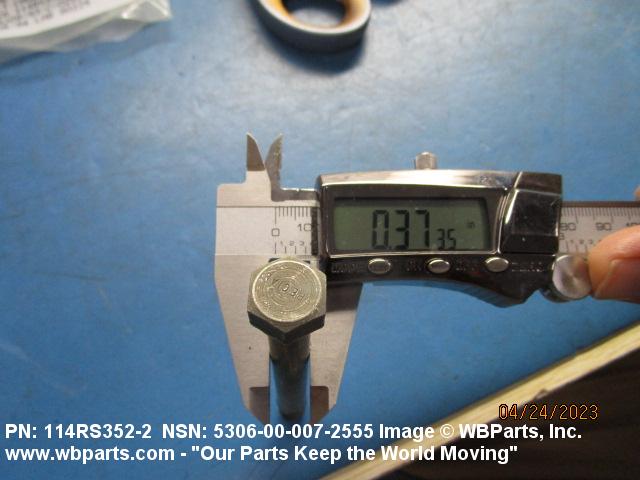

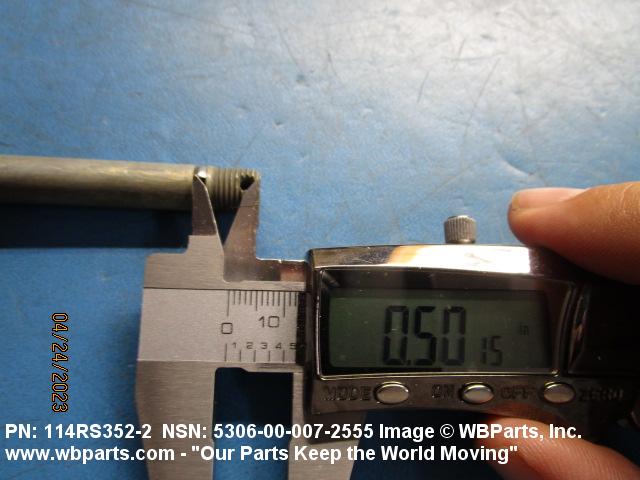

Drawings & Photos | NSN 5306-00-007-2555
Demand History | NSN 5306-00-007-2555
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-007-2555 | 2025-10-288 | 99 | US |
| 106845 | 2025-09-251 | 99 | DIBBS |
| 114RS352-2 | 2025-09-251 | 99 | DIBBS |
| 106845 | 2024-08-226 | 235 | DIBBS |
| 114RS352-2 | 2024-08-226 | 235 | DIBBS |
| 106845 | 2024-01-25 | 82 | DIBBS |
| 114RS352-2 | 2024-01-25 | 82 | DIBBS |
| 106845 | 2023-11-316 | 152 | DIBBS |
| 114RS352-2 | 2023-11-316 | 152 | DIBBS |
| 106845 | 2023-06-162 | 152 | DIBBS |
| 114RS352-2 | 2023-06-162 | 152 | DIBBS |
| 106845 | 2023-04-100 | 61 | DIBBS |
| 114RS3522 | 2023-03-83 | 2 | United States |
| 5306-00-007-2555 | 2019-04-105 | 4 | Singapore |
| 106845 | 2019-03-66 | 83 | DIBBS |
| 5306-00-007-2555 | 2018-09-254 | 200 | DIBBS |
| 5306-00-007-2555 | 2018-08-234 | 34 | DIBBS |
| 5306-00-007-2555 | 2018-05-121 | 370 | DIBBS |
| 5306-00-007-2555 | 2017-07-190 | 165 | DIBBS |
| 5306-00-007-2555 | 2017-04-106 | 204 | DIBBS |
| 5306-00-007-2555 | 2016-11-306 | 120 | DIBBS |
| 5306-00-007-2555 | 2016-09-257 | 109 | DIBBS |
| 5306-00-007-2555 | 2010-06-167 | 204 | DIBBS |
| 114RS3522 | 2009-07-210 | 145 | South Korea |
| 5306-00-007-2555 | 2009-07-210 | 145 | South Korea |
| 5306-00-007-2555 | 2009-07-204 | 70 | us |
| 5306-00-007-2555 | 2009-07-196 | 145 | Spain |
| 114RS3522 | 2009-07-194 | 145 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-007-2555
Related Products | NSN 5306-00-007-2555
Technical Data | NSN 5306-00-007-2555
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | THD DATA 3/8-24,UNJF,3A,RH,0.373 IN. MIN,0.397 IN. MAX LG,FASTENER LG 3.107 IN. MIN TO 3.127 IN. MAX,MATERIAL AND LOCATION BOLT STEEL MIL-S-5000 OR STEEL MIL-S-5626 OR STEEL MIL-S-6049 OR STEEL MIL-S-6758 OR STEEL MIL-S-8503,RETAINING ELEMENT CRES AMS 5643 17-4PH OR CRES AMS 5644 17-7PH OR CRES AMS 5673 17-7PH OR CRES QQ-S-763,CLASS 440C,SURFACE TREATMENT AND LOCATION BOLT CADMIUM,QQ-P-416,TYPE 2,CLASS 2,RETAINING ELEMENT PASSIVATE,QQ-P-35,METALLIC HARDNESS RATING ROCKWELL C 36 TO C41,HEAD STYLE HEX HEAD DIM 0.300 IN. MIN,0.320 IN. MAX H 0.553 IN. MIN,0.564 IN. MAX W BETWEEN FLATS,RETAINING FEATURE IMPEDENCE ELEMENT IN SHANK HEAD HOLE CONFIGURATION ONE HOLE DRILLED PERPENDICULAR TO FACE OF FLAT,HOLE DIM 0.136 IN. MIN,0.146 IN. MAX DIA,FINISHED HEAD,GRIP LG 2.594 IN. MIN,2.610 IN. MAX,GRIP DIA 0.3733 IN. MIN,0.3742 IN. MAX,MICROINCH FINISH AND LOCATION BEARING SURFACE OF HEAD AND GRIP 63,THD AND TOP OF HEAD 125 |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 114RS352-2 |
Restrictions/Controls & Freight Information | NSN 5306-00-007-2555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-007-2555
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
