NSN 5306-00-079-1532 MS956614, MS9566-14, 00-079-1532
Product Details | MACHINE BOLT
5306-00-079-1532 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS956614, MS9566-14, 5306-00-079-1532, 00-079-1532, 5306000791532, 000791532
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1967 | 00-079-1532 | 01847 ( BOLT, MACHINE ) |

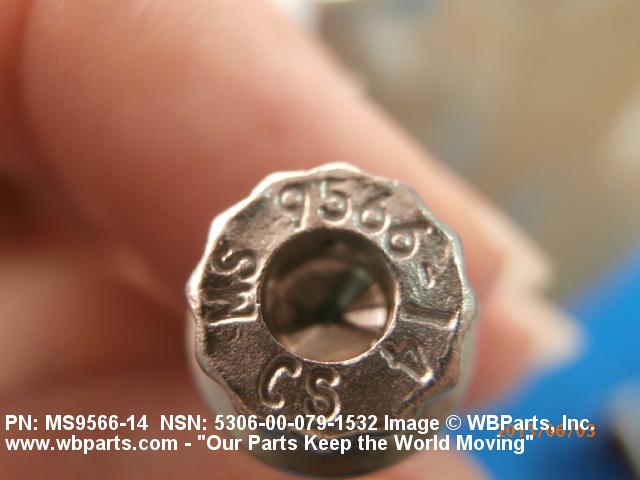

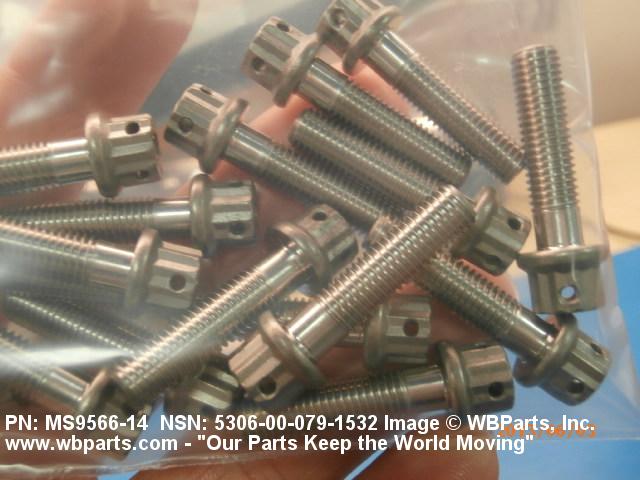

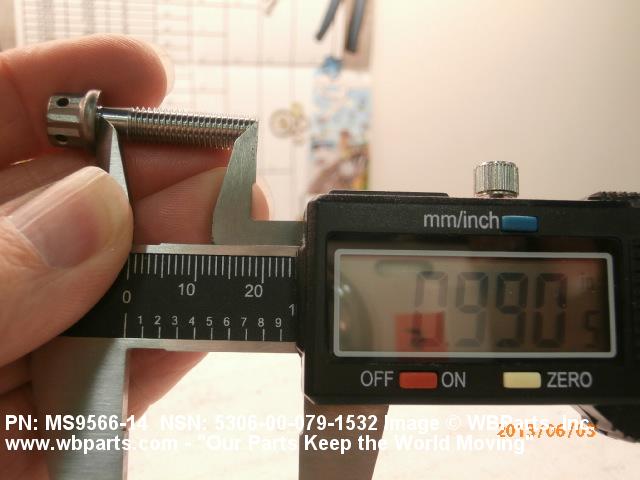

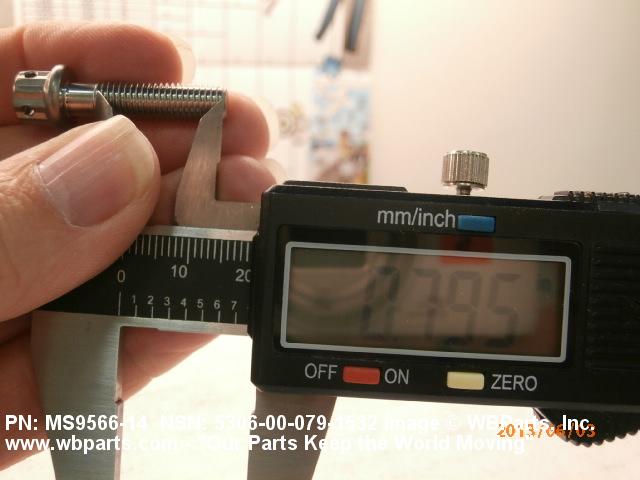

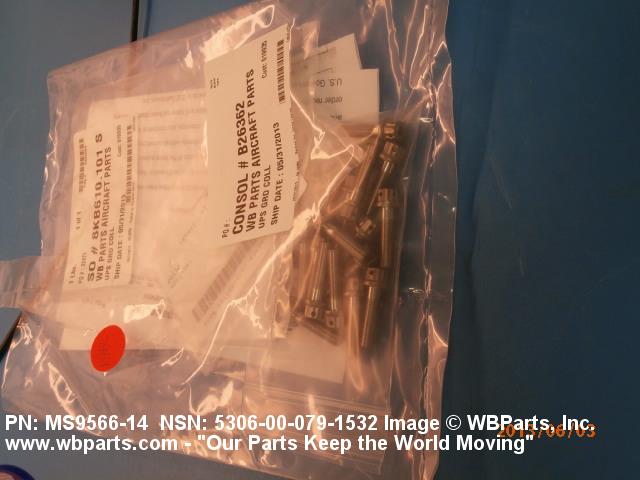

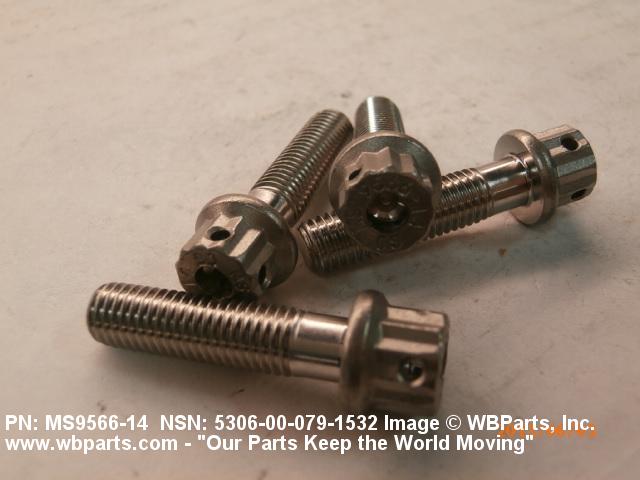

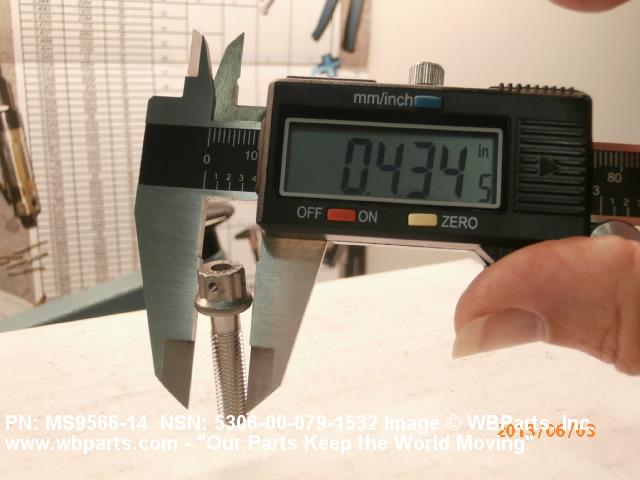

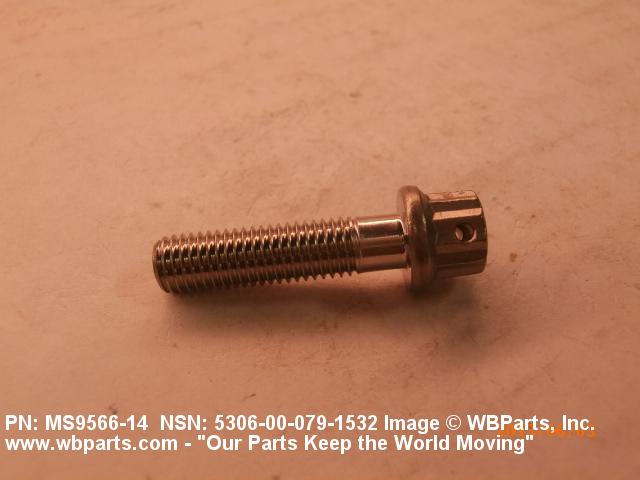

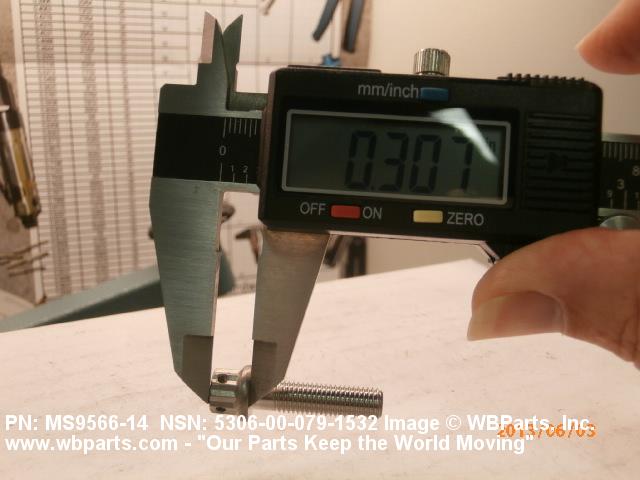

Drawings & Photos | NSN 5306-00-079-1532
Demand History | NSN 5306-00-079-1532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS956614 | 2024-11-306 | 140 | Japan |
| MS956614 | 2024-08-234 | 180 | Japan |
| MS956614 | 2024-07-206 | 8 | Japan |
| MS956614 | 2024-07-192 | 200 | Japan |
| MS956614 | 2024-07-185 | 180 | Japan |
| MS956614 | 2021-05-123 | 10 | United Kingdom |
| MS956614 | 2018-06-176 | 15 | United Kingdom |
| MS956614 | 2018-06-173 | 15 | United Kingdom |
| MS956614 | 2013-05-142 | 20 | United Kingdom |
| MS956614 | 2010-08-216 | 100 | US |
| MS956614 | 2010-01-19 | 16 | US |
Cross Reference | NSN 5306-00-079-1532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9566-14 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-079-1532
Technical Data | NSN 5306-00-079-1532
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | C8 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM YIELD STRENGTH | 85000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.300 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.438 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E1 DOUBLE HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.060 INCHES NOMINAL |
| GRIP LENGTH | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9566-14 |
Restrictions/Controls & Freight Information | NSN 5306-00-079-1532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
