NSN 5306-00-106-6321 MS955607, MS9556-07, J643P06A

Product Details | MACHINE BOLT

5306-00-106-6321 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: MS955607, MS9556-07, J643P06A, 10114156 , 5306-00-106-6321, 00-106-6321, 5306001066321, 001066321

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 AUG 1968	00-106-6321	01847 ( BOLT, MACHINE )

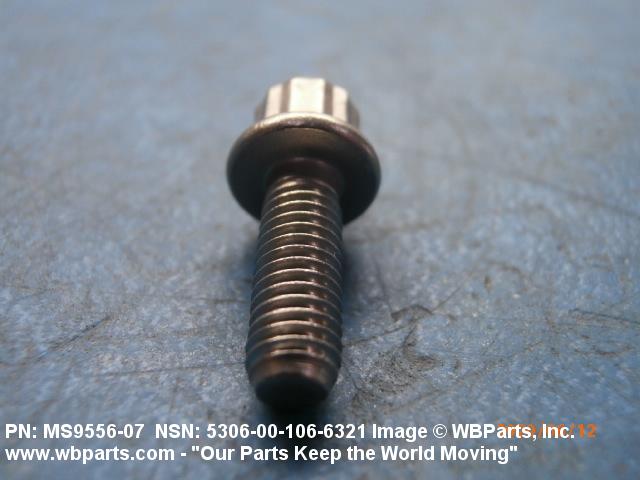

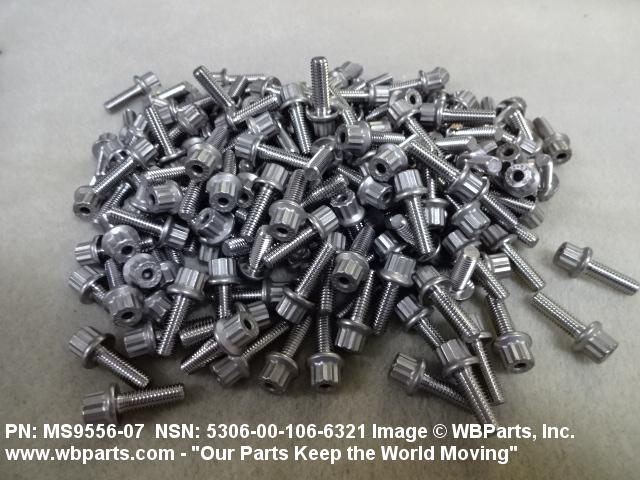

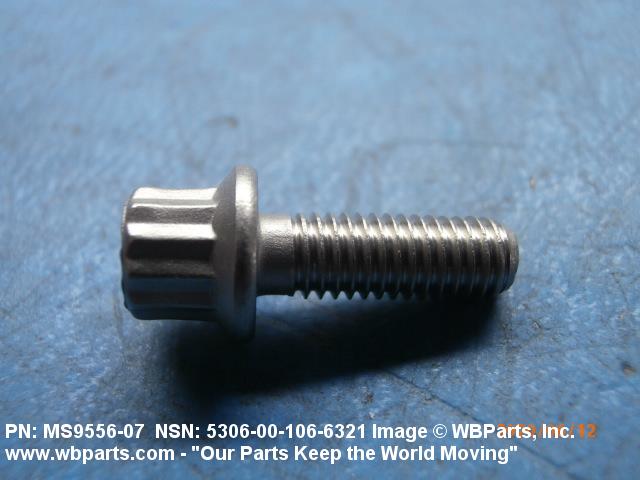

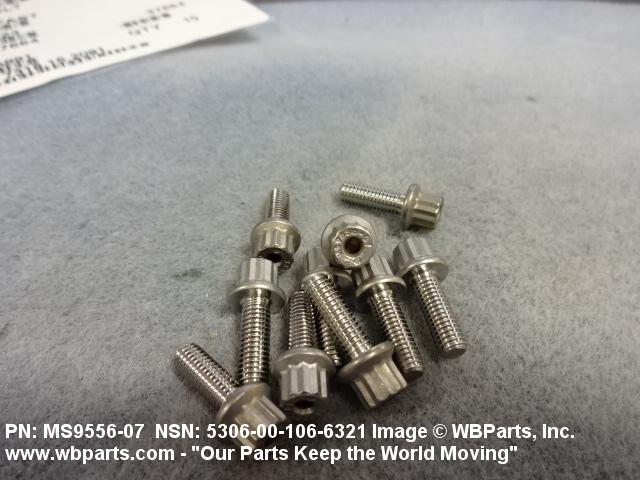

Drawings & Photos | NSN 5306-00-106-6321

Part Number	Request Date	QTY	Origin
MS955607	2025-04-104	1500	US
MS955607	2025-04-104	3000	US
MS955607	2025-04-92	10	Japan
J643P06A	2024-08-214	72	United Kingdom
J643P06A	2024-07-205	72	United Kingdom
J643P06A	2024-07-189	36	CN
J643P06A	2021-10-293	100	Taiwan
MS955607	2020-06-171	20	United States
J643P06A	2020-06-163	2	United States
J643P06A	2020-06-161	2	United States
MS955607	2020-06-161	200	United States
J643P06A	2019-11-323	6	TH
J643P06A	2018-05-135	3	FX
5306-00-106-6321	2017-02-40	1	DIBBS-RFPs
5306-00-106-6321	2016-05-136	6773	DIBBS
5306-00-106-6321	2015-07-182	34914	DIBBS
MS955607	2013-08-231	20	United Kingdom
MS9556-07	2013-05-134	50	CZ
MS955607	2013-02-56	14625	United States
MS9556-07	2012-06-158	40
MS9556-07	2012-05-126	40
5306-00-106-6321	2011-04-102	100	US
5306-00-106-6321	2011-04-98	40	United States
MS955607	2010-11-314	100	United States
5306-00-106-6321	2010-03-65	10	Saudi Arabia
5306-00-106-6321	2008-10-291	1	US

Cross Reference | NSN 5306-00-106-6321

Part Number	Cage Code	Manufacturer
J643P06A	58828	CFM INTERNATIONAL, INC.
MS9556-07	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-106-6321

Compare

Related Products | NSN 5306-00-106-6321

5306-00-106-6525, 5306-00-106-6534, 5306-00-106-6535, 5306-00-106-6538, 5306-00-106-6539

Technical Data | NSN 5306-00-106-6321

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

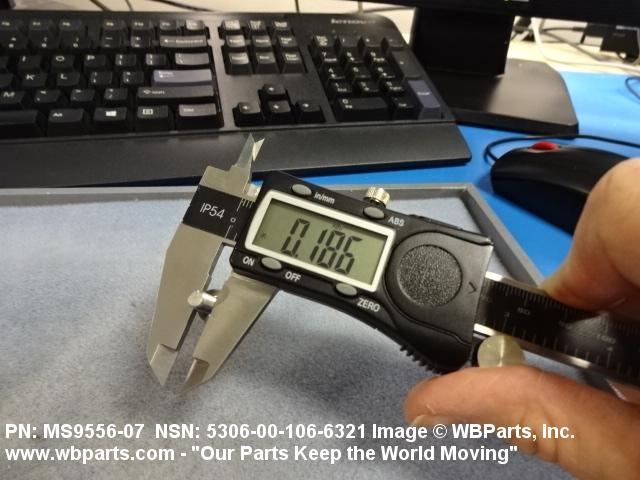

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

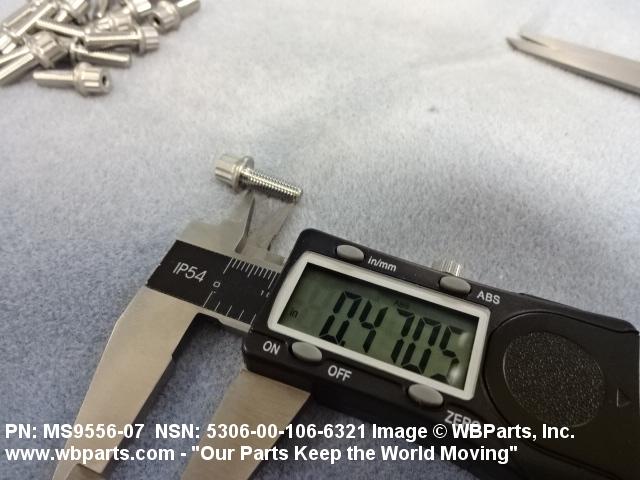

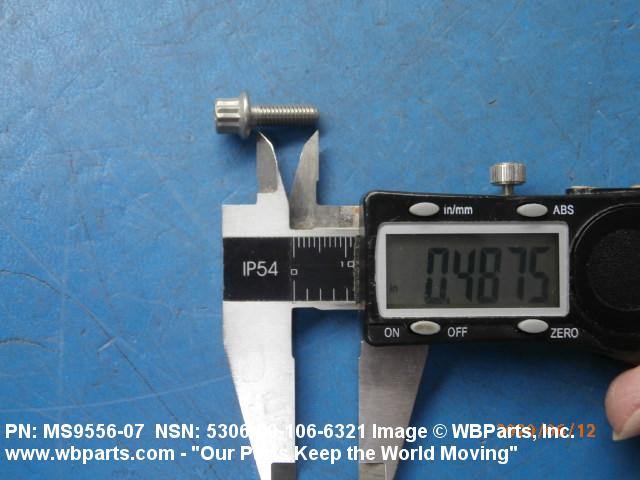

THREAD LENGTH	0.470 INCHES MINIMUM AND 0.490 INCHES MAXIMUM

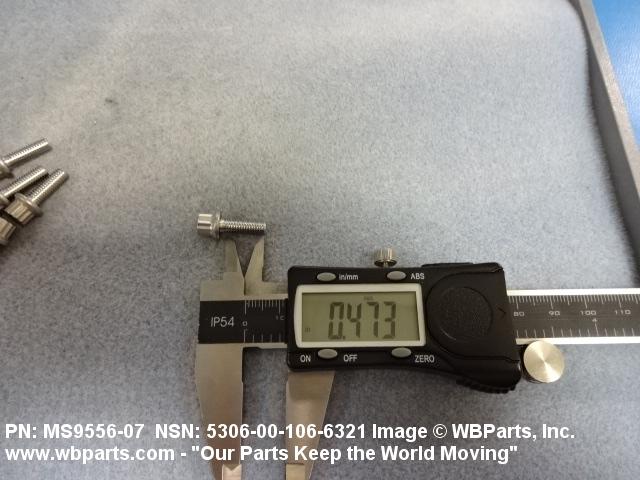

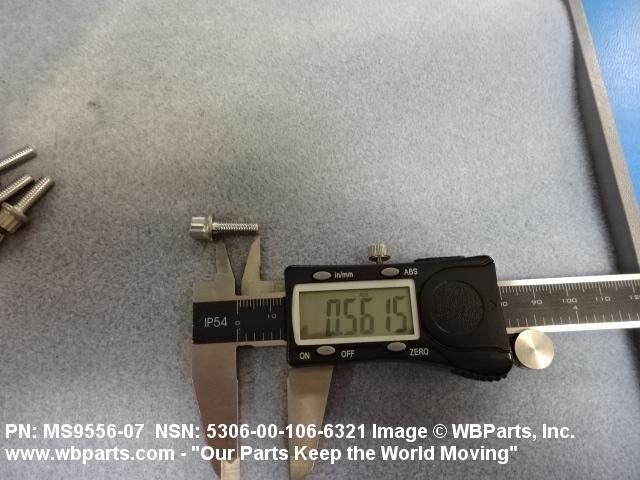

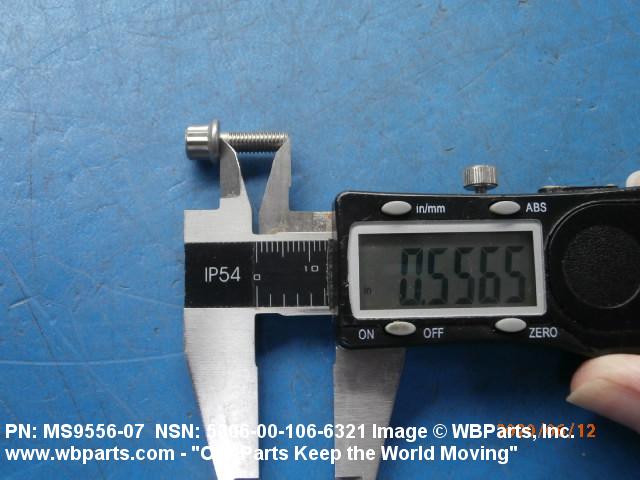

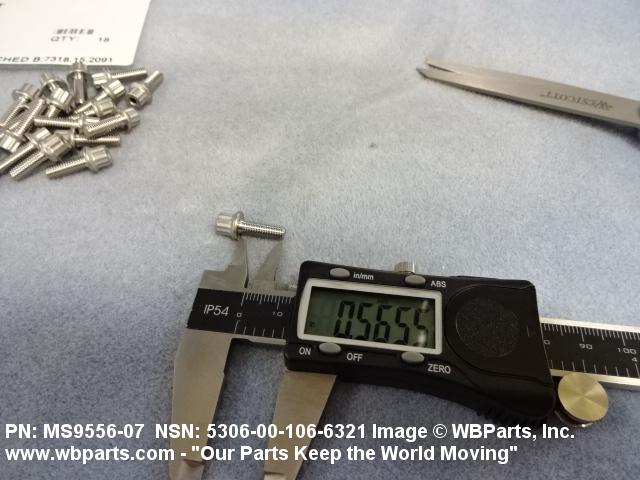

FASTENER LENGTH	0.562 INCHES NOMINAL
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	248.0 BRINELL STANDARD MINIMUM AND 341.0 BRINELL STANDARD MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	130000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	85000 POUNDS PER SQUARE INCH

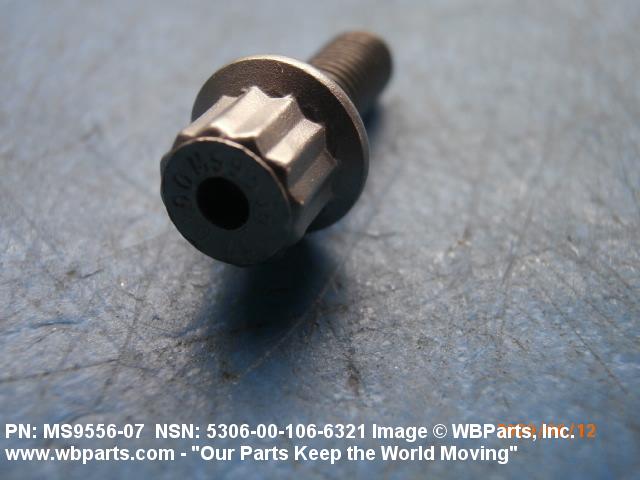

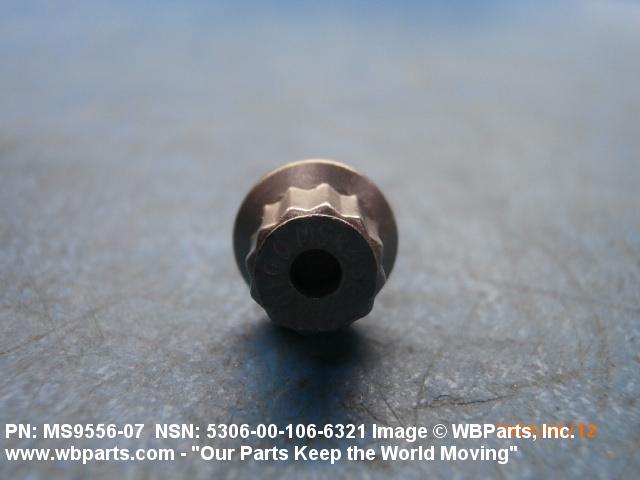

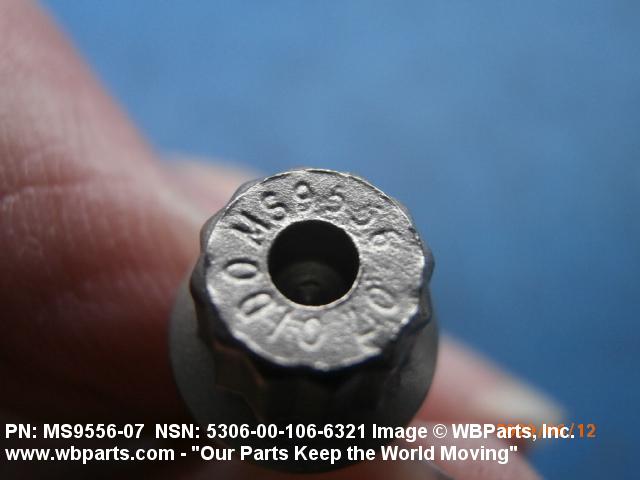

HEAD STYLE	C10 DOUBLE HEXAGON WITH HOLE

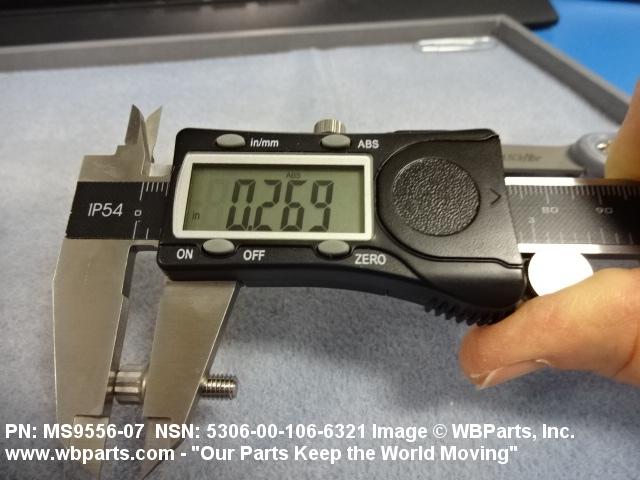

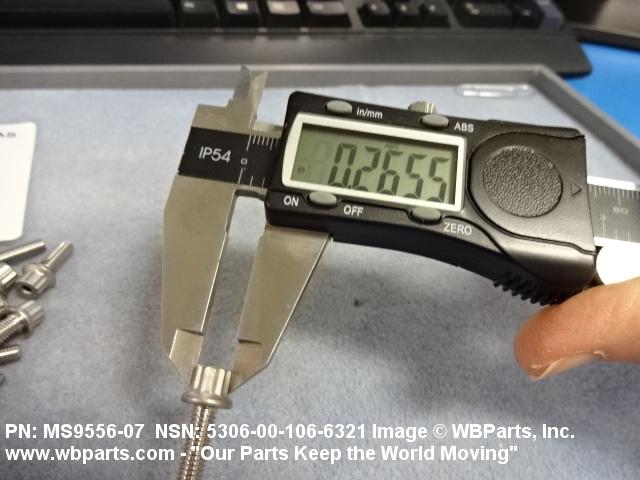

HEAD HEIGHT	0.260 INCHES NOMINAL

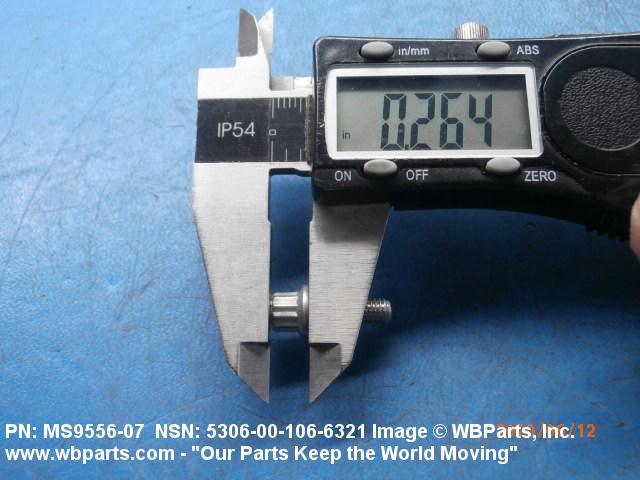

WIDTH BETWEEN FLATS	0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM

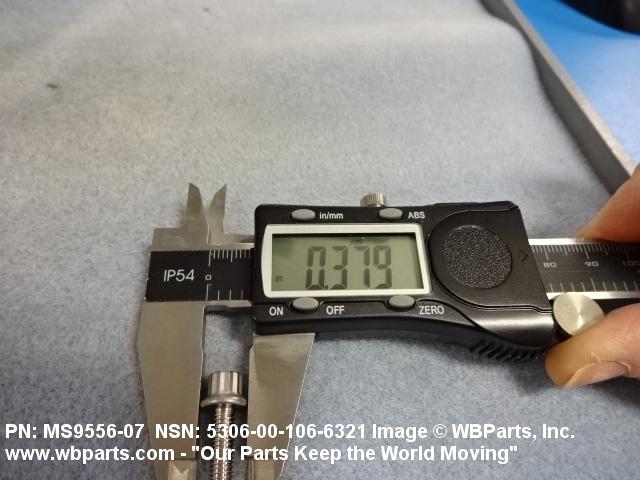

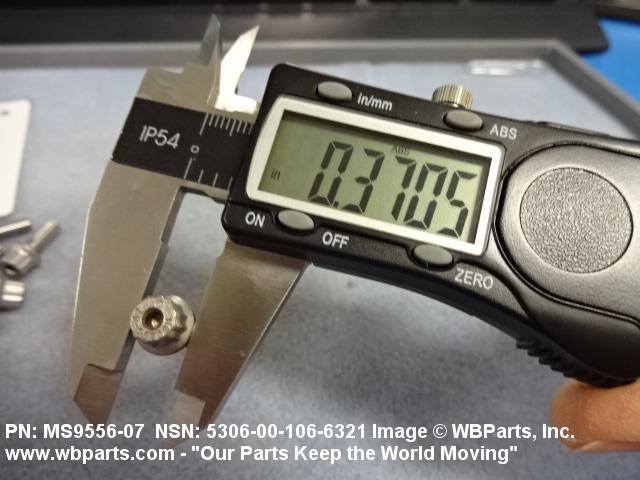

EXTENDED WASHER DIAMETER	0.375 INCHES NOMINAL
EXTENDED WASHER THICKNESS	0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM

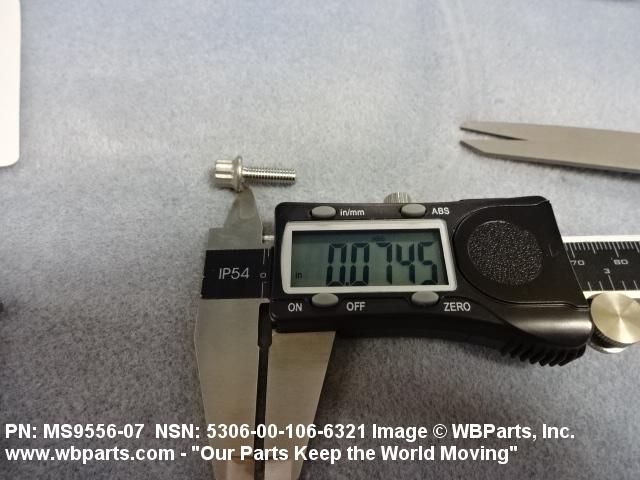

GRIP LENGTH	0.072 INCHES MINIMUM AND 0.092 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS9556-07

Restrictions/Controls & Freight Information | NSN 5306-00-106-6321

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-106-6321

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
