NSN 5306-00-121-8846 MS27576415, MS27576-4-15, AS194415
Product Details | CLOSE TOLERANCE BOLT
5306-00-121-8846 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: MS27576415, MS27576-4-15, AS194415, AS194-4-15, CA4510415, CA4510-4-15, CIPRDMS27576415R, CIPRD-MS27576-4-15R, 106467-4-15, 5306-00-121-8846, 00-121-8846, 5306001218846, 106467415, 001218846
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 OCT 1968 | 00-121-8846 | 27851 ( BOLT, CLOSE TOLERANCE ) |

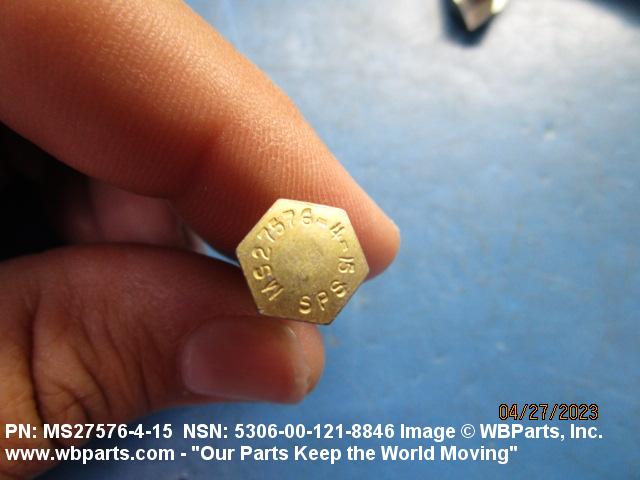

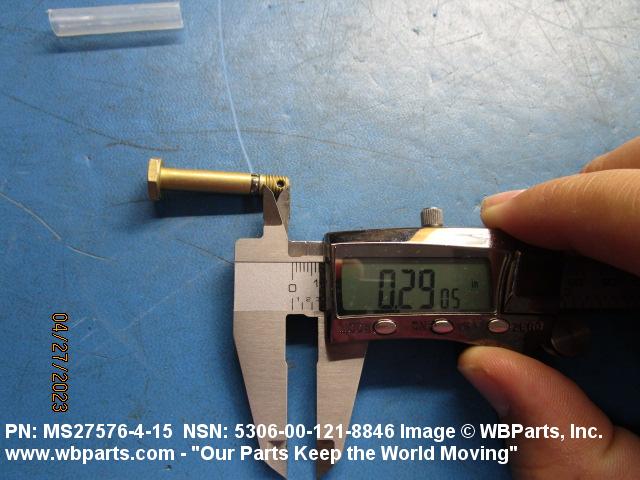

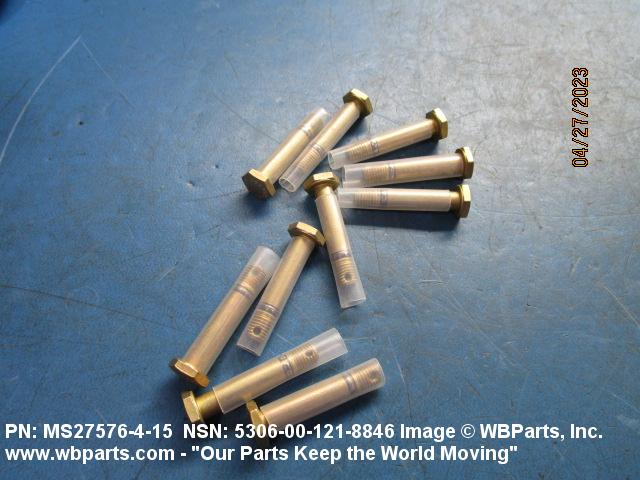

Drawings & Photos | NSN 5306-00-121-8846
Demand History | NSN 5306-00-121-8846
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS27576-4-15 | 2025-07-210 | 900 | DIBBS |
| MS27576-4-15R | 2025-07-210 | 900 | DIBBS |
| MS27576-4-15 | 2025-02-56 | 900 | DIBBS |
| MS27576-4-15R | 2025-02-56 | 900 | DIBBS |
| MS27576-4-15 | 2024-09-253 | 716 | DIBBS |
| MS27576-4-15R | 2024-09-253 | 716 | DIBBS |
| MS27576-4-15R | 2023-12-355 | 822 | DIBBS |
| MS27576-4-15R | 2023-11-330 | 718 | DIBBS |
| MS27576-4-15R | 2023-09-253 | 718 | DIBBS |
| MS27576415 | 2023-04-103 | 10 | Canada |
| 5306-00-121-8846 | 2018-02-53 | 2700 | DIBBS |
| 5306-00-121-8846 | 2018-02-35 | 872 | DIBBS |
| 5306-00-121-8846 | 2017-10-295 | 1069 | DIBBS |
| 5306-00-121-8846 | 2017-09-269 | 809 | DIBBS |
| 5306-00-121-8846 | 2017-07-204 | 1249 | DIBBS |
| 5306-00-121-8846 | 2017-03-85 | 809 | DIBBS |
| 5306-00-121-8846 | 2016-10-286 | 840 | DIBBS |
| 5306-00-121-8846 | 2016-04-108 | 1500 | DIBBS |
| 5306-00-121-8846 | 2016-03-87 | 659 | DIBBS |
| 5306-00-121-8846 | 2015-11-312 | 524 | DIBBS |
| 5306-00-121-8846 | 2015-05-137 | 1006 | DIBBS |
| CIPRDMS27576415R | 2013-09-262 | 7 | United States |
| MS27576415 | 2013-08-226 | 1 | United States |
| 5306-00-121-8846 | 2013-06-157 | 2 | United States |
| MS27576-4-15 | 2012-02-33 | 15 | US |
| 5306-00-121-8846 | 2011-06-175 | 1464 | DIBBS |
| 5306-00-121-8846 | 2010-12-357 | 1581 | DIBBS |
Cross Reference | NSN 5306-00-121-8846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106467-4-15 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| AS194-4-15 | 84256 | AVIBANK MFG., INC. |
| AS194-4-15 | R1120 | SATAIR A/S |
| CA4510-4-15 | 27372 | LINCOLN ELECTRIC CO THE HARRIS CALORIFIC DIV |
| CIPRD-MS27576-4-15R | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
| MS27576-4-15 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS27576-4-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-121-8846
Related Products | NSN 5306-00-121-8846
Technical Data | NSN 5306-00-121-8846
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.282 INCHES MINIMUM AND 0.333 INCHES MAXIMUM |
| FASTENER LENGTH | 1.356 INCHES MINIMUM AND 1.376 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C3 DISHED HEXAGON |

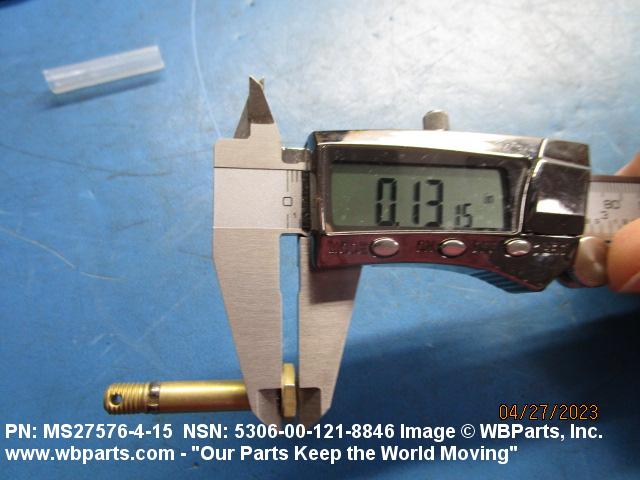

| HEAD HEIGHT | 0.126 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |

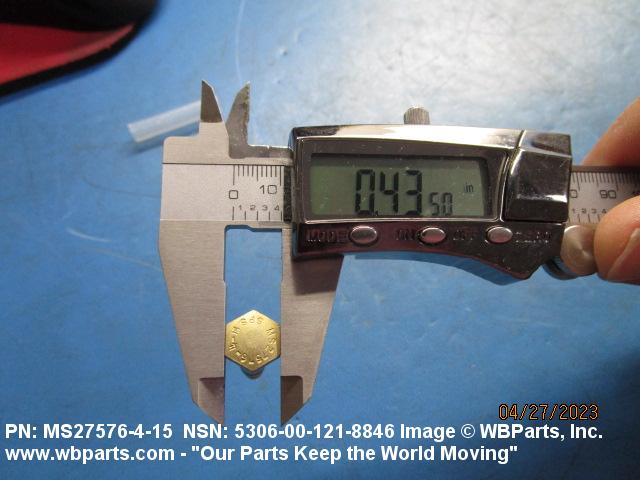

| WIDTH BETWEEN FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| GRIP LENGTH | 0.538 INCHES MINIMUM AND 0.954 INCHES MAXIMUM |

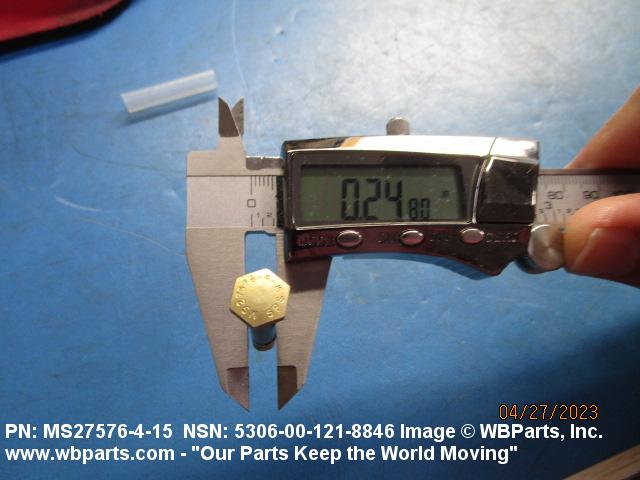

| GRIP DIAMETER | 0.2483 INCHES MINIMUM AND 0.2492 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.256 INCHES MINIMUM AND 1.286 INCHES MAXIMUM FIRST HOLE |

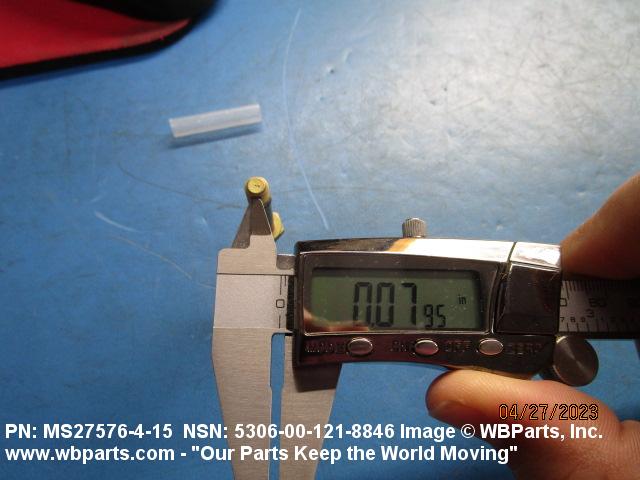

| SHANK UNTHREADED HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM FIRST HOLE |
| SPECIAL FEATURES | DETENT RING IN SHANK |
Restrictions/Controls & Freight Information | NSN 5306-00-121-8846
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-121-8846
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
