NSN 5306-00-150-9221 AN33A, AN3-3A, AN542A

Product Details | MACHINE BOLT

5306-00-150-9221 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN33A, AN3-3A, AN542A, AN5-42A , Z00.N5101301003, Z00N5101301003, 932.19.21.025, 9321921025, 2010083, 3260707, 326-0707, 326-0707-00, 5306-00-150-9221, 00-150-9221, 5306001509221, 001509221, 326070700

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-150-9221	01847 ( BOLT, MACHINE )

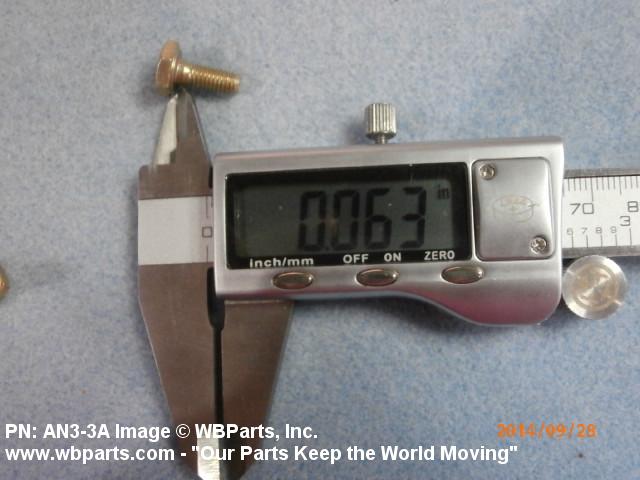

Drawings & Photos | NSN 5306-00-150-9221

Part Number	Request Date	QTY	Origin
AN33A	2025-11-318	1000	PK
AN33A	2025-07-197	1500	United States
AN542A	2025-07-188	300	US
AN542A	2025-04-101	20	Hong Kong
AN33A	2024-11-309	1000	United States
AN33A	2024-09-253	60	United States
5306-00-150-9221	2024-08-218	6	AE
5306-00-150-9221	2024-08-215	200	AE
AN33A	2024-07-198	50	US
AN33A	2024-07-194	1200	United States
AN542A	2024-04-101	5	US
AN33A	2024-01-25	1000	United States
AN33A	2023-11-319	3	US
AN33A	2023-10-286	89	Turkey
AN33A	2023-10-284	151	US
AN33A	2023-08-216	2000	United States
AN33A	2023-07-202	3	CA
AN33A	2023-03-69	100	US
AN33A	2023-02-48	10	US
AN542A	2020-06-181	100	United States
AN33A	2019-02-37	500	United States
AN33A	2018-02-57	50	United States
AN33A	2018-02-37	50	China
AN33A	2017-10-297	100	United Arab Emirates
AN33A	2017-03-79	4	United States
5306-00-150-9221	2016-06-158	965	DIBBS
AN33A	2016-05-131	3000	Egypt
AN3-3A	2016-04-96	200	Romania
AN33A	2016-04-95	1	BR
AN33A	2016-01-22	350	us
AN3-3A	2015-11-315	30
AN33A	2015-07-208	50	UM
AN33A	2015-07-208	50	UM
AN33A	2015-07-191	100	United States
AN3-3A	2015-05-138	8	United States
AN3-3A	2015-05-138	8	United States
AN3-3A	2015-03-78	5000	United States
AN3-3A	2015-03-71	25	US
AN33A	2015-03-63	100	US
AN33A	2014-11-307	100	US
AN542A	2014-10-287	200	United States
AN542A	2014-10-286	200	Netherlands
AN3-3A	2014-05-142	5000	United States
AN5-42A	2014-05-142	1000	United States
AN3-3A	2013-11-322	20	Belgium
AN542A	2013-08-224	52	US
AN33A	2013-07-205	35	Singapore
AN33A	2013-07-199	200	United States
5306-00-150-9221	2013-05-137	4	VE
AN33A	2012-12-346	300	Switzerland
AN33A	2012-12-344	300	Switzerland
9321921025	2012-11-314	16	Indonesia
AN3-3A	2012-11-310	50
AN3-3A	2011-08-223	20	Hong Kong
AN33A	2011-01-14	45	US
AN542A	2011-01-09	1	FR
AN33A	2009-05-138	87	China
5306-00-150-9221	2008-11-319	20	US
5306-00-150-9221	2008-11-309	15	US
5306-00-150-9221	2008-03-64	4500	DIBBS
AN33A	2008-03-63	250	Sri Lanka
5306-00-150-9221	2008-01-24	100	US

Cross Reference | NSN 5306-00-150-9221

Part Number	Cage Code	Manufacturer
2010083	001JK	EMBRAER S/A
2010083	FB459	EMBRAER AVIATION INTERNATIONAL
2010083	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
326-0707	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
326-0707-00	0FYH3	SPS TECHNOLOGIES INC RESEARCH AND DEVELOPMENT LABORATORY
5306001509221	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
932.19.21.025	S4080	PILATUS AIRCRAFT LTD
AN3-3A	1WL60	LOCKHEED MARTIN SERVICES, INC.
AN3-3A	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
AN3-3A	74703	LOCKHEED MARTIN AERONAUTICAL SYSTEMS SUPPORT COMPANY
AN3-3A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN3-3A	9M264	GFC INDUSTRIES INC
AN3-3A	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
Z00.N5101301003	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-150-9221

Compare

Related Products | NSN 5306-00-150-9221

5306-00-150-9231, 5306-00-150-9232, 5306-00-150-9233, 5306-00-150-9234, 5306-00-150-9235

Technical Data | NSN 5306-00-150-9221

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

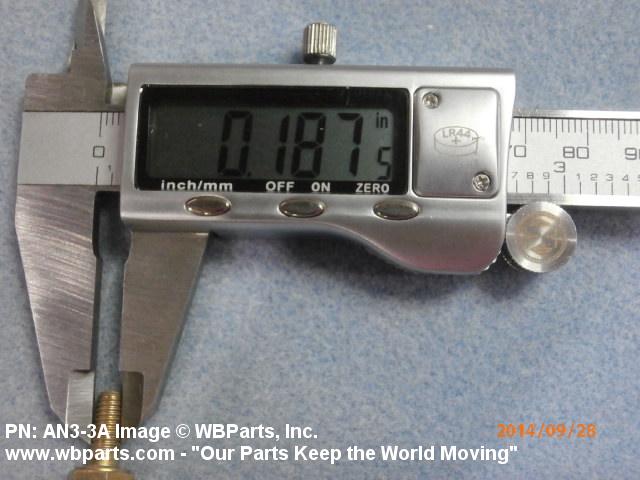

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.406 INCHES MAXIMUM
FASTENER LENGTH	0.453 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL	STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 4TH MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	1690 POUNDS PER SQUARE INCH
HEAD STYLE	C3 DISHED HEXAGON
HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

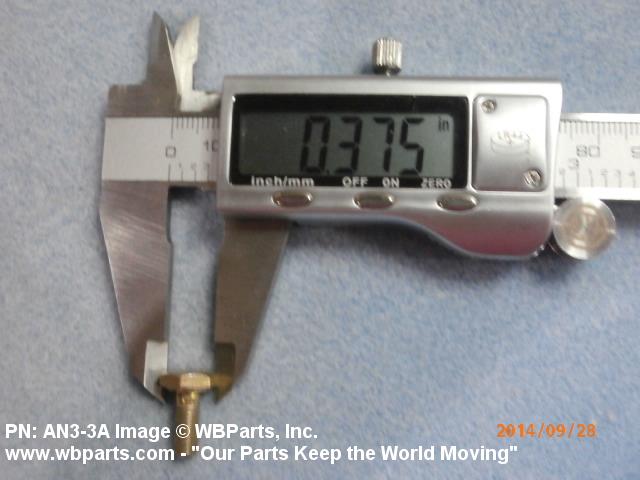

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
GRIP LENGTH	0.047 INCHES MINIMUM AND 0.078 INCHES MAXIMUM
FEATURES PROVIDED	CASEHARDENED AND FINISHED HEAD
SPECIAL FEATURES	MARK NON-CORROSION RESISTANT STEEL BOLTS WITH X ON TOP OF HEAD
TEST DATA DOCUMENT	88044-AN3-3A SPECIFICATION
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN3-3A

Restrictions/Controls & Freight Information | NSN 5306-00-150-9221

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-150-9221

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
