NSN 5306-00-151-0526 AN2424, AN24-24, 00-151-0526
Product Details | CLEVIS BOLT
5306-00-151-0526 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: AN2424, AN24-24, 5306-00-151-0526, 00-151-0526, 5306001510526, 001510526
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-0526 | 06662 ( BOLT, CLEVIS ) |

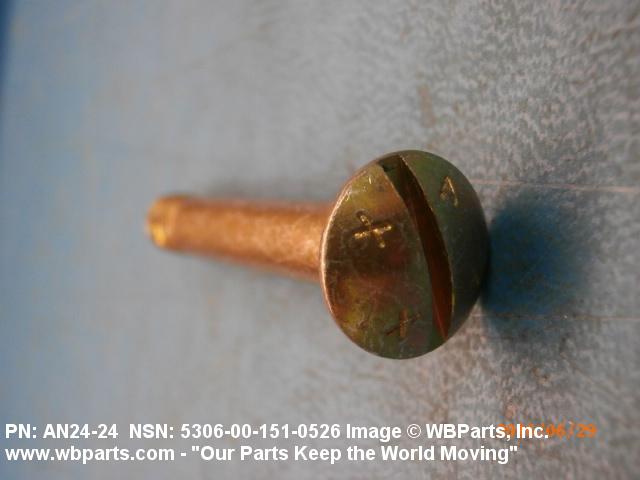

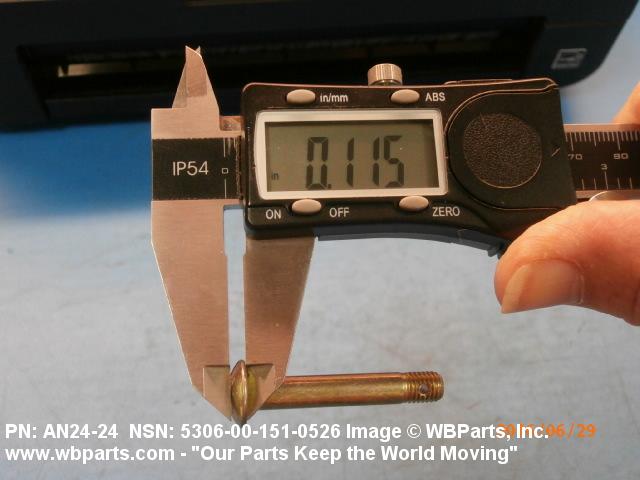

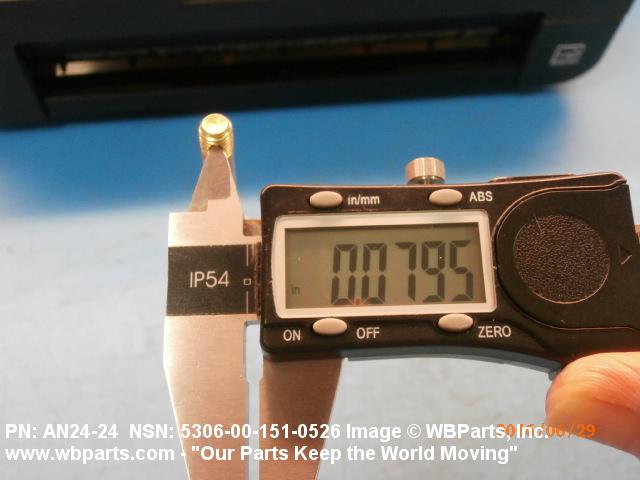

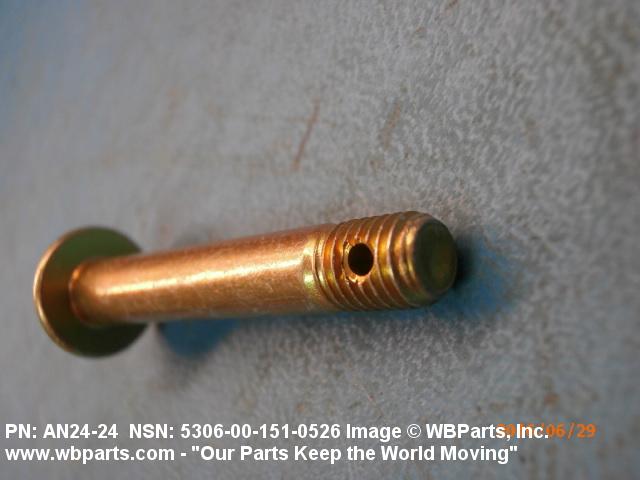

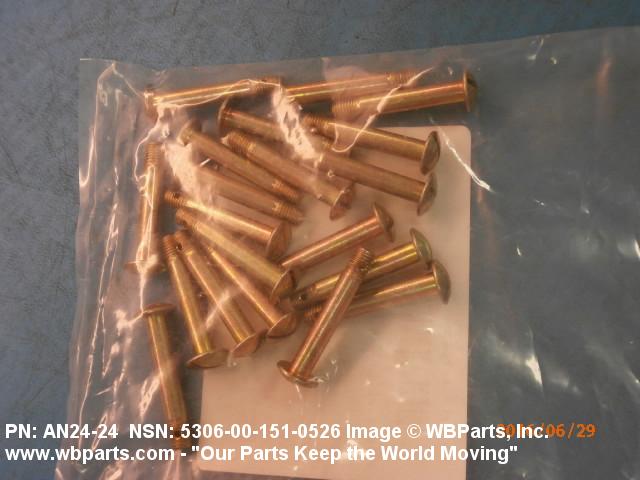

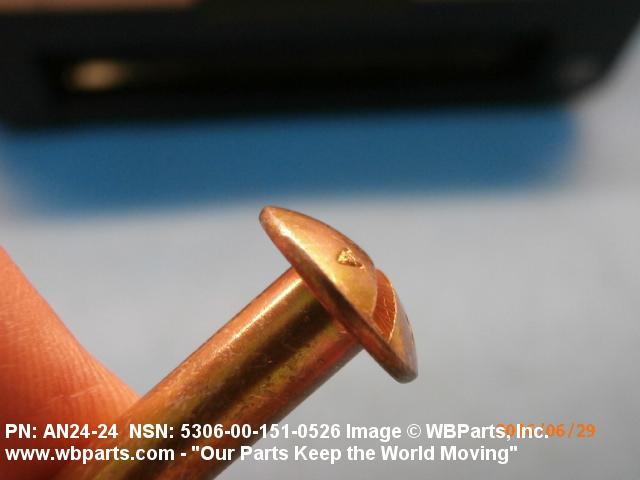

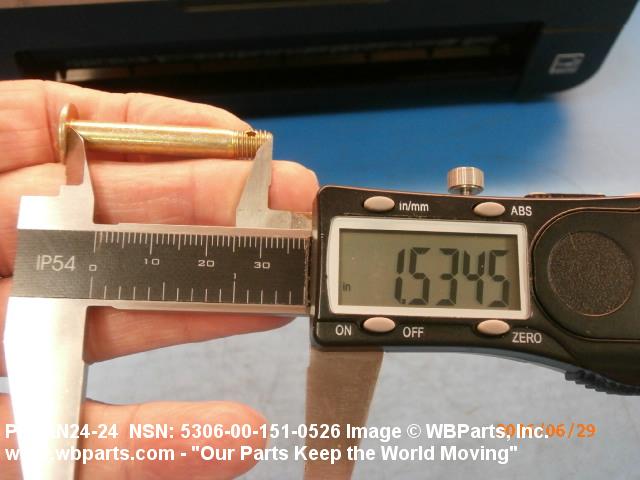

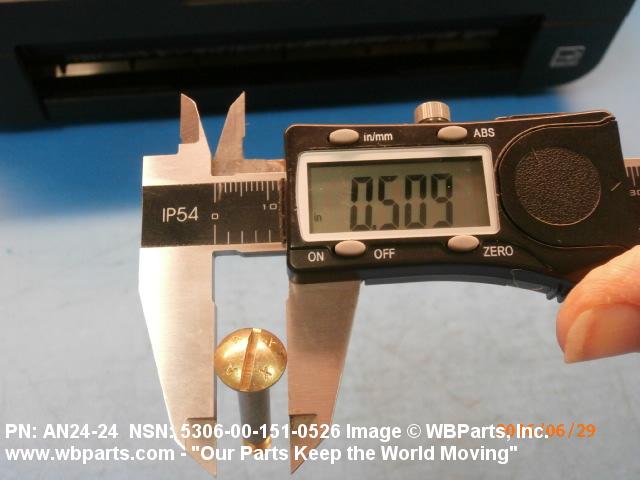

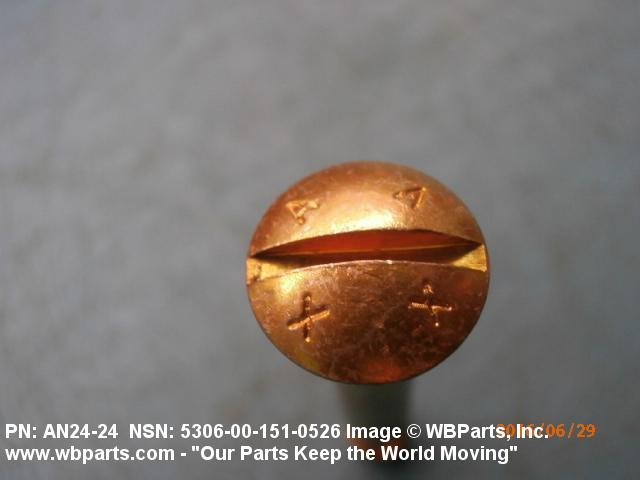

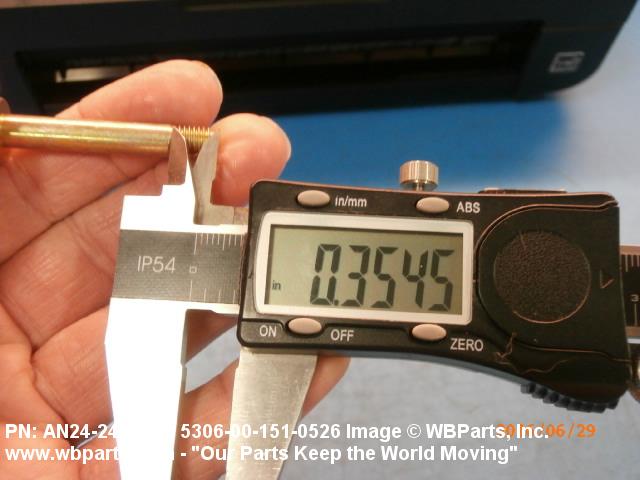

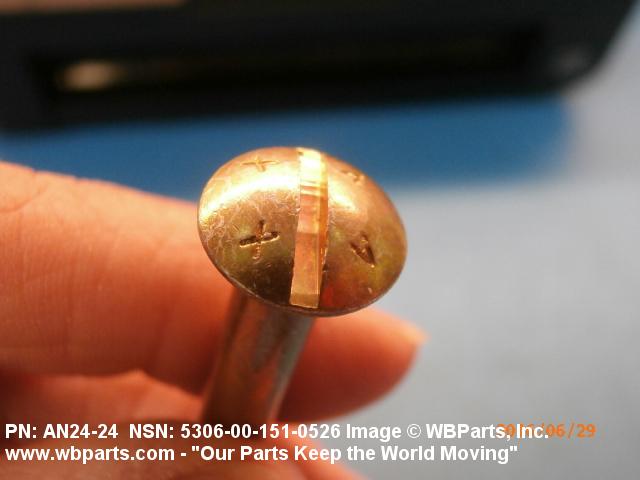

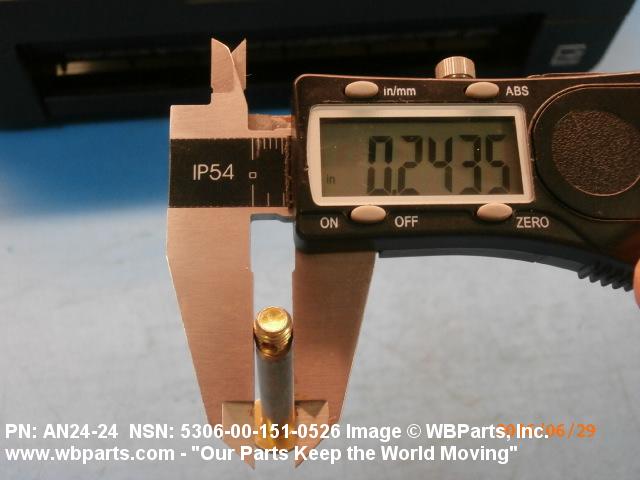

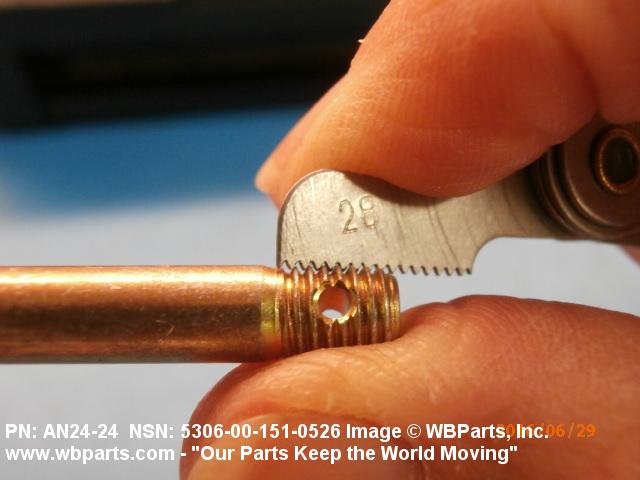

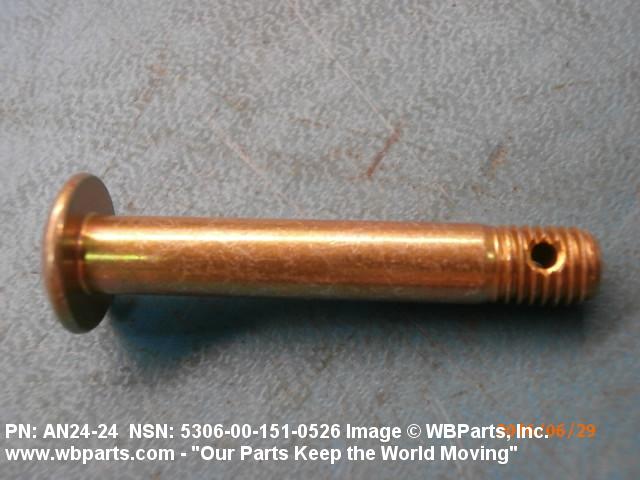

Drawings & Photos | NSN 5306-00-151-0526
Demand History | NSN 5306-00-151-0526
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-151-0526 | 2018-12-336 | 307 | DIBBS |
| 5306-00-151-0526 | 2016-06-153 | 2 | Australia |
| 5306-00-151-0526 | 2016-05-143 | 11 | Australia |
| AN24-24 | 2014-06-157 | 50 | United States |
Cross Reference | NSN 5306-00-151-0526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN24-24 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-151-0526
Technical Data | NSN 5306-00-151-0526
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.323 INCHES MINIMUM AND 0.363 INCHES MAXIMUM |
| FASTENER LENGTH | 1.521 INCHES MINIMUM AND 1.541 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SINGLE SHEAR STRENGTH | 3680 POUNDS PER SQUARE INCH |
| HEAD STYLE | B30 BUTTON |
| HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| GROOVE DIAMETER | 0.047 INCHES NOMINAL |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.375 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.076 INCHES NOMINAL FIRST HOLE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN24-24 |
Restrictions/Controls & Freight Information | NSN 5306-00-151-0526
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
