NSN 5306-00-151-0785 MS200740512, MS20074-05-12 , NASM200740512

Product Details | MACHINE BOLT

5306-00-151-0785 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: MS200740512, MS20074-05-12 , NASM200740512, NASM20074-05-12 , AN37A, AN3-7A, AN75A12 , Z00.N5101301007, Z00N5101301007, 6026-8359-7, 6026838212, 6026-8382-12, 6026-8405-1, 8801721, 932.19.21.029, 9321921029, 14554090107, 145-540-90107, 2010122, 400 441, 400441, 6026300013, 6026-3000-13, 6026300527, 6026-3005-27, 6026-6001-1, 6026705510, 6026-7055-10, 6026-7235-6, 5306-00-151-0785, 00-151-0785, 5306001510785, 602660011, 001510785, 602683597, 602672356, 602684051

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-151-0785	01847 ( BOLT, MACHINE )

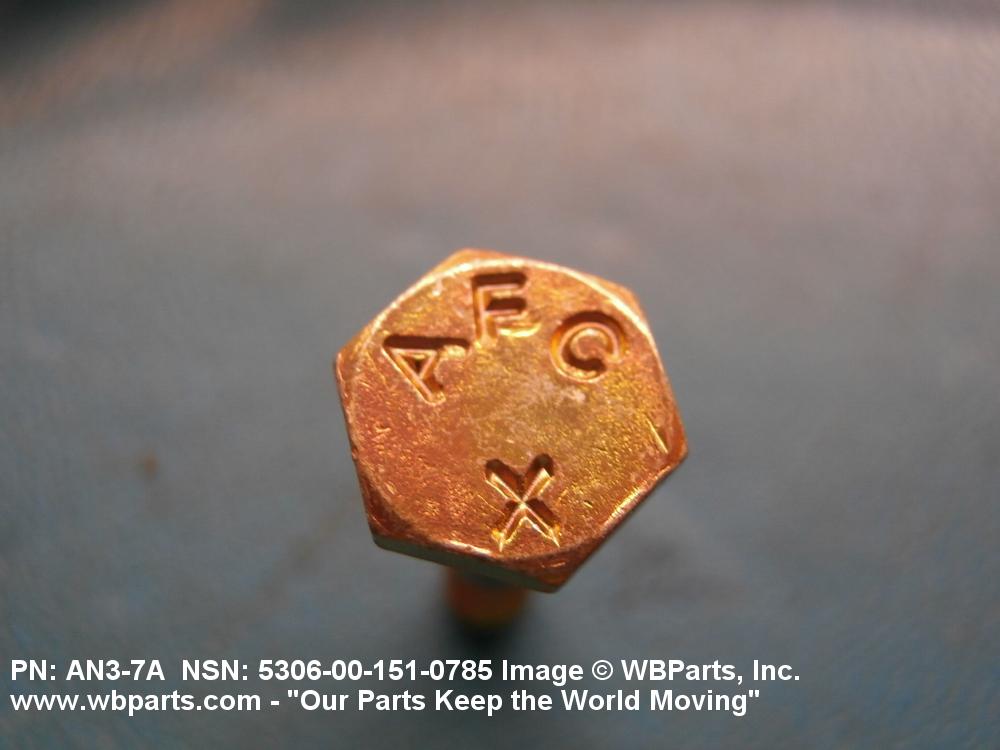

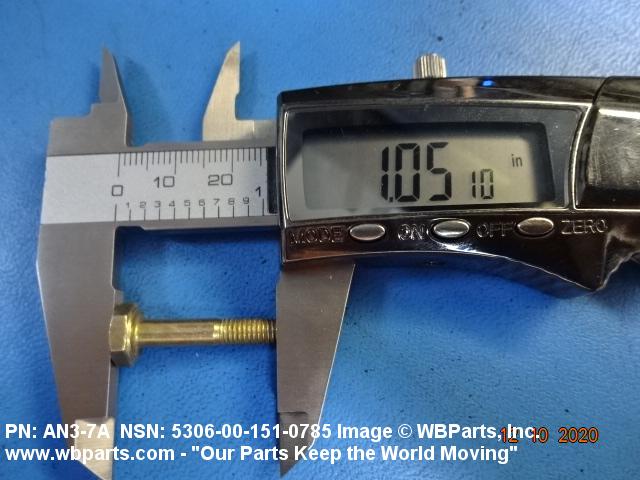

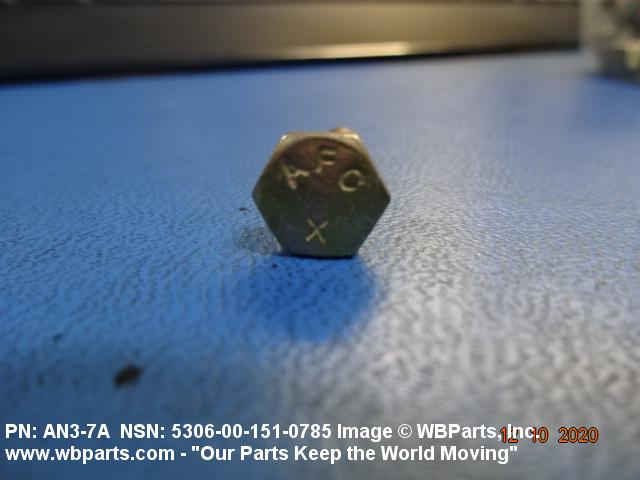

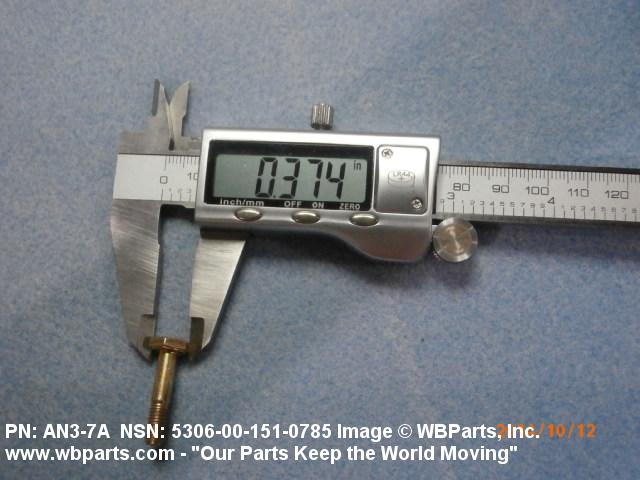

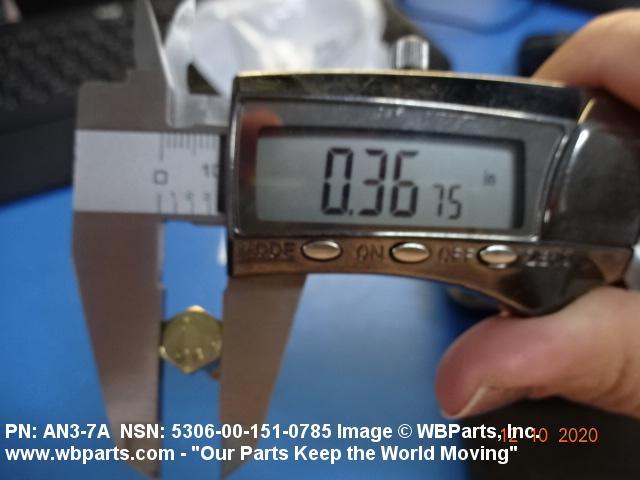

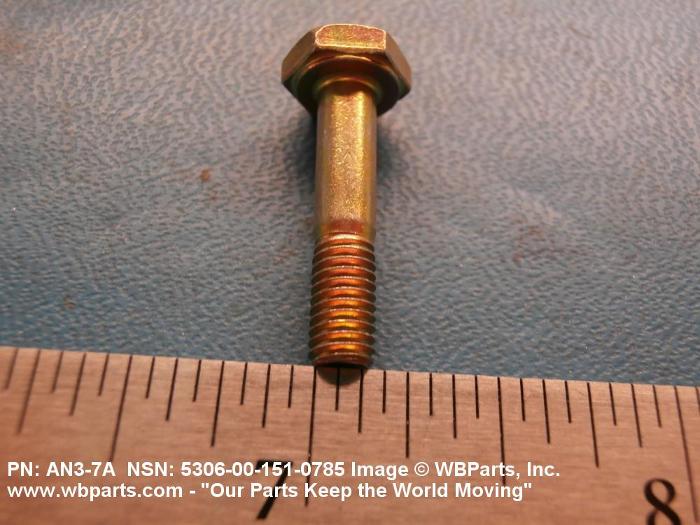

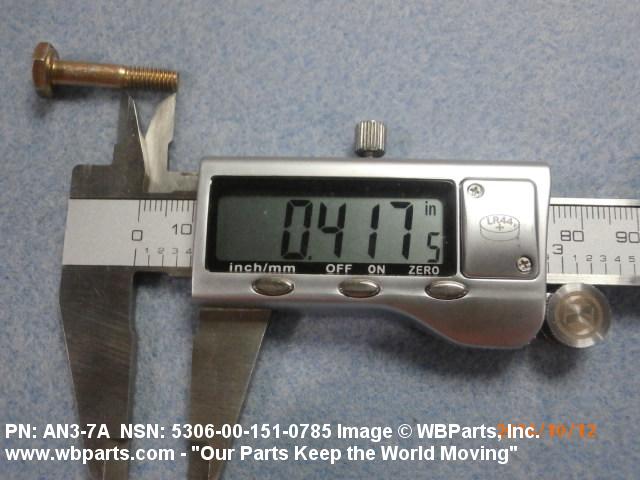

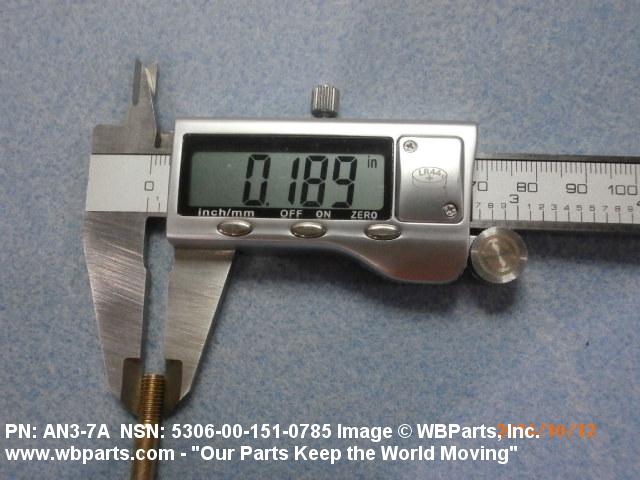

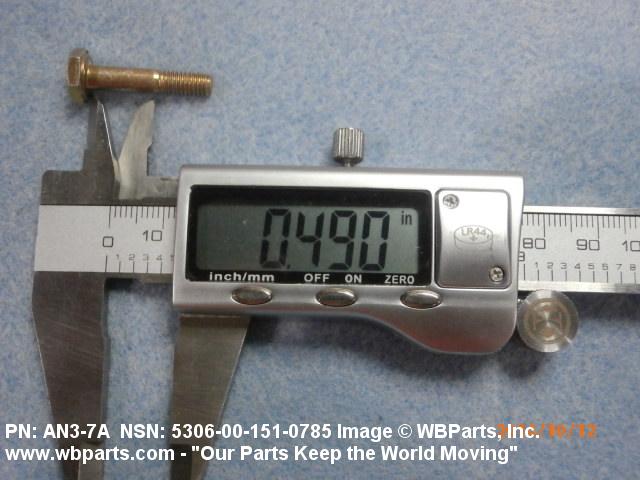

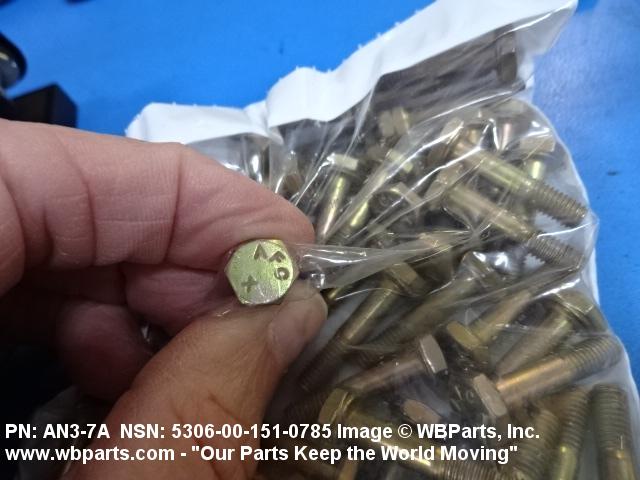

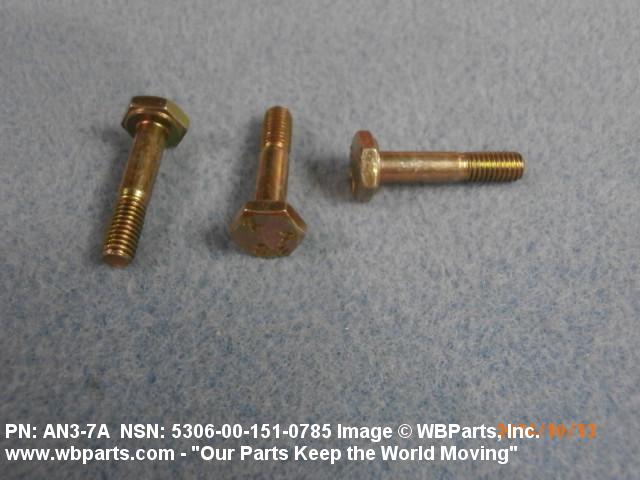

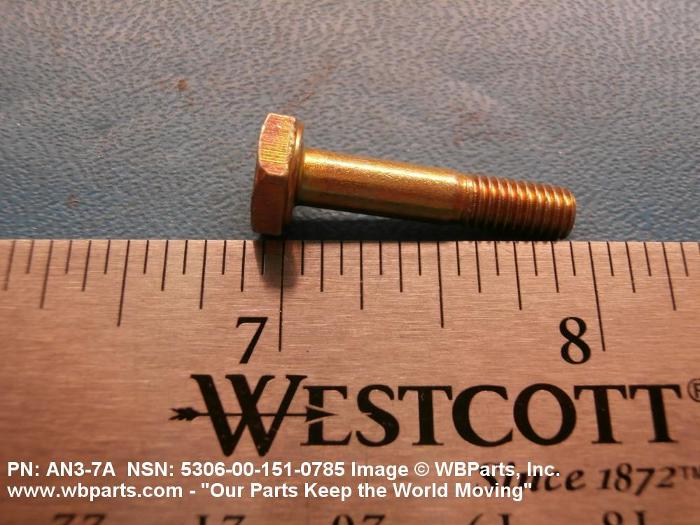

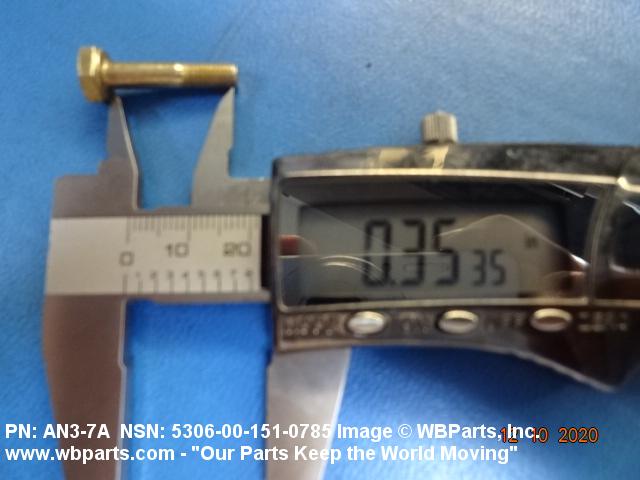

Drawings & Photos | NSN 5306-00-151-0785

Part Number	Request Date	QTY	Origin
5306-00-151-0785	2025-08-227	100	Germany
AN37A	2025-07-197	400	United States
5306-00-151-0785	2025-06-165	250	AE
AN37A	2025-03-69	20	Japan
AN37A	2024-11-320	760	Italy
AN37A	2024-11-311	500	United States
AN37A	2024-11-309	500	United States
AN37A	2024-10-281	10	Japan
AN37A	2024-10-275	20	Japan
AN37A	2024-07-194	500	United States
5306-00-151-0785	2024-05-150	7	US
AN37A	2024-04-110	400	United States
AN37A	2024-03-72	5	US
AN37A	2023-09-272	500	United States
5306-00-151-0785	2023-07-193	2	Germany
AN37A	2023-02-48	10	US
5306-00-151-0785	2021-09-250	3	Germany
AN37A	2020-03-70	100	Hong Kong
AN37A	2020-01-06	50	United States
5306-00-151-0785	2018-07-196	3201	DIBBS
5306001510785	2018-03-78	5	US
5306-00-151-0785	2018-02-45	5	US
AN37A	2018-02-37	20	China
AN37A	2016-05-152	4	BD
AN37A	2016-05-147	4	US
400441	2016-03-61	1	AE
AN37A	2016-02-43	12	Ecuador
AN37A	2016-01-22	300	us
AN37A	2015-06-163	25	CN
AN3-7A	2015-05-138	12	United States
AN3-7A	2015-05-138	8	United States
AN3-7A	2015-05-138	12	United States
AN3-7A	2015-05-138	8	United States
5306-00-151-0785	2015-01-29	100	US
AN3-7A	2014-05-142	5000	United States
AN37A	2014-02-48	150	United States
AN37A	2012-12-346	100	Switzerland
AN37A	2012-12-344	100	Switzerland
AN3-7A	2012-11-310	50
AN37A	2012-09-271	100	US
AN37A	2011-10-304	3	United States
AN37A	2011-08-235	200	United States
AN37A	2011-07-189	1000	United States
9321921029	2009-07-189	33	United Kingdom
AN37A	2009-05-138	540	China
MS200740512	2009-04-106	500	US
AN37A	2009-04-91	100	US
AN37A	2008-11-319	20	US
AN37A	2008-08-243	1	US
AN37A	2008-08-227	1	US
AN37A	2008-07-206	32	AR

Cross Reference | NSN 5306-00-151-0785

Part Number	Cage Code	Manufacturer
145-540-90107	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2010122	001JK	EMBRAER S/A
2010122	FB459	EMBRAER AVIATION INTERNATIONAL
2010122	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2010122	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
400 441	77294	PIPER AIRCRAFT INC.
5306001510785	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6026-3000-13	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3005-27	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-6001-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7055-10	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7235-6	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8359-7	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8382-12	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8405-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
8801721	19203	PICATINNY ARSENAL
932.19.21.029	S4080	PILATUS AIRCRAFT LTD
AN3-7A	0NFB8	DIALOGIC CORP. DBA DIALOGIC FASTENERS
AN3-7A	2N335	PATTONAIR USA, INC. DBA PATTONAIR
AN3-7A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
Z00.N5101301007	F0086	SOCATA
