NSN 5306-00-156-2698 AN2414, AN24-14, FFS92
Product Details | CLEVIS BOLT
5306-00-156-2698 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: AN2414, AN24-14, FFS92, FF-S-92 , 7286353, 728635-3 , 5306-00-156-2698, 00-156-2698, 5306001562698, 001562698
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-156-2698 | 06662 ( BOLT, CLEVIS ) |

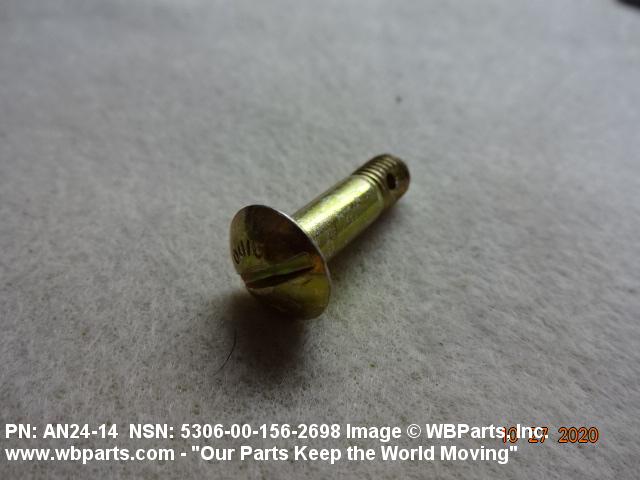

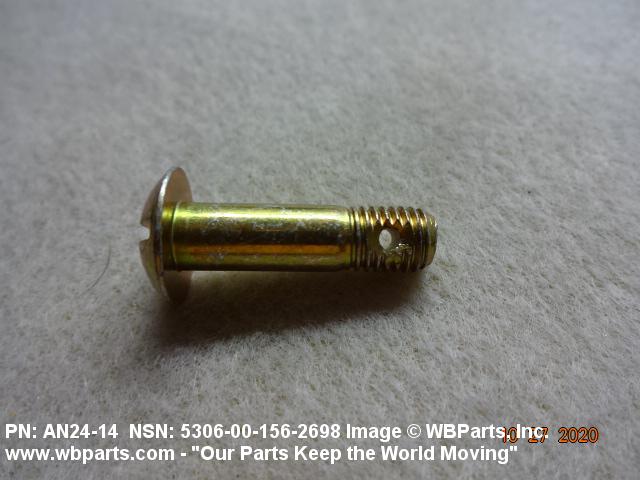

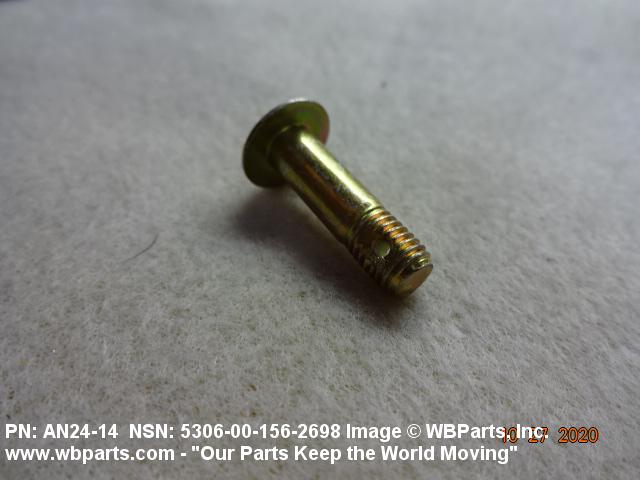

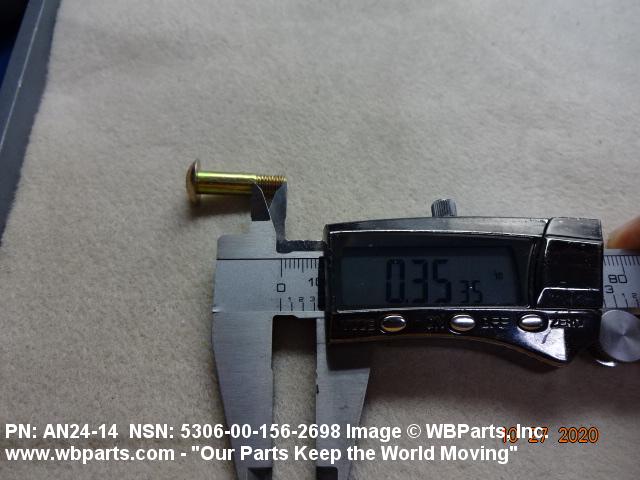

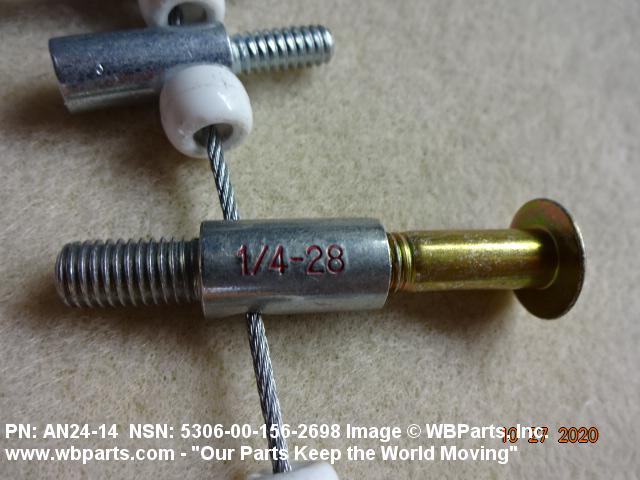

Drawings & Photos | NSN 5306-00-156-2698
Demand History | NSN 5306-00-156-2698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-156-2698 | 2025-06-165 | 5 | AE |
| FFS92 | 2023-08-236 | 14 | US |
| AN24-14 | 2014-06-157 | 50 | United States |
| FF-S-92 | 2014-02-59 | 75 | United States |
| FFS92 | 2011-02-49 | 5 | US |
| FFS92 | 2011-02-49 | 50 | US |
| FFS92 | 2010-11-323 | 165 | US |
| FFS92 | 2009-12-338 | 100 | US |
| FFS92 | 2009-10-292 | 50 | United States |
| 5306-00-156-2698 | 2008-03-86 | 12 | Singapore |
| FFS92 | 2008-03-80 | 50 | United States |
Cross Reference | NSN 5306-00-156-2698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN24-14 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-156-2698
Related Products | NSN 5306-00-156-2698
Technical Data | NSN 5306-00-156-2698
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

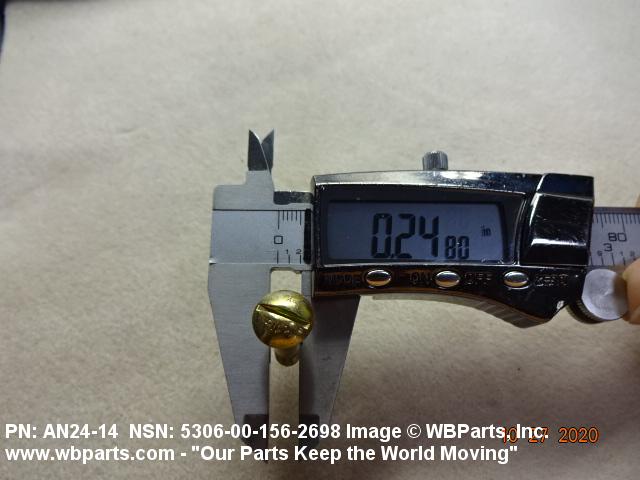

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.324 INCHES MINIMUM AND 0.364 INCHES MAXIMUM |

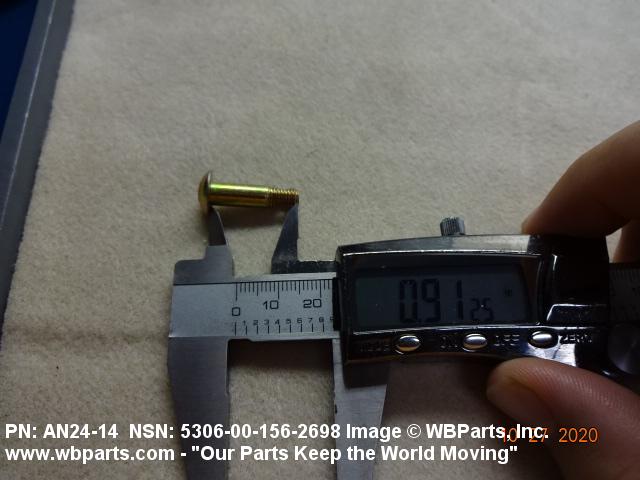

| FASTENER LENGTH | 0.896 INCHES MINIMUM AND 0.916 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OR AMS 6300 ASSN STD 6TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 3680 POUNDS PER SQUARE INCH |
| HEAD STYLE | B30 BUTTON |

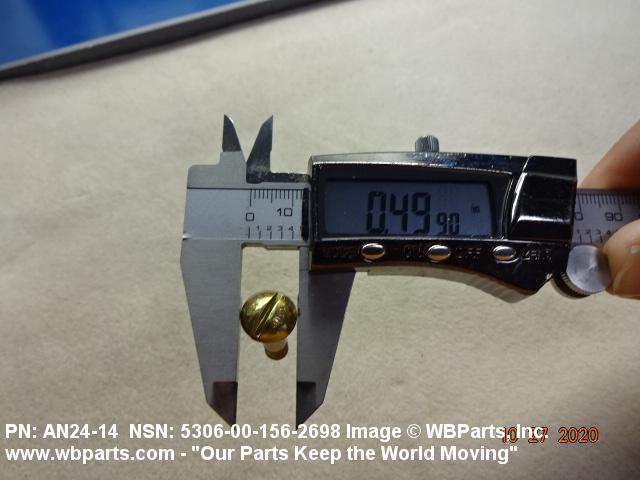

| HEAD DIAMETER | 0.500 INCHES NOMINAL |

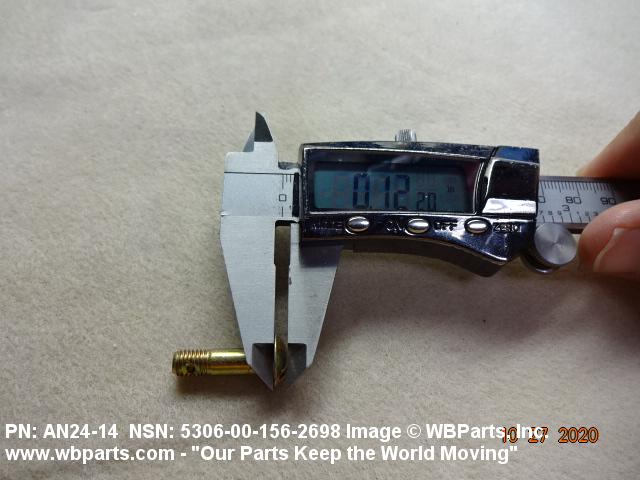

| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| GROOVE DIAMETER | 0.191 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM FIRST HOLE |

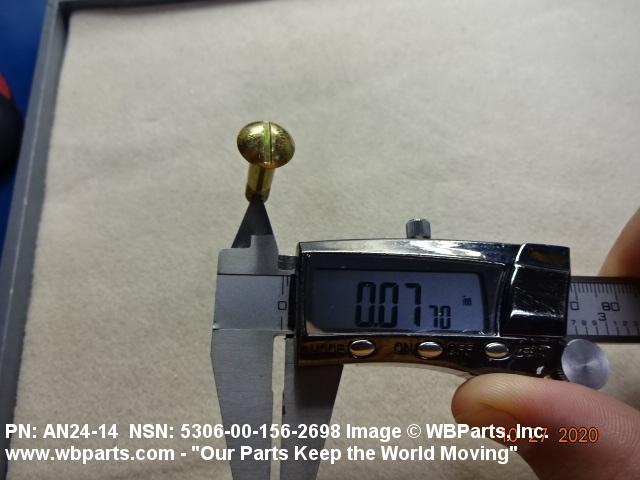

| SHANK UNTHREADED HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM FIRST HOLE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN24-14 |
Restrictions/Controls & Freight Information | NSN 5306-00-156-2698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
