Product Details | SHOULDER BOLT
5306-00-165-8060 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 2586903, 5306-00-165-8060, 00-165-8060, 5306001658060, 001658060
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 NOV 1971 | 00-165-8060 | 04905 ( BOLT, SHOULDER ) |

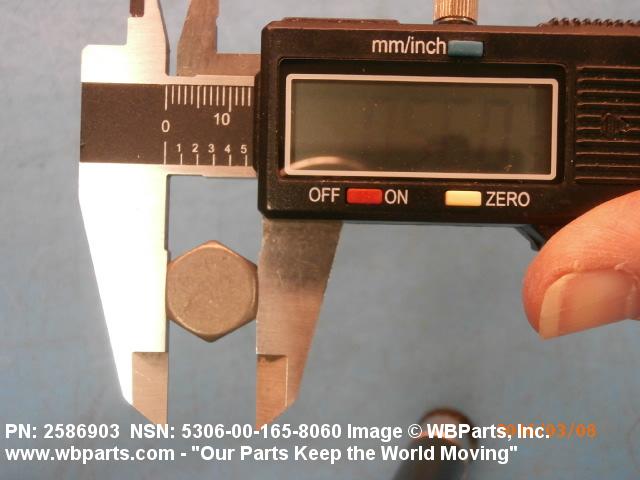

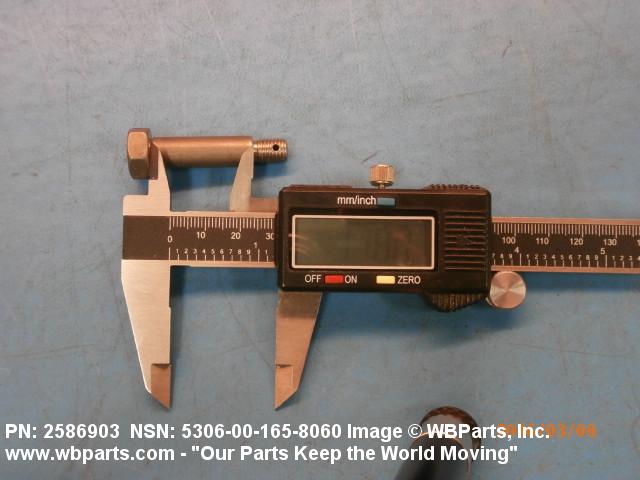

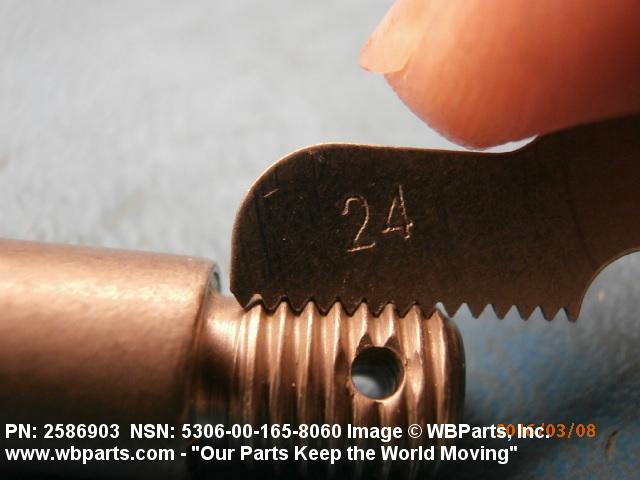

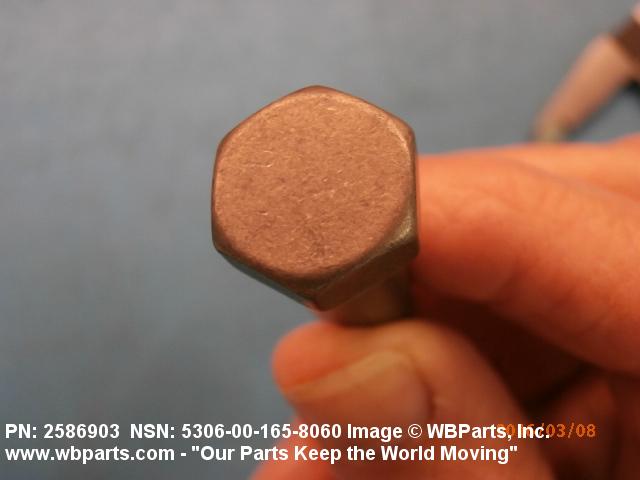

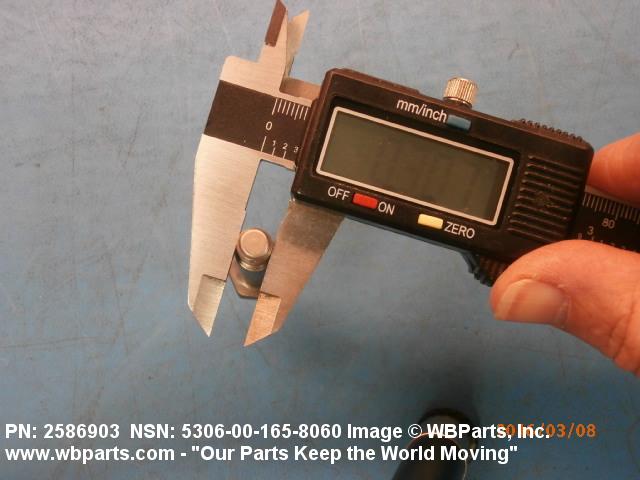

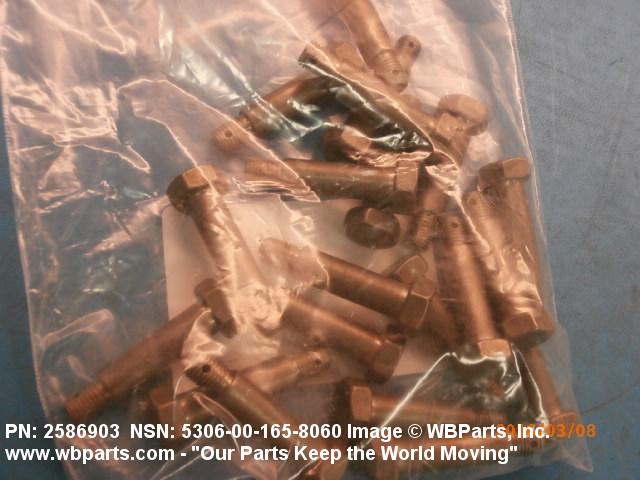

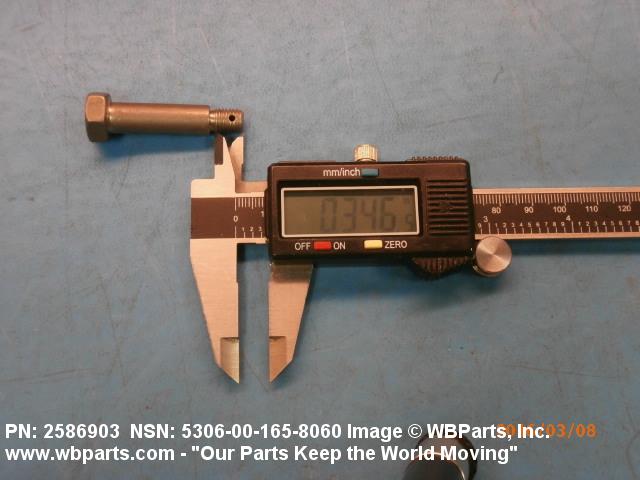

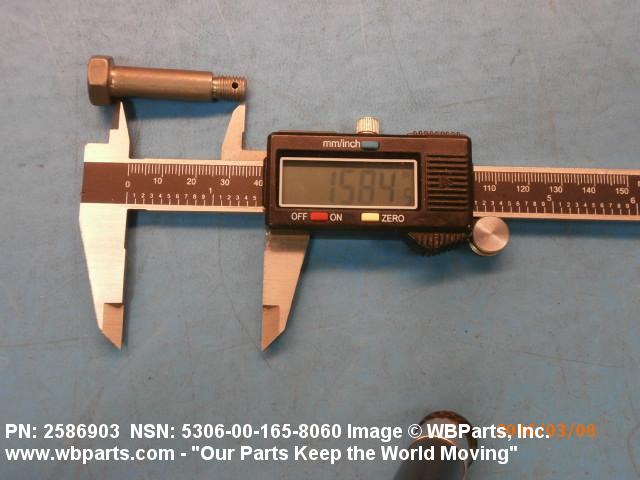

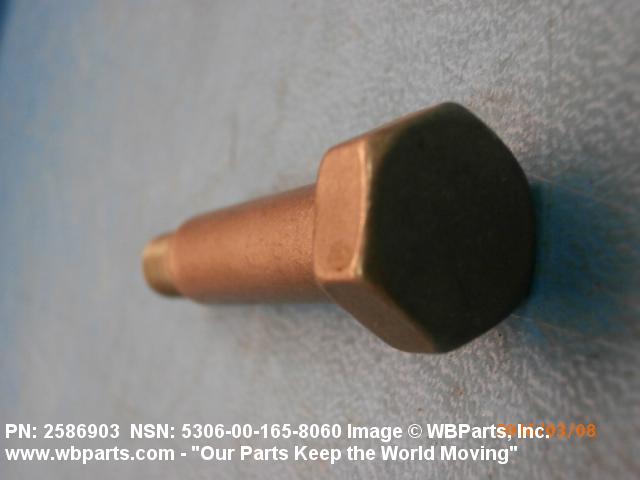

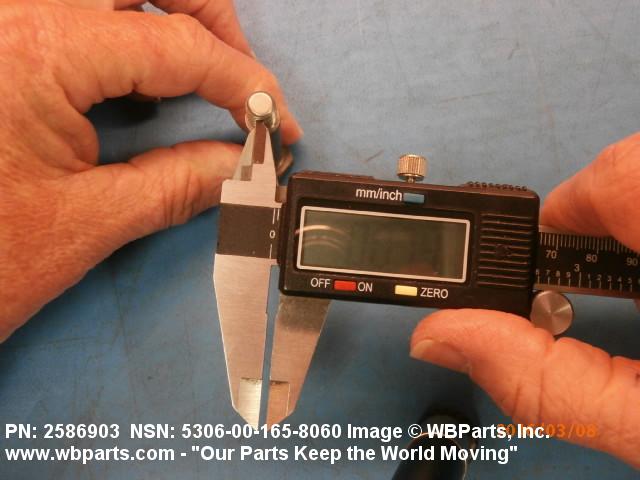

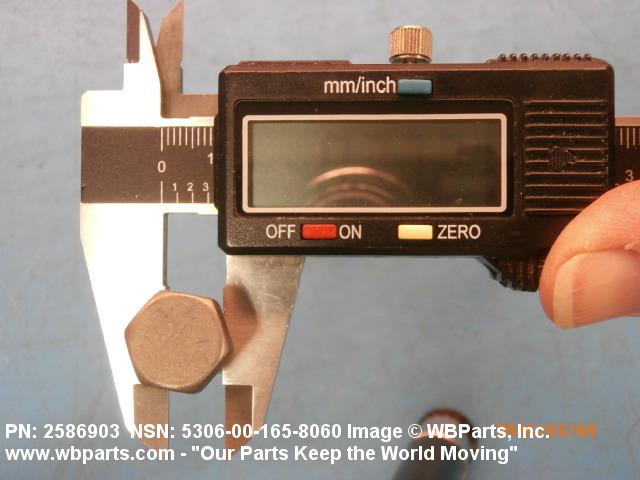

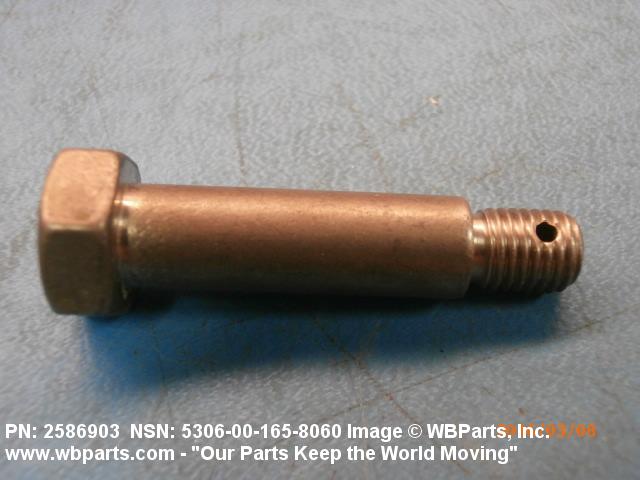

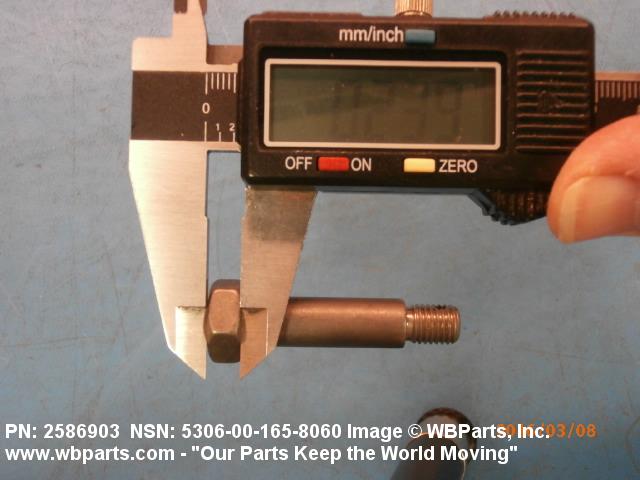

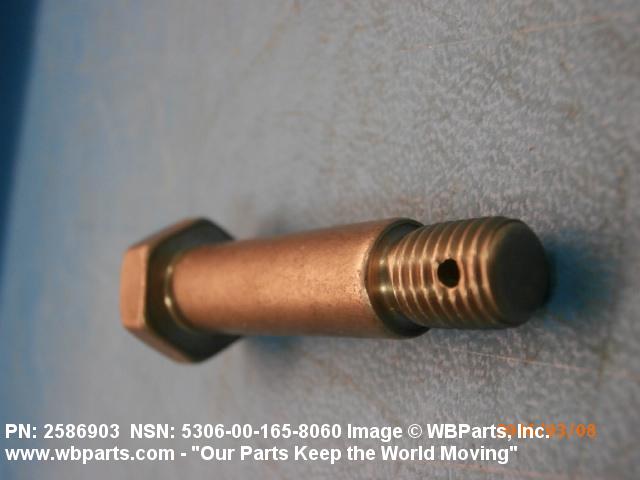

Drawings & Photos | NSN 5306-00-165-8060
Demand History | NSN 5306-00-165-8060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-165-8060 | 2022-08-16 | 54 | DIBBS |
| 5306-00-165-8060 | 2019-01-30 | 15 | DIBBS |
| 5306-00-165-8060 | 2018-08-19 | 57 | DIBBS |
| 5306-00-165-8060 | 2018-08-18 | 57 | DIBBS |
| 5306-00-165-8060 | 2017-12-19 | 106 | DIBBS |
| 5306-00-165-8060 | 2016-02-17 | 20 | United States |
| 5306-00-165-8060 | 2016-01-13 | 35 | DIBBS |
| 5306-00-165-8060 | 2015-12-27 | 35 | DIBBS |
Cross Reference | NSN 5306-00-165-8060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2586903 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5306-00-165-8060
Related Products | NSN 5306-00-165-8060
5306-00-165-8064, 5306-00-165-8075, 5306-00-165-8083, 5306-00-165-8099, 5306-00-165-8113
Technical Data | NSN 5306-00-165-8060
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.344 INCHES MINIMUM AND 0.364 INCHES MAXIMUM |
| FASTENER LENGTH | 1.594 INCHES NOMINAL |
| MATERIAL | NICKEL ALLOY R-405 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 CL B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.369 INCHES MINIMUM AND 0.375 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 1.188 INCHES NOMINAL FIRST SHOULDER |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.454 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.074 INCHES MINIMUM AND 0.082 INCHES MAXIMUM FIRST HOLE |
