NSN 5306-00-167-7593 C41446335, C414463-35, 00-167-7593
Product Details | INTERNAL WRENCHING BOLT
5306-00-167-7593 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: C41446335, C414463-35, 5306-00-167-7593, 00-167-7593, 5306001677593, 001677593
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1973 | 00-167-7593 | 06666 ( BOLT, INTERNAL WRENCHING ) |

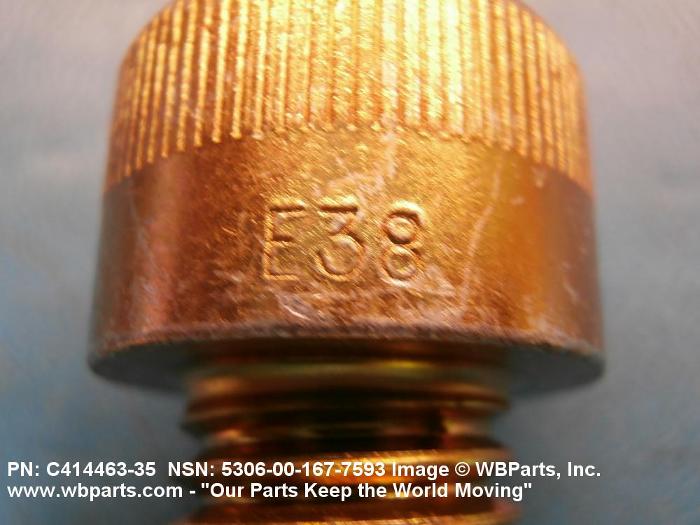

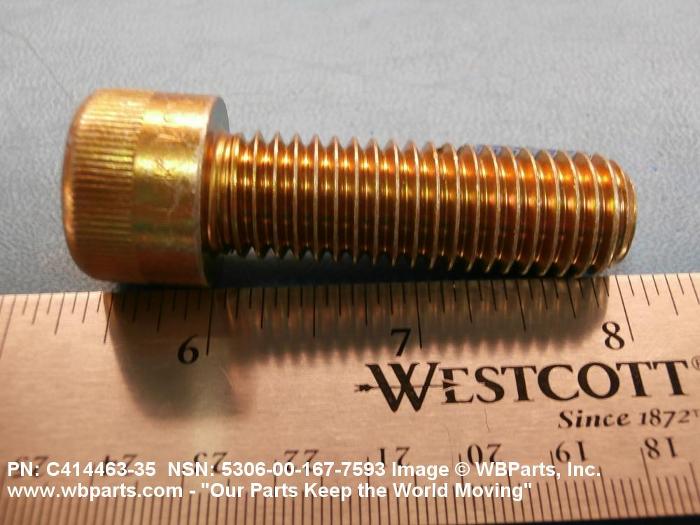

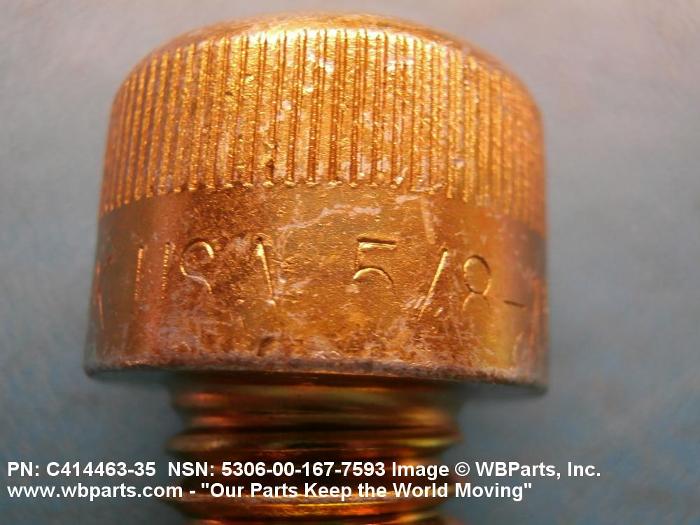

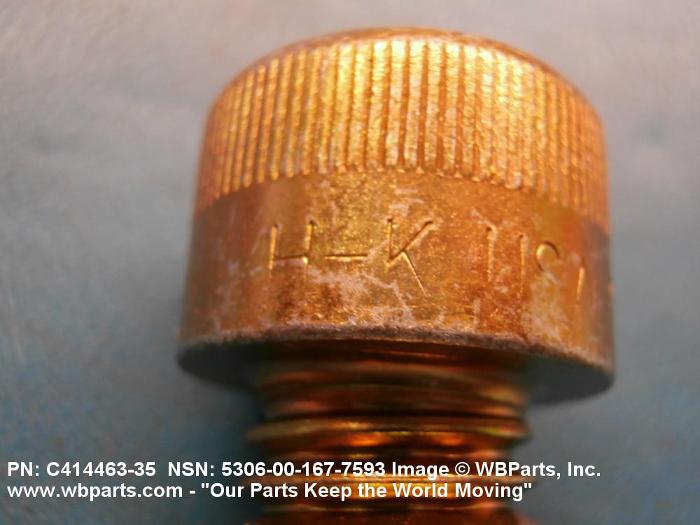

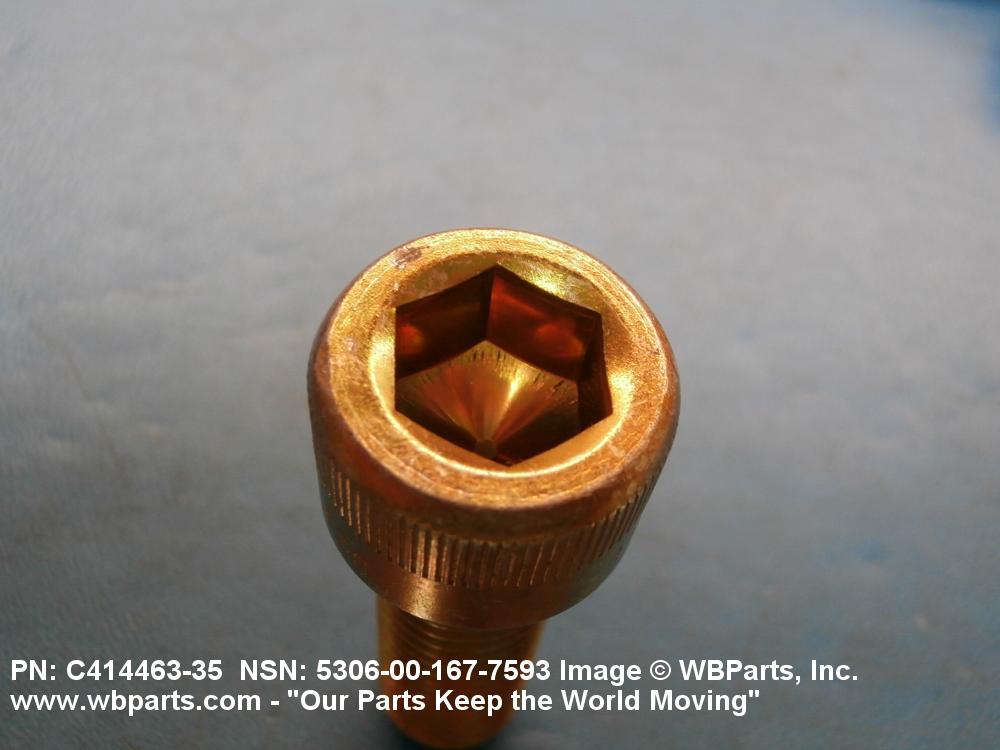

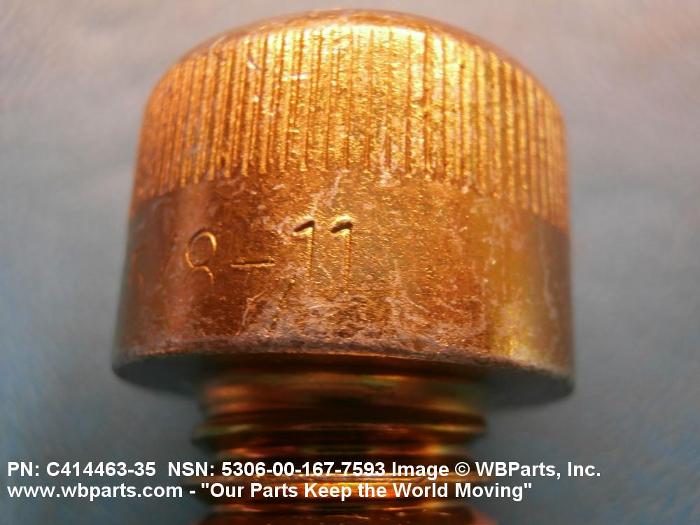

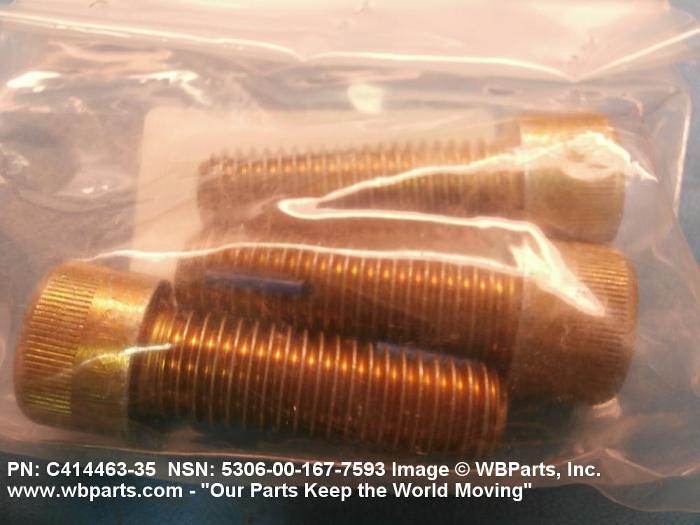

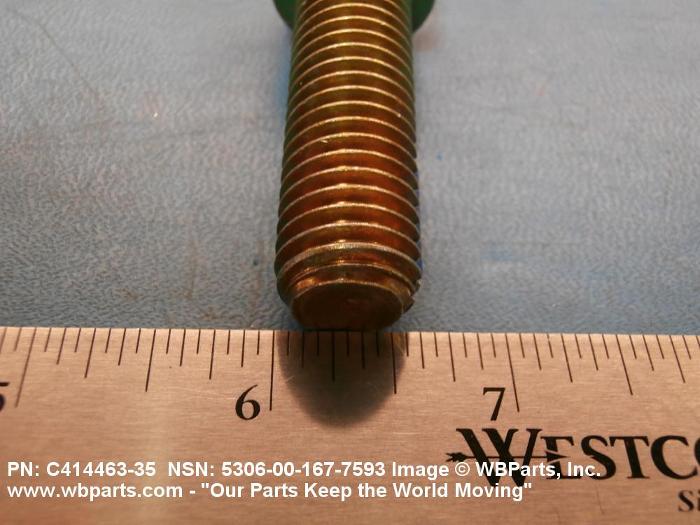

Drawings & Photos | NSN 5306-00-167-7593
Demand History | NSN 5306-00-167-7593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-167-7593 | 2025-08-224 | 7 | DIBBS |
| 5306-00-167-7593 | 2025-07-199 | 4 | US |
| 5306-00-167-7593 | 2025-07-195 | 12 | US |
| 5306-00-167-7593 | 2025-06-167 | 8 | DIBBS |
| 5306-00-167-7593 | 2025-06-159 | 8 | DIBBS |
| 5306-00-167-7593 | 2025-03-85 | 4 | DIBBS |
| 5306-00-167-7593 | 2025-03-77 | 4 | DIBBS |
| 5306-00-167-7593 | 2025-02-57 | 8 | DIBBS |
| 5306-00-167-7593 | 2025-02-43 | 8 | DIBBS |
| 5306-00-167-7593 | 2015-12-355 | 14 | DIBBS |
| 5306-00-167-7593 | 2013-02-52 | 12 | DIBBS |
| 5306-00-167-7593 | 2013-02-43 | 7 | DIBBS |
| C41446335 | 2013-01-23 | 3 | United States |
Cross Reference | NSN 5306-00-167-7593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C414463-35 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-167-7593
Technical Data | NSN 5306-00-167-7593
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES MINIMUM |
| FASTENER LENGTH | 2.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD DIAMETER | 0.921 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| HEAD HEIGHT | 0.616 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | SELF LOCKING ELEMENT IN THREAD |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | C414463-35 |
Restrictions/Controls & Freight Information | NSN 5306-00-167-7593
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-167-7593
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
