NSN 5306-00-177-5712 1-100-502-02, 00-177-5712, 110050202
Product Details | EXTERNALLY RELIEVED BODY BOLT
5306-00-177-5712 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY.
Part Alternates: 1-100-502-02, 5306-00-177-5712, 00-177-5712, 5306001775712, 110050202, 001775712
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 FEB 1970 | 00-177-5712 | 06675 ( BOLT, EXTERNALLY RELIEVED BODY ) |

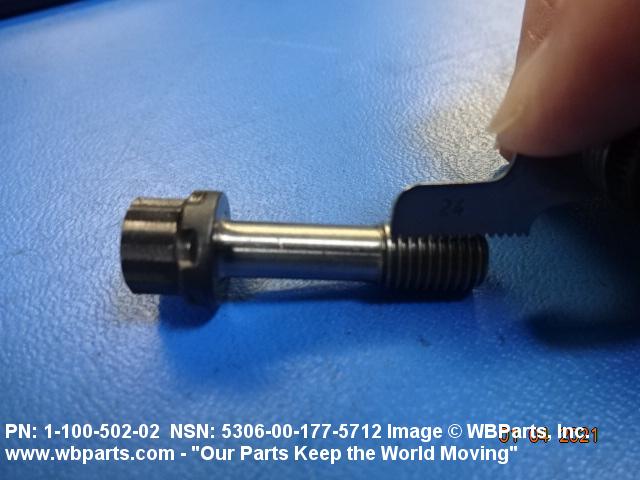

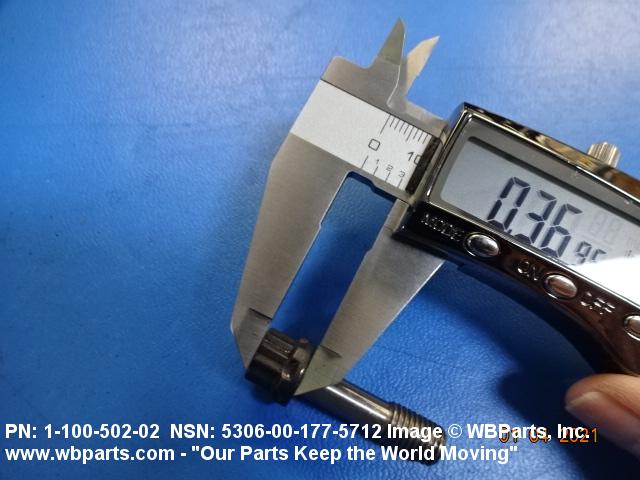

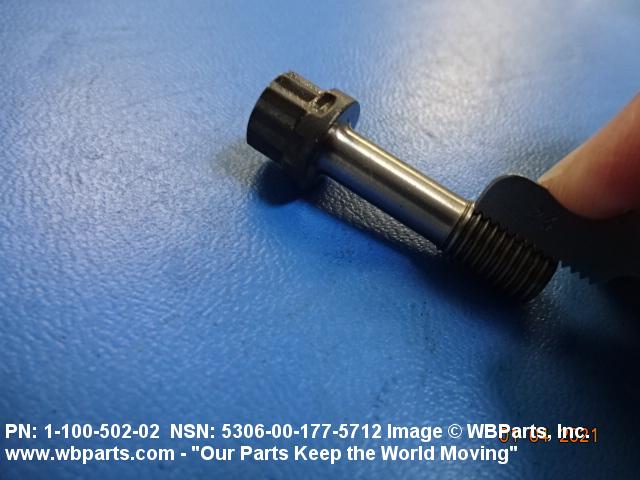

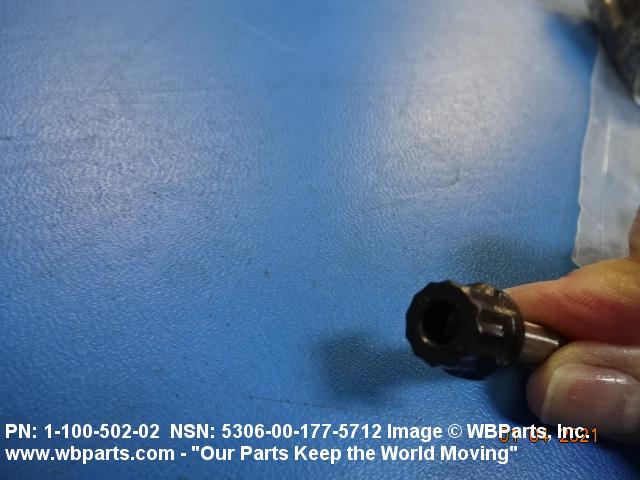

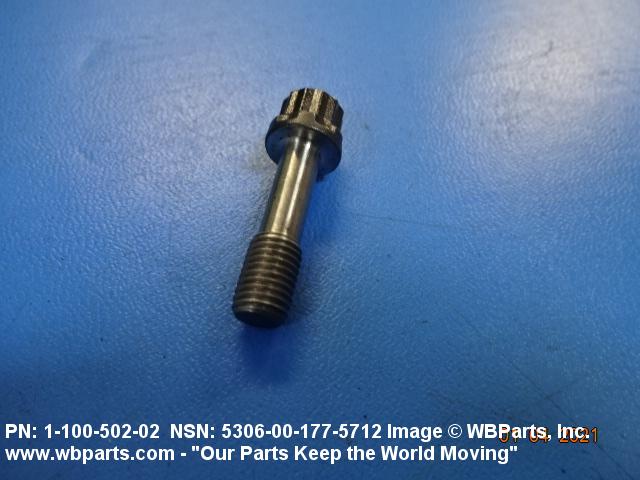

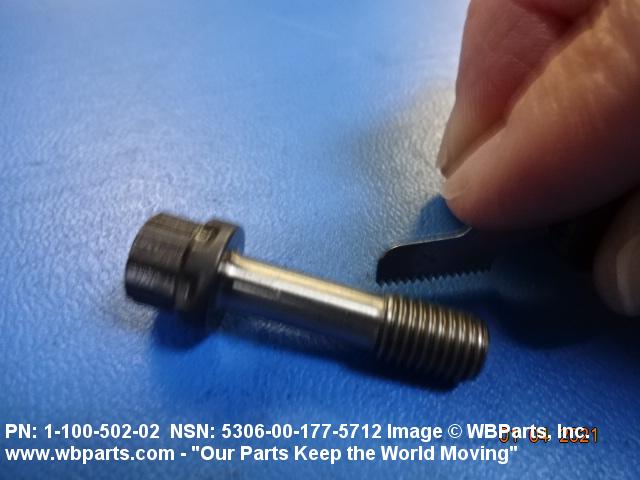

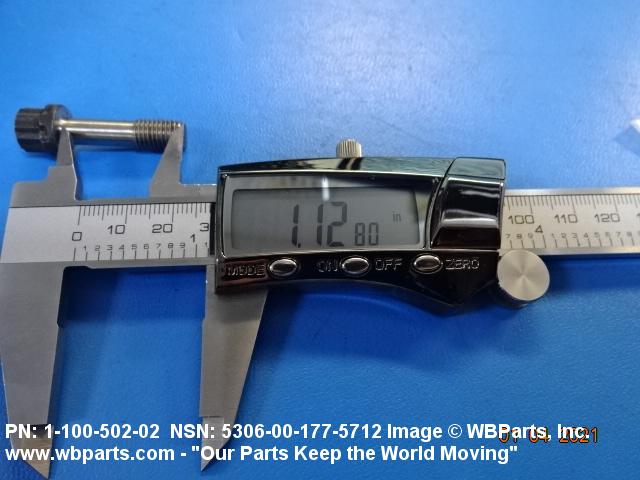

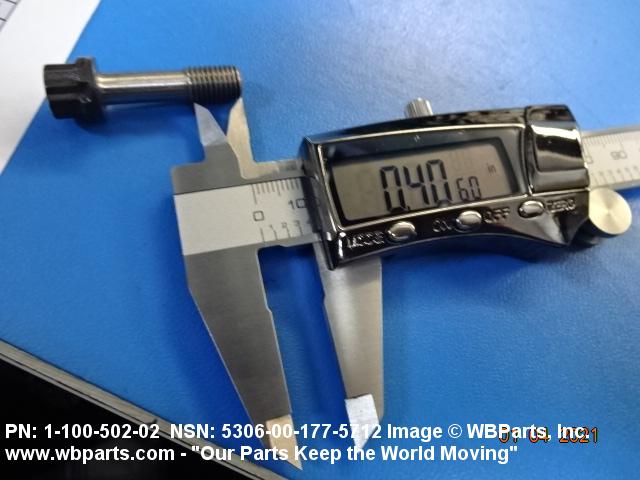

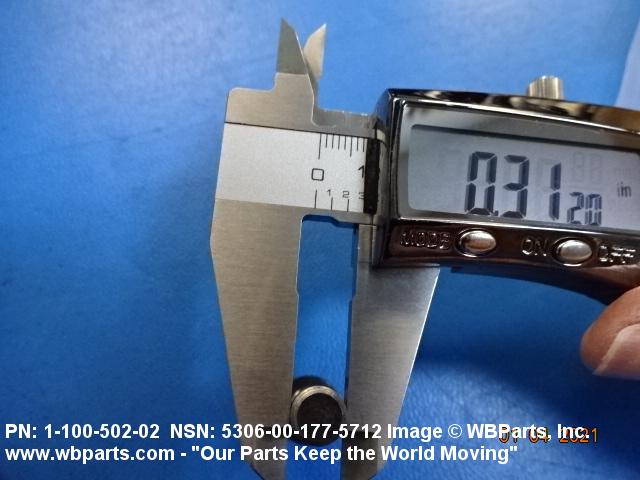

Drawings & Photos | NSN 5306-00-177-5712
Demand History | NSN 5306-00-177-5712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-177-5712 | 2021-03-68 | 28 | El Salvador |
| 1-100-502-02 | 2019-05-133 | 290 | DIBBS |
| 1-100-502-02 | 2019-03-71 | 290 | DIBBS |
| 5306-00-177-5712 | 2016-04-103 | 105 | DIBBS |
Cross Reference | NSN 5306-00-177-5712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-100-502-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
