NSN 5306-00-180-0209 AN2730A, AN27-30A, MILB6812
Product Details | CLEVIS BOLT

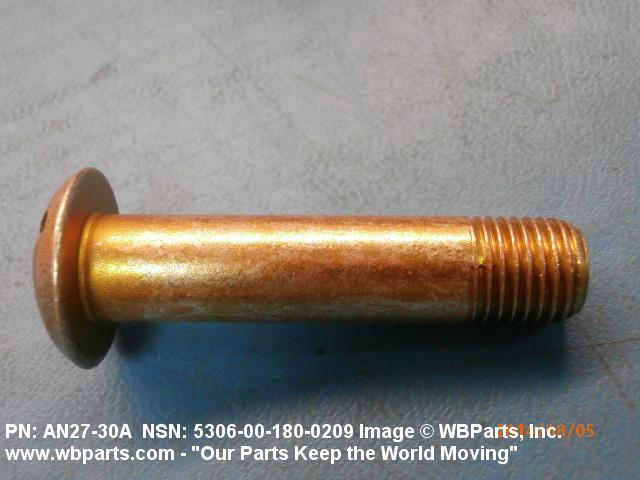

5306-00-180-0209 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: AN2730A, AN27-30A, MILB6812, 5306-00-180-0209, 00-180-0209, 5306001800209, 001800209
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-180-0209 | 06662 ( BOLT, CLEVIS ) |

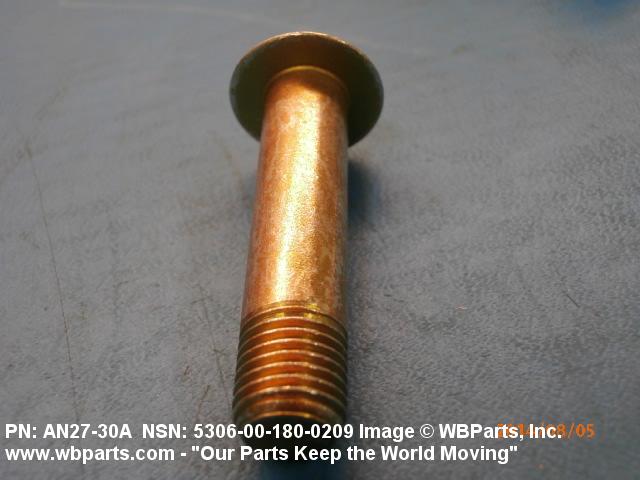

Drawings & Photos | NSN 5306-00-180-0209
Demand History | NSN 5306-00-180-0209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-180-0209 | 2014-07-189 | 100 | United States |
| AN2730A | 2011-04-113 | 1 | US |
| AN2730A | 2009-11-323 | 2 | United States |
| 5306-00-180-0209 | 2009-11-311 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-180-0209
Technical Data | NSN 5306-00-180-0209

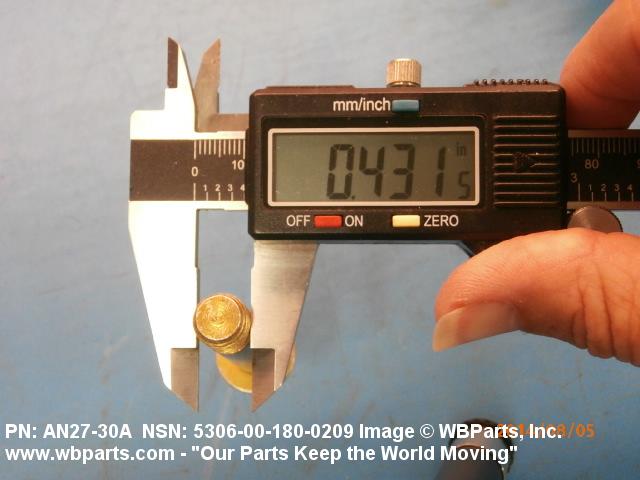

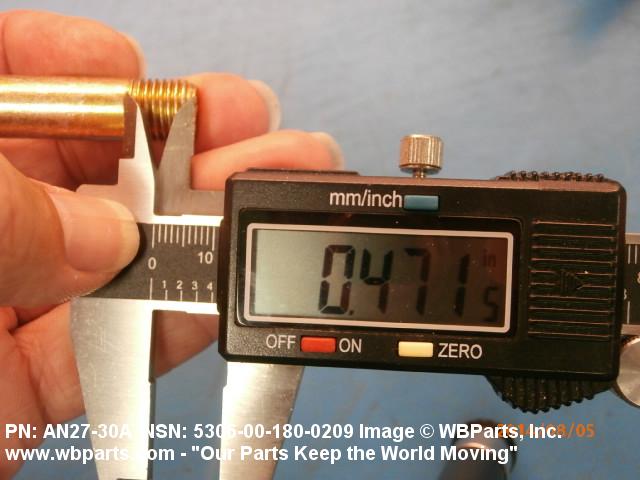

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.422 INCHES MINIMUM |

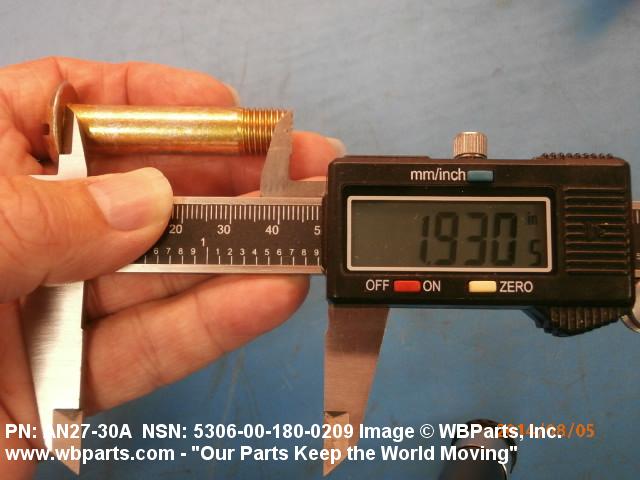

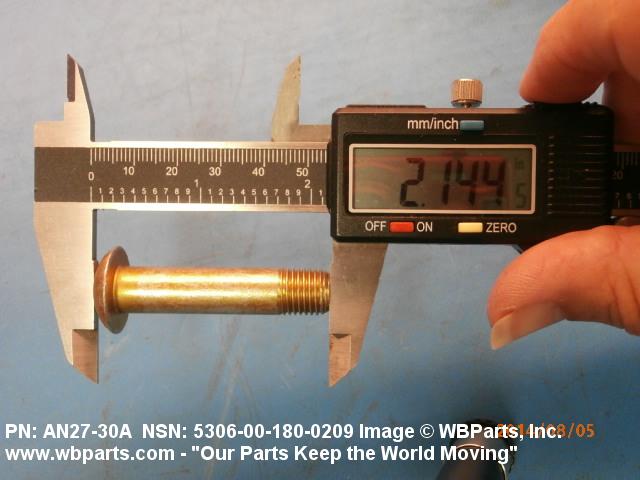

| FASTENER LENGTH | 1.922 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 11250 POUNDS PER SQUARE INCH |
| HEAD STYLE | B30 BUTTON |

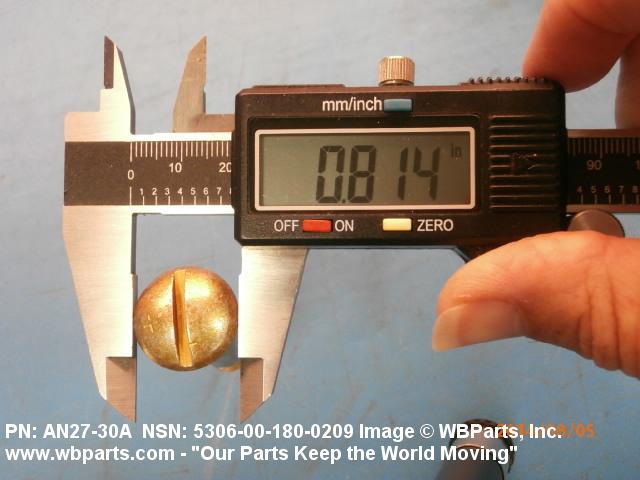

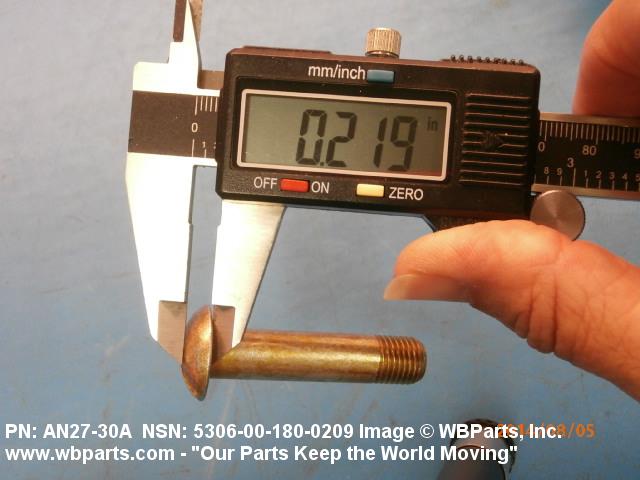

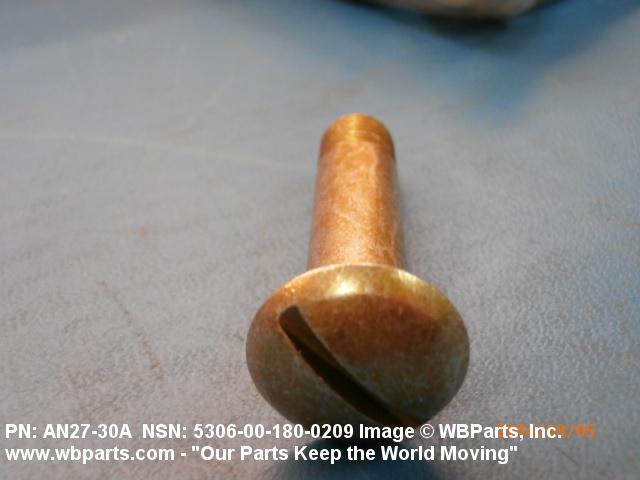

| HEAD DIAMETER | 0.812 INCHES NOMINAL |
| HEAD HEIGHT | 0.219 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| GROOVE DIAMETER | 0.360 INCHES NOMINAL |
| DEPARTURE FROM CITED DOCUMENT | THREAD T PER MIL-S-7742 EXCEPT MAJOR DIA IS NOT TO EXCEED MAX ALLOW BOLT SHANK DIA |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN27-30A |
