NSN 5306-00-180-1483 AN611A, AN6-11A , NASM3 THRU MASM20-AN6-11A

Product Details | MACHINE BOLT

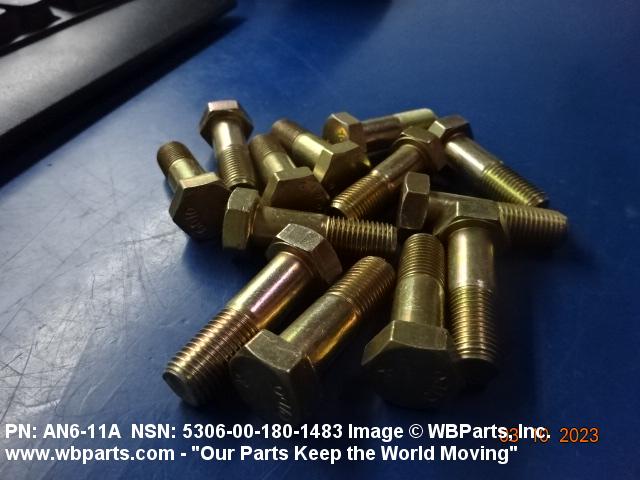

5306-00-180-1483 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN611A, AN6-11A , NASM3 THRU MASM20-AN6-11A, NASM3THRUMASM20AN611A, 583751, 8812911, 5306-00-180-1483, 00-180-1483, 5306001801483, 001801483

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-180-1483	01847 ( BOLT, MACHINE )

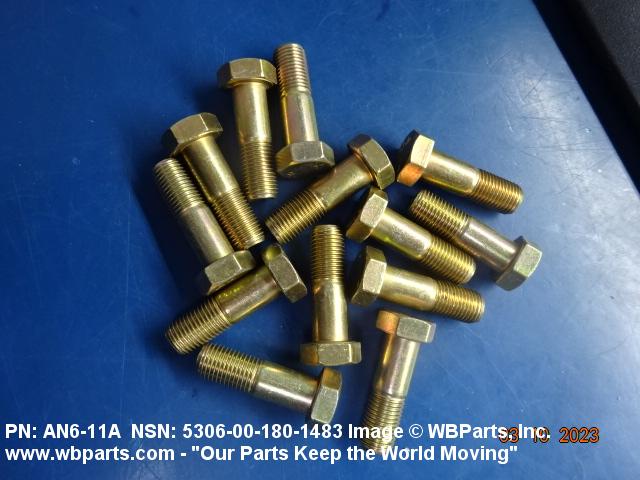

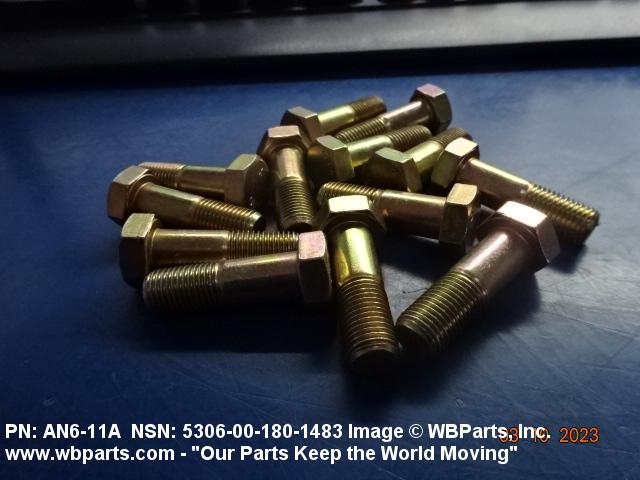

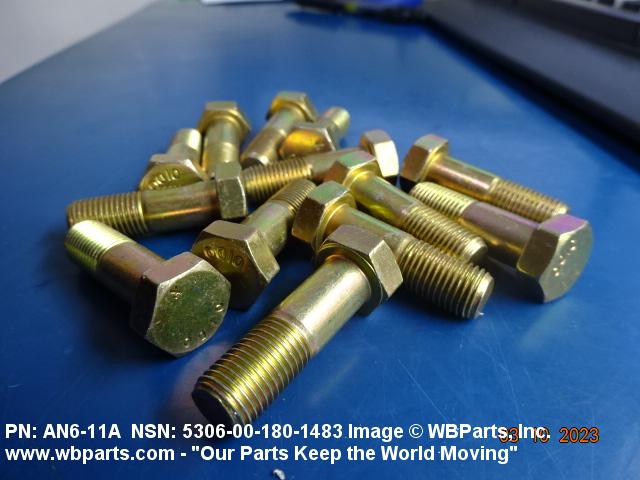

Drawings & Photos | NSN 5306-00-180-1483

Part Number	Request Date	QTY	Origin
5306-00-180-1483	2025-09-260	148	DIBBS
AN611A	2024-11-319	50	TR
AN611A	2023-06-160	1	United States
5306-00-180-1483	2023-04-106	8	DIBBS
5306-00-180-1483	2023-02-51	1	United States
AN611A	2021-06-167	20	MY
AN611A	2021-06-167	20	TR
AN611A	2021-06-165	20	US
AN611A	2020-11-308	25	US
5306-00-180-1483	2020-07-210	4	AE
AN611A	2020-01-06	50	United States
AN611A	2020-01-06	50	United States
5306-00-180-1483	2018-08-222	68	United States
5306-00-180-1483	2018-08-218	68	United States
5306-00-180-1483	2018-08-218	68	United States
AN611A	2017-08-228	6	United States
5306-00-180-1483	2017-08-226	2	United States
5306-00-180-1483	2015-07-208	20	DIBBS
5306-00-180-1483	2015-07-195	20	DIBBS
AN611A	2014-08-227	1	United States
AN6-11A	2014-05-142	1000	United States
AN611A	2014-04-118	43	South Korea
AN611A	2013-04-120	8	United States
AN6-11A	2013-02-38	528	United States
5306-00-180-1483	2013-01-30	52800	MANUAL
AN6-11A	2013-01-30	52800	United States
5306-00-180-1483	2012-05-125	500	India
5306-00-180-1483	2011-06-159	96	India
5306-00-180-1483	2010-10-300	250	India

Cross Reference | NSN 5306-00-180-1483

Part Number	Cage Code	Manufacturer
5306001801483	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
583751	00000	ORDNANCE CORPS
8812911	19203	PICATINNY ARSENAL
AN6-11A	01359	FAIRCHILD CONTROLS CORPORATION
AN6-11A	02BE8	BFM SPECIALTY MINERALS
AN6-11A	0ZBE8	TRIMAN INDUSTRIES INC
AN6-11A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN6-11A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
NASM3 THRU MASM20-AN6-11A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-180-1483

Compare

Related Products | NSN 5306-00-180-1483

5306-00-180-1485, 5306-00-180-1487, 5306-00-180-1489, 5306-00-180-1490, 5306-00-180-1496

Technical Data | NSN 5306-00-180-1483

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

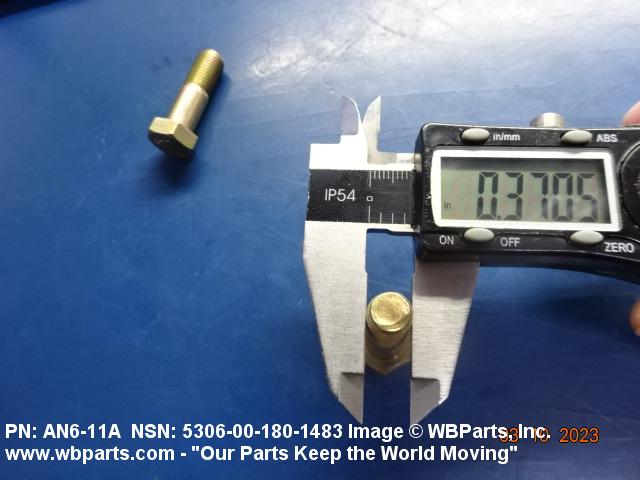

NOMINAL THREAD DIAMETER	0.375 INCHES

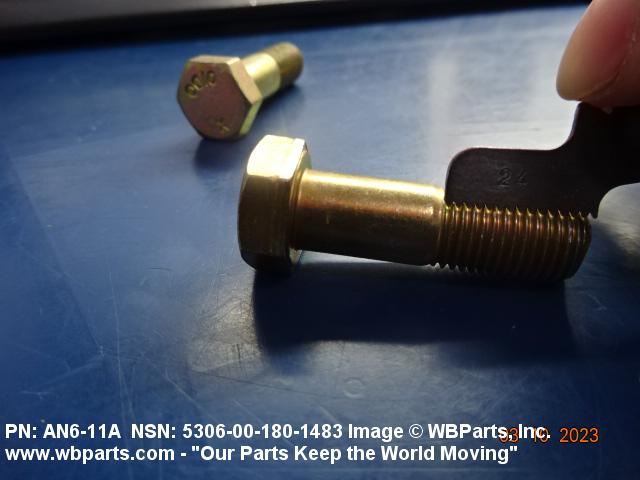

THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

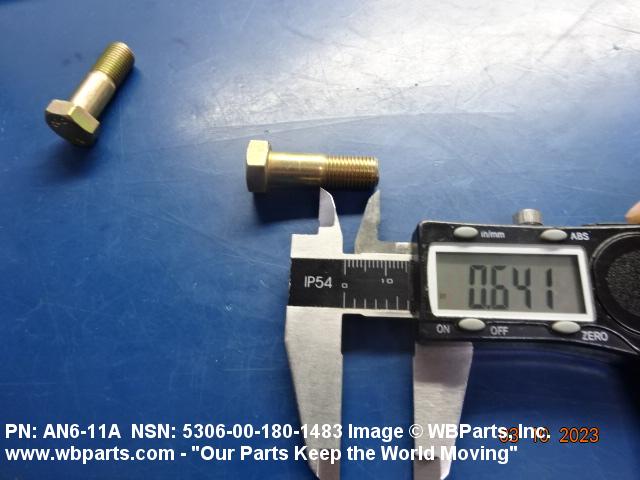

THREAD LENGTH	0.641 INCHES MINIMUM

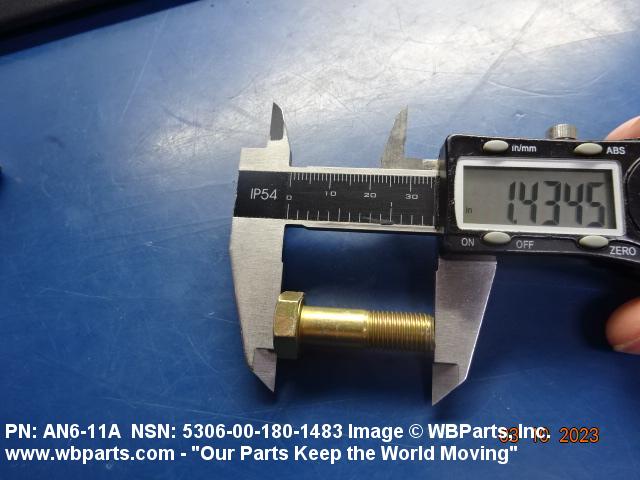

FASTENER LENGTH	1.203 INCHES NOMINAL
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OR MIL-S-8695 MIL SPEC 6TH MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

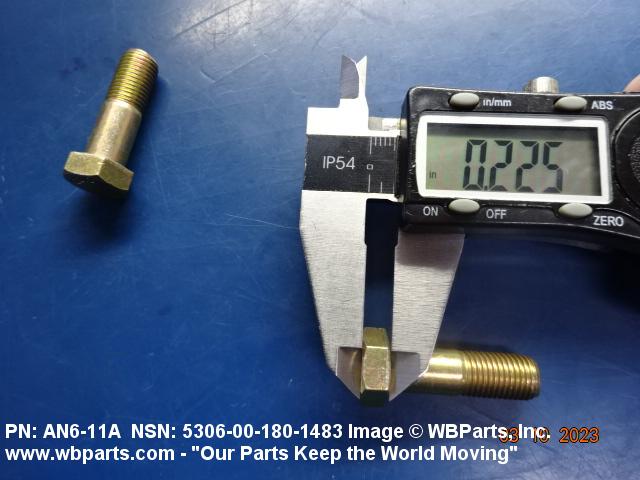

HEAD HEIGHT	0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM

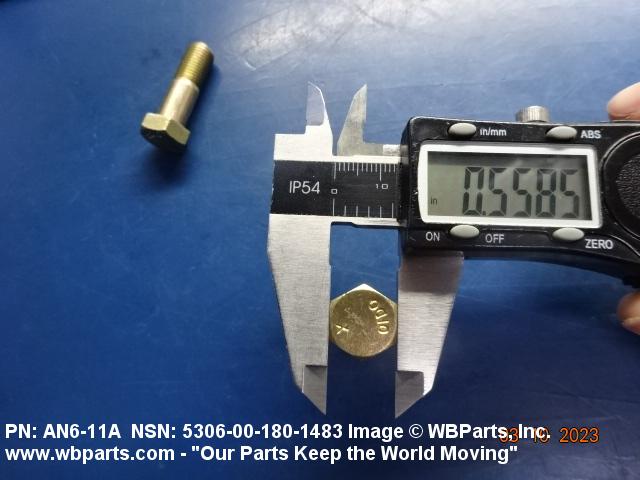

WIDTH BETWEEN FLATS	0.553 INCHES MINIMUM AND 0.565 INCHES MAXIMUM
GRIP LENGTH	0.562 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN6-11A
