NSN 5306-00-207-1070 MS2000516, MS20005-16, 00-207-1070
Product Details | INTERNAL WRENCHING BOLT
5306-00-207-1070 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: MS2000516, MS20005-16, 5306-00-207-1070, 00-207-1070, 5306002071070, 002071070
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-207-1070 | 06666 ( BOLT, INTERNAL WRENCHING ) |

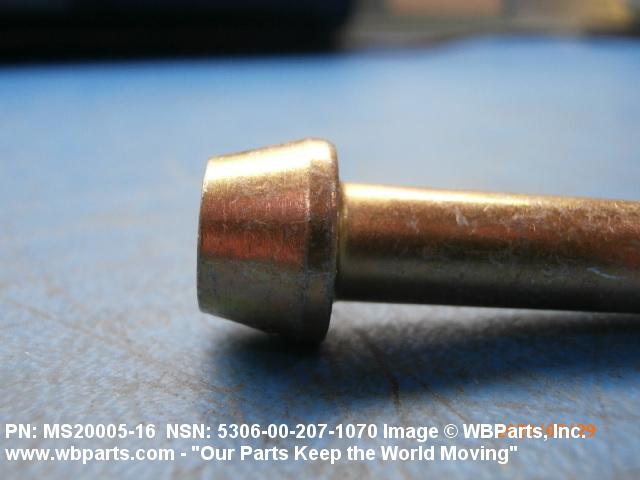

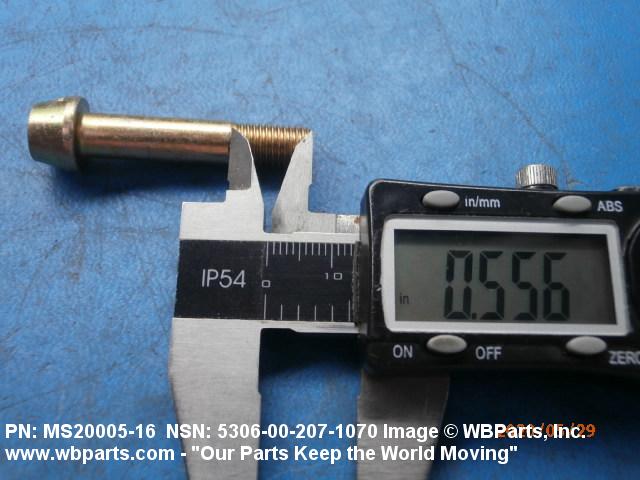

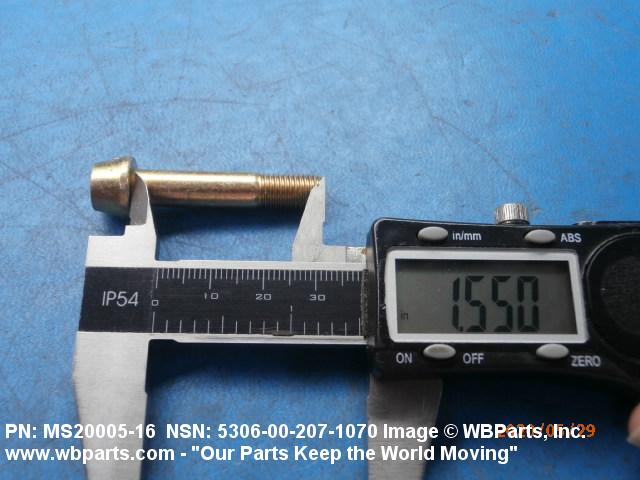

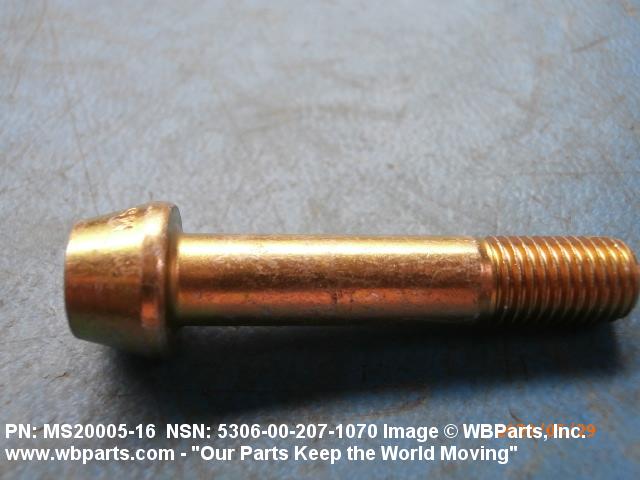

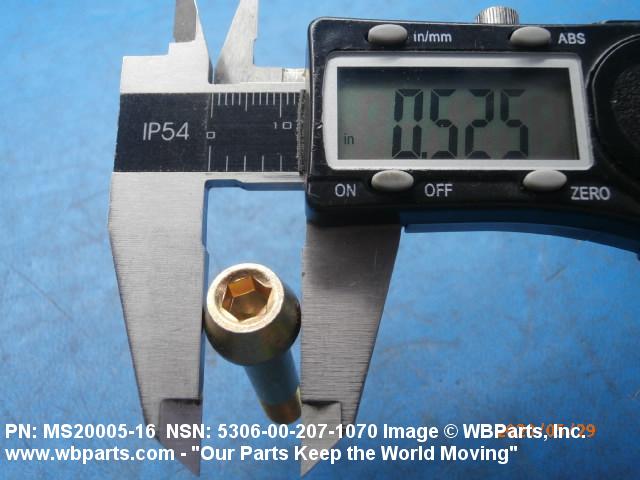

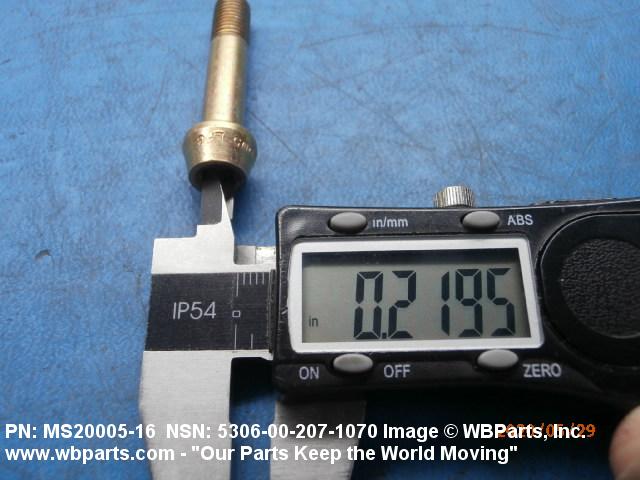

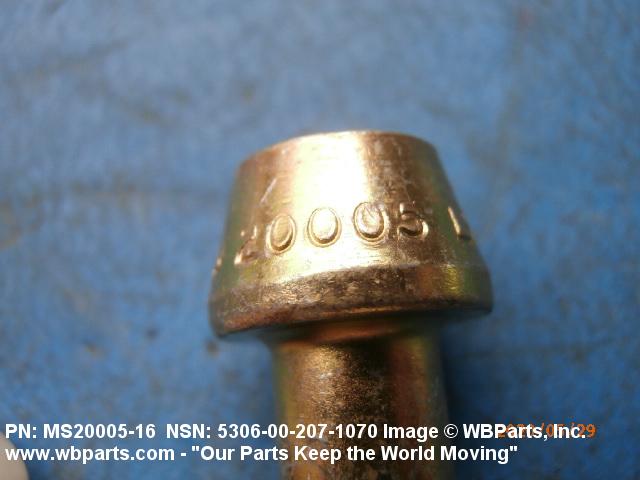

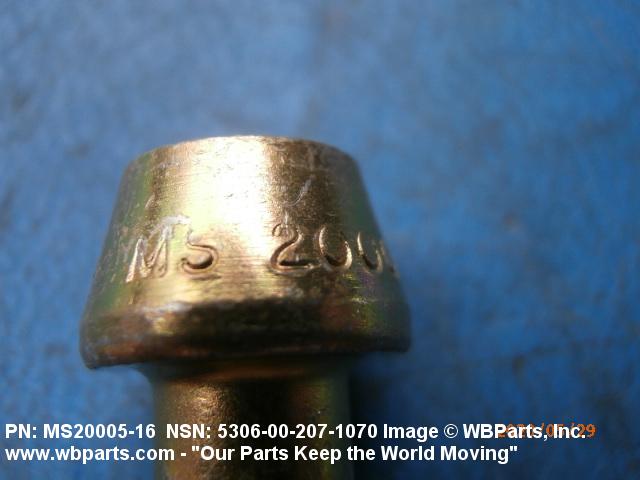

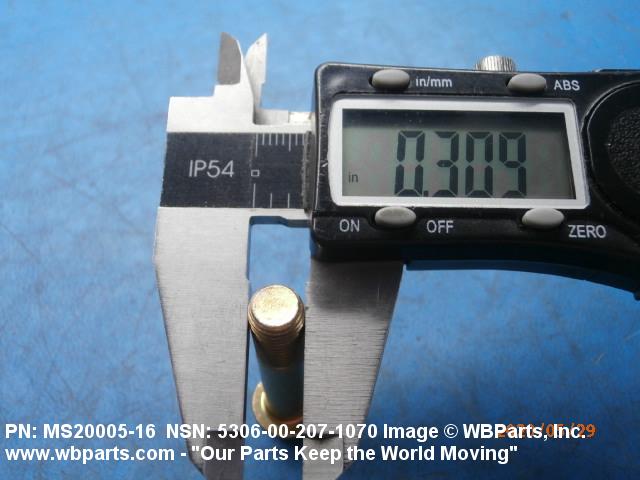

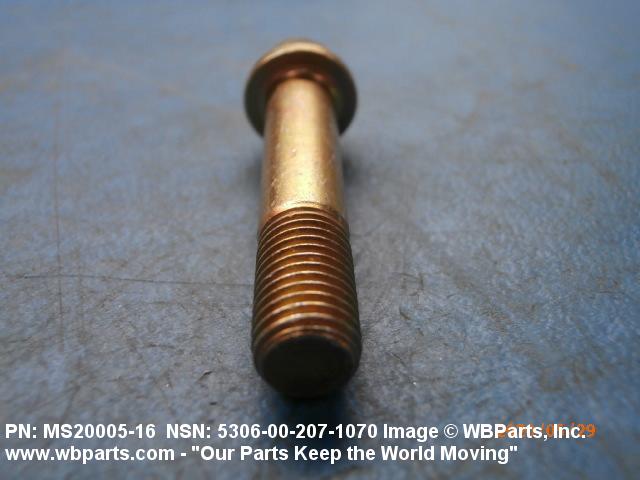

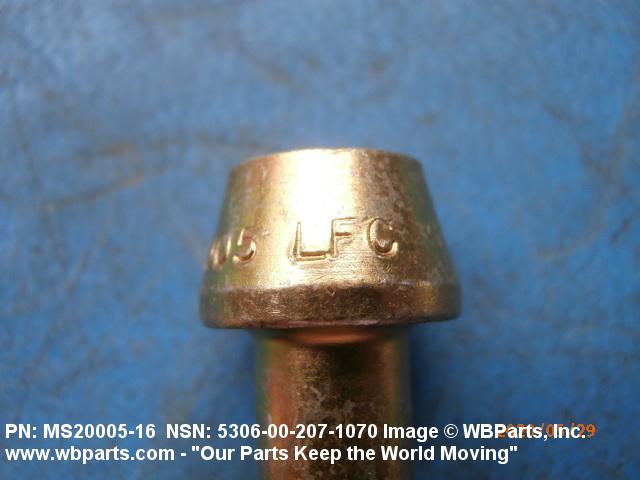

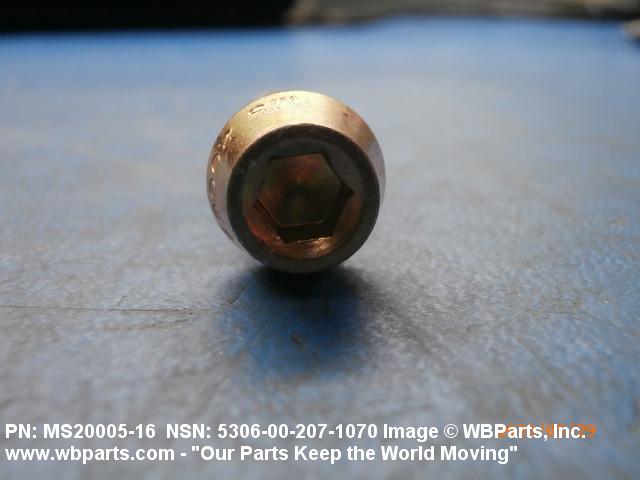

Drawings & Photos | NSN 5306-00-207-1070
Demand History | NSN 5306-00-207-1070
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20005-16 | 2023-01-26 | 4 | Lebanon |
| 5306-00-207-1070 | 2020-06-170 | 12 | United States |
| MS20005-16 | 2012-11-310 | 25 |
Cross Reference | NSN 5306-00-207-1070
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20005-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-207-1070
Technical Data | NSN 5306-00-207-1070
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.562 INCHES NOMINAL |
| FASTENER LENGTH | 1.562 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 BEVEL-CONICAL |
| HEAD DIAMETER | 0.521 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.219 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20005-16 |
Restrictions/Controls & Freight Information | NSN 5306-00-207-1070
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
