NSN 5306-00-208-3636 AN610A, AN6-10A, Z00.N5101301310
Product Details | MACHINE BOLT
5306-00-208-3636 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN610A, AN6-10A, Z00.N5101301310, Z00N5101301310, 802216, 5306-00-208-3636, 00-208-3636, 5306002083636, 002083636
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-3636 | 01847 ( BOLT, MACHINE ) |

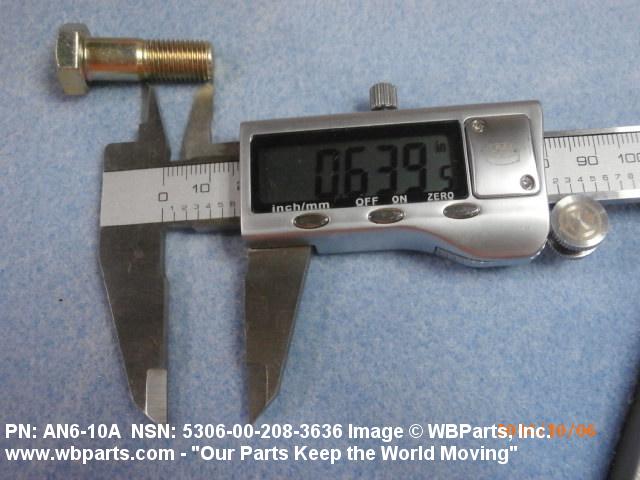

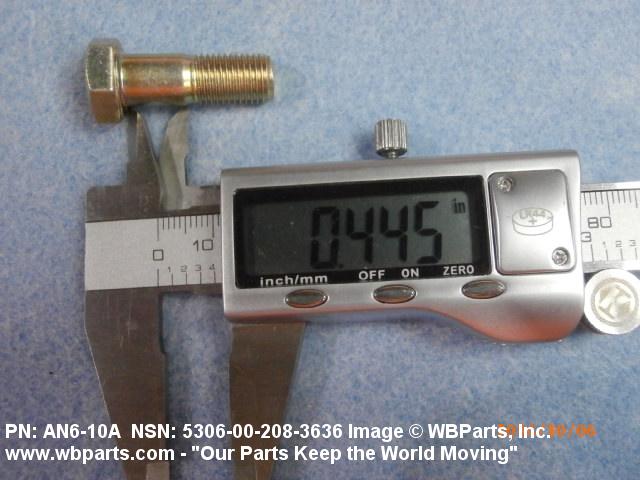

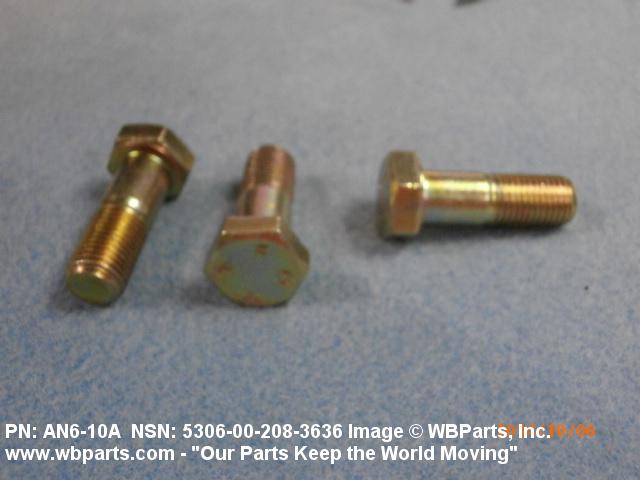

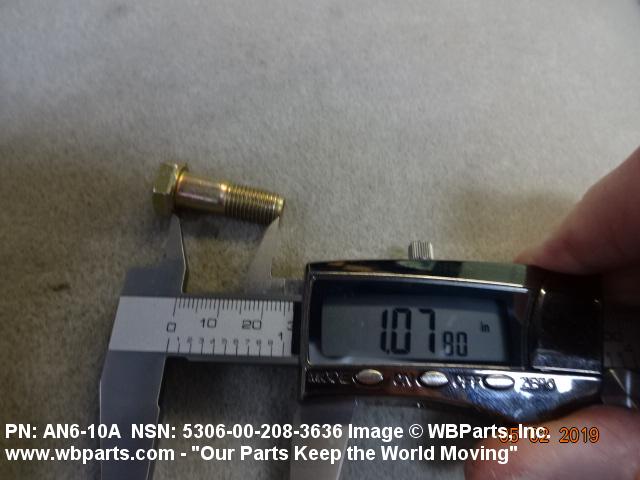

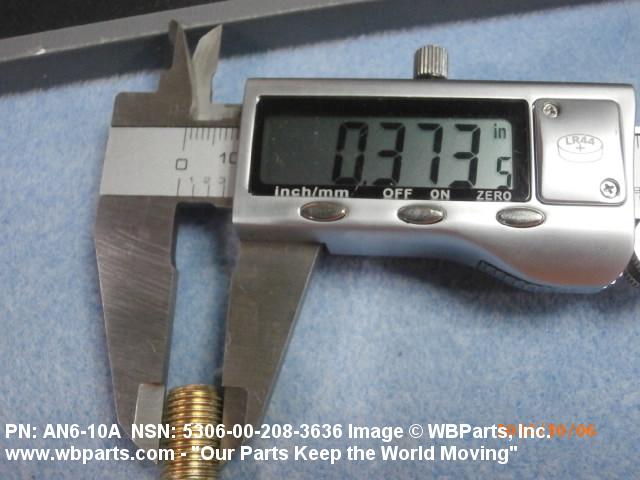

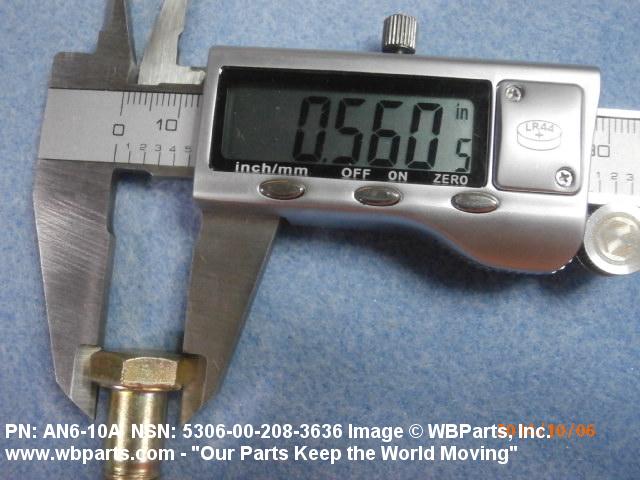

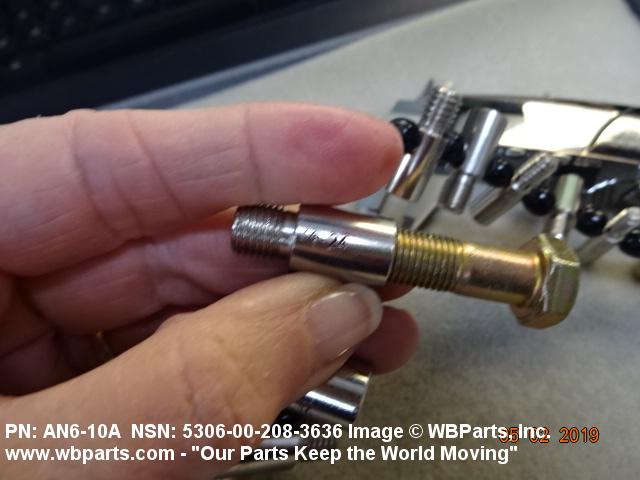

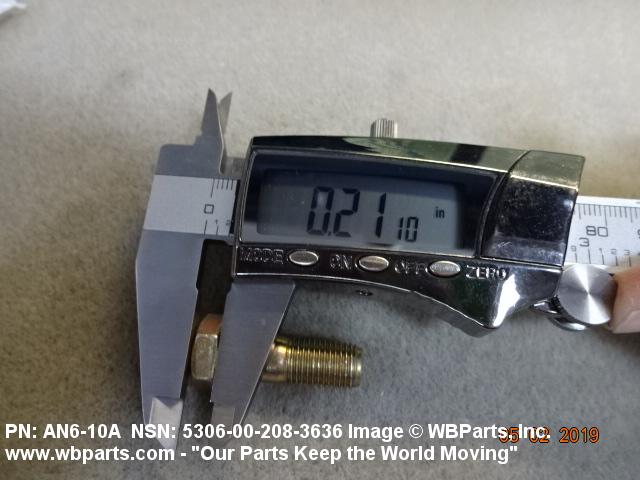

Drawings & Photos | NSN 5306-00-208-3636
Demand History | NSN 5306-00-208-3636
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-208-3636 | 2025-05-140 | 2440 | KR |
| 5306-00-208-3636 | 2025-02-37 | 1000 | SV |
| 5306-00-208-3636 | 2023-03-90 | 234 | US |
| AN610A | 2019-10-290 | 200 | us |
| AN610A | 2019-01-24 | 333 | US |
| AN610A | 2018-03-88 | 200 | South Korea |
| AN610A | 2016-10-287 | 500 | us |
| AN610A | 2016-05-133 | 50 | Egypt |
| AN610A | 2014-06-155 | 4 | US |
| AN6-10A | 2014-05-142 | 1000 | United States |
| AN610A | 2013-08-240 | 25 | US |
| AN610A | 2011-05-151 | 100 | Canada |
| AN610A | 2011-01-19 | 100 | Canada |
| AN610A | 2008-01-30 | 4 | United States |
Cross Reference | NSN 5306-00-208-3636
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306002083636 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 802216 | 19203 | PICATINNY ARSENAL |
| 802216-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN6-10A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN6-10A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6-10A | 9M264 | GFC INDUSTRIES INC |
| AN6-10A | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| Z00.N5101301310 | F0086 | SOCATA |
