NSN 5306-00-308-3519 J644P13A, 10114228 , 00-308-3519

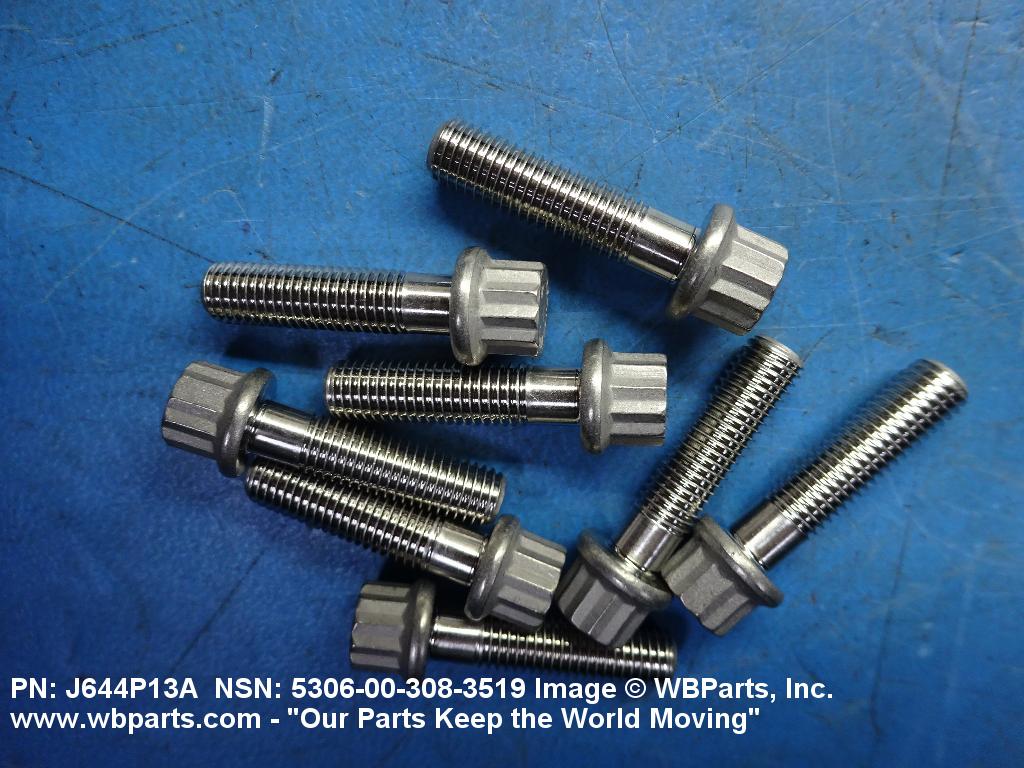

Product Details | MACHINE BOLT
5306-00-308-3519 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: J644P13A, 10114228 , 5306-00-308-3519, 00-308-3519, 5306003083519, 003083519
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 1973 | 00-308-3519 | 01847 ( BOLT, MACHINE ) |

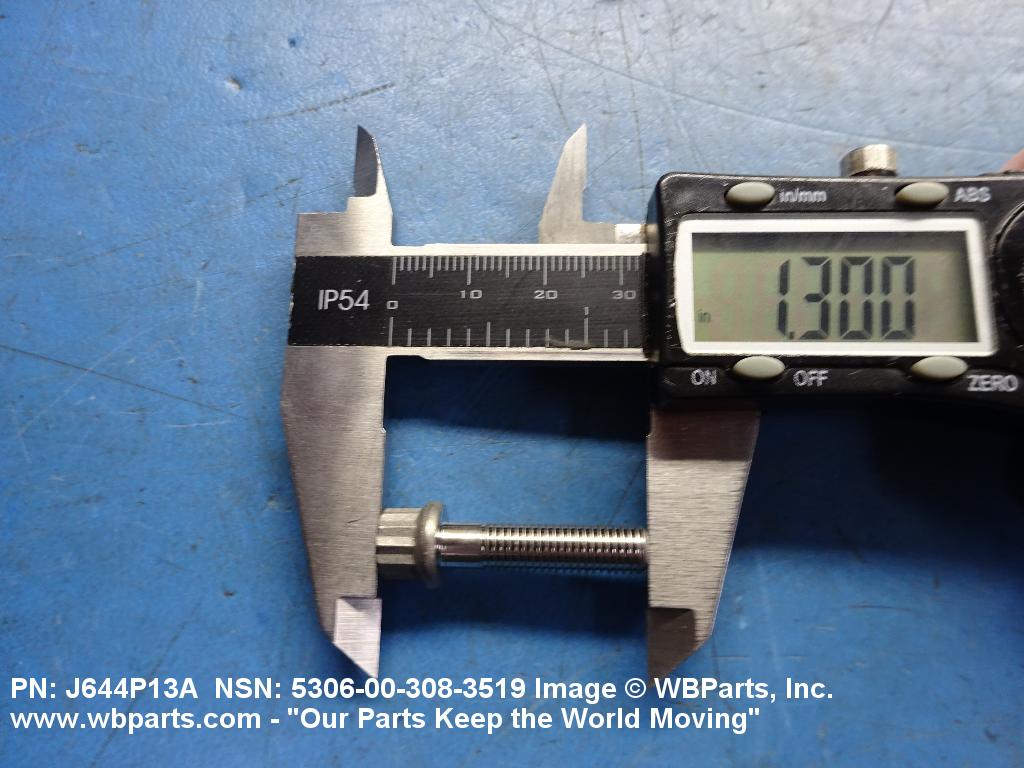

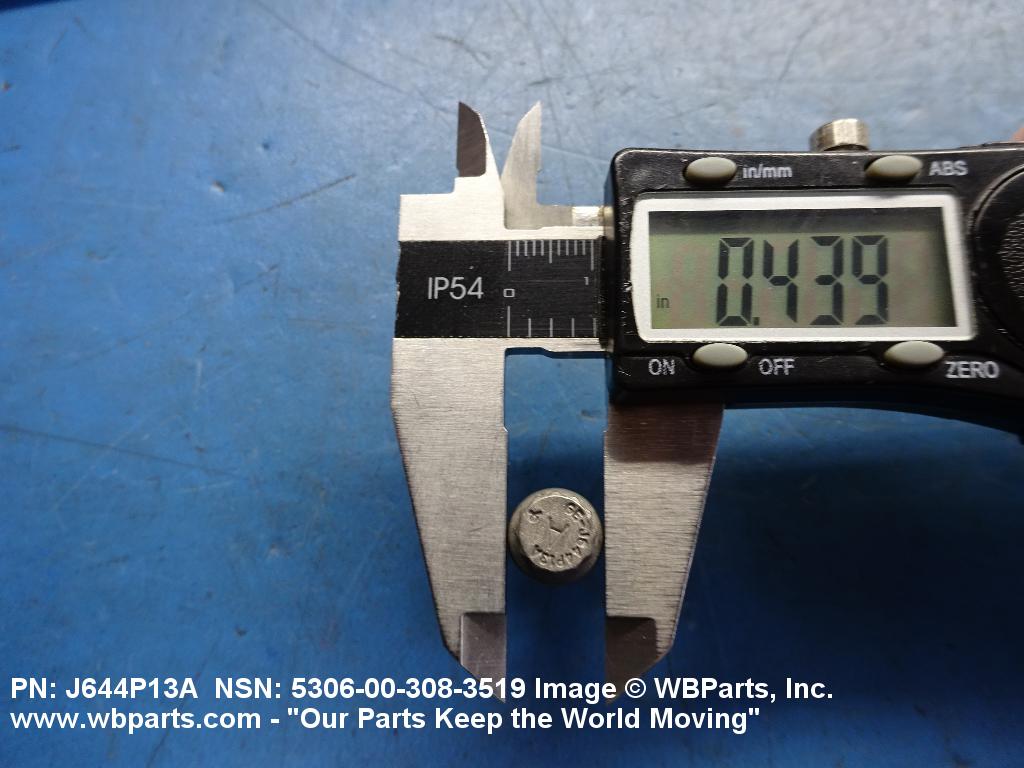

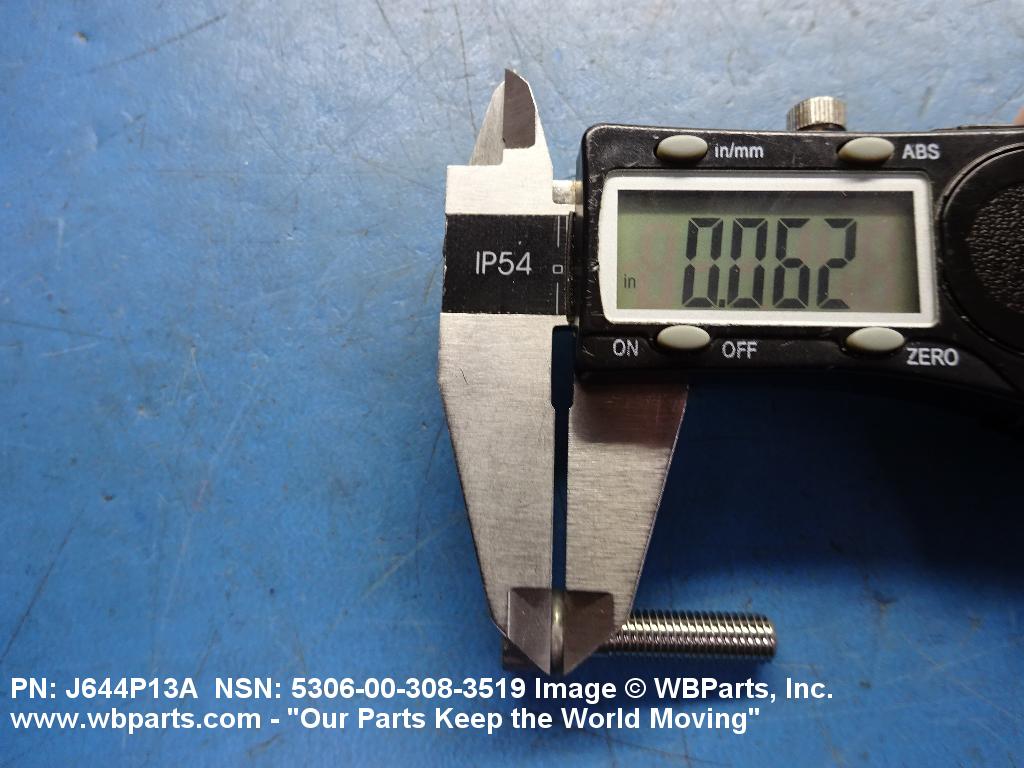

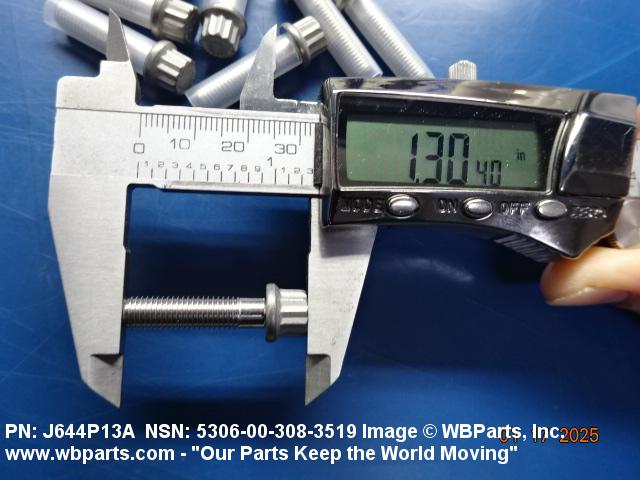

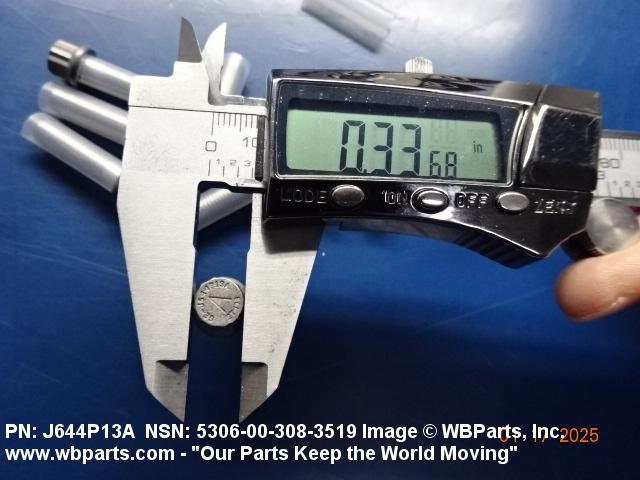

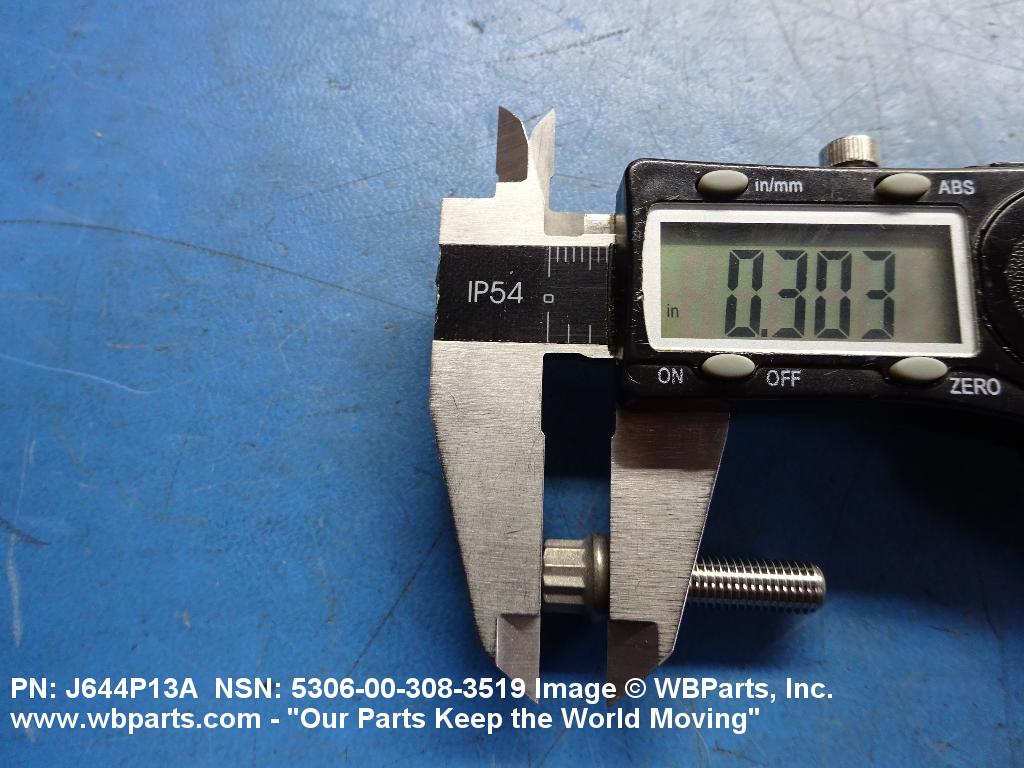

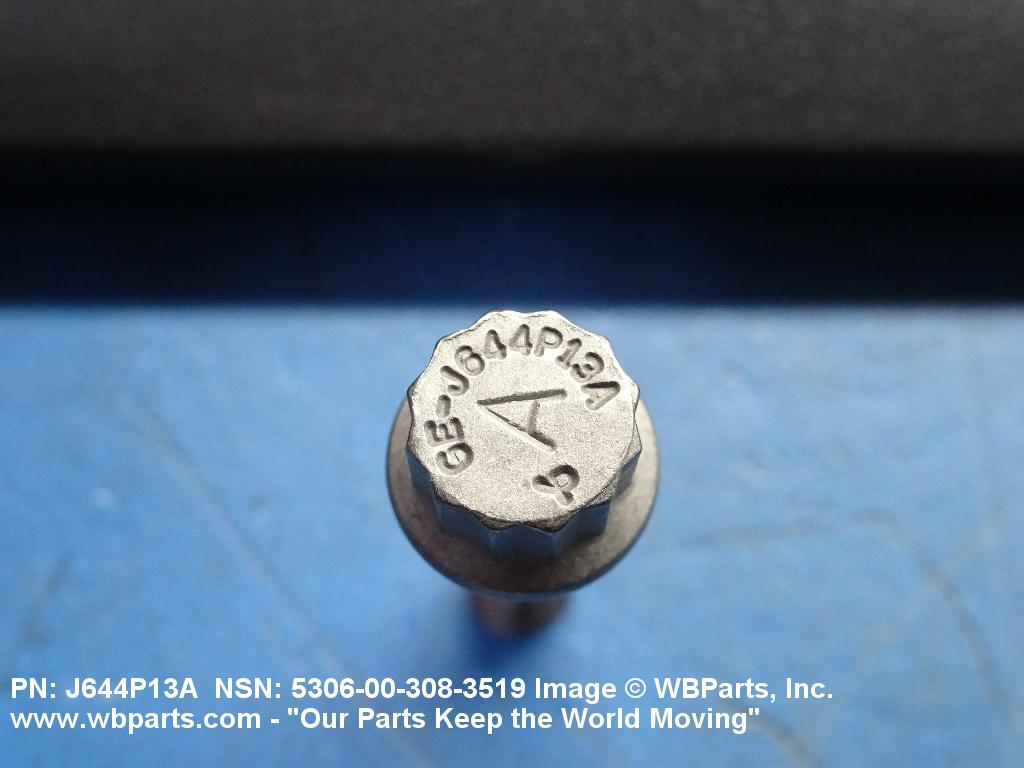

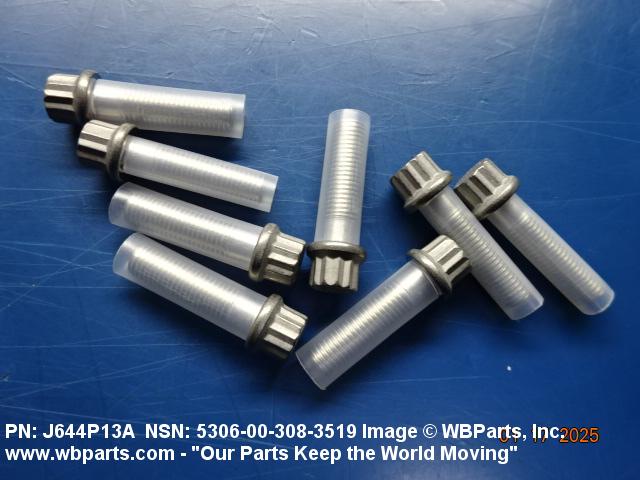

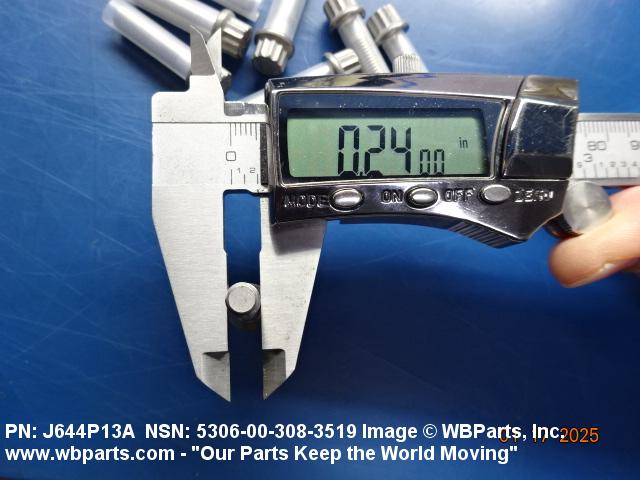

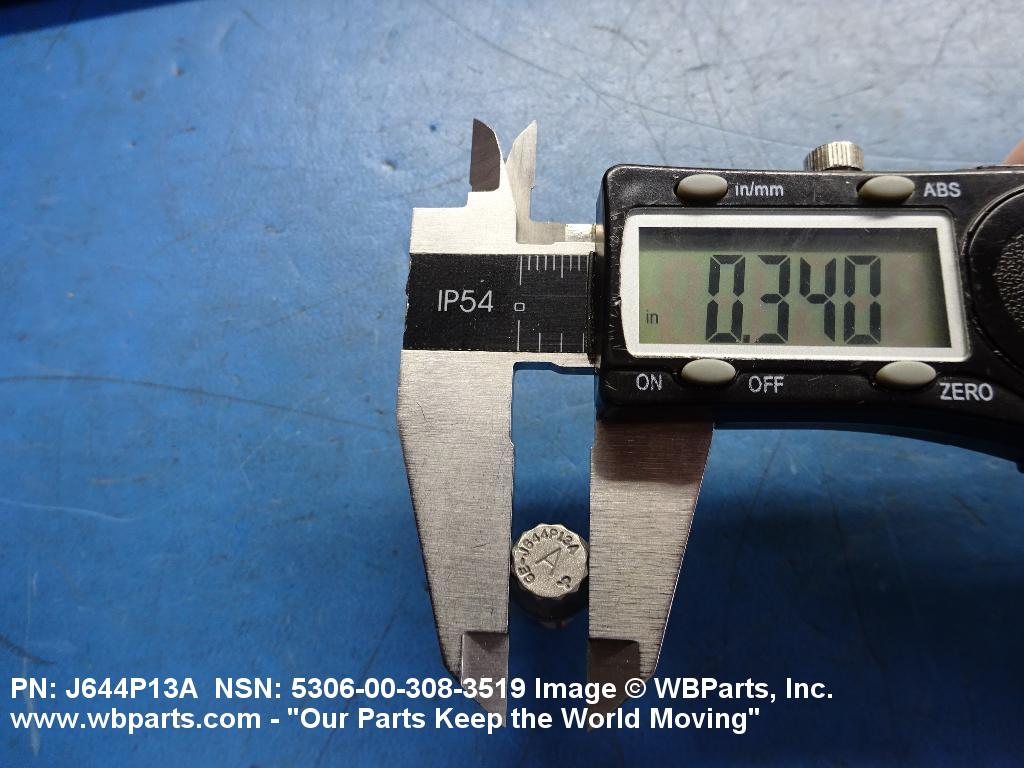

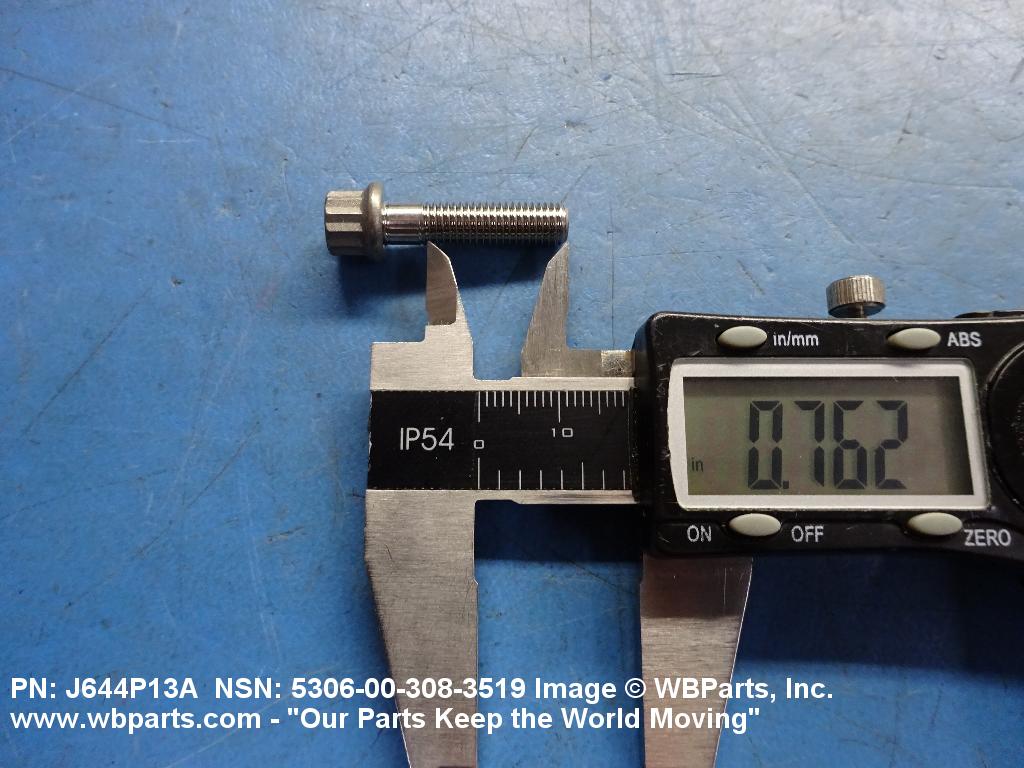

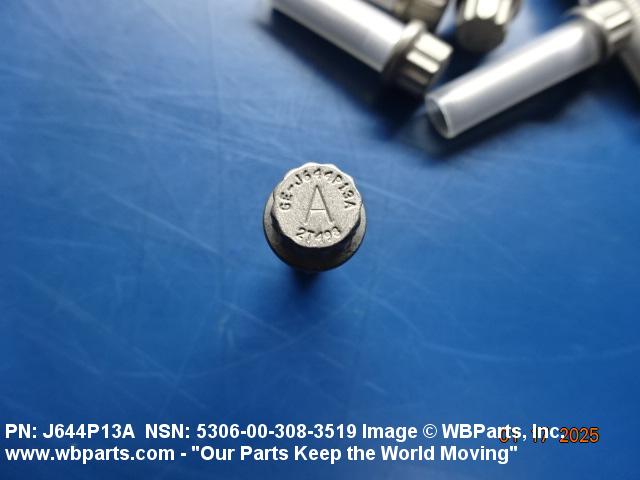

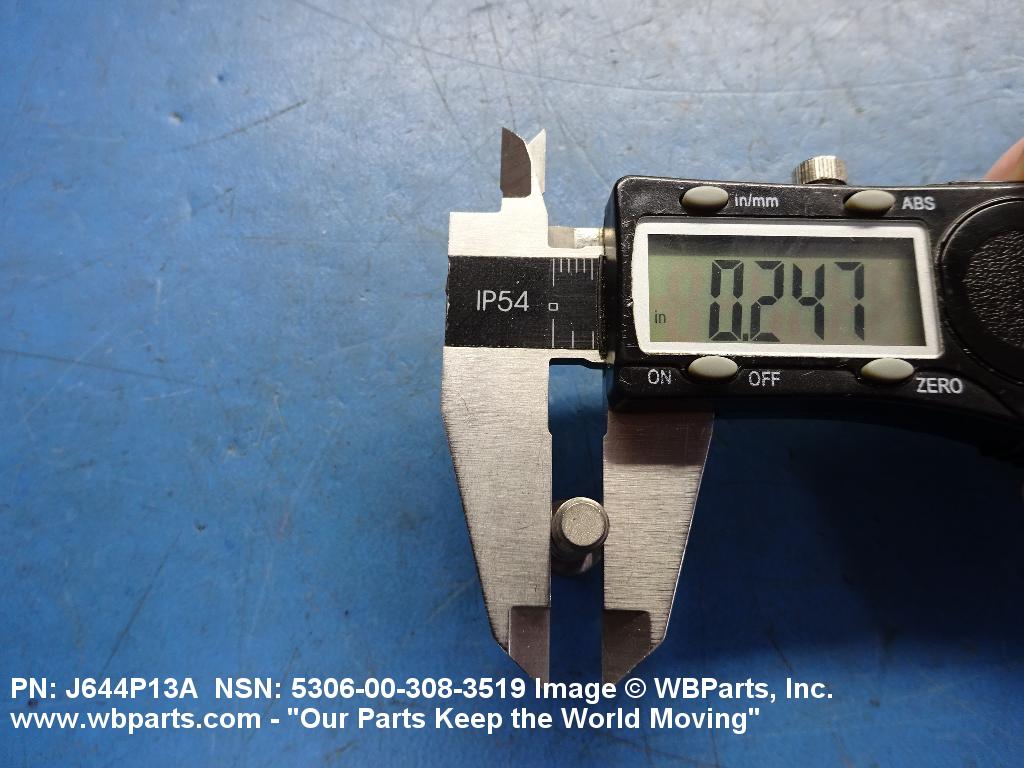

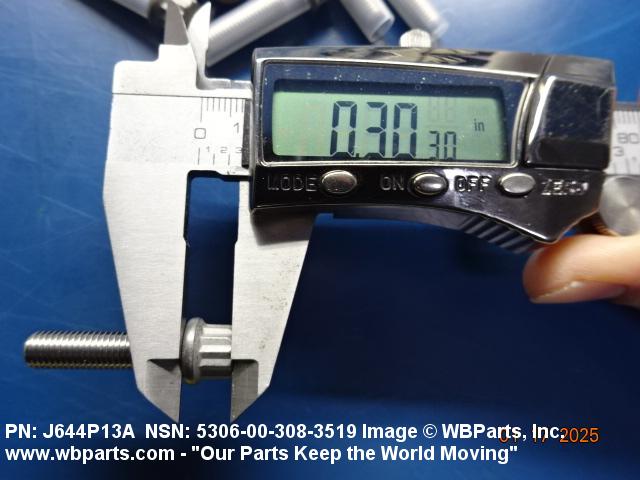

Drawings & Photos | NSN 5306-00-308-3519
Demand History | NSN 5306-00-308-3519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J644P13A | 2025-08-216 | 5 | CN |
| J644P13A | 2025-01-10 | 8 | United States |
| J644P13A | 2024-12-339 | 20 | United States |
| J644P13A | 2024-08-235 | 16 | United States |
| J644P13A | 2024-08-229 | 5 | Kazakhstan |
| 5306-00-308-3519 | 2024-08-228 | 10 | Kazakhstan |
| J644P13A | 2024-07-198 | 16 | United States |
| 5306-00-308-3519 | 2024-06-164 | 84 | ES |
| 5306-00-308-3519 | 2024-06-163 | 84 | ES |
| 5306-00-308-3519 | 2024-02-50 | 50 | ID |
| 5306-00-308-3519 | 2022-10-285 | 8 | us |
| J644P13A | 2021-11-321 | 7322 | DIBBS |
| J644P13A | 2021-11-320 | 7322 | DIBBS |
| J644P13A | 2021-10-290 | 7322 | DIBBS |
| J644P13A | 2021-09-269 | 7322 | DIBBS |
| J644P13A | 2019-11-331 | 24 | United States |
| 5306-00-308-3519 | 2019-11-324 | 32 | US |
| J644P13A | 2019-11-309 | 5300 | DIBBS |
| J644P13A | 2019-11-309 | 6650 | DIBBS |
| J644P13A | 2019-10-280 | 6628 | DIBBS |
| J644P13A | 2019-09-245 | 5274 | DIBBS |
| J644P13A | 2019-04-100 | 9050 | DIBBS |
| J644P13A | 2019-01-29 | 20000 | DIBBS |
| 5306-00-308-3519 | 2018-12-344 | 9010 | DIBBS |
| 5306-00-308-3519 | 2018-09-261 | 9492 | DIBBS |
| 5306-00-308-3519 | 2018-08-225 | 10487 | DIBBS |
| 5306-00-308-3519 | 2017-11-324 | 859 | DIBBS |
| 5306-00-308-3519 | 2017-11-320 | 18049 | DIBBS |
| 5306-00-308-3519 | 2017-10-288 | 3585 | DIBBS |
| J644P13A | 2016-06-174 | 11 | United States |
| 5306-00-308-3519 | 2015-07-187 | 17524 | DIBBS |
| J644P13A | 2015-03-85 | 8 | United States |
| 5306-00-308-3519 | 2015-02-55 | 27324 | DIBBS |
| 5306-00-308-3519 | 2014-10-289 | 11372 | DIBBS |
| 5306-00-308-3519 | 2014-07-194 | 417 | DIBBS |
| 5306-00-308-3519 | 2014-04-91 | 2000 | DIBBS |
| 5306-00-308-3519 | 2014-03-69 | 25000 | DIBBS |
| J644P13A | 2014-02-36 | 6 | United States |
| 5306-00-308-3519 | 2014-01-21 | 3732 | DIBBS |
| 5306-00-308-3519 | 2013-12-352 | 3197 | DIBBS |
| J644P13A | 2013-05-134 | 50 | CZ |
| 5306-00-308-3519 | 2011-11-320 | 10000 | FR |
| J644P13A | 2011-10-294 | 2500 | US |
| J644P13A | 2011-10-294 | 10000 | US |
| 5306-00-308-3519 | 2011-02-49 | 13573 | DIBBS |
| 5306-00-308-3519 | 2009-07-182 | 3500 | us |
| 5306-00-308-3519 | 2009-05-139 | 6001 | DIBBS |
| J644P13A | 2009-02-56 | 8 | United States |
| 5306-00-308-3519 | 2009-02-36 | 26050 | DIBBS |
| 5306-00-308-3519 | 2009-01-27 | 26050 | DIBBS |
| 5306-00-308-3519 | 2008-06-163 | 12000 | us |
| 5306-00-308-3519 | 2008-02-32 | 50 | Taiwan |
| 5306-00-308-3519 | 2007-11-330 | 225 | Taiwan |
| 5306-00-308-3519 | 2007-11-330 | 50 | Taiwan |
| 5306-00-308-3519 | 2007-10-289 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-308-3519
Related Products | NSN 5306-00-308-3519
Technical Data | NSN 5306-00-308-3519
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.699 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |

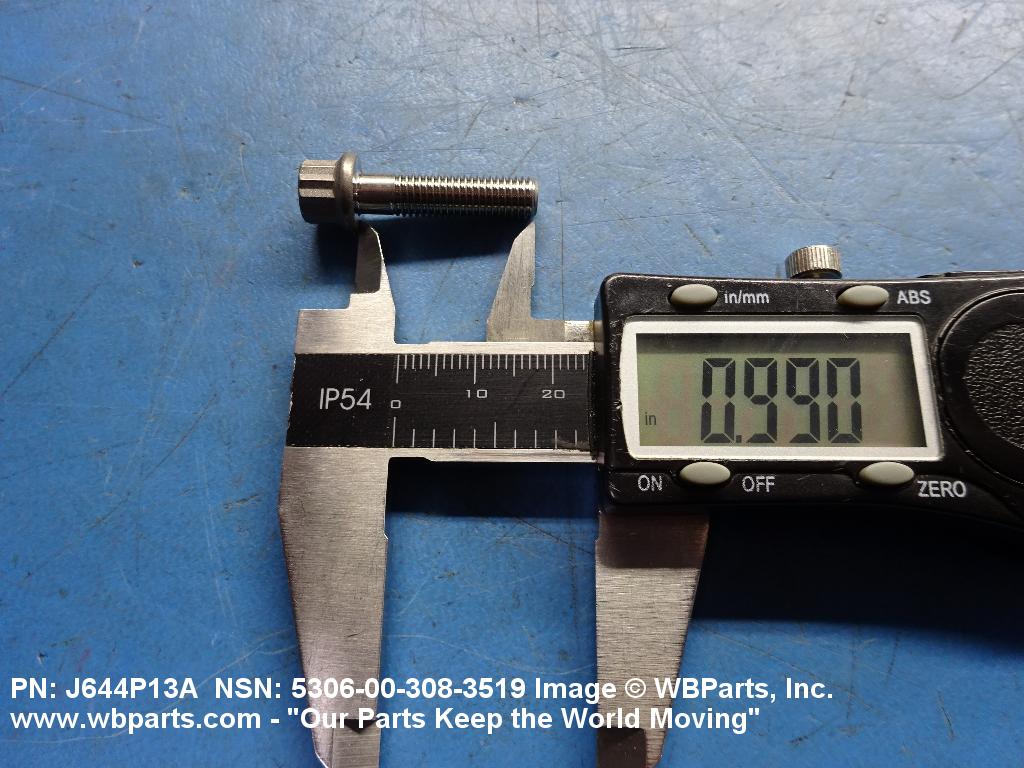

| FASTENER LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
