NSN 5306-00-346-2179 7261753, 726175-3, 00-346-2179
Product Details | EYE BOLT
5306-00-346-2179 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 7261753, 726175-3, 5306-00-346-2179, 00-346-2179, 5306003462179, 003462179
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-346-2179 | 01853 ( BOLT, EYE ) |

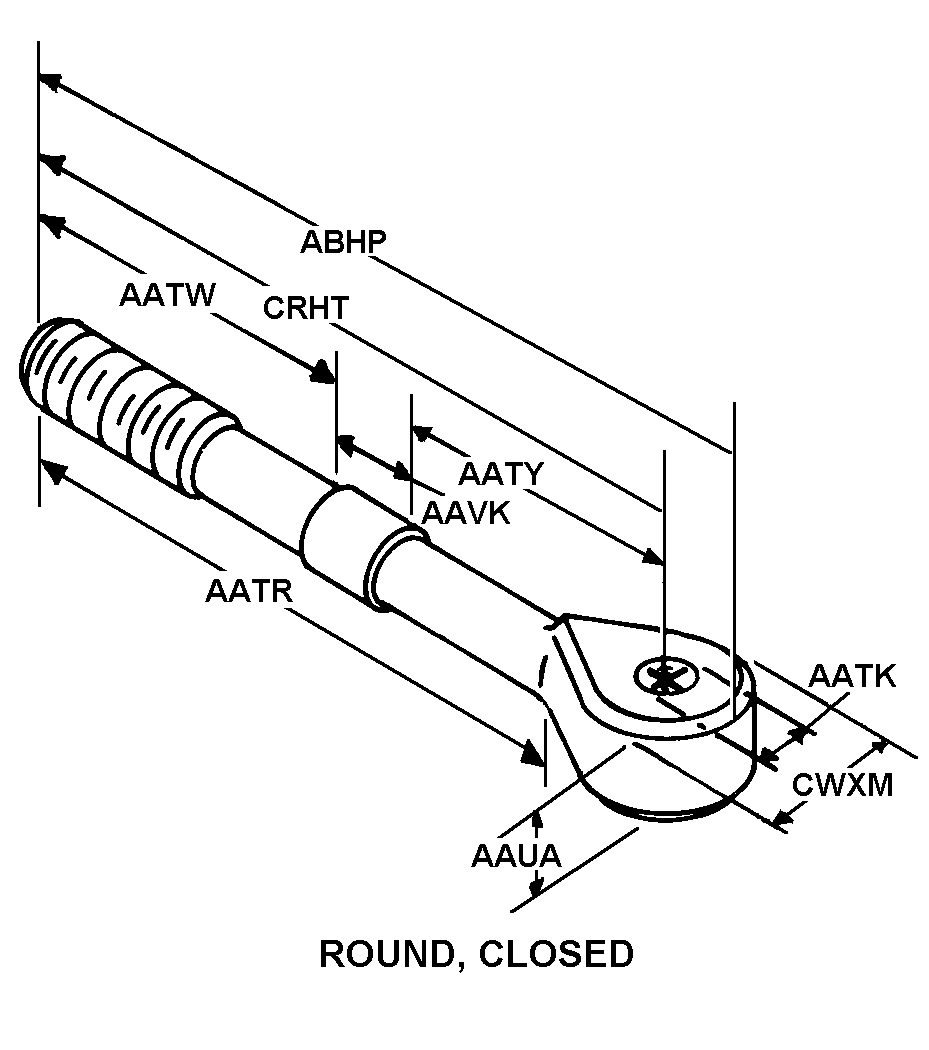

Drawings & Photos | NSN 5306-00-346-2179
Cross Reference | NSN 5306-00-346-2179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 726175-3 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-346-2179
Technical Data | NSN 5306-00-346-2179
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.870 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050,COND F-4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B16 ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.183 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| DISTANCE FROM SHOULDER TO THREAD END | 0.850 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |
| DISTANCE FROM SHOULDER TO EYE CENTER | 0.940 INCHES MINIMUM AND 0.960 INCHES MAXIMUM |
| EYE STOCK THICKNESS | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.150 INCHES NOMINAL |
| OVERALL LENGTH | 2.220 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 1.940 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| EYE OUTSIDE WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| DISTANCE FROM THREADED END TO SHANK HOLE CENTER | 0.945 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.061 INCHES MINIMUM AND 0.066 INCHES MAXIMUM FIRST HOLE |
Restrictions/Controls & Freight Information | NSN 5306-00-346-2179
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
