Product Details | EYE BOLT
5306-00-383-7126 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 7743636, 5306-00-383-7126, 00-383-7126, 5306003837126, 003837126
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-383-7126 | 01853 ( BOLT, EYE ) |

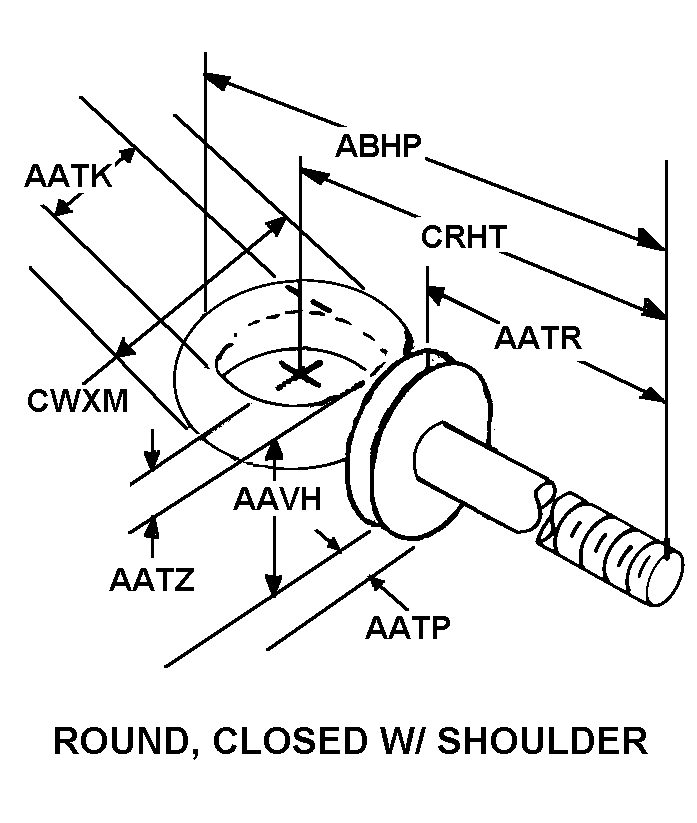

Drawings & Photos | NSN 5306-00-383-7126
Cross Reference | NSN 5306-00-383-7126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7743636 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5306-00-383-7126
5306-00-383-7978, 5306-00-383-8491, 5306-00-383-8881, 5306-00-383-9037, 5306-00-383-9643
Technical Data | NSN 5306-00-383-7126
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES MINIMUM |
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | B6 ROUND, CLOSED W/SHOULDER |
| EYE INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| SHOULDER THICKNESS | 0.188 INCHES NOMINAL |
| SHANK LENGTH | 1.375 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.328 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL LENGTH | 3.359 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 2.531 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 1.656 INCHES NOMINAL |
