Product Details | KEY HEAD BOLT
5306-00-459-5025 A headed externally threaded fastener whose threaded portion is of one nominal diameter with a single rectangular or triangular projection on the underside of the head.
Part Alternates: GP34G44A, 5306-00-459-5025, 00-459-5025, 5306004595025, 004595025
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1970 | 00-459-5025 | 15942 ( BOLT, KEY HEAD ) |
Drawings & Photos | NSN 5306-00-459-5025
Cross Reference | NSN 5306-00-459-5025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GP34G44A | 20874 | ERIE STRAYER COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-459-5025
Technical Data | NSN 5306-00-459-5025
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 1.125 INCHES |
| THREAD QUANTITY PER INCH | 7 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MINIMUM |
| FASTENER LENGTH | 5.500 INCHES MINIMUM AND 5.750 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |

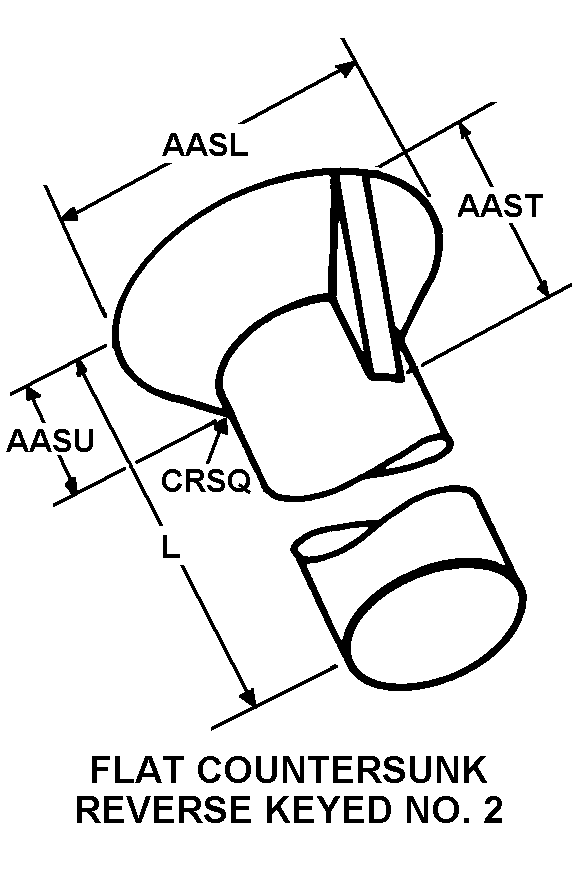

| HEAD STYLE | C62 FLAT COUNTERSUNK REVERSE KEYED NO. 2 |
