NSN 5306-00-484-2298 MS921816, MS9218-16, 00-484-2298
Product Details | MACHINE BOLT
5306-00-484-2298 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS921816, MS9218-16, 5306-00-484-2298, 00-484-2298, 5306004842298, 004842298
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1969 | 00-484-2298 | 01847 ( BOLT, MACHINE ) |

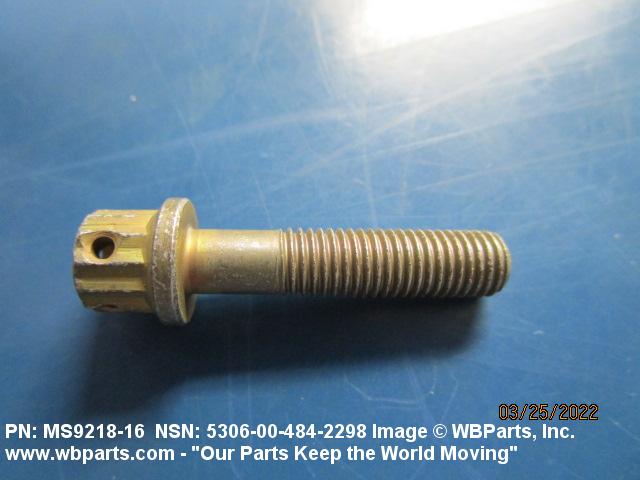

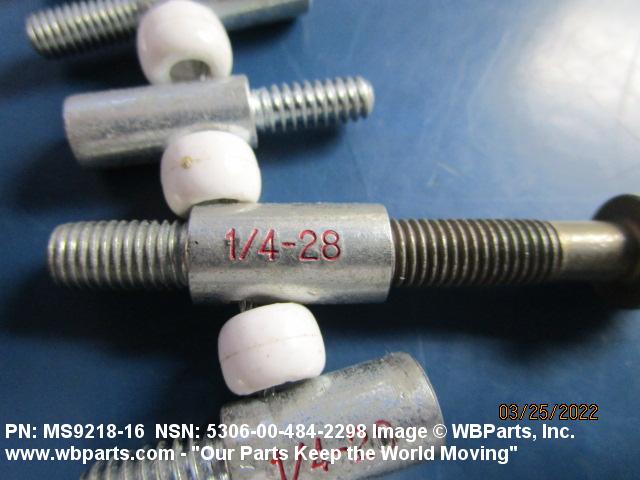

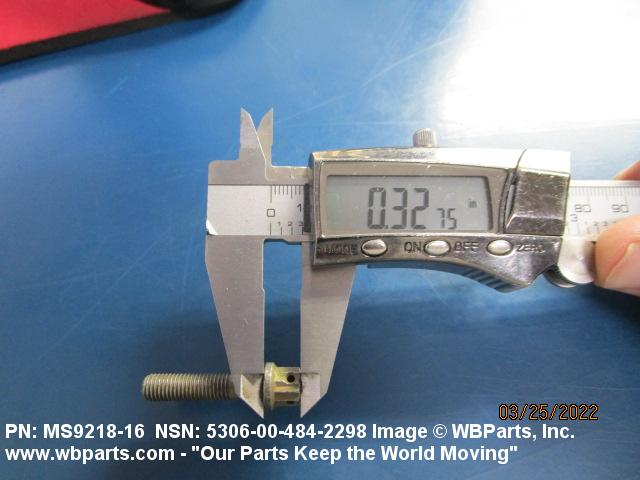

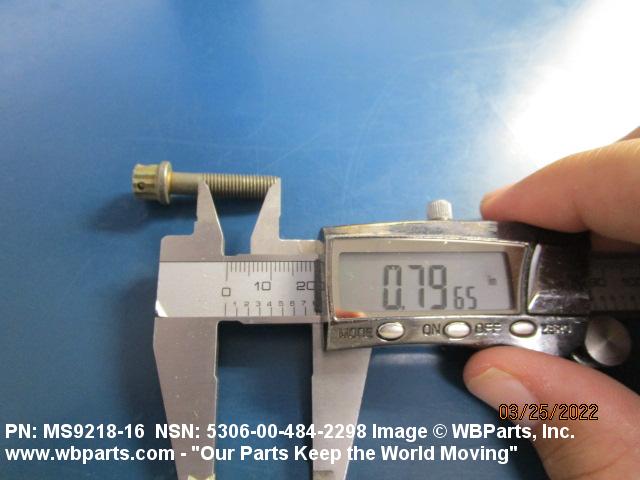

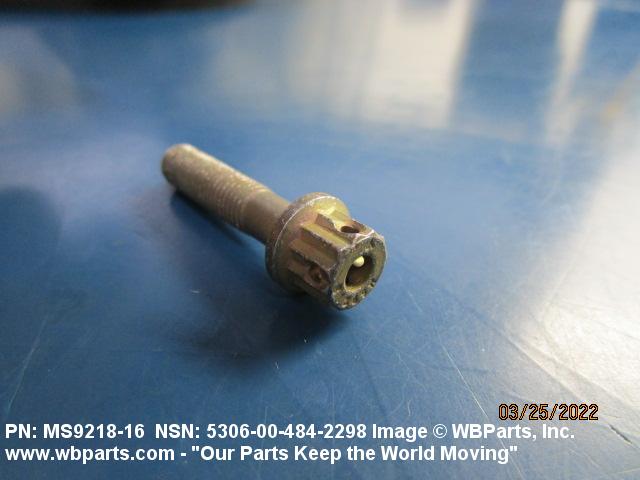

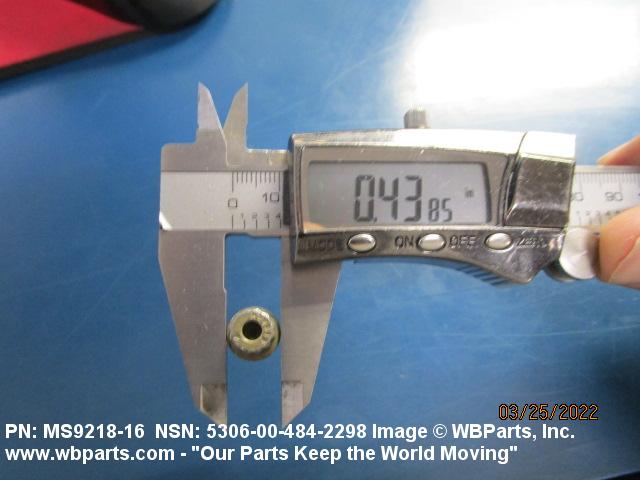

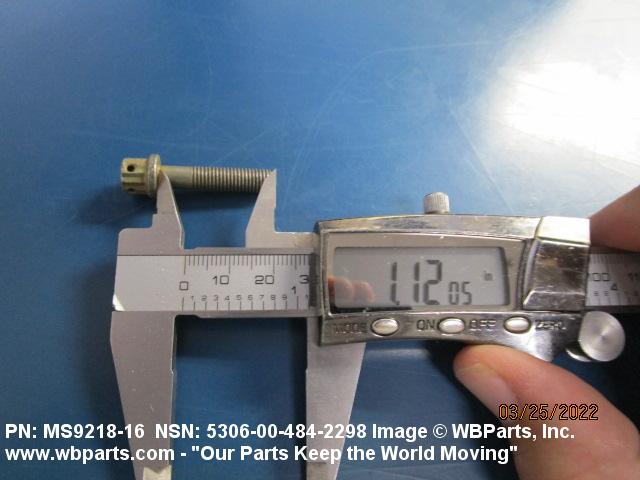

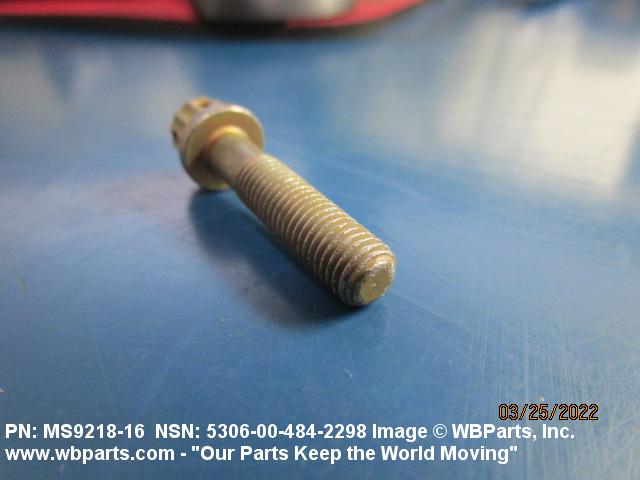

Drawings & Photos | NSN 5306-00-484-2298
Demand History | NSN 5306-00-484-2298
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS921816 | 2022-03-76 | 7 | United States |
| MS921816 | 2022-03-76 | 21 | United States |
Cross Reference | NSN 5306-00-484-2298
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9218-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-484-2298
Technical Data | NSN 5306-00-484-2298
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| FASTENER LENGTH | 1.125 INCHES NOMINAL |
| MATERIAL | STEEL COMP 601 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6304 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL AND CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2416 ASSN STD ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 42.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 195000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.330 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.438 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E9 ROUND |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.070 INCHES NOMINAL |
| GRIP LENGTH | 0.315 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9218-16 |
Restrictions/Controls & Freight Information | NSN 5306-00-484-2298
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5306-00-484-2298
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
