NSN 5306-00-485-8286 A4221843, A422184-3, 00-485-8286
Product Details | SHEAR BOLT
5306-00-485-8286 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: A4221843, A422184-3, 5306-00-485-8286, 00-485-8286, 5306004858286, 004858286
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 1974 | 00-485-8286 | 15903 ( BOLT, SHEAR ) |

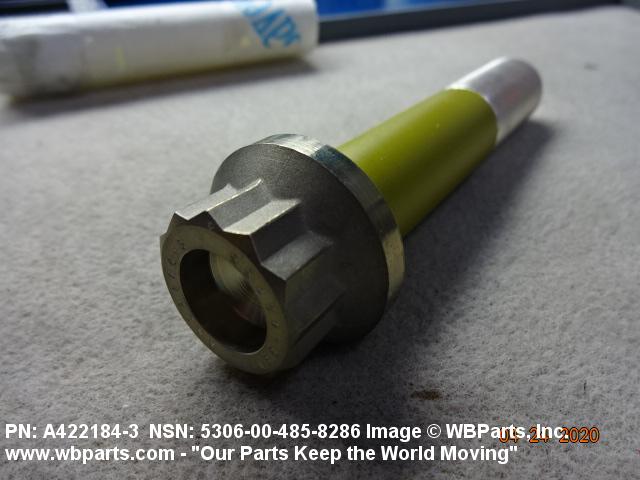

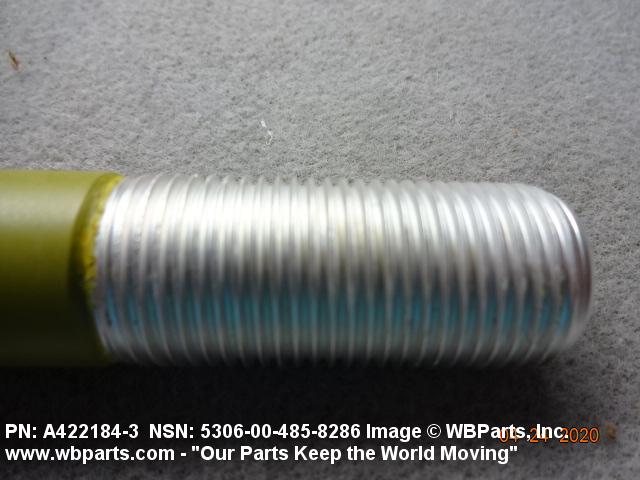

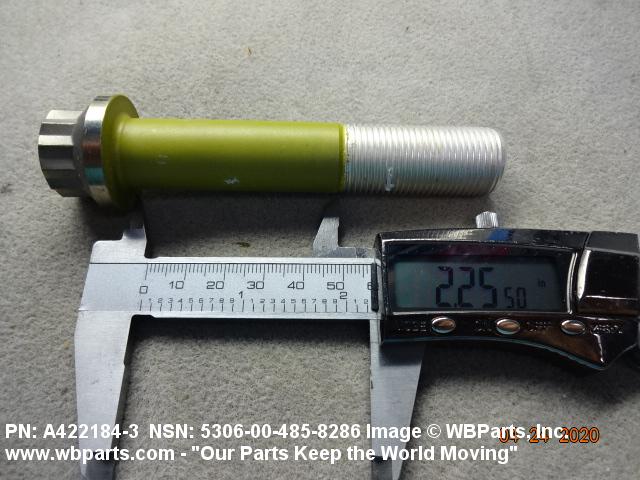

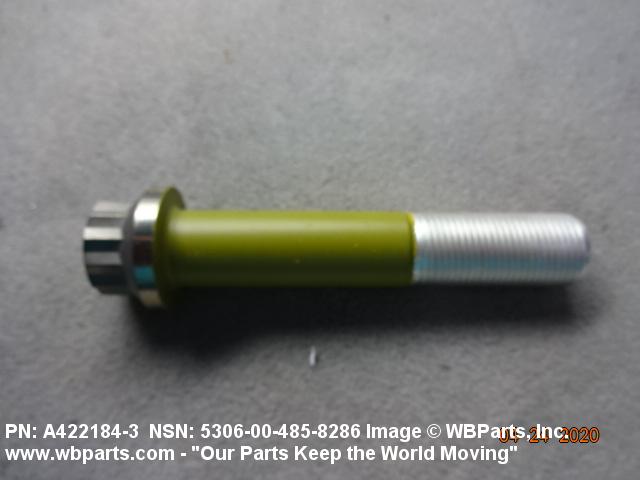

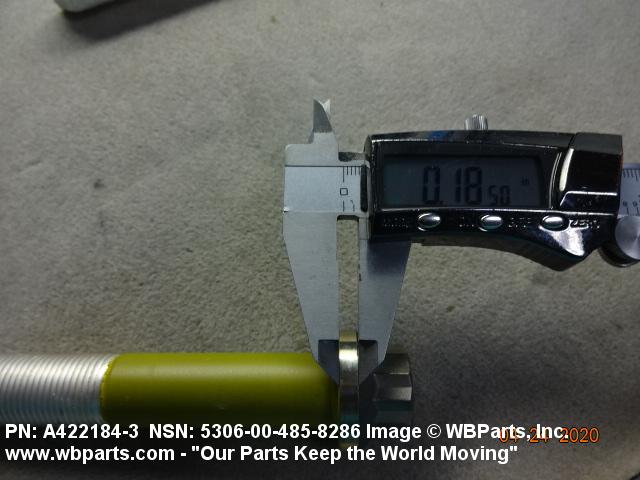

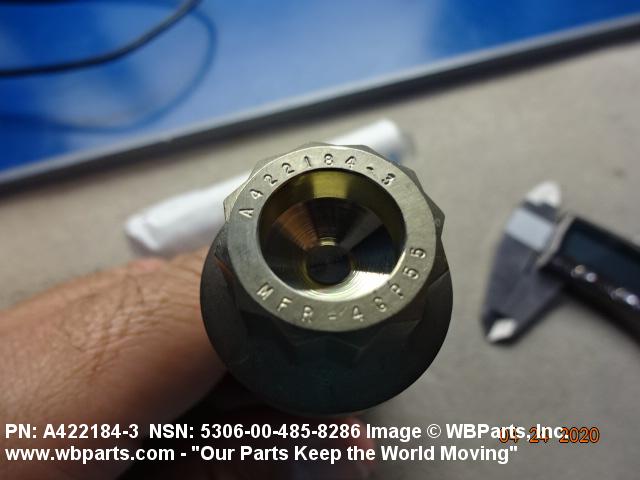

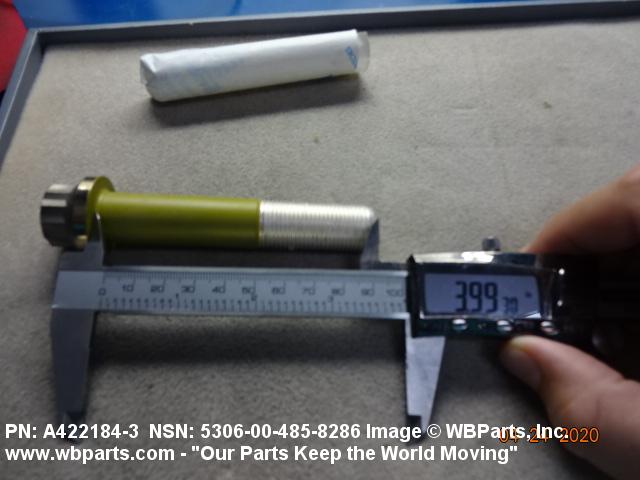

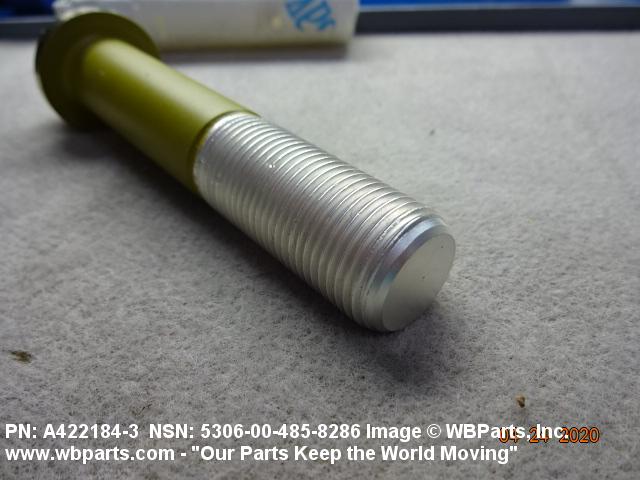

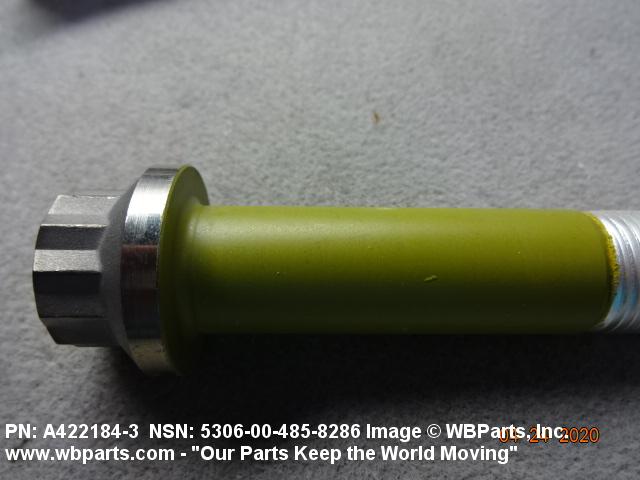

Drawings & Photos | NSN 5306-00-485-8286
Demand History | NSN 5306-00-485-8286
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-485-8286 | 2025-12-353 | 40 | US |
| A422184-3 | 2025-08-238 | 440 | DIBBS |
| SLB915-3 | 2025-08-238 | 440 | DIBBS |
| A422184-3 | 2025-08-218 | 338 | DIBBS |
| SLB915-3 | 2025-08-218 | 338 | DIBBS |
| A422184-3 | 2025-04-113 | 1239 | DIBBS |
| SLB915-3 | 2025-04-113 | 1239 | DIBBS |
| A422184-3 | 2024-05-152 | 1817 | DIBBS |
| SLB915-3 | 2024-05-152 | 1817 | DIBBS |
| 5306-00-485-8286 | 2023-05-127 | 333 | US |
| A422184-3 | 2023-05-127 | 333 | DIBBS |
| SLB915-3 | 2023-05-127 | 333 | DIBBS |
| A422184-3 | 2023-01-12 | 205 | DIBBS |
| A422184-3 | 2022-08-217 | 205 | DIBBS |
| A422184-3 | 2022-03-80 | 561 | DIBBS |
| A422184-3 | 2021-12-347 | 269 | DIBBS |
| 5306-00-485-8286 | 2020-02-58 | 33 | United States |
| 5306-00-485-8286 | 2019-12-346 | 38 | United States |
| 5306-00-485-8286 | 2019-11-322 | 38 | United States |
| A4221843 | 2019-11-322 | 38 | United States |
| 5306-00-485-8286 | 2017-02-44 | 1 | DIBBS-RFPs |
| 5306-00-485-8286 | 2016-08-242 | 687 | DIBBS |
| 5306-00-485-8286 | 2016-06-174 | 501 | DIBBS |
| 5306-00-485-8286 | 2015-08-238 | 501 | DIBBS |
| 5306-00-485-8286 | 2015-02-42 | 1 | DIBBS-RFPs |
| 5306-00-485-8286 | 2014-03-64 | 485 | DIBBS |
| 5306-00-485-8286 | 2013-08-232 | 701 | DIBBS |
Cross Reference | NSN 5306-00-485-8286
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-485-8286
Technical Data | NSN 5306-00-485-8286
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

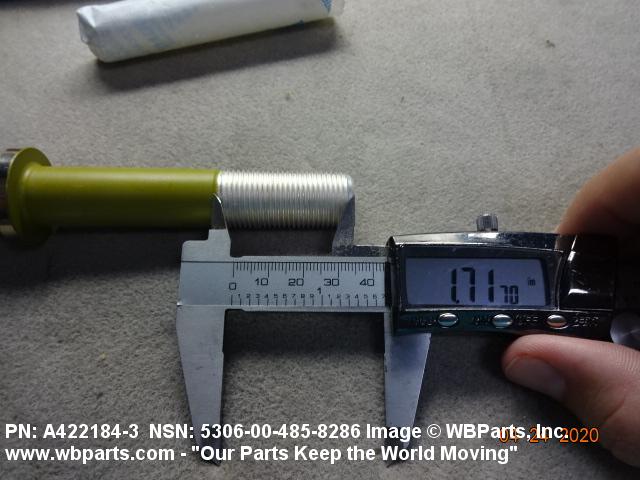

| THREAD LENGTH | 1.500 INCHES MINIMUM |
| FASTENER LENGTH | 4.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5844 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE AND SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC 1ST TREATMENT RESPONSE AND AMS2410 ASSN STD 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C NOMINAL OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |

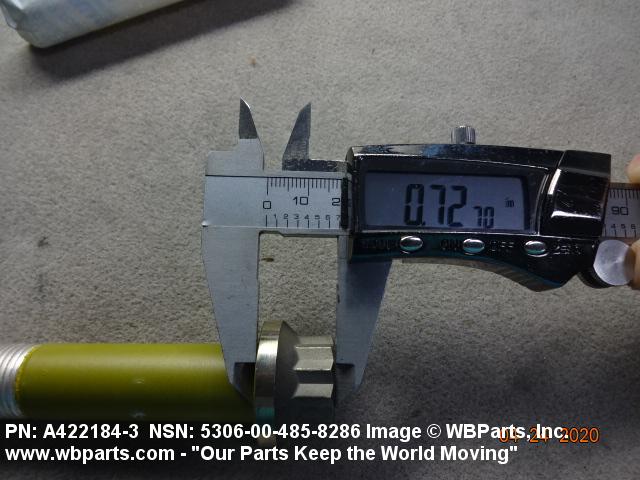

| HEAD HEIGHT | 0.711 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.803 INCHES MINIMUM AND 0.814 INCHES MAXIMUM |

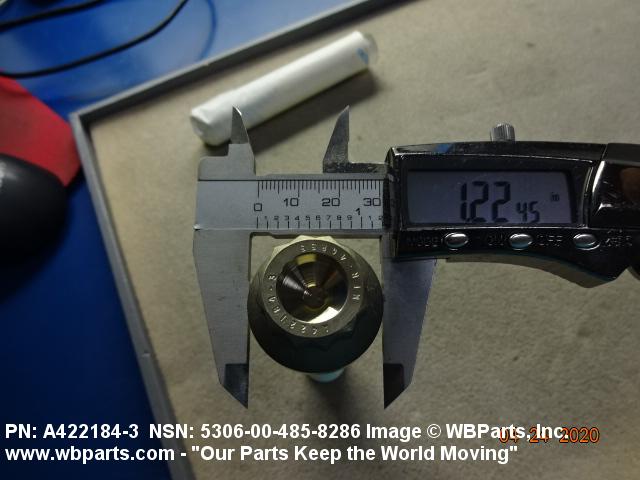

| EXTENDED WASHER DIAMETER | 1.220 INCHES MINIMUM AND 1.230 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.178 INCHES NOMINAL |
| GRIP LENGTH | 2.500 INCHES NOMINAL |

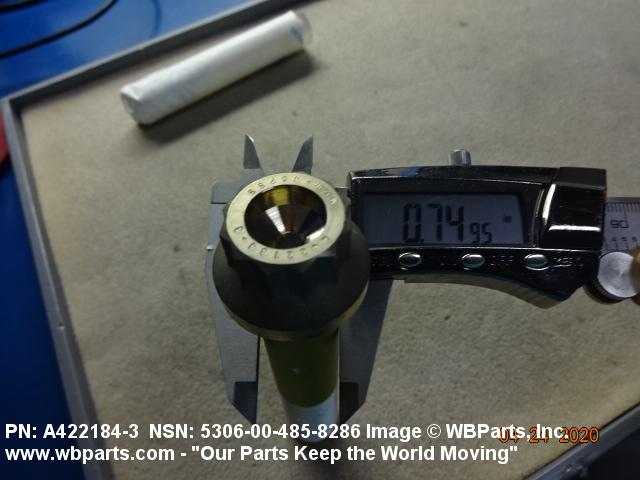

| GRIP DIAMETER | 0.7480 INCHES MINIMUM AND 0.7490 INCHES MAXIMUM |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | A422184-3 |
Restrictions/Controls & Freight Information | NSN 5306-00-485-8286
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-485-8286
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EY | 4R/5R Cog items managed by BRASO |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
