NSN 5306-00-508-9365 J644P18A, 00-508-9365, 005089365

Product Details | MACHINE BOLT

5306-00-508-9365 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: J644P18A, 5306-00-508-9365, 00-508-9365, 5306005089365, 005089365

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 JUL 1974	00-508-9365	01847 ( BOLT, MACHINE )

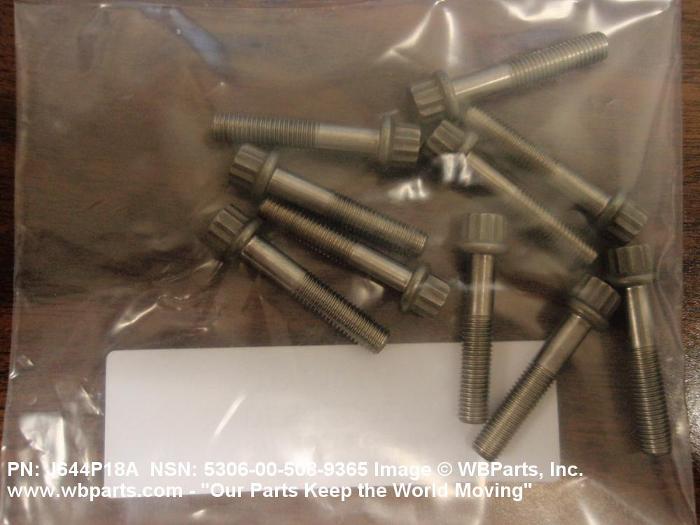

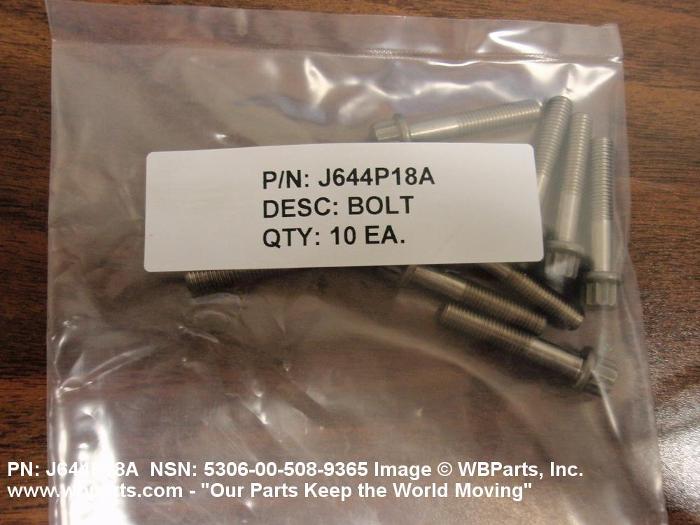

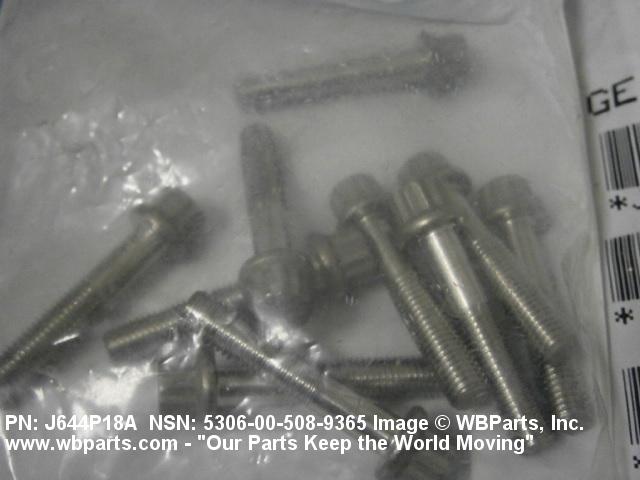

Drawings & Photos | NSN 5306-00-508-9365

Part Number	Request Date	QTY	Origin
5306-00-508-9365	2025-11-323	2000	DIBBS
5306-00-508-9365	2025-02-35	1174	DIBBS
J644P18A	2024-07-201	700	Japan
5306-00-508-9365	2024-03-66	503	DIBBS
5306-00-508-9365	2023-05-135	545	DIBBS
J644P18A	2023-02-54	257	United States
5306-00-508-9365	2022-09-263	257	PA
J644P18A	2021-11-313	104	United States
J644P18A	2020-12-350	96	United States
5306-00-508-9365	2017-02-40	1	DIBBS-RFPs
5306-00-508-9365	2016-08-235	843	DIBBS
5306-00-508-9365	2015-09-264	683	DIBBS
5306-00-508-9365	2015-07-211	683	DIBBS
5306-00-508-9365	2013-06-168	859	DIBBS
J644P18A	2013-05-134	50	CZ
J644P18A	2011-12-354	20	United States
J644P18A	2011-07-193	20	United States
J644P18A	2011-06-180	20	United States
J644P18A	2011-05-129	10	Australia
5306-00-508-9365	2009-10-299	1	MX
J644P18A	2009-09-251	98	us
J644P18A	2009-08-238	97	China
5306-00-508-9365	2009-07-204	96	US
5306-00-508-9365	2008-06-163	38000	us
5306-00-508-9365	2008-04-116	200	us
J644P18A	2008-02-48	100	US

Cross Reference | NSN 5306-00-508-9365

Part Number	Cage Code	Manufacturer
J644P18A	07482	GENERAL ELECTRIC COMPANY DBA GE
J644P18A	58828	CFM INTERNATIONAL, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-508-9365

Compare

Related Products | NSN 5306-00-508-9365

5306-00-508-9366, 5306-00-508-9375, 5306-00-508-9376, 5306-00-508-9379, 5306-00-508-9480

Technical Data | NSN 5306-00-508-9365

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.740 INCHES MINIMUM AND 0.820 INCHES MAXIMUM
FASTENER LENGTH	1.302 INCHES MINIMUM AND 1.322 INCHES MAXIMUM
MATERIAL	NICKEL ALLOY 718 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	INCONEL 718,FSCM 74900 MFR REF SINGLE MATERIAL RESPONSE OVERALL
HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER
HEAD HEIGHT	0.293 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.312 INCHES NOMINAL
EXTENDED WASHER DIAMETER	0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM
EXTENDED WASHER THICKNESS	0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM
GRIP LENGTH	0.502 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	J644P18A

Restrictions/Controls & Freight Information | NSN 5306-00-508-9365

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	139820	NICKEL BOLTS/NAILS/NUTS/RIVETS ETC
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	713	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-508-9365

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
