NSN 5306-00-512-7603 J645P13A, 10114324 , 00-512-7603

Product Details | MACHINE BOLT

5306-00-512-7603 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: J645P13A, 10114324 , 5306-00-512-7603, 00-512-7603, 5306005127603, 005127603

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 AUG 1974	00-512-7603	01847 ( BOLT, MACHINE )

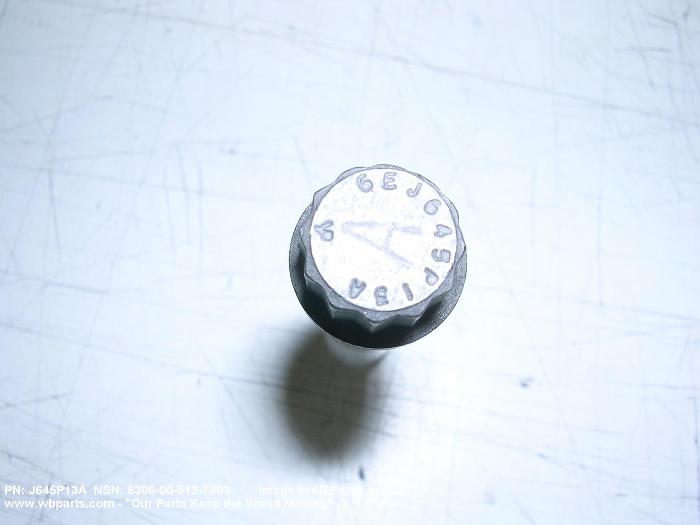

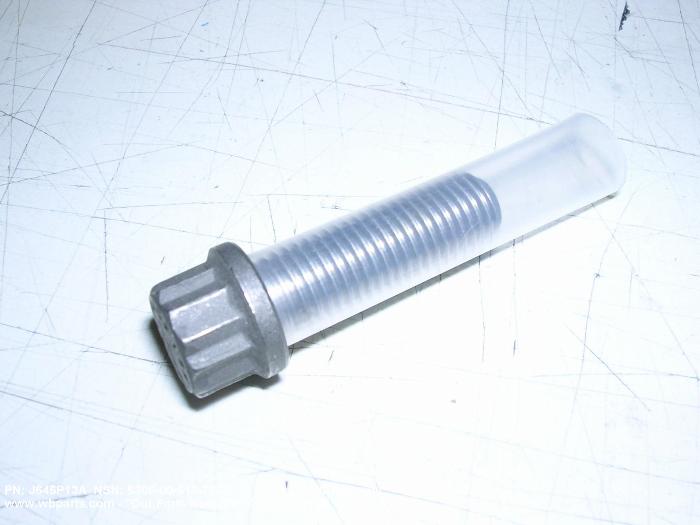

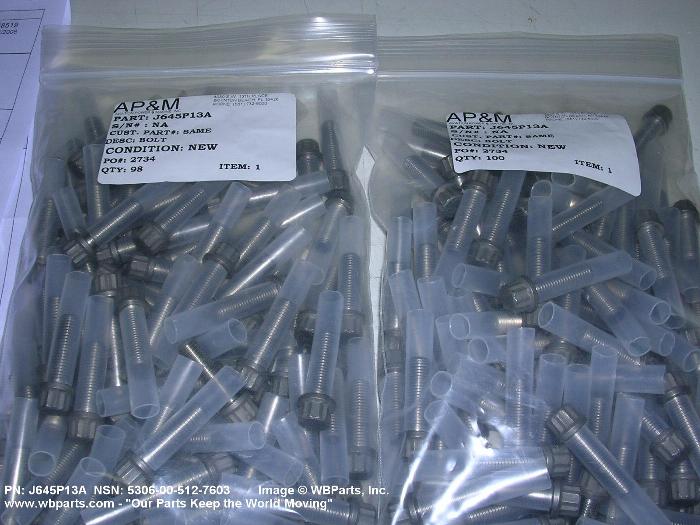

Drawings & Photos | NSN 5306-00-512-7603

Part Number	Request Date	QTY	Origin
5306-00-512-7603	2024-06-163	18	ES
J645P13A	2019-08-227	484	DIBBS
5306-00-512-7603	2018-11-323	924	DIBBS
J645P13A	2018-05-135	32	FX
5306-00-512-7603	2017-08-243	2945	DIBBS
5306-00-512-7603	2017-04-120	3295	DIBBS
5306-00-512-7603	2011-08-237	18500	DIBBS
5306-00-512-7603	2010-09-252	6350	DIBBS
5306-00-512-7603	2008-02-32	50	Taiwan
5306-00-512-7603	2007-11-330	50	Taiwan

Cross Reference | NSN 5306-00-512-7603

Part Number	Cage Code	Manufacturer
J645P13A	06329	ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES
J645P13A	06710	VALLEY-TODECO, INC.
J645P13A	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
J645P13A	07482	GENERAL ELECTRIC COMPANY DBA GE
J645P13A	0UCY9	M.S. AEROSPACE INC.
J645P13A	23899	J.W. MANUFACTURING, INC DBA VAN PETTY MANUFACTURING
J645P13A	27238	BRISTOL INDUSTRIES
J645P13A	2T498	MORTON GRINDING, INC. DBA MORTON MANUFACTURING
J645P13A	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
J645P13A	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-512-7603

Compare

Related Products | NSN 5306-00-512-7603

5306-00-512-7623, 5306-00-512-8044, 5306-00-512-8679, 5306-00-512-9218, 5306-00-512-9234

Technical Data | NSN 5306-00-512-7603

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.865 INCHES MINIMUM AND 0.945 INCHES MAXIMUM
FASTENER LENGTH	0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM
MATERIAL	NICKEL ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	C50TF13,CL B,FSCM 07482 MFR REF SINGLE MATERIAL RESPONSE OVERALL
HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER
HEAD HEIGHT	0.328 INCHES MINIMUM AND 0.348 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.375 INCHES NOMINAL
EXTENDED WASHER DIAMETER	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
EXTENDED WASHER THICKNESS	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
GRIP LENGTH	0.065 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	J645P13A

Restrictions/Controls & Freight Information | NSN 5306-00-512-7603

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093470	BOLTS/NUTS I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	573	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-512-7603

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	NY	SX:"GENERAL ELECTRIC ENGINES & COMPONENTS, TF-39"
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
