NSN 5306-00-523-2857 J643P05, J643P05A, R583P05U

Product Details | MACHINE BOLT

5306-00-523-2857 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: J643P05, J643P05A, R583P05U, 10114326 , 5306-00-523-2857, 00-523-2857, 5306005232857, 005232857

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 AUG 1974	00-523-2857	01847 ( BOLT, MACHINE )

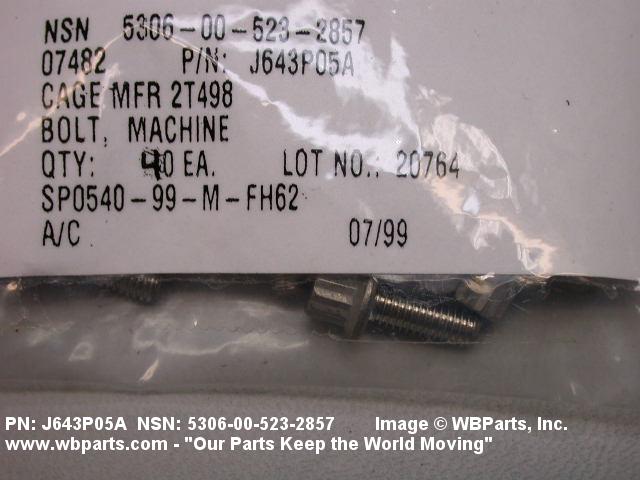

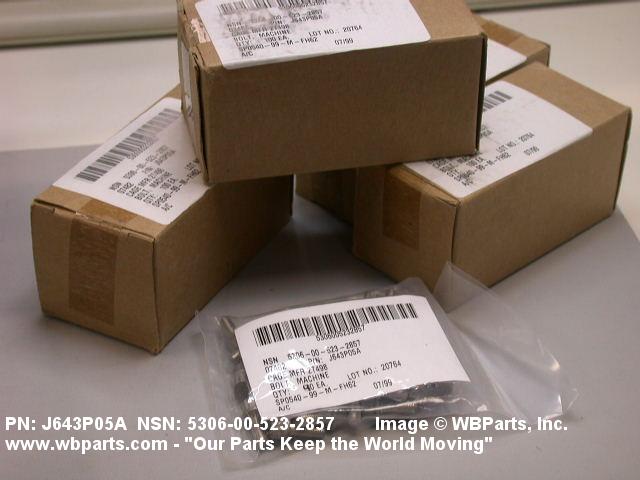

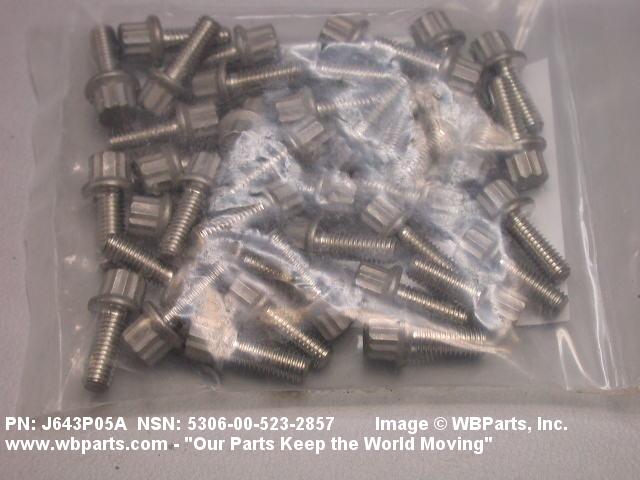

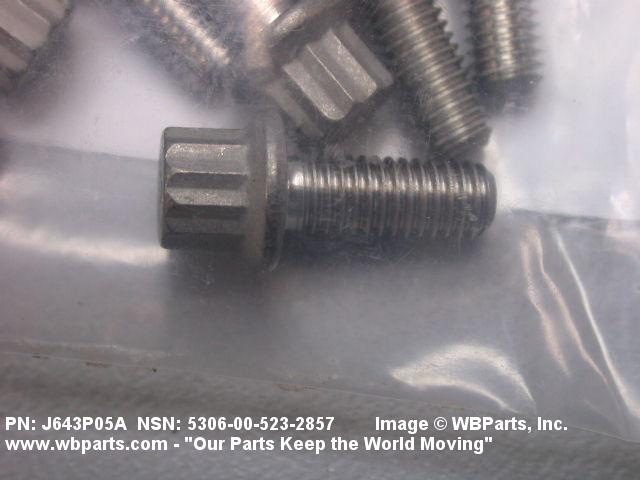

Drawings & Photos | NSN 5306-00-523-2857

Part Number	Request Date	QTY	Origin
J643P05A	2023-04-106	1253	DIBBS
J643P05A	2022-05-135	177	DIBBS
5306-00-523-2857	2020-08-217	486	US
5306-00-523-2857	2019-11-324	48	US
J643P05A	2019-11-323	30	TH
5306-00-523-2857	2019-07-206	32	United States
J643P05A	2019-05-142	5377	DIBBS
J643P05A	2019-04-106	5129	DIBBS
J643P05A	2019-01-15	27950	DIBBS
J643P05A	2019-01-08	1389	DIBBS
5306-00-523-2857	2018-12-338	6767	DIBBS
5306-00-523-2857	2018-10-287	3063	DIBBS
5306-00-523-2857	2018-09-259	8008	DIBBS
5306-00-523-2857	2018-08-219	16844	DIBBS
J643P05A	2018-05-135	3	FX
5306-00-523-2857	2017-10-289	10257	DIBBS
J643P05A	2012-10-303	600	United States
5306-00-523-2857	2009-06-168	21351	DIBBS
5306-00-523-2857	2009-04-105	16969	DIBBS
5306-00-523-2857	2008-12-350	30000	DIBBS
5306-00-523-2857	2008-11-331	30000	DIBBS
5306-00-523-2857	2008-11-322	2246	DIBBS
5306-00-523-2857	2008-06-163	12500	us
5306-00-523-2857	2008-06-155	3699	DIBBS
J643P05A	2007-06-170	440	United States

Cross Reference | NSN 5306-00-523-2857

Part Number	Cage Code	Manufacturer
J643P05	99207	GENERAL ELECTRIC COMPANY DBA GE
J643P05A	06329	ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES
J643P05A	06710	VALLEY-TODECO, INC.
J643P05A	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
J643P05A	07482	GENERAL ELECTRIC COMPANY DBA GE
J643P05A	23899	J.W. MANUFACTURING, INC DBA VAN PETTY MANUFACTURING
J643P05A	27238	BRISTOL INDUSTRIES
J643P05A	2T498	MORTON GRINDING, INC. DBA MORTON MANUFACTURING
J643P05A	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
J643P05A	58828	CFM INTERNATIONAL, INC.
J643P05A	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
R583P05U	07482	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-523-2857

Compare

Related Products | NSN 5306-00-523-2857

5306-00-523-2859, 5306-00-523-2860, 5306-00-523-3140, 5306-00-523-7535, 5306-00-523-8336

Technical Data | NSN 5306-00-523-2857

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.428 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
FASTENER LENGTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
MATERIAL	NICKEL ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	C50TF13,CL B,FSCM 07482 MFR REF SINGLE MATERIAL RESPONSE OVERALL
HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER
HEAD HEIGHT	0.248 INCHES MINIMUM AND 0.268 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.250 INCHES NOMINAL
EXTENDED WASHER DIAMETER	0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
EXTENDED WASHER THICKNESS	0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	J643P05A

Restrictions/Controls & Freight Information | NSN 5306-00-523-2857

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093470	BOLTS/NUTS I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	573	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-523-2857

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	NY	SX:"GENERAL ELECTRIC ENGINES & COMPONENTS, TF-39"
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
