NSN 5306-00-533-4602 AN813A, AN8-13A, 00-533-4602

Product Details | MACHINE BOLT

5306-00-533-4602 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN813A, AN8-13A, 5306-00-533-4602, 00-533-4602, 5306005334602, 005334602

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-533-4602	01847 ( BOLT, MACHINE )

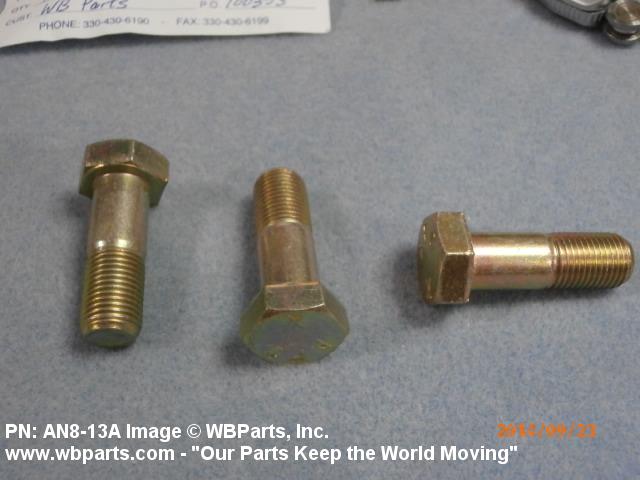

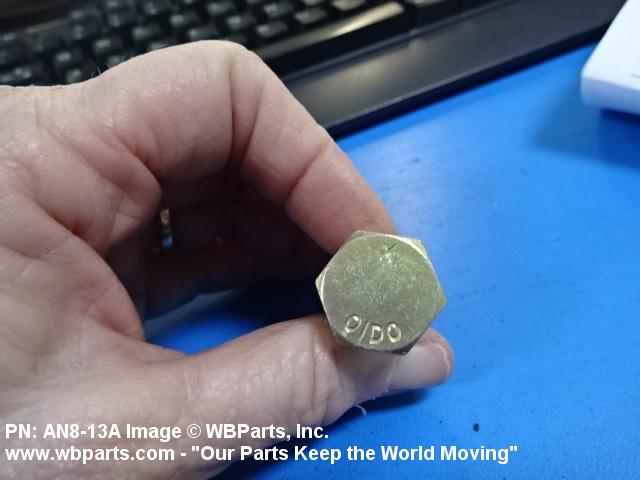

Drawings & Photos | NSN 5306-00-533-4602

Part Number	Request Date	QTY	Origin
AN813A	2025-09-260	16	United States
5306-00-533-4602	2025-04-93	582	DIBBS
5306-00-533-4602	2025-03-85	582	DIBBS
AN813A	2025-03-62	60	Japan
AN813A	2025-01-10	10	Japan
5306-00-533-4602	2024-05-133	450	DIBBS
5306-00-533-4602	2024-05-126	351	DIBBS
5306-00-533-4602	2024-05-122	351	DIBBS
5306-00-533-4602	2024-03-88	1064	DIBBS
5306-00-533-4602	2024-03-72	241	DIBBS
AN813A	2021-10-278	16	United States
AN813A	2021-06-166	34	US
AN813A	2020-05-127	2000	us
AN813A	2019-10-294	1000	us
AN813A	2019-08-231	800	us
AN813A	2019-08-221	800	us
AN813A	2019-06-165	800	us
AN813A	2019-06-164	800	us
AN813A	2019-05-141	300	us
AN813A	2018-02-50	12	United States
AN813A	2017-08-216	2000	us
AN813A	2017-03-67	250	US
AN813A	2016-11-334	1000	us
AN8-13A	2014-05-142	100	United States
AN813A	2014-02-58	32	CO
5306-00-533-4602	2012-04-92	16	Colombia
AN813A	2012-03-65	70	United States
AN813A	2010-12-335	25	United States
AN813A	2008-11-312	1032	US

Cross Reference | NSN 5306-00-533-4602

Part Number	Cage Code	Manufacturer
AN8-13A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-533-4602

Compare

Related Products | NSN 5306-00-533-4602

5306-00-533-4872, 5306-00-533-5088, 5306-00-533-5217, 5306-00-533-5418, 5306-00-533-5695

Technical Data | NSN 5306-00-533-4602

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

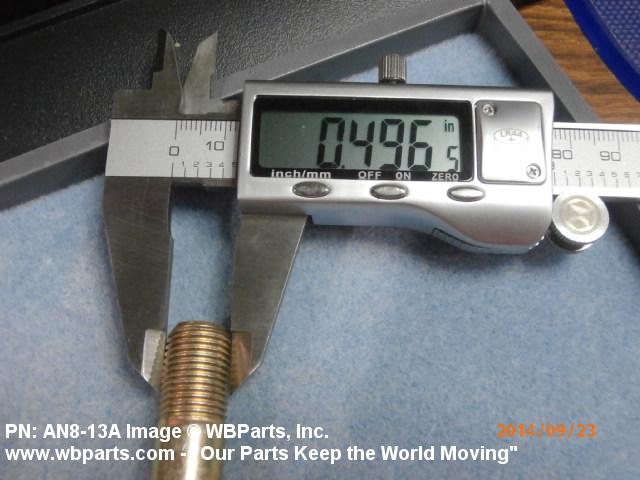

NOMINAL THREAD DIAMETER	0.500 INCHES

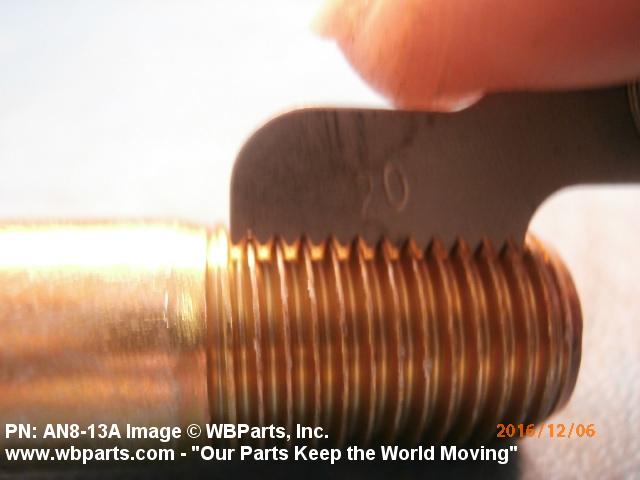

THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

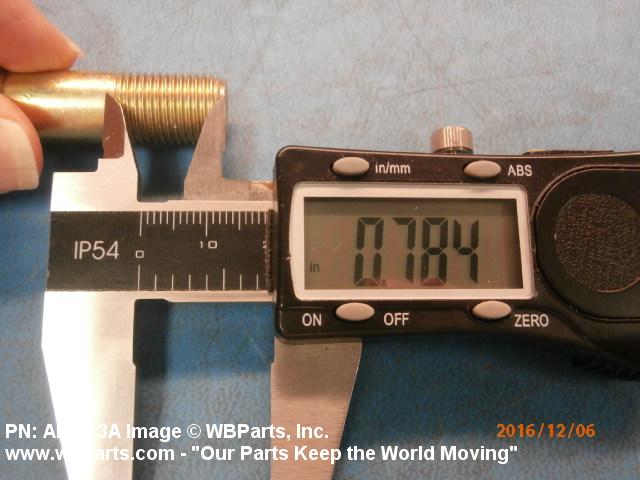

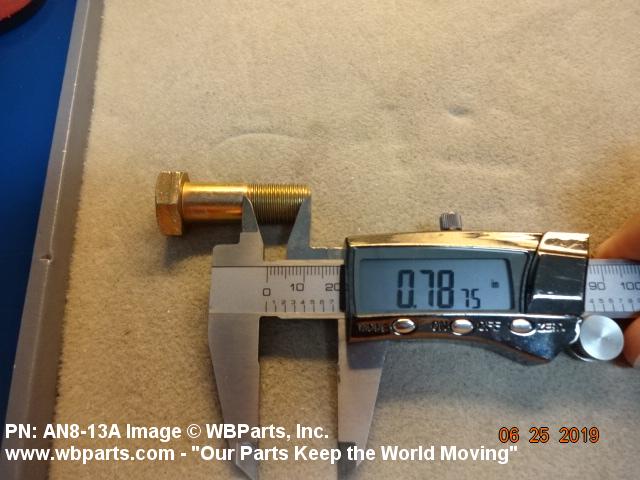

THREAD LENGTH	0.781 INCHES MAXIMUM

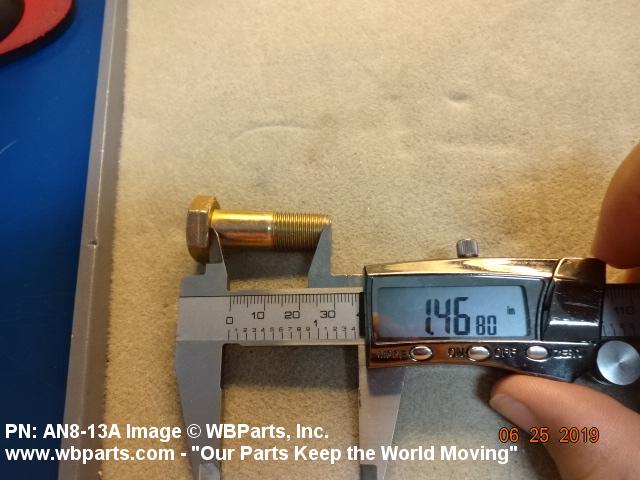

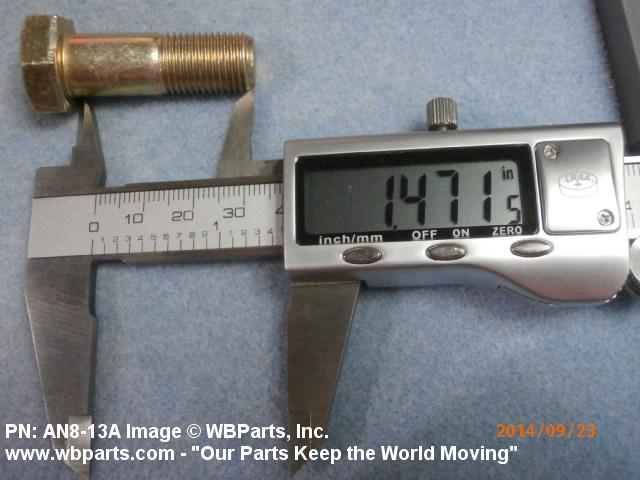

FASTENER LENGTH	1.468 INCHES NOMINAL
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH

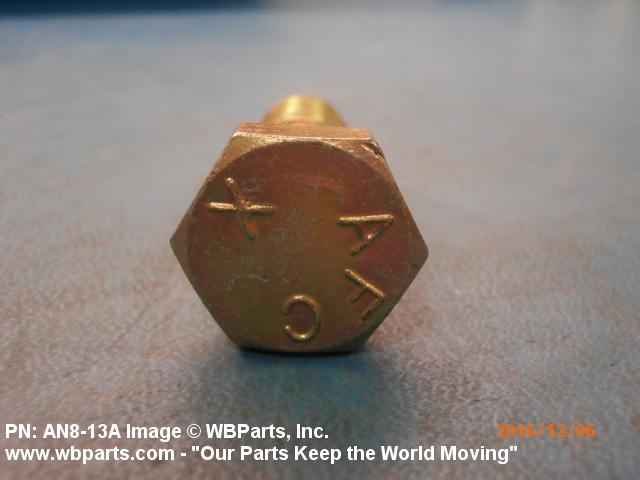

HEAD STYLE	C1 HEXAGON

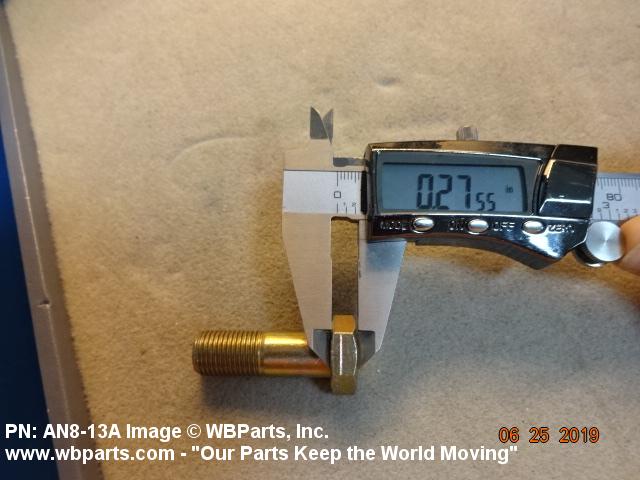

HEAD HEIGHT	0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM

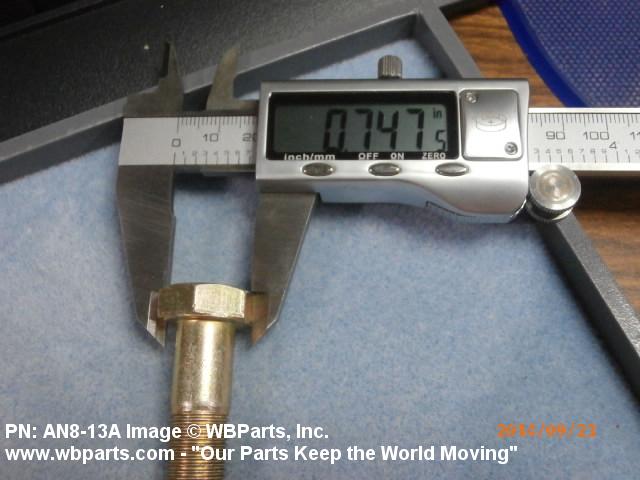

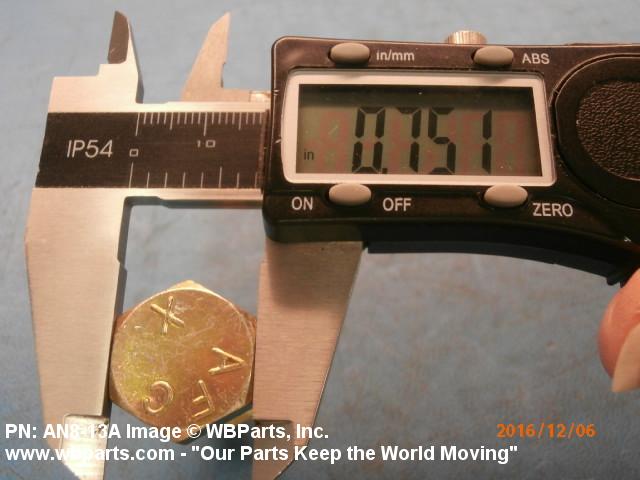

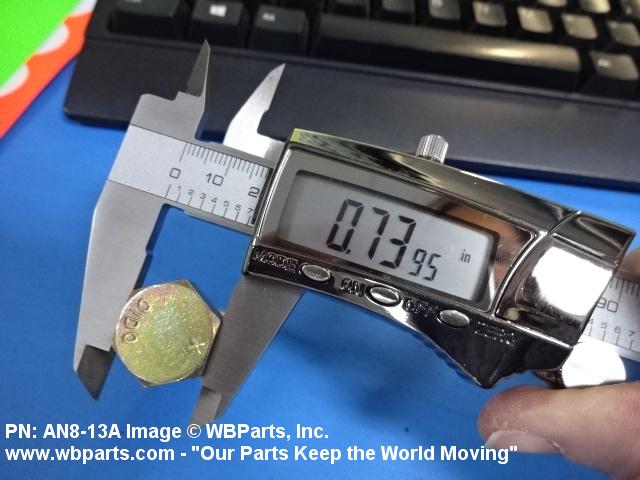

WIDTH BETWEEN FLATS	0.740 INCHES MINIMUM AND 0.752 INCHES MAXIMUM

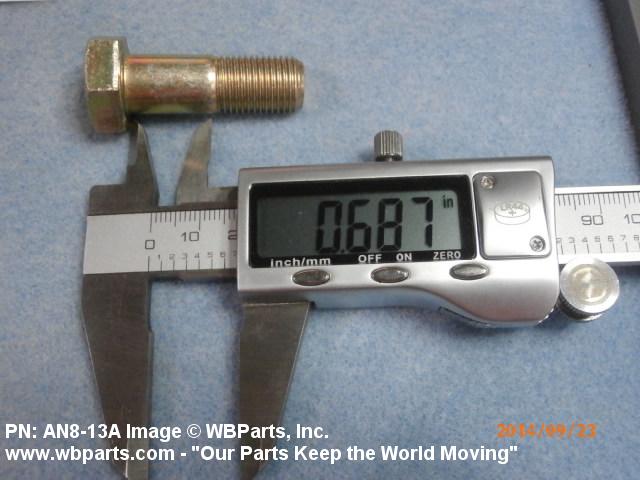

GRIP LENGTH	0.687 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
TEST DATA DOCUMENT	10001-FLEET BALLISTIC MISSILE QUALITY CONTROL NO. POSO903371 SPECIFICATION
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY TEST DATA
MANUFACTURERS CODE	88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN8-13A

Restrictions/Controls & Freight Information | NSN 5306-00-533-4602

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-533-4602

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
