NSN 5306-00-638-3096 AN42B5A, 00-638-3096, 006383096
Product Details | EYE BOLT
5306-00-638-3096 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: AN42B5A, 5306-00-638-3096, 00-638-3096, 5306006383096, 006383096
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-3096 | 01853 ( BOLT, EYE ) |

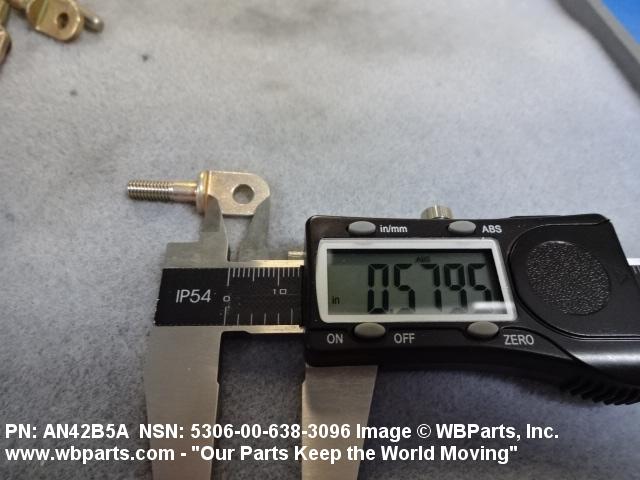

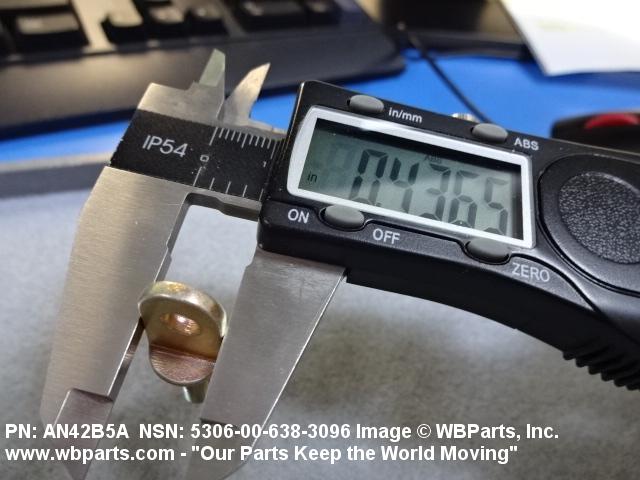

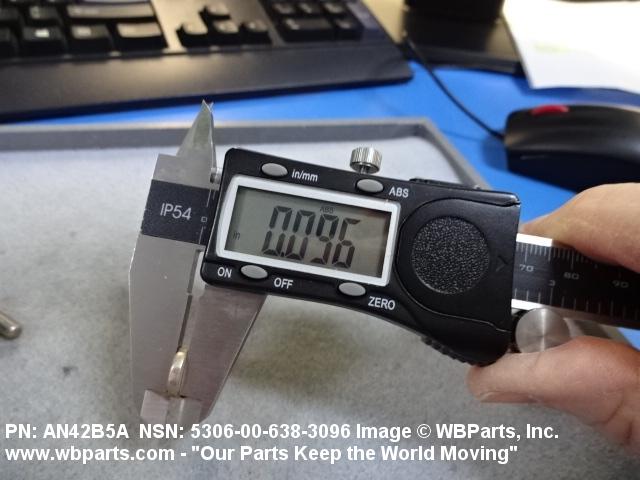

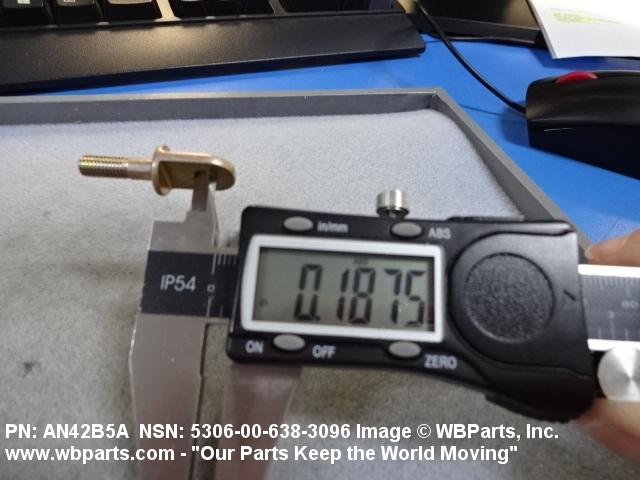

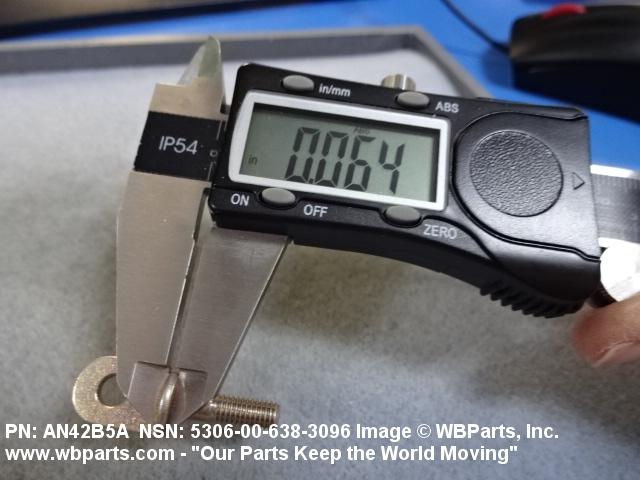

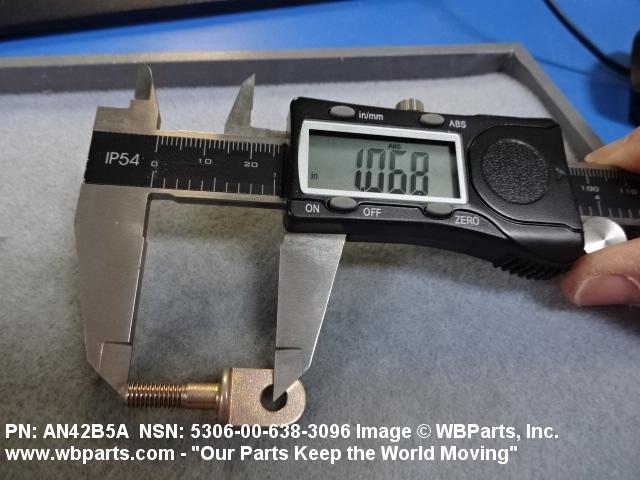

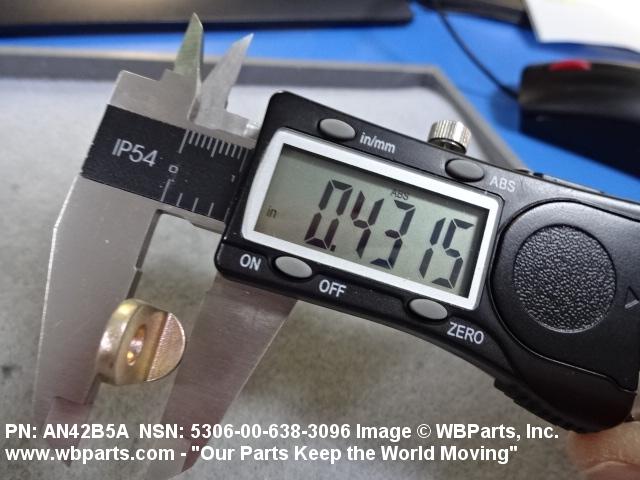

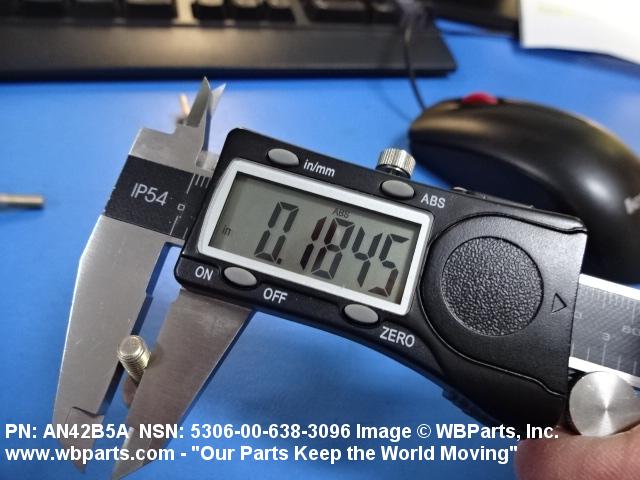

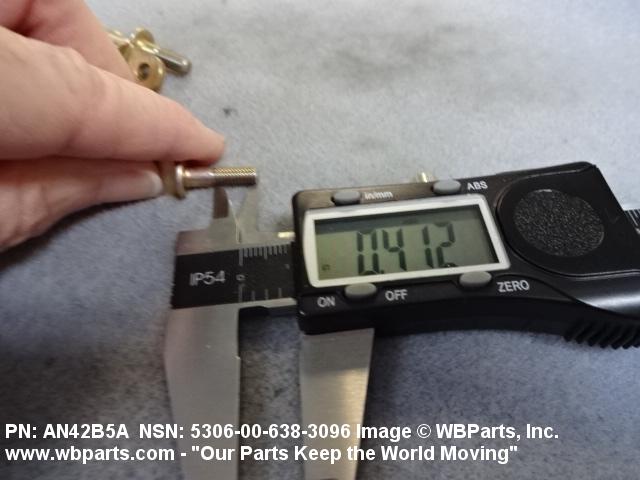

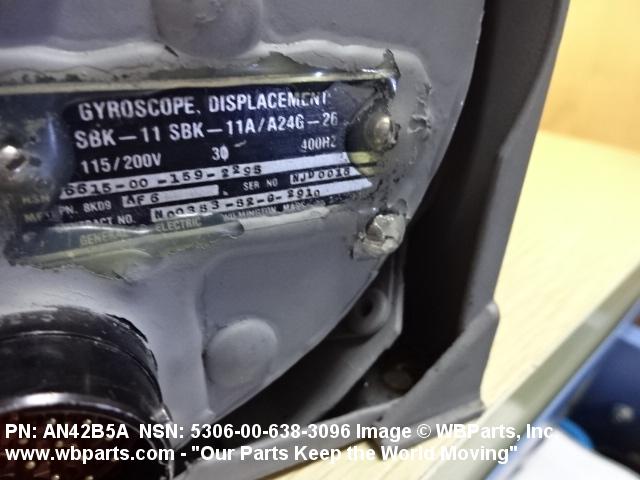

Drawings & Photos | NSN 5306-00-638-3096
Demand History | NSN 5306-00-638-3096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN42B5A | 2022-04-94 | 100 | United States |
| AN42B5A | 2015-08-233 | 135 | United States |
| AN42B5A | 2012-07-191 | 14 | Italy |
| 5306-00-638-3096 | 2010-11-328 | 20 | US |
| AN42B5A | 2009-06-161 | 210 | US |
| AN42B5A | 2008-11-324 | 66 | US |
Cross Reference | NSN 5306-00-638-3096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN42B5A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-638-3096
Technical Data | NSN 5306-00-638-3096
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.406 INCHES MINIMUM |
| MATERIAL | STEEL OVERALL |
| EYE INSIDE DIAMETER | 0.190 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| SHOULDER THICKNESS | 0.063 INCHES NOMINAL |
| SHANK LENGTH | 0.656 INCHES NOMINAL |
| EYE STOCK THICKNESS | 0.094 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.438 INCHES NOMINAL |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 1.094 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 0.438 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN42B5A |
Restrictions/Controls & Freight Information | NSN 5306-00-638-3096
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
