NSN 5306-00-722-3465 1390901, 00-722-3465, 007223465
Product Details | INTERNAL WRENCHING BOLT
5306-00-722-3465 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: 1390901, 5306-00-722-3465, 00-722-3465, 5306007223465, 007223465
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-722-3465 | 06666 ( BOLT, INTERNAL WRENCHING ) |

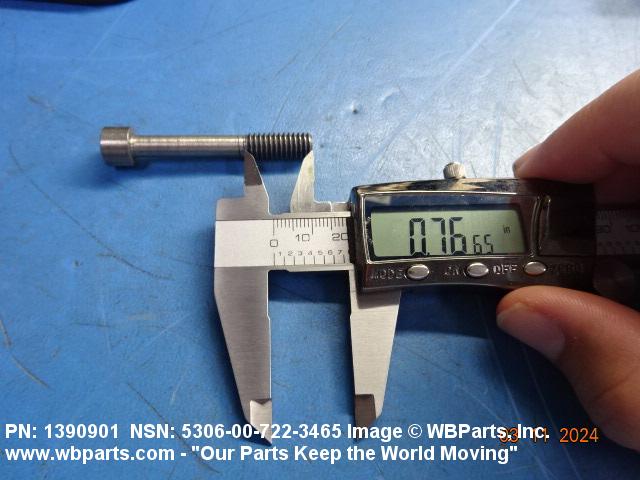

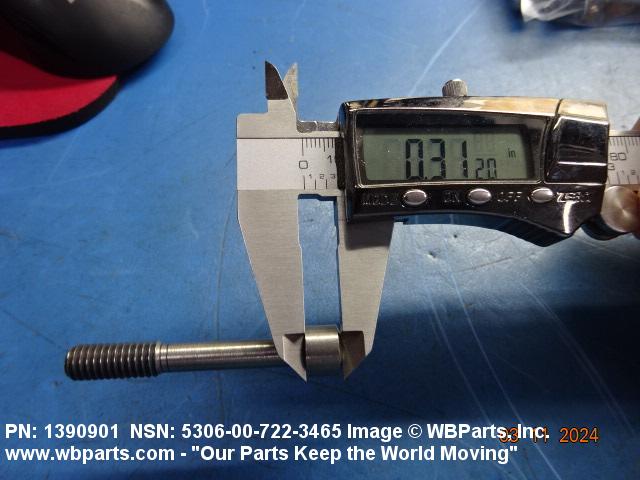

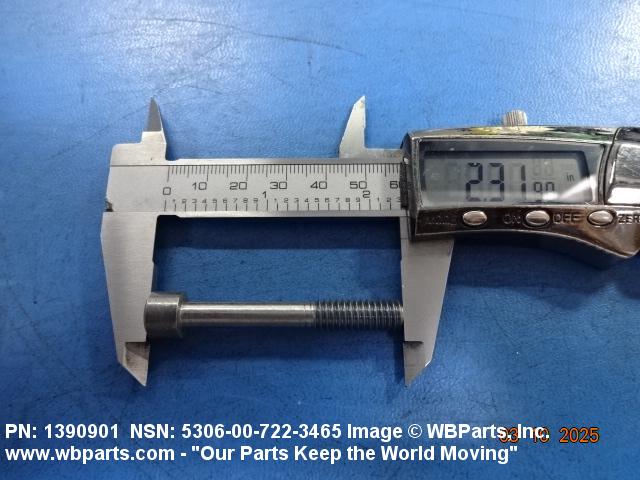

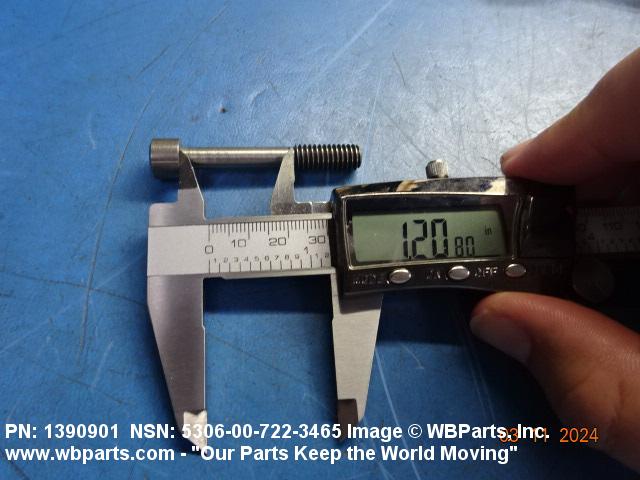

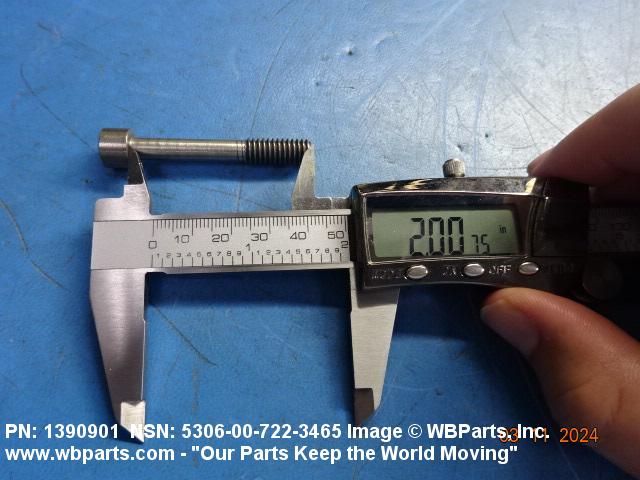

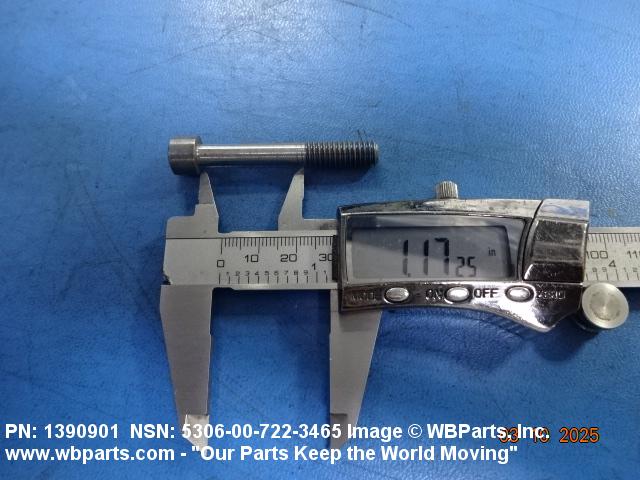

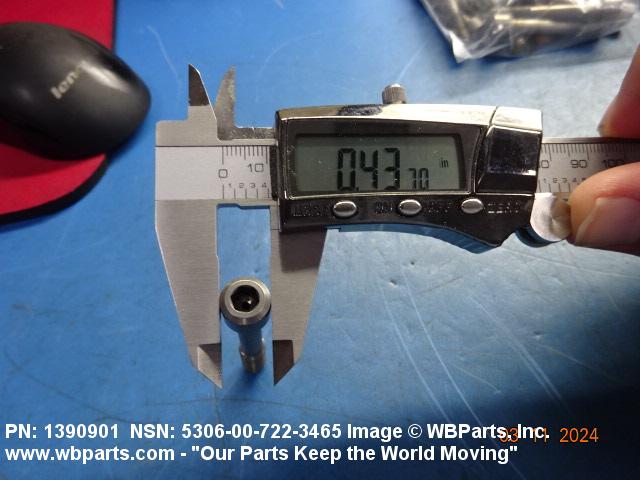

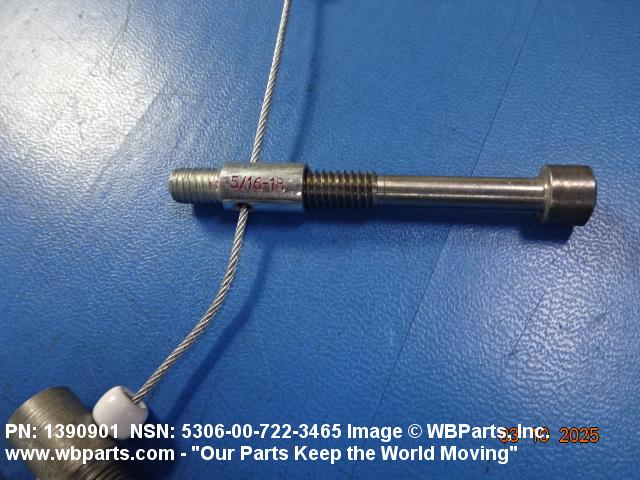

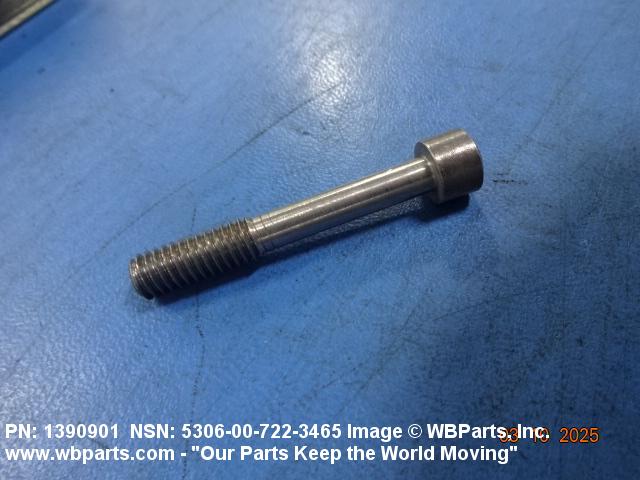

Drawings & Photos | NSN 5306-00-722-3465
Demand History | NSN 5306-00-722-3465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-722-3465 | 2025-01-30 | 125 | United States |
| 5306-00-722-3465 | 2025-01-29 | 175 | United States |
| 5306-00-722-3465 | 2025-01-21 | 250 | United States |
| 5306-00-722-3465 | 2024-06-179 | 100 | us |
| 5306-00-722-3465 | 2024-02-53 | 100 | United States |
| 5306-00-722-3465 | 2023-08-215 | 102 | United States |
| 5306-00-722-3465 | 2023-05-132 | 200 | US |
| 5306-00-722-3465 | 2022-11-328 | 100 | DIBBS |
| 5306-00-722-3465 | 2022-04-115 | 10 | DIBBS |
| 5306-00-722-3465 | 2021-10-279 | 1 | DIBBS |
| 5306-00-722-3465 | 2021-08-229 | 1 | DIBBS |
| 5306-00-722-3465 | 2019-01-29 | 6 | DIBBS |
| 5306-00-722-3465 | 2018-08-232 | 6 | DIBBS |
| 5306-00-722-3465 | 2014-04-100 | 30 | DIBBS |
| 5306-00-722-3465 | 2013-08-223 | 10 | DIBBS |
| 5306-00-722-3465 | 2012-07-185 | 10 | DIBBS |
| 5306-00-722-3465 | 2012-05-125 | 30 | DIBBS |
| 5306-00-722-3465 | 2012-03-85 | 10 | DIBBS |
| 5306-00-722-3465 | 2010-09-270 | 30 | DIBBS |
Cross Reference | NSN 5306-00-722-3465
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1390901 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-722-3465
Technical Data | NSN 5306-00-722-3465
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

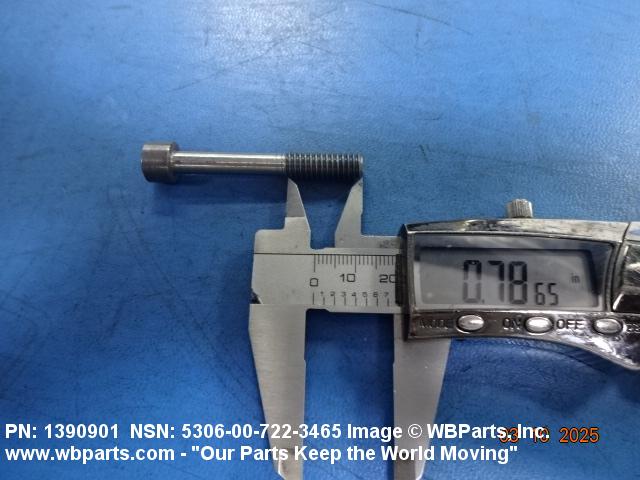

| THREAD LENGTH | 0.750 INCHES MINIMUM |

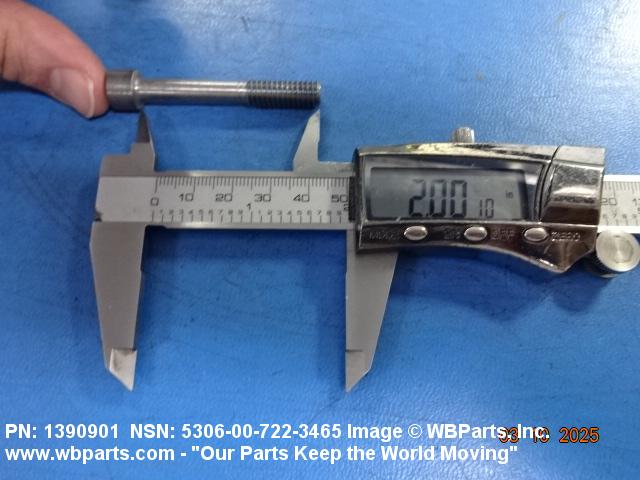

| FASTENER LENGTH | 2.000 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.429 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| HEAD HEIGHT | 0.306 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

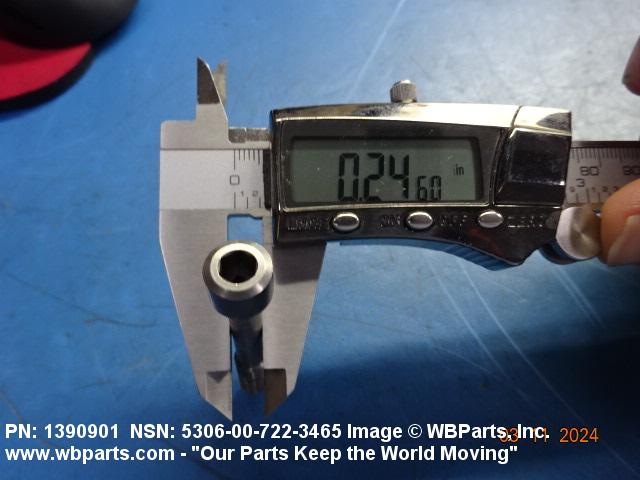

| FIRST DIAMETER FROM HEAD | 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-00-722-3465
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-722-3465
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
