NSN 5306-00-722-8757 AN510A, AN5-10A, MILB6812
Product Details | MACHINE BOLT
5306-00-722-8757 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN510A, AN5-10A, MILB6812, 401 188, 401188, 5306-00-722-8757, 00-722-8757, 5306007228757, 007228757
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-722-8757 | 01847 ( BOLT, MACHINE ) |

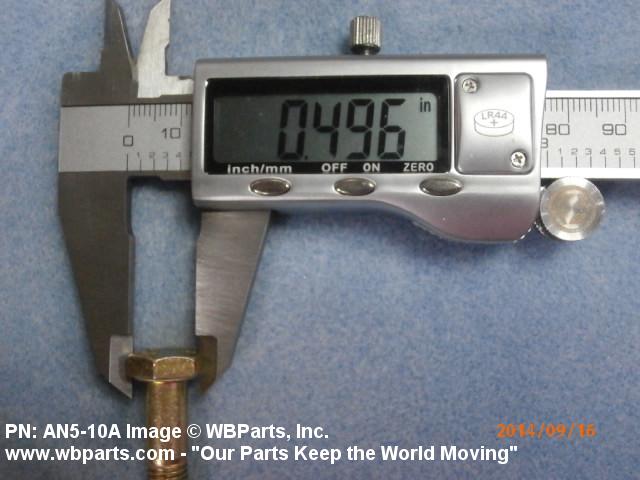

Drawings & Photos | NSN 5306-00-722-8757
Demand History | NSN 5306-00-722-8757
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN510A | 2025-04-119 | 40 | United States |
| AN510A | 2024-01-05 | 1000 | United States |
| AN510A | 2024-01-05 | 2500 | United States |
| AN510A | 2024-01-05 | 5000 | United States |
| 5306-00-722-8757 | 2023-03-90 | 23 | US |
| AN510A | 2023-01-09 | 1000 | United States |
| AN510A | 2021-04-120 | 25 | South Africa |
| AN510A | 2020-11-308 | 50 | US |
| AN510A | 2019-04-108 | 20 | Hong Kong |
| AN510A | 2019-02-37 | 20 | United States |
| AN510A | 2019-01-24 | 123 | US |
| AN510A | 2017-02-40 | 10 | United States |
| AN510A | 2015-07-187 | 15 | United States |
| AN5-10A | 2015-05-138 | 6 | United States |
| AN5-10A | 2015-05-138 | 4 | United States |
| AN5-10A | 2015-05-138 | 6 | United States |
| AN5-10A | 2015-05-138 | 4 | United States |
| AN5-10A | 2014-05-142 | 1000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-722-8757
Technical Data | NSN 5306-00-722-8757
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.531 INCHES MAXIMUM |
| FASTENER LENGTH | 1.094 INCHES NOMINAL |
| MATERIAL | STEEL COMP 2330 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-405 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-624 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| GRIP LENGTH | 0.562 INCHES NOMINAL |
| FEATURES PROVIDED | UNFINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5-10A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB6812 |
