NSN 5306-00-757-1241 6930078, 69-30078, 00-757-1241

Product Details | INTERNAL WRENCHING BOLT

5306-00-757-1241 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.

Part Alternates: 6930078, 69-30078, 5306-00-757-1241, 00-757-1241, 5306007571241, 007571241

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-757-1241	06666 ( BOLT, INTERNAL WRENCHING )

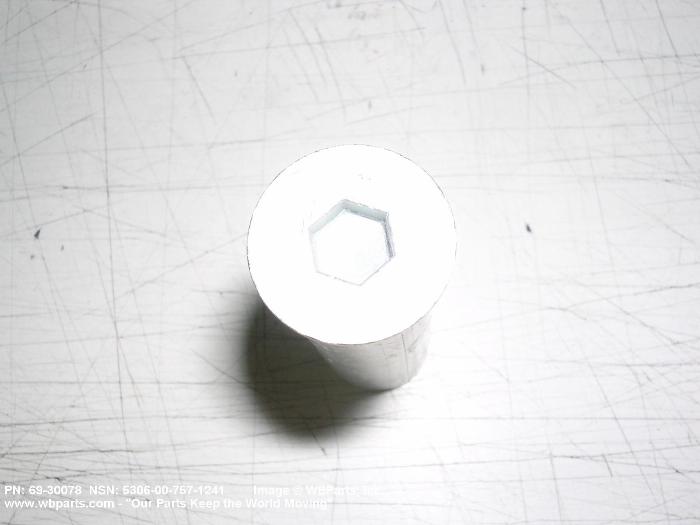

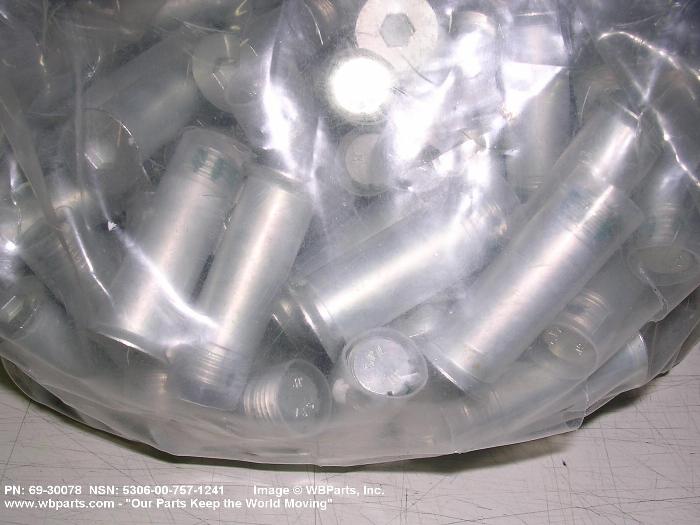

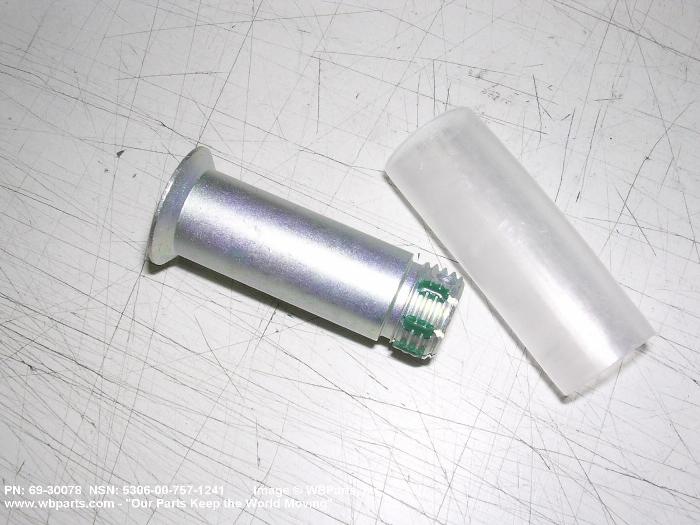

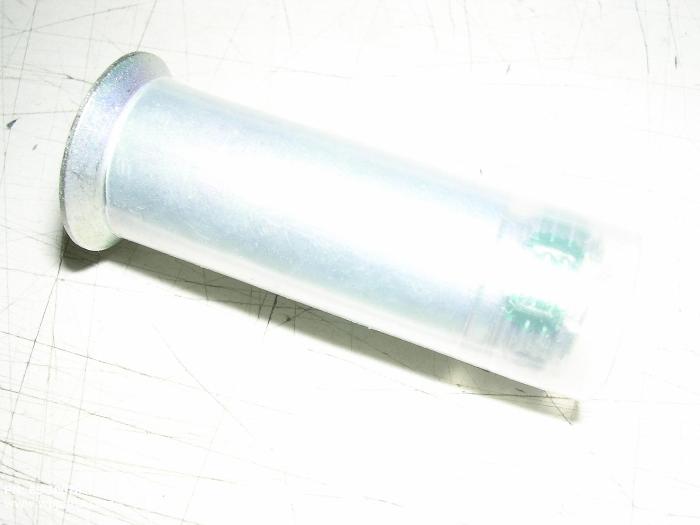

Drawings & Photos | NSN 5306-00-757-1241

Part Number	Request Date	QTY	Origin
6930078	2024-03-67	10	United States
6930078	2024-01-25	20	United States
69-30078	2022-04-95	1264	DIBBS
5306-00-757-1241	2021-04-103	905	US
69-30078	2021-04-102	905	DIBBS
69-30078	2021-02-32	618	DIBBS
69-30078	2020-10-288	164	DIBBS
5306-00-757-1241	2018-07-190	1	DIBBS-RFPs
5306-00-757-1241	2018-06-176	1948	US
5306-00-757-1241	2018-03-70	802	DIBBS
5306-00-757-1241	2018-02-46	214	DIBBS
5306-00-757-1241	2018-01-03	389	DIBBS
5306-00-757-1241	2017-11-327	376	DIBBS
5306-00-757-1241	2017-05-124	308	DIBBS
5306-00-757-1241	2016-12-356	233	DIBBS
5306-00-757-1241	2015-05-148	236	DIBBS
5306-00-757-1241	2015-02-55	50	DIBBS
5306-00-757-1241	2015-02-55	50	DIBBS
5306-00-757-1241	2015-02-36	52	DIBBS
5306-00-757-1241	2015-01-14	50	DIBBS
5306-00-757-1241	2014-11-307	52	DIBBS
5306-00-757-1241	2007-11-316	100	United States

Cross Reference | NSN 5306-00-757-1241

Part Number	Cage Code	Manufacturer
69-30078	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-757-1241

Compare

Related Products | NSN 5306-00-757-1241

5306-00-757-2915, 5306-00-757-3524, 5306-00-757-3857, 5306-00-757-4004, 5306-00-757-4012

Technical Data | NSN 5306-00-757-1241

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.030 INCHES NOMINAL
FASTENER LENGTH	1.570 INCHES NOMINAL
MATERIAL	STEEL COMP 4340 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE I CLASS C FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD DIAMETER	0.680 INCHES NOMINAL
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.251 INCHES NOMINAL
HOLE CONFIGURATION STYLE	E11 ROUND INTERNAL HEXAGON
HOLE TYPE	DRILLED
HOLE QUANTITY	1
HOLE DIAMETER	0.106 INCHES MINIMUM AND 0.111 INCHES MAXIMUM
SURFACE FINISH	63.0 MICROINCHES OVERALL
DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER	1.470 INCHES NOMINAL FIRST HOLE
SPECIAL FEATURES	THREE INSERT LONGITUDINAL SLOTS IN THREADED SEGMENT,0.059 IN. WIDE,SPACED 45.0 DEGREES APART
MANUFACTURERS CODE	81205
DESIGN CONTROL REFERENCE	69-30078

Restrictions/Controls & Freight Information | NSN 5306-00-757-1241

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	574	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-757-1241

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FL	SX:C-135 STRATOLIFTER
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
