NSN 5306-00-779-2343 4E15153, 00-779-2343, 007792343
Product Details | SQUARE NECK BOLT
5306-00-779-2343 A headed externally threaded fastener whose threaded portion is of one nominal diameter, with a square neck directly beneath the head.
Part Alternates: 4E15153, 5306-00-779-2343, 00-779-2343, 5306007792343, 007792343
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-779-2343 | 15939 ( BOLT, SQUARE NECK ) |
Drawings & Photos | NSN 5306-00-779-2343
Cross Reference | NSN 5306-00-779-2343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4E15153 | 99832 | SCOTT HUBER ESSICK A CO OF FIGGIE INTERNATIONAL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-779-2343
Related Products | NSN 5306-00-779-2343
Technical Data | NSN 5306-00-779-2343
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.750 INCHES MINIMUM |
| FASTENER LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |

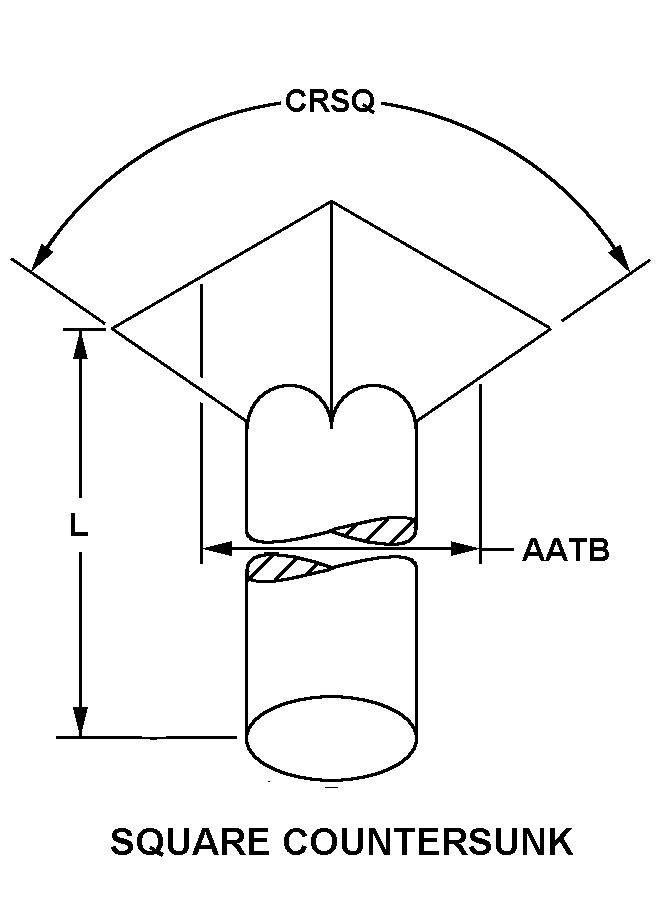

| HEAD STYLE | C14 SQUARE COUNTERSUNK |
| WIDTH BETWEEN FLATS | 1.062 INCHES NOMINAL |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |
| NECK LENGTH | 0.500 INCHES NOMINAL |
| NECK WIDTH | 0.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 99832 |
| DESIGN CONTROL REFERENCE | 4E15153 |
Restrictions/Controls & Freight Information | NSN 5306-00-779-2343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-779-2343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
