NSN 5306-00-801-9639 51B46412A18, 51B464-12A18, 00-801-9639
Product Details | MACHINE BOLT
5306-00-801-9639 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 51B46412A18, 51B464-12A18, 5306-00-801-9639, 00-801-9639, 5306008019639, 008019639
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-801-9639 | 01847 ( BOLT, MACHINE ) |

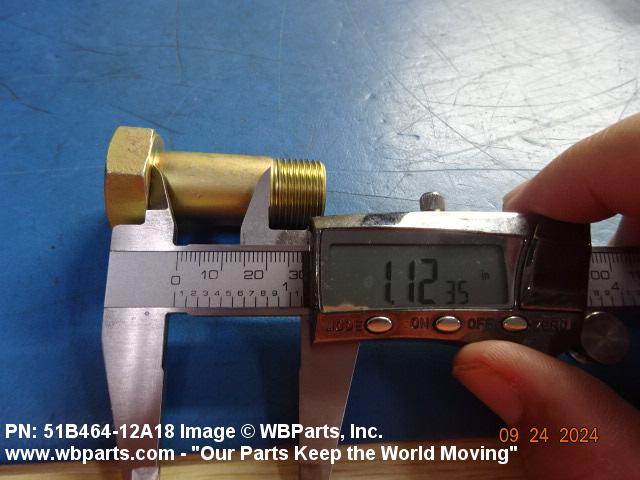

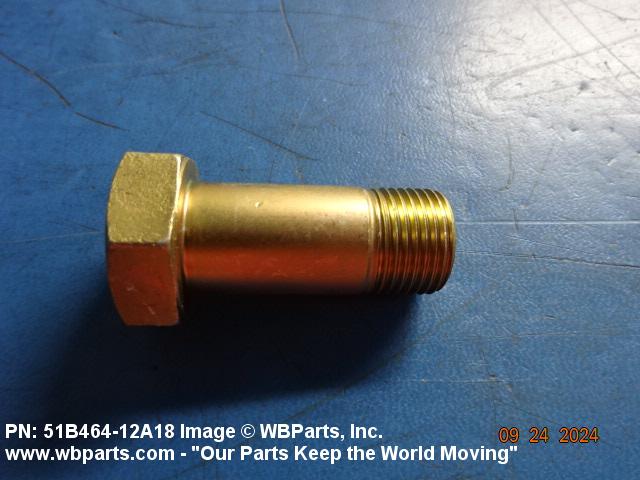

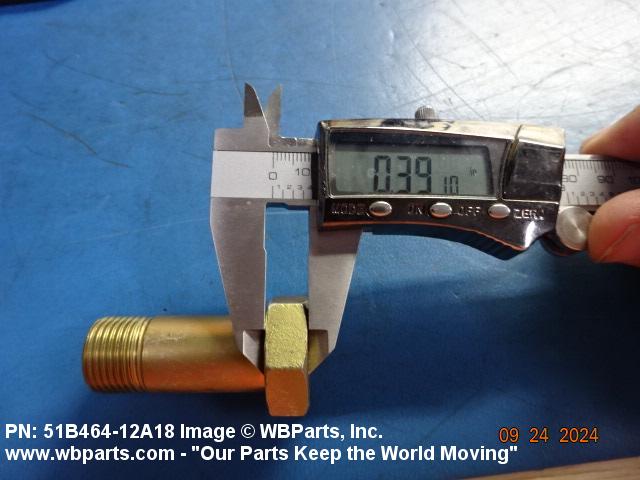

Drawings & Photos | NSN 5306-00-801-9639
Demand History | NSN 5306-00-801-9639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-801-9639 | 2025-05-133 | 16 | DIBBS |
| 51B46412A18 | 2024-05-141 | 45 | United States |
| 51B46412A18 | 2024-02-54 | 50 | United States |
| 51B464-12A18 | 2022-05-138 | 34 | DIBBS |
| 51B464-12A18 | 2021-06-168 | 10 | DIBBS |
| 51B464-12A18 | 2019-08-237 | 5 | DIBBS |
| 51B464-12A18 | 2019-01-22 | 5 | DIBBS |
Cross Reference | NSN 5306-00-801-9639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51B464-12A18 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 51B464-12A18 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 51B464-12A18 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES, INC. |
| 51B464-12A18 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 51B464-12A18 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 51B464-12A18 | 73197 | HI-SHEAR CORPORATION |
| 51B464-12A18 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 51B464-12A18 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 51B464-12A18 | 97928 | HUCK INTL INC |
| 51B464-12A18 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-801-9639
Restrictions/Controls & Freight Information | NSN 5306-00-801-9639
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
