NSN 5306-00-807-2954 NAS13042, NAS1304-2, 00-807-2954
Product Details | SHEAR BOLT
5306-00-807-2954 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS13042, NAS1304-2, 5306-00-807-2954, 00-807-2954, 5306008072954, 008072954
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-807-2954 | 15903 ( BOLT, SHEAR ) |

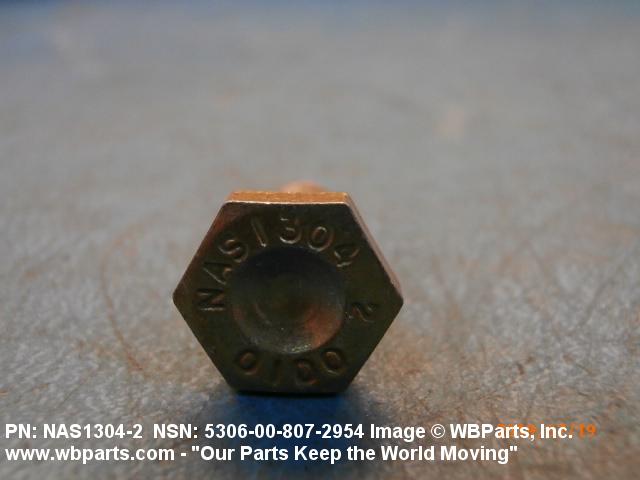

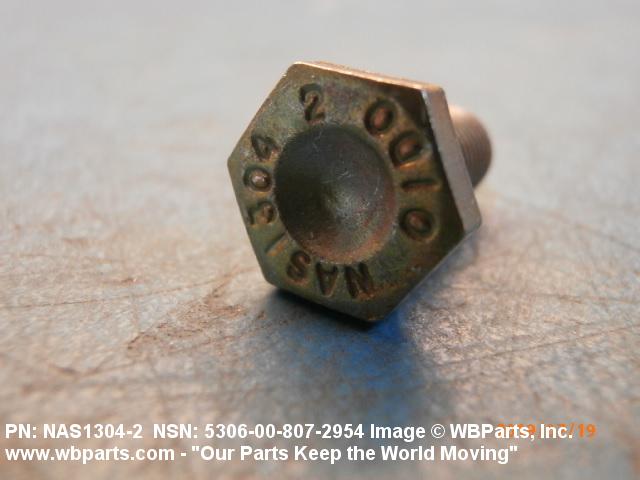

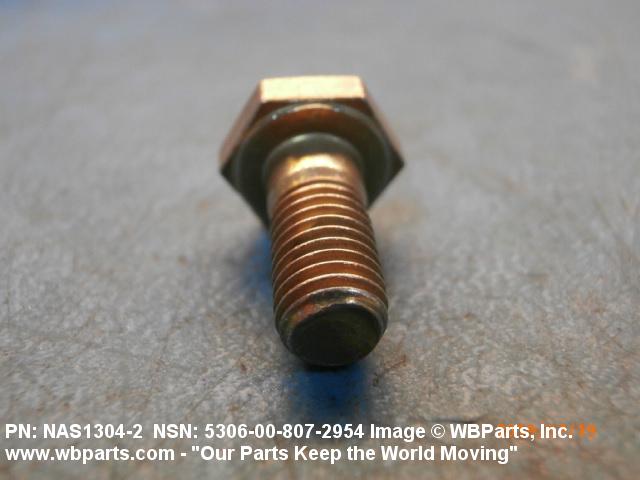

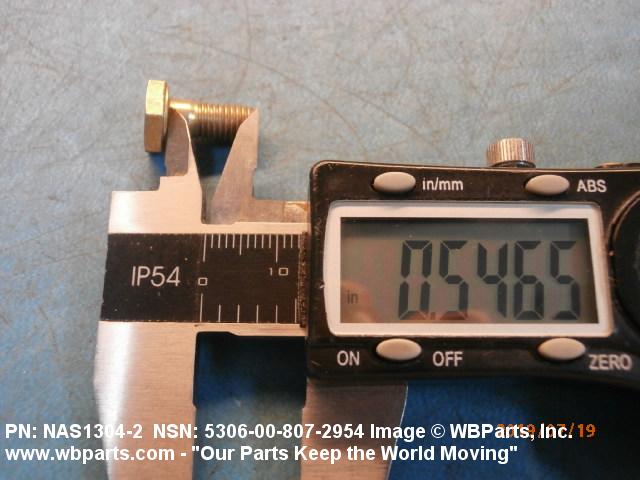

Drawings & Photos | NSN 5306-00-807-2954
Demand History | NSN 5306-00-807-2954
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS13042 | 2025-01-23 | 750 | IN |
| NAS13042 | 2019-07-192 | 2 | United States |
| 5306-00-807-2954 | 2017-02-53 | 31 | MANUAL |
| 5306-00-807-2954 | 2014-09-259 | 2000 | Ukraine |
| 5306-00-807-2954 | 2014-09-259 | 2000 | Ukraine |
Cross Reference | NSN 5306-00-807-2954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1304-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-807-2954
Technical Data | NSN 5306-00-807-2954
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

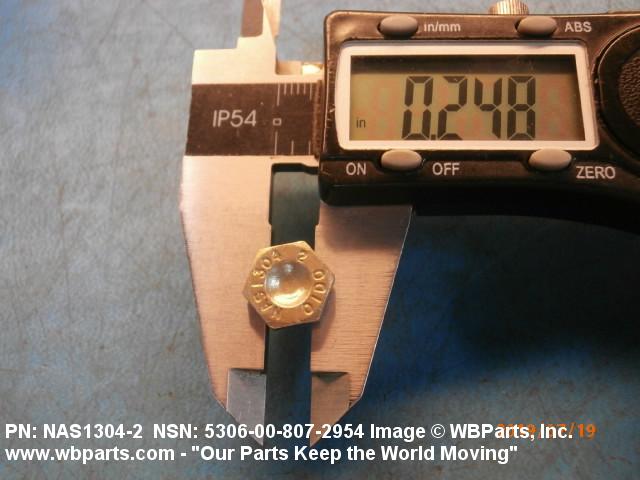

| NOMINAL THREAD DIAMETER | 0.250 INCHES |

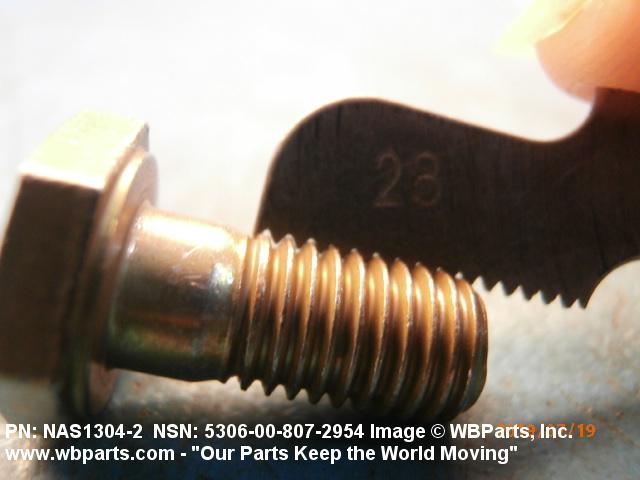

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.425 INCHES MINIMUM |
| FASTENER LENGTH | 0.550 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 96000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C3 DISHED HEXAGON |

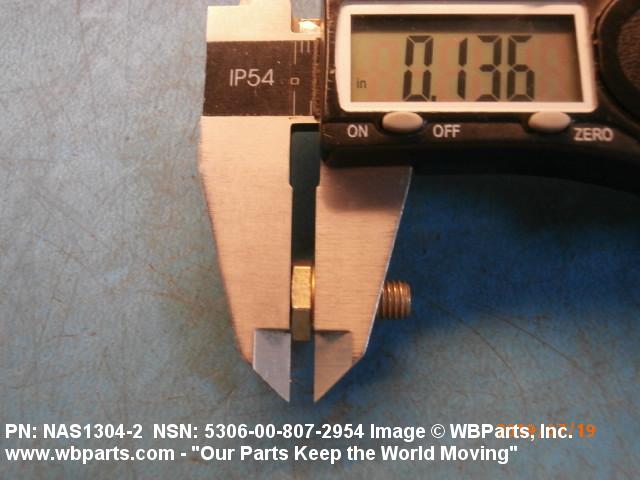

| HEAD HEIGHT | 0.125 INCHES NOMINAL |

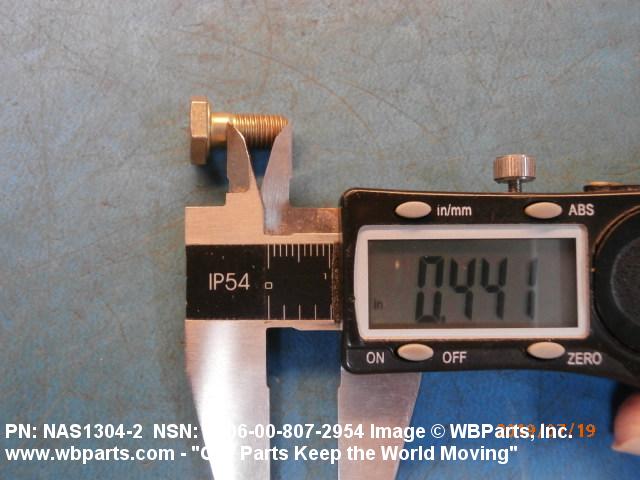

| WIDTH BETWEEN FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| GRIP LENGTH | 0.125 INCHES NOMINAL |

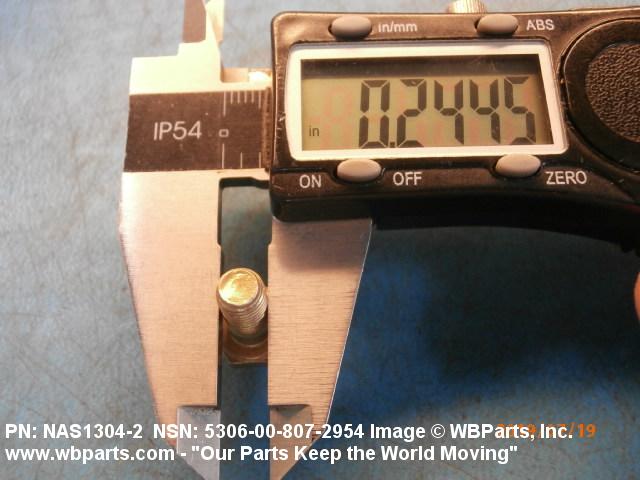

| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-00-807-2954
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
