NSN 5306-00-814-6867 AN864A, AN8-64A, 00-814-6867
Product Details | MACHINE BOLT
5306-00-814-6867 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN864A, AN8-64A, 5306-00-814-6867, 00-814-6867, 5306008146867, 008146867
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-814-6867 | 01847 ( BOLT, MACHINE ) |

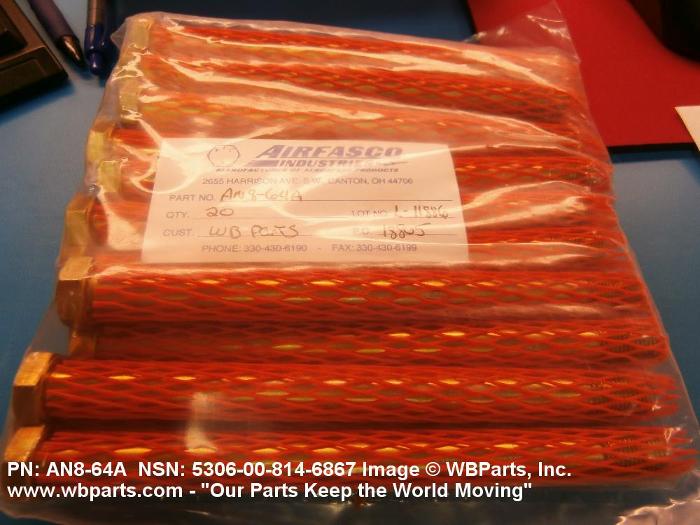

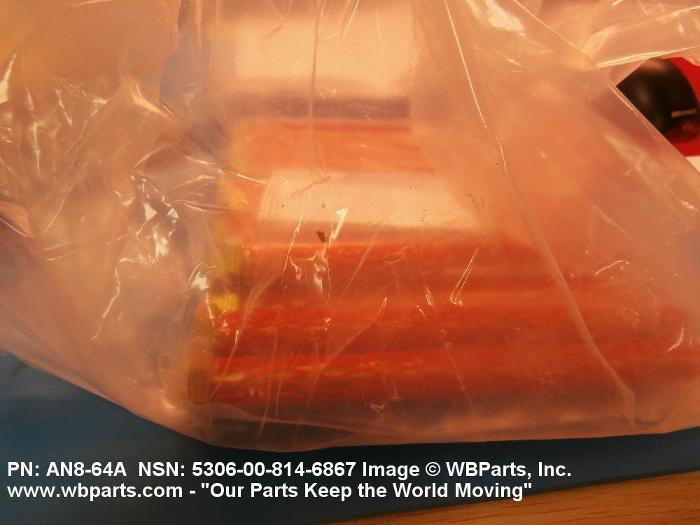

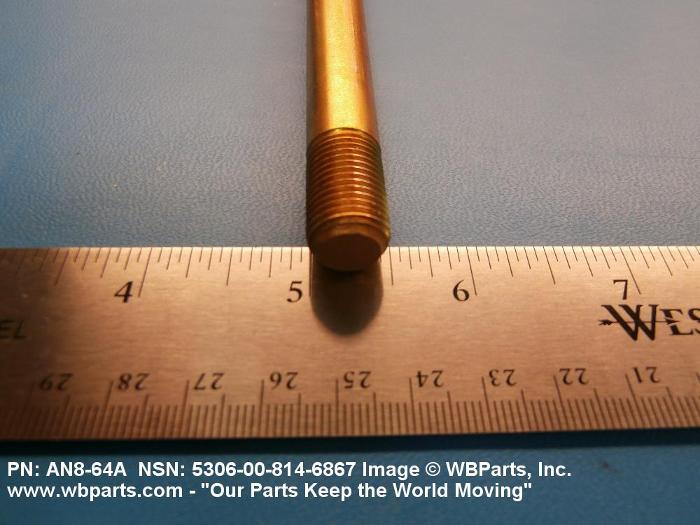

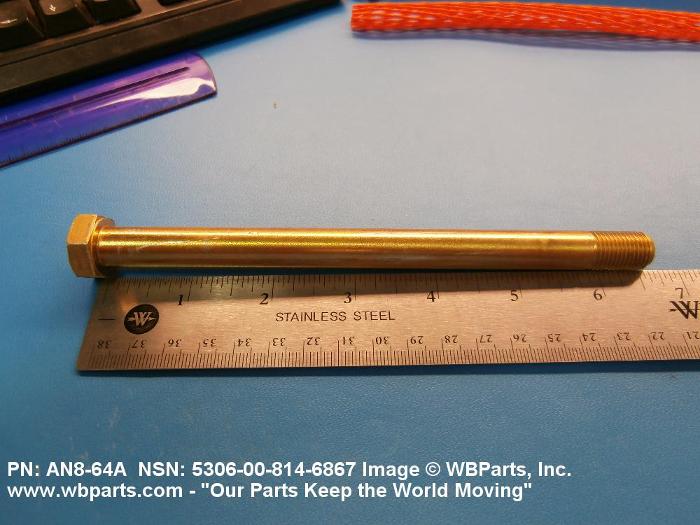

Drawings & Photos | NSN 5306-00-814-6867
Demand History | NSN 5306-00-814-6867
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN864A | 2012-08-214 | 20 | South Korea |
| AN864A | 2012-07-202 | 20 | South Korea |
Cross Reference | NSN 5306-00-814-6867
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN8-64A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-814-6867
Technical Data | NSN 5306-00-814-6867
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| UNABLE TO DECODE | UNABLE TO DECODE |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD LENGTH | 0.650 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.740 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OVERALL OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE OVERALL OR MIL-S-6098 MIL SPEC 3RD MATERIAL RESPONSE OVERALL OR MIL-S-5626 MIL SPEC 4TH MATERIAL RESPONSE OVERALL OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OVERALL OR AMS 6300 ASSN STD 6TH MATERIAL RESPONSE OVERALL |
| HEAD HEIGHT | 0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OVERALL OR STEEL COMP 8630 OVERALL OR STEEL COMP 8735 OVERALL OR STEEL COMP 4140 OVERALL OR STEEL COMP 4130 OVERALL OR STEEL COMP 8735 OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM OVERALL AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| FEATURES PROVIDED | FINISHED HEAD |
| GRIP LENGTH | 5.797 INCHES MINIMUM AND 5.828 INCHES MAXIMUM |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| THREAD QUANTITY PER INCH | 20 |
| FASTENER LENGTH | 6.578 INCHES MINIMUM AND 6.625 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-00-814-6867
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-814-6867
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
