NSN 5306-00-839-9189 MS2125004042, MS21250-04042, VFK100G04042
Product Details | SHEAR BOLT
5306-00-839-9189 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2125004042, MS21250-04042, VFK100G04042, VFK100G-04042, 5306-00-839-9189, 00-839-9189, 5306008399189, 008399189
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-839-9189 | 15903 ( BOLT, SHEAR ) |

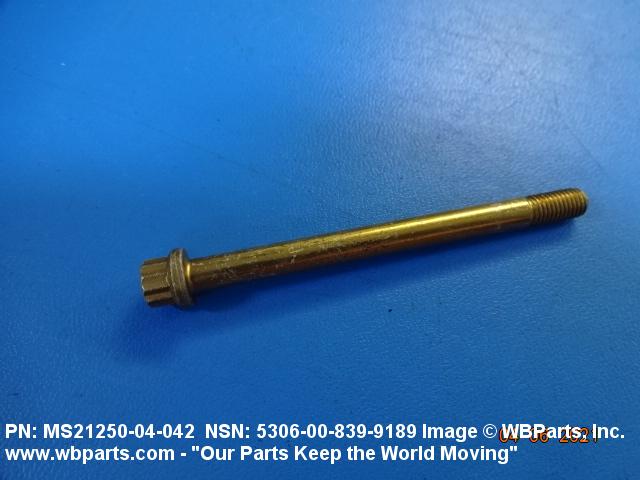

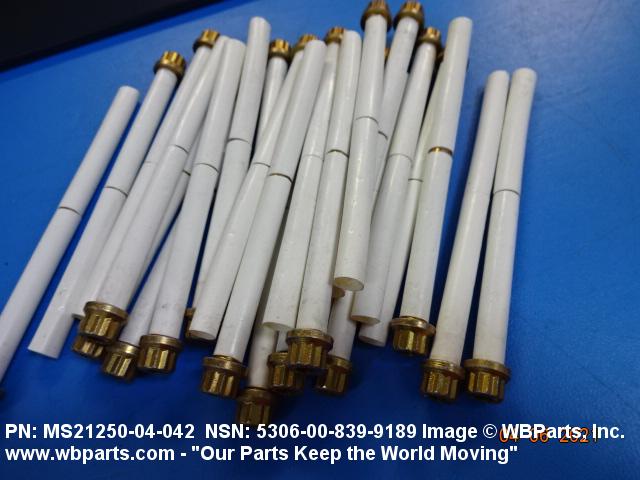

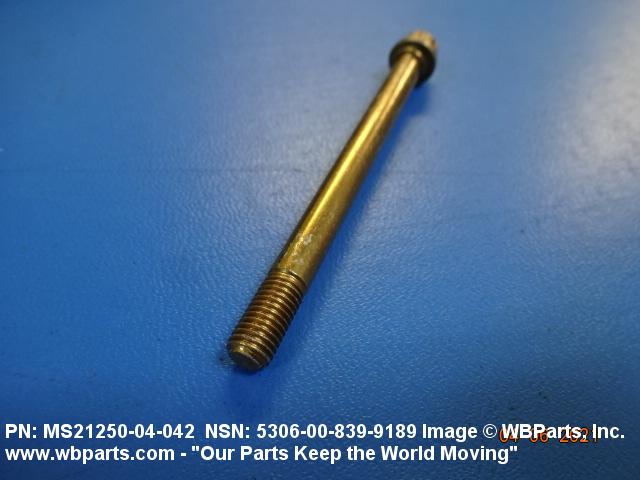

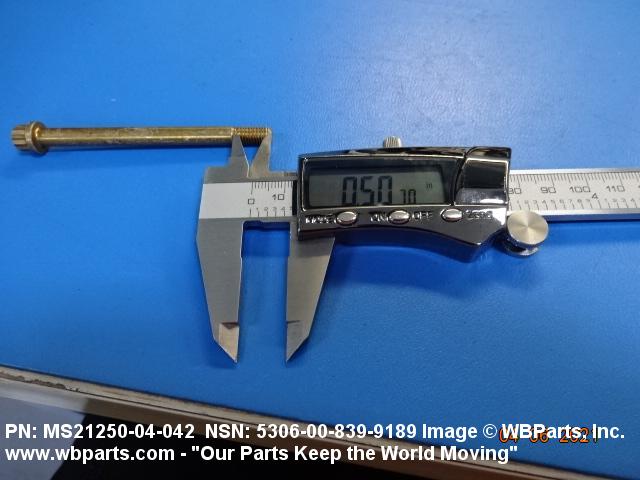

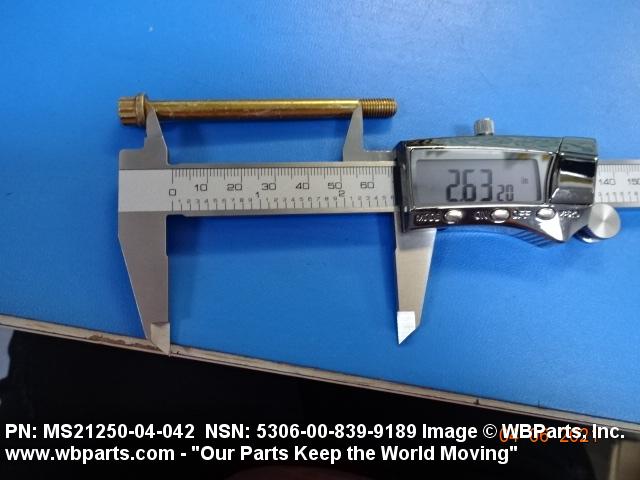

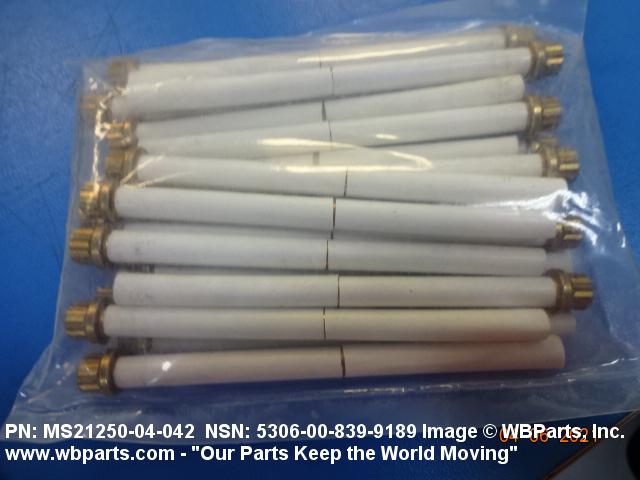

Drawings & Photos | NSN 5306-00-839-9189
Demand History | NSN 5306-00-839-9189
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-839-9189 | 2021-05-138 | 24 | United States |
| 5306-00-839-9189 | 2021-05-132 | 24 | United States |
| 5306-00-839-9189 | 2021-05-132 | 24 | United States |
Cross Reference | NSN 5306-00-839-9189
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250-04042 | 06710 | VALLEY-TODECO, INC. |
| MS21250-04042 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-04042 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-04042 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| MS21250-04042 | 50945 | MERCURY AEROSPACE FASTENERS INC |
| MS21250-04042 | 52628 | CHANDLER CRAFTSMAN CONTROLS |
| MS21250-04042 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MS21250-04042 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| MS21250-04042 | 70276 | ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO |
| MS21250-04042 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-04042 | 93907 | TEXTRON FASTENING SYSTEMS DBA DECORAH OPERATIONS TFS |
| MS21250-04042 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21250-04042 | 97928 | HUCK INTL INC |
| VFK100G-04042 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-839-9189
Technical Data | NSN 5306-00-839-9189
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.492 INCHES MINIMUM |

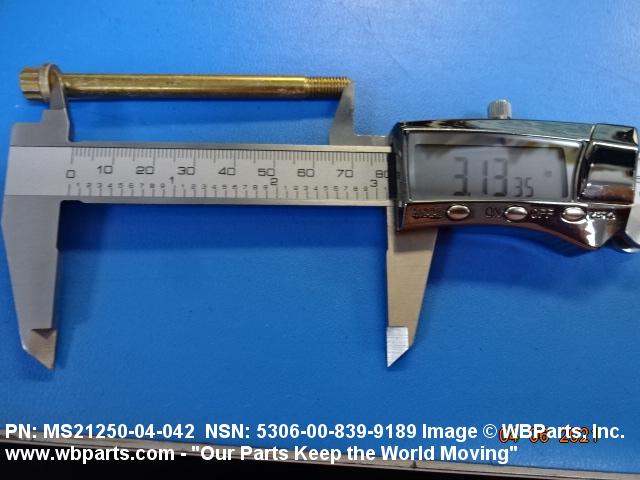

| FASTENER LENGTH | 3.137 INCHES NOMINAL |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 6150 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416-TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |

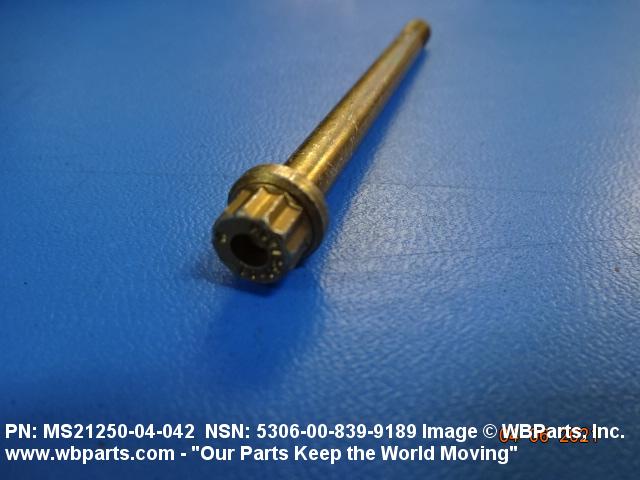

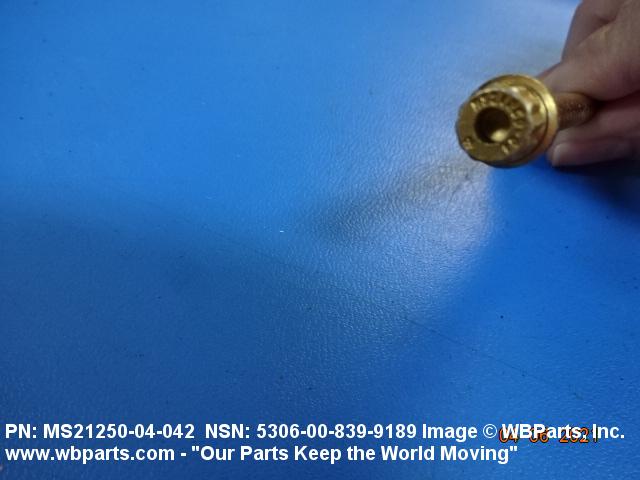

| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |

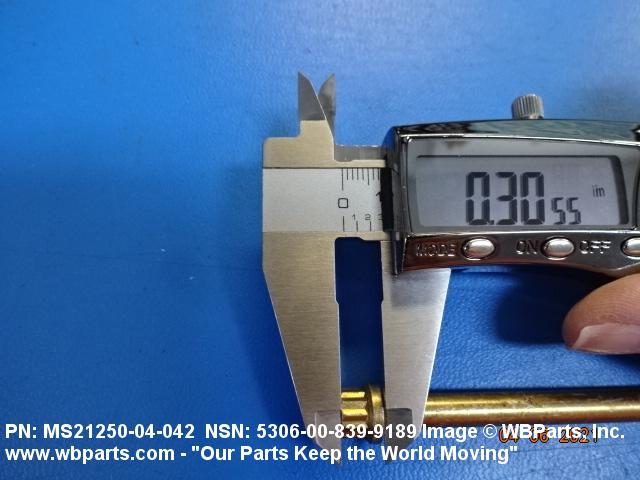

| HEAD HEIGHT | 0.300 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.304 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.069 INCHES NOMINAL |
| GRIP LENGTH | 2.625 INCHES NOMINAL |

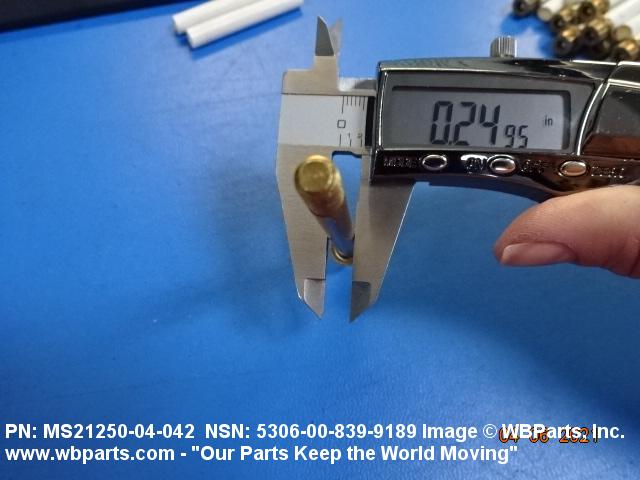

| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21250-04042 |
Restrictions/Controls & Freight Information | NSN 5306-00-839-9189
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-839-9189
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
