NSN 5306-00-857-2490 LM204166, LM204-166, 00-857-2490
Product Details | MACHINE BOLT
5306-00-857-2490 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: LM204166, LM204-166, 5306-00-857-2490, 00-857-2490, 5306008572490, 008572490
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-857-2490 | 01847 ( BOLT, MACHINE ) |

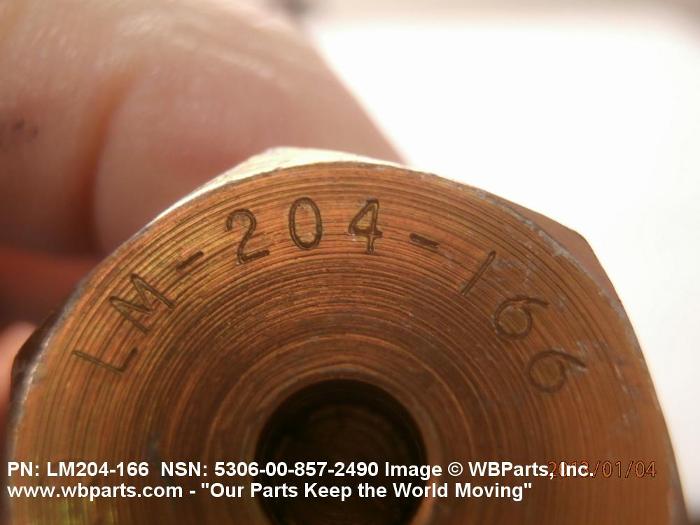

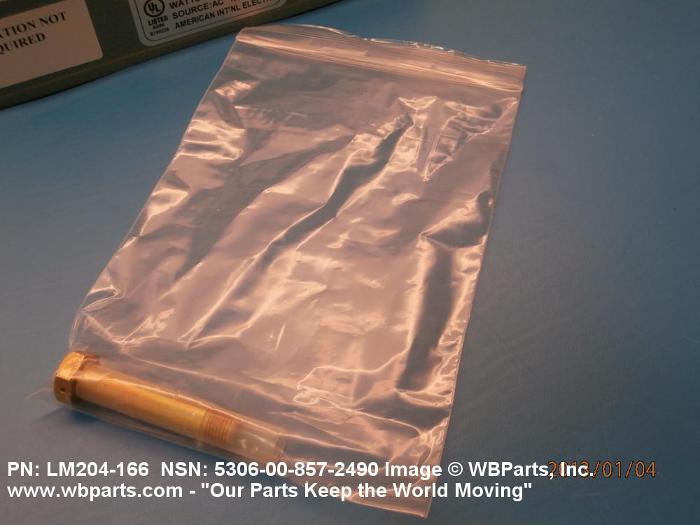

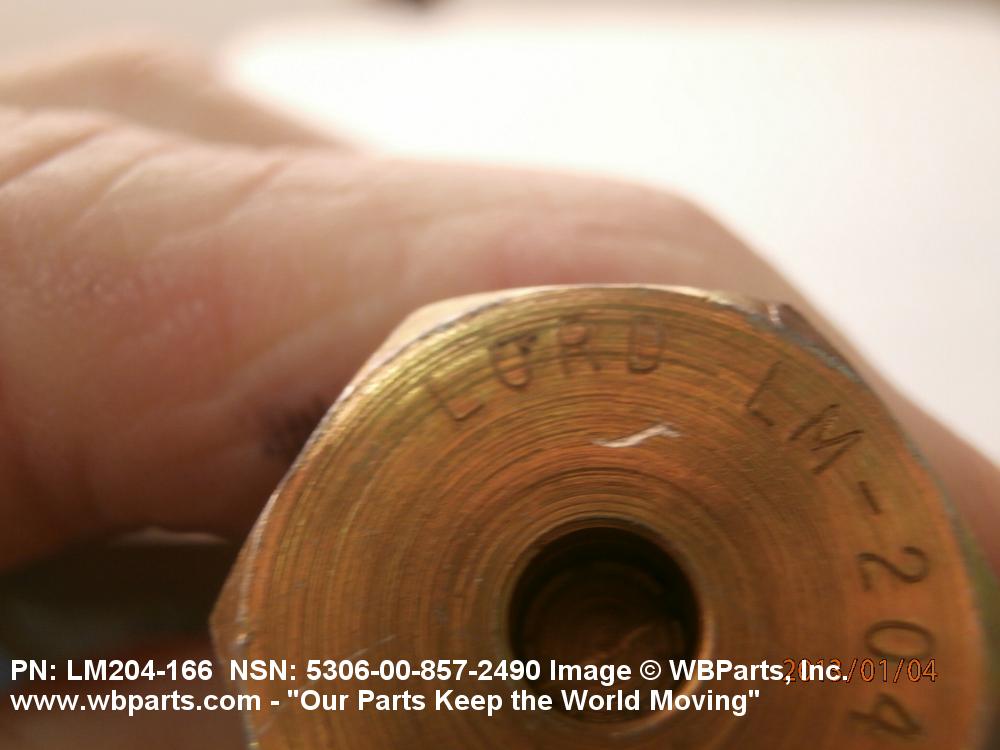

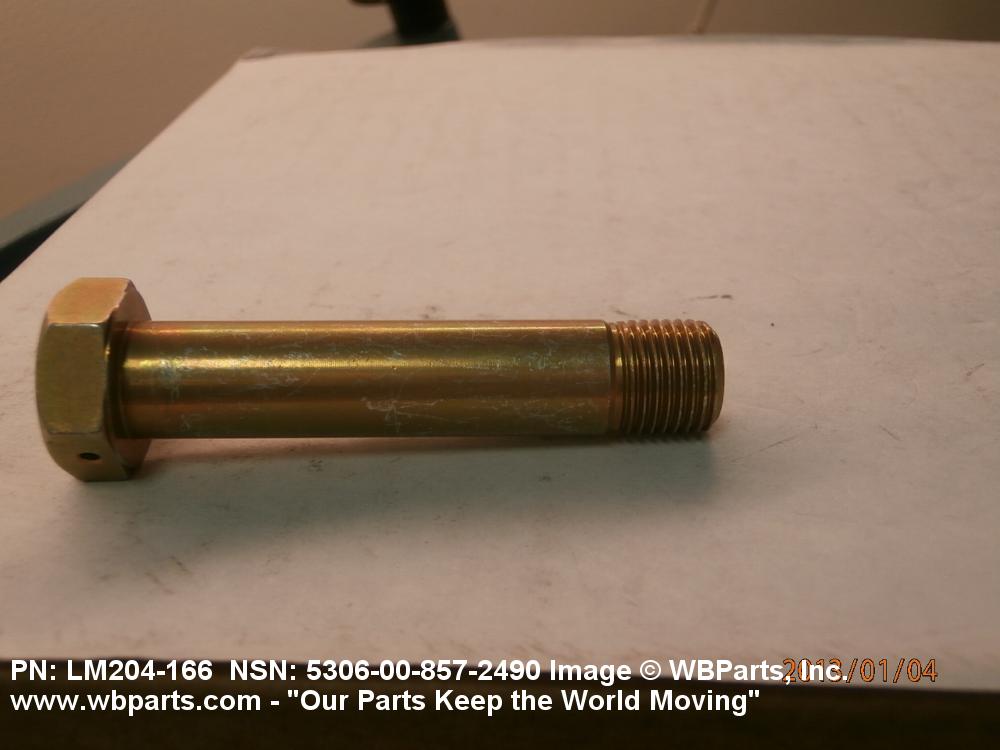

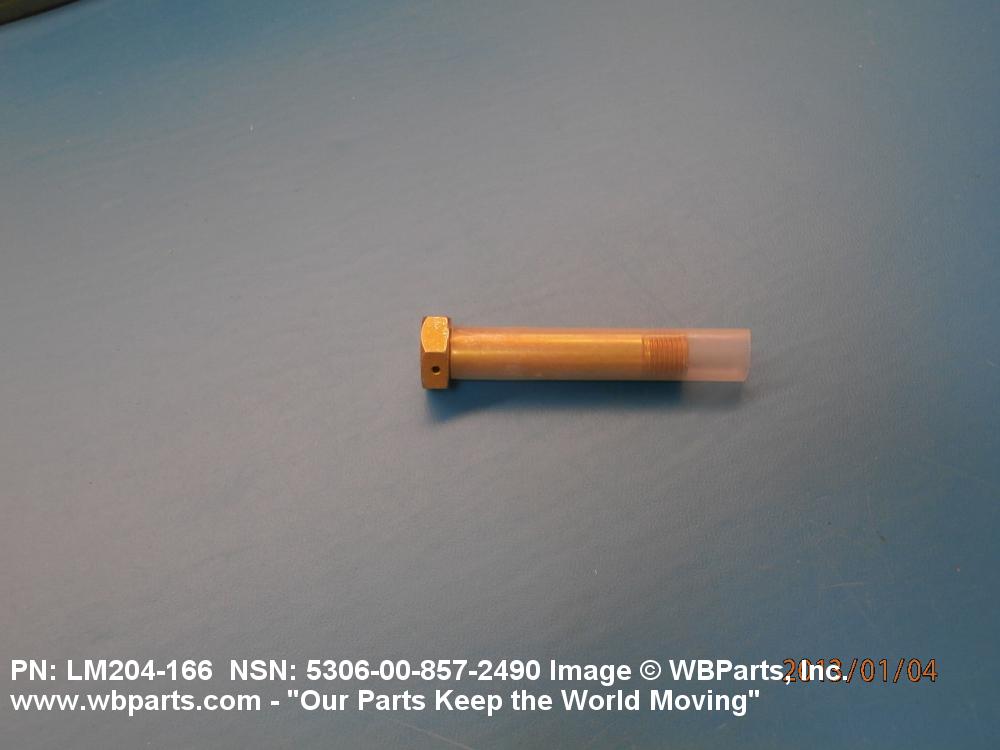

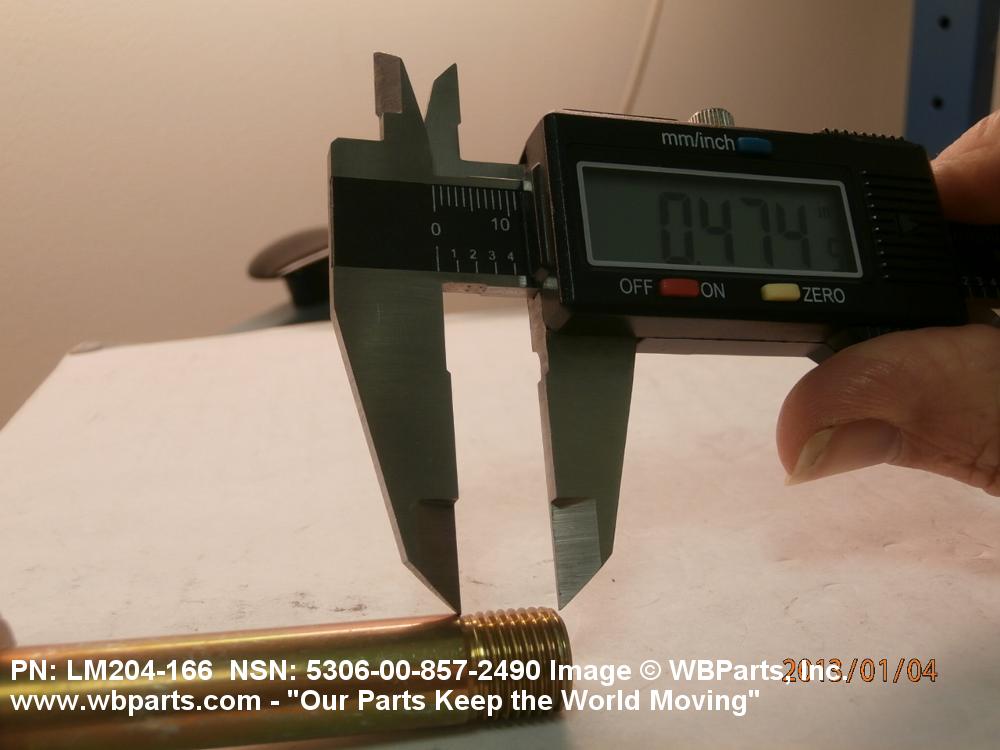

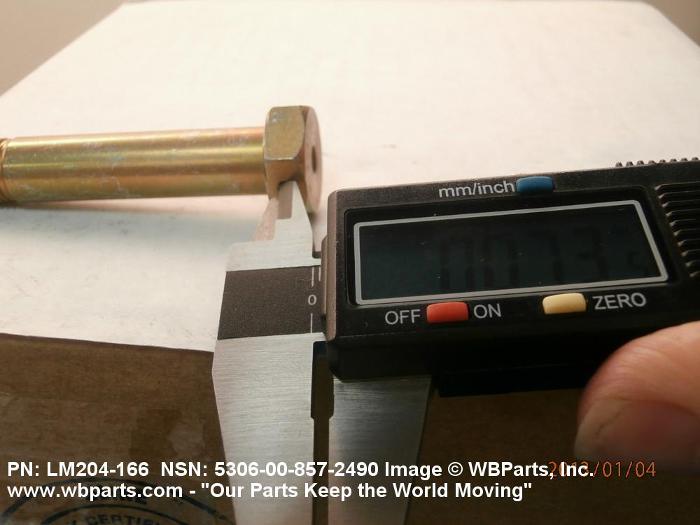

Drawings & Photos | NSN 5306-00-857-2490
Demand History | NSN 5306-00-857-2490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LM204-166 | 2022-06-158 | 88 | DIBBS |
| LM204-166 | 2021-05-140 | 88 | DIBBS |
| LM204-166 | 2020-10-287 | 90 | DIBBS |
| LM204-166 | 2020-06-168 | 57 | DIBBS |
| 5306-00-857-2490 | 2020-03-79 | 21 | CA |
| LM204-166 | 2019-08-233 | 57 | DIBBS |
| 5306-00-857-2490 | 2018-12-338 | 24 | DIBBS |
| 5306-00-857-2490 | 2018-04-112 | 60 | DIBBS |
| 5306-00-857-2490 | 2017-12-353 | 29 | DIBBS |
| 5306-00-857-2490 | 2017-10-302 | 12 | DIBBS |
| 5306-00-857-2490 | 2016-04-101 | 29 | DIBBS |
| 5306-00-857-2490 | 2015-03-84 | 52 | US |
| 5306-00-857-2490 | 2015-01-11 | 163 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 1 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 2 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 6 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 9 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 20 | DIBBS |
| 5306-00-857-2490 | 2013-06-178 | 1 | DIBBS |
| 5306-00-857-2490 | 2013-01-03 | 302 | DIBBS |
| LM204166 | 2012-10-292 | 1 | us |
| 5306-00-857-2490 | 2012-05-126 | 281 | DIBBS |
| 5306-00-857-2490 | 2012-03-81 | 353 | DIBBS |
| 5306-00-857-2490 | 2012-01-26 | 202 | DIBBS |
| 5306-00-857-2490 | 2011-11-307 | 140 | DIBBS |
| LM204166 | 2011-07-185 | 15 | Malaysia |
| 5306-00-857-2490 | 2010-12-337 | 132 | DIBBS |
| 5306-00-857-2490 | 2010-04-113 | 76 | DIBBS |
| 5306-00-857-2490 | 2010-04-99 | 79 | DIBBS |
| 5306-00-857-2490 | 2008-01-22 | 87 | DIBBS |
Cross Reference | NSN 5306-00-857-2490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LM204-166 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-857-2490
Technical Data | NSN 5306-00-857-2490
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

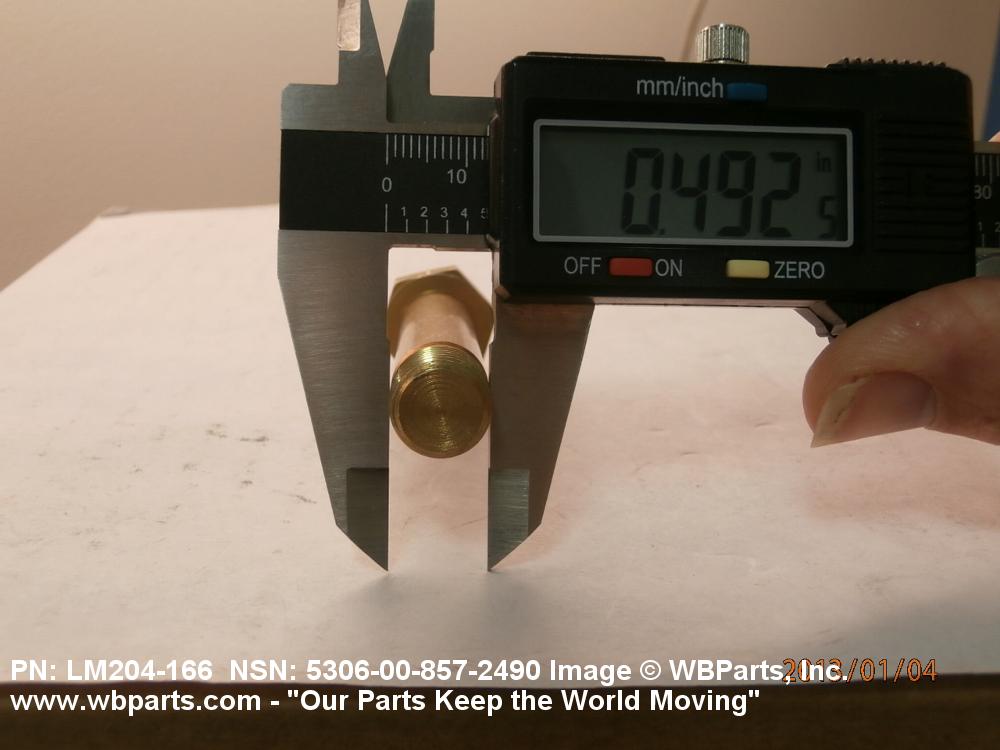

| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.380 INCHES MINIMUM |
| FASTENER LENGTH | 2.450 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C1 HEXAGON |

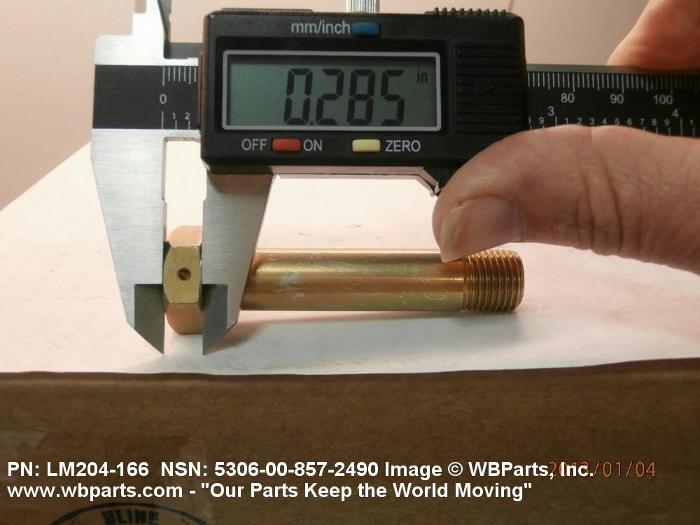

| HEAD HEIGHT | 0.281 INCHES NOMINAL |

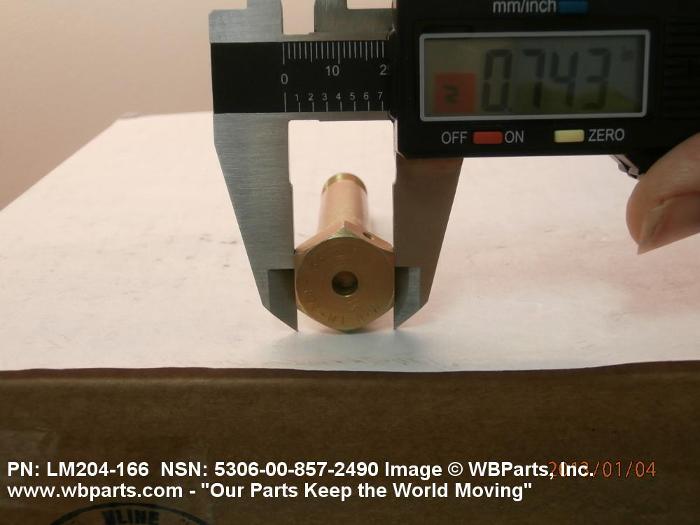

| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.062 INCHES NOMINAL |
| GRIP LENGTH | 2.070 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 76005 |
| DESIGN CONTROL REFERENCE | LM204-166 |
Restrictions/Controls & Freight Information | NSN 5306-00-857-2490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
