NSN 5306-01-005-6711 J643P06A, J643P06AQQ, 01-005-6711

Product Details | MACHINE BOLT

5306-01-005-6711 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: J643P06A, J643P06AQQ, 5306-01-005-6711, 01-005-6711, 5306010056711, 010056711

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 JUN 1975	01-005-6711	01847 ( BOLT, MACHINE )

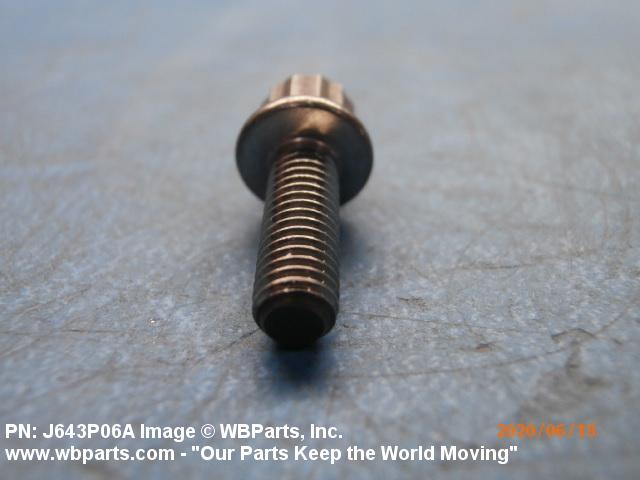

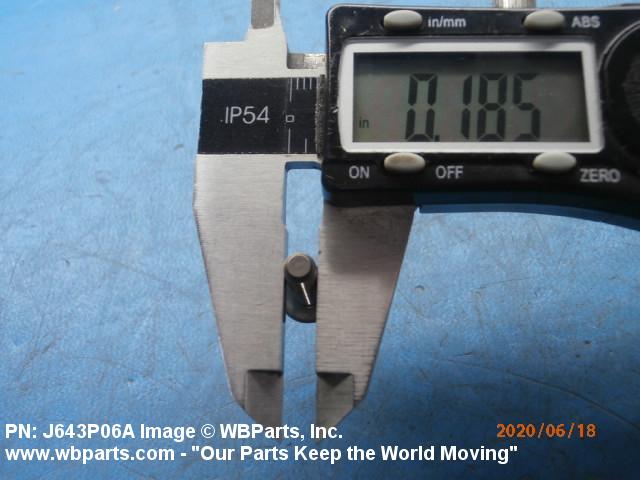

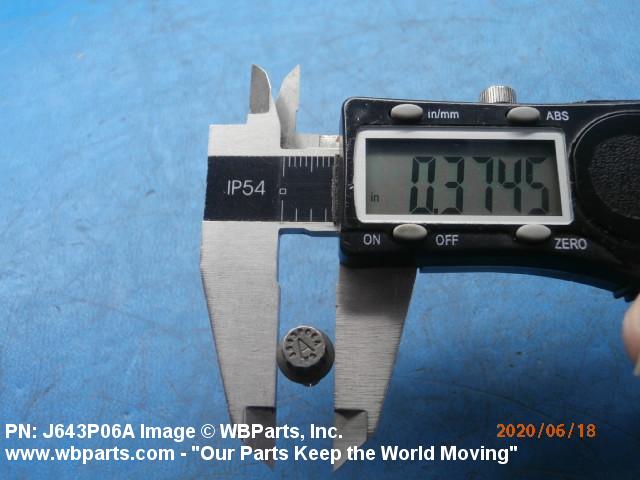

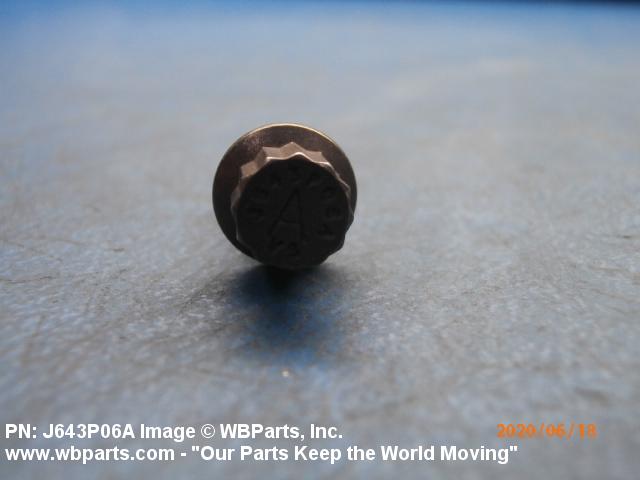

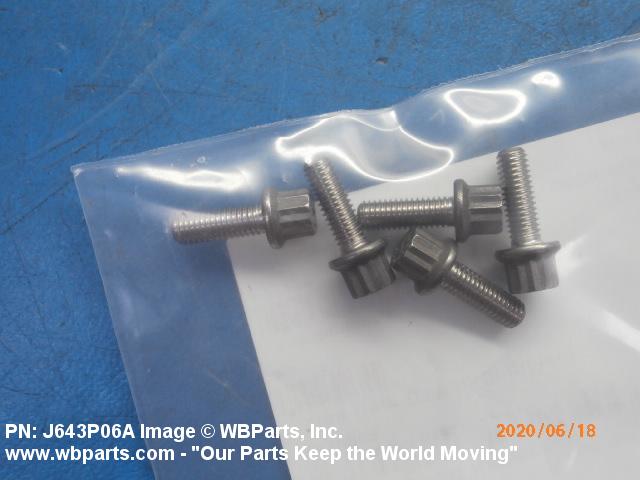

Drawings & Photos | NSN 5306-01-005-6711

Part Number	Request Date	QTY	Origin
J643P06A	2024-08-214	72	United Kingdom
J643P06A	2024-07-205	72	United Kingdom
J643P06A	2024-07-189	36	CN
5306-01-005-6711	2023-11-318	1275	US
J643P06A	2021-10-293	100	Taiwan
J643P06A	2020-06-163	2	United States
J643P06A	2020-06-161	2	United States
5306-01-005-6711	2019-11-324	17	US
J643P06A	2019-11-323	6	TH
J643P06A	2019-08-239	5283	DIBBS
J643P06AQQ	2019-08-239	5283	DIBBS
5306-01-005-6711	2019-06-177	34	United States
5306-01-005-6711	2018-07-200	4520	DIBBS
5306-01-005-6711	2018-07-183	200	US
5306-01-005-6711	2018-06-165	6099	DIBBS
J643P06A	2018-05-135	3	FX
5306-01-005-6711	2016-09-256	5056	DIBBS
5306-01-005-6711	2014-09-254	258	MANUAL
5306-01-005-6711	2014-03-80	70000	DIBBS
5306-01-005-6711	2013-12-354	1	DIBBS-RFPs
5306-01-005-6711	2013-12-336	23240	DIBBS
5306-01-005-6711	2012-10-278	10501	DIBBS
5306-01-005-6711	2012-04-95	4370	DIBBS
5306-01-005-6711	2012-02-48	7897	DIBBS
5306-01-005-6711	2011-11-321	8220	DIBBS

Cross Reference | NSN 5306-01-005-6711

Part Number	Cage Code	Manufacturer
J643P06A	06329	ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES
J643P06A	06710	VALLEY-TODECO, INC.
J643P06A	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
J643P06A	07482	GENERAL ELECTRIC COMPANY DBA GE
J643P06A	0UCY9	M.S. AEROSPACE INC.
J643P06A	23899	J.W. MANUFACTURING, INC DBA VAN PETTY MANUFACTURING
J643P06A	27238	BRISTOL INDUSTRIES
J643P06A	2T498	MORTON GRINDING, INC. DBA MORTON MANUFACTURING
J643P06A	4DU57	MORTON FASTENERS, INC.
J643P06A	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
J643P06A	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
J643P06A	99207	GENERAL ELECTRIC COMPANY DBA GE
J643P06AQQ	14236	JET AVION CORPORATION DBA HEICO PARTS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-005-6711

Compare

Related Products | NSN 5306-01-005-6711

5306-01-005-6718, 5306-01-005-8074, 5306-01-005-8075, 5306-01-005-8076, 5306-01-005-8077

Technical Data | NSN 5306-01-005-6711

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.190 INCHES

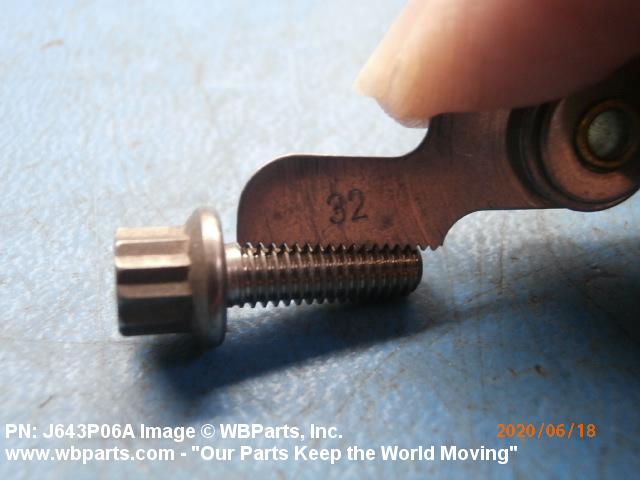

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.428 INCHES MINIMUM AND 0.510 INCHES MAXIMUM

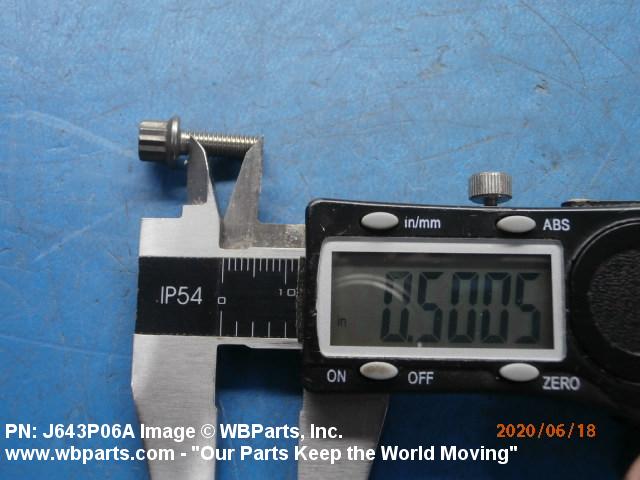

FASTENER LENGTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
MATERIAL	NICKEL ALLOY 718 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	INCONEL FSCM 74900 MFR REF SINGLE MATERIAL RESPONSE OVERALL

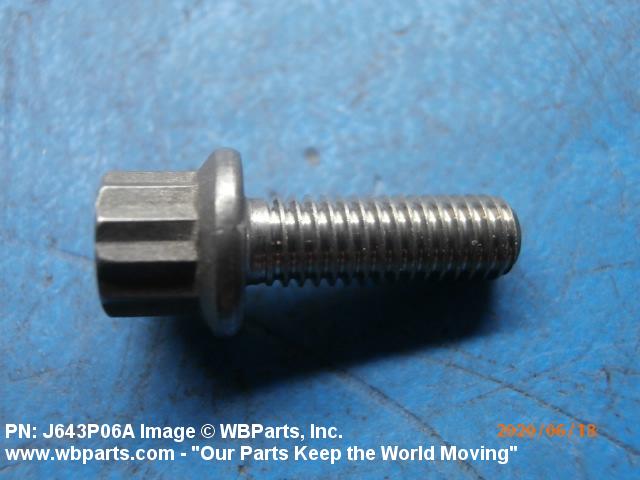

HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER

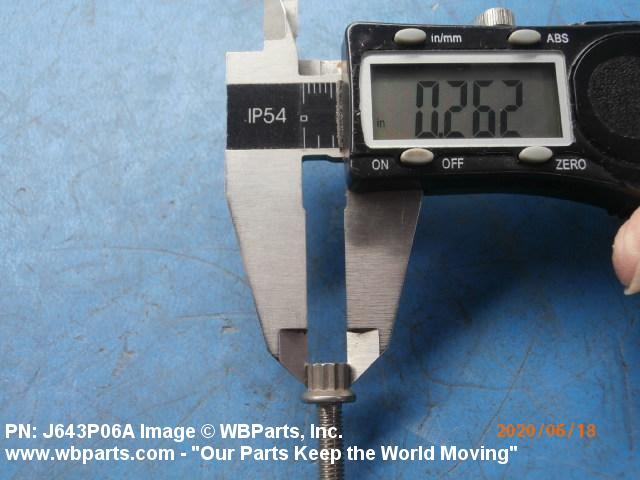

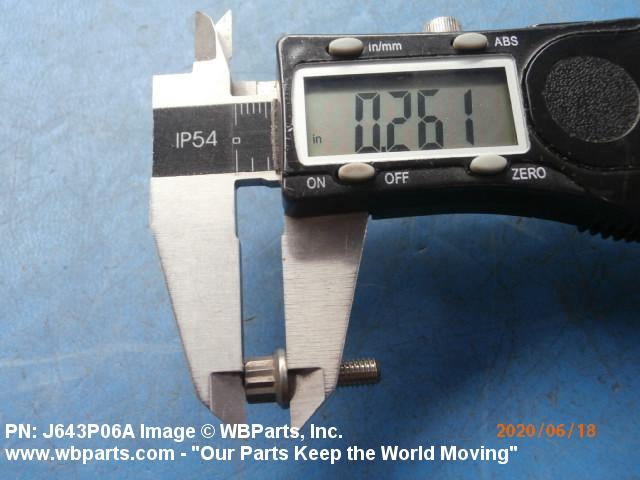

HEAD HEIGHT	0.248 INCHES MINIMUM AND 0.268 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.250 INCHES NOMINAL
EXTENDED WASHER DIAMETER	0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM

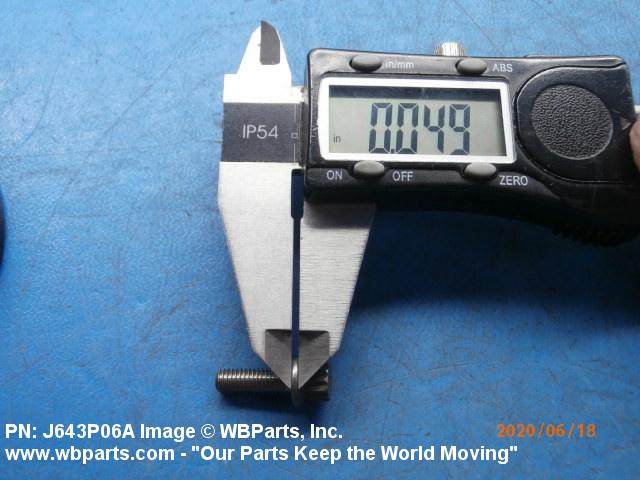

EXTENDED WASHER THICKNESS	0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
SURFACE FINISH	125.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	07482

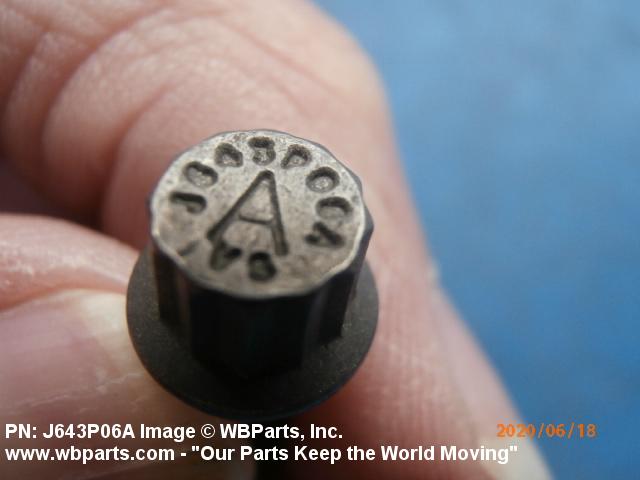

DESIGN CONTROL REFERENCE	J643P06A

Restrictions/Controls & Freight Information | NSN 5306-01-005-6711

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	139820	NICKEL BOLTS/NAILS/NUTS/RIVETS ETC
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	713	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-005-6711

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	NY	SX:"GENERAL ELECTRIC ENGINES & COMPONENTS, TF-39"
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
