NSN 5306-01-044-7455 MA5497310, MA5497-3-10, MB88310
Product Details | SHOULDER BOLT

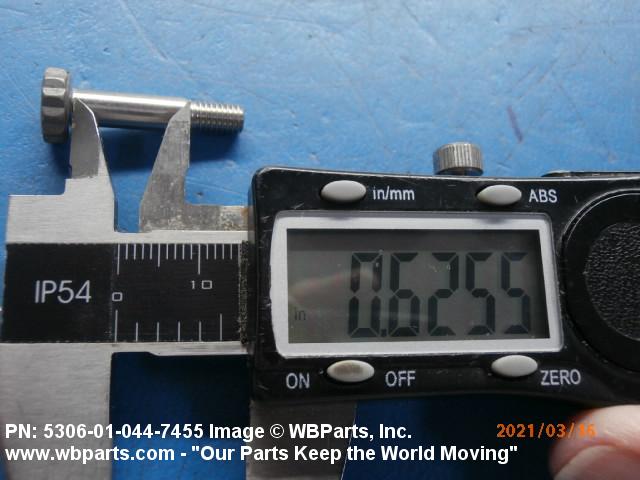

5306-01-044-7455 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: MA5497310, MA5497-3-10, MB88310, MB88-3-10, BM17019310X, BM17019-3-10X, HP5497310, HP5497-3-10, S111061310, S11-1061-3-10, ST3M497310, ST3M497-3-10, VAL23607310, VAL23607-3-10, VS3037310, VS3037-3-10, PBF1254310, PBF1254-3-10, 109450-3-10, 109453310X, 109453-3-10X, 5306-01-044-7455, 01-044-7455, 5306010447455, 109450310, 010447455
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1977 | 01-044-7455 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-01-044-7455
Demand History | NSN 5306-01-044-7455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 109450-3-10 | 2021-12-361 | 325 | DIBBS |
| HP5497-3-10 | 2021-12-361 | 325 | DIBBS |
| MB88-3-10 | 2021-12-361 | 325 | DIBBS |
| PBF1254-3-10 | 2021-12-361 | 325 | DIBBS |
| S11-1061-3-10 | 2021-12-361 | 325 | DIBBS |
| ST3M497-3-10 | 2021-12-361 | 325 | DIBBS |
| VAL23607-3-10 | 2021-12-361 | 325 | DIBBS |
| 109450-3-10 | 2021-12-350 | 325 | DIBBS |
| HP5497-3-10 | 2021-12-350 | 325 | DIBBS |
| MB88-3-10 | 2021-12-350 | 325 | DIBBS |
| PBF1254-3-10 | 2021-12-350 | 325 | DIBBS |
| S11-1061-3-10 | 2021-12-350 | 325 | DIBBS |
| ST3M497-3-10 | 2021-12-350 | 325 | DIBBS |
| VAL23607-3-10 | 2021-12-350 | 325 | DIBBS |
| 109450-3-10 | 2021-11-329 | 139 | DIBBS |
| HP5497-3-10 | 2021-11-329 | 139 | DIBBS |
| MB88-3-10 | 2021-11-329 | 139 | DIBBS |
| PBF1254-3-10 | 2021-11-329 | 139 | DIBBS |
| S11-1061-3-10 | 2021-11-329 | 139 | DIBBS |
| ST3M497-3-10 | 2021-11-329 | 139 | DIBBS |
| VAL23607-3-10 | 2021-11-329 | 139 | DIBBS |
| 109450-3-10 | 2021-10-287 | 139 | DIBBS |
| HP5497-3-10 | 2021-10-287 | 139 | DIBBS |
| MB88-3-10 | 2021-10-287 | 139 | DIBBS |
| PBF1254-3-10 | 2021-10-287 | 139 | DIBBS |
| S11-1061-3-10 | 2021-10-287 | 139 | DIBBS |
| ST3M497-3-10 | 2021-10-287 | 139 | DIBBS |
| VAL23607-3-10 | 2021-10-287 | 139 | DIBBS |
| 109450-3-10 | 2021-10-276 | 139 | DIBBS |
| HP5497-3-10 | 2021-10-276 | 139 | DIBBS |
| MB88-3-10 | 2021-10-276 | 139 | DIBBS |
| PBF1254-3-10 | 2021-10-276 | 139 | DIBBS |
| S11-1061-3-10 | 2021-10-276 | 139 | DIBBS |
| ST3M497-3-10 | 2021-10-276 | 139 | DIBBS |
| VAL23607-3-10 | 2021-10-276 | 139 | DIBBS |
| 109450-3-10 | 2021-05-140 | 110 | DIBBS |
| HP5497-3-10 | 2021-05-140 | 110 | DIBBS |
| MB88-3-10 | 2021-05-140 | 110 | DIBBS |
| PBF1254-3-10 | 2021-05-140 | 110 | DIBBS |
| S11-1061-3-10 | 2021-05-140 | 110 | DIBBS |
| ST3M497-3-10 | 2021-05-140 | 110 | DIBBS |
| VAL23607-3-10 | 2021-05-140 | 110 | DIBBS |
| 109450-3-10 | 2021-05-131 | 119 | DIBBS |
| HP5497-3-10 | 2021-05-131 | 119 | DIBBS |
| MB88-3-10 | 2021-05-131 | 119 | DIBBS |
| PBF1254-3-10 | 2021-05-131 | 119 | DIBBS |
| S11-1061-3-10 | 2021-05-131 | 119 | DIBBS |
| ST3M497-3-10 | 2021-05-131 | 119 | DIBBS |
| VAL23607-3-10 | 2021-05-131 | 119 | DIBBS |
| 109450-3-10 | 2021-05-129 | 110 | DIBBS |
| HP5497-3-10 | 2021-05-129 | 110 | DIBBS |
| MB88-3-10 | 2021-05-129 | 110 | DIBBS |
| PBF1254-3-10 | 2021-05-129 | 110 | DIBBS |
| S11-1061-3-10 | 2021-05-129 | 110 | DIBBS |
| ST3M497-3-10 | 2021-05-129 | 110 | DIBBS |
| VAL23607-3-10 | 2021-05-129 | 110 | DIBBS |
| ST3M497310 | 2021-03-67 | 10 | United States |
| 109450-3-10 | 2020-11-316 | 138 | DIBBS |
| HP5497-3-10 | 2020-11-316 | 138 | DIBBS |
| MB88-3-10 | 2020-11-316 | 138 | DIBBS |
| PBF1254-3-10 | 2020-11-316 | 138 | DIBBS |
| S11-1061-3-10 | 2020-11-316 | 138 | DIBBS |
| ST3M497-3-10 | 2020-11-316 | 138 | DIBBS |
| VAL23607-3-10 | 2020-11-316 | 138 | DIBBS |
| 5306-01-044-7455 | 2014-02-49 | 226 | DIBBS |
| 5306-01-044-7455 | 2014-02-49 | 47 | DIBBS |
| 5306-01-044-7455 | 2014-02-33 | 226 | DIBBS |
| 5306-01-044-7455 | 2014-02-33 | 47 | DIBBS |
Cross Reference | NSN 5306-01-044-7455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109450-3-10 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 109453-3-10X | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 109453-3-10X | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BM17019-3-10X | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BM17019-3-10X | 97928 | HUCK INTL INC |
| HP5497-3-10 | 0CZ92 | PRUITT ENERGY SOURCES INC |
| HP5497-3-10 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| MA5497-3-10 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| MB88-3-10 | 73197 | HI-SHEAR CORPORATION |
| MB88-3-10 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| MB88-3-10 | L4528 | LISI AEROSPACE CANADA CORP |
| MB88-3-10 | R1120 | SATAIR A/S |
| PBF1254-3-10 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| S11-1061-3-10 | 57928 | SONIC INDUSTRIES INC. |
| ST3M497-3-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ST3M497-3-10 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| ST3M497-3-10 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M497-3-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VAL23607-3-10 | 06710 | VALLEY-TODECO, INC. |
| VS3037-3-10 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VS3037-3-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VS3037-3-10 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-044-7455
Related Products | NSN 5306-01-044-7455
Technical Data | NSN 5306-01-044-7455

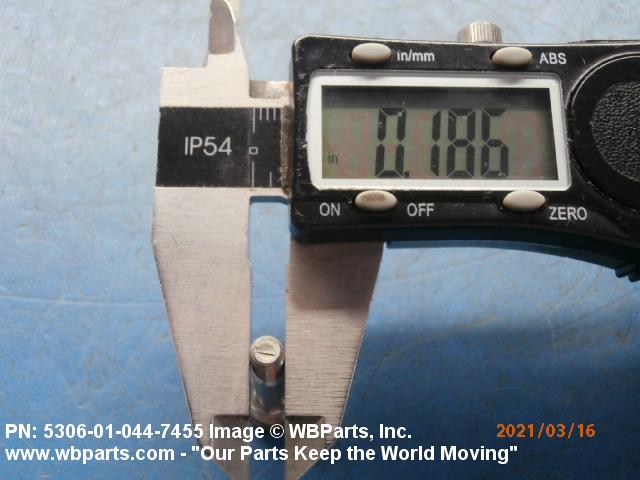

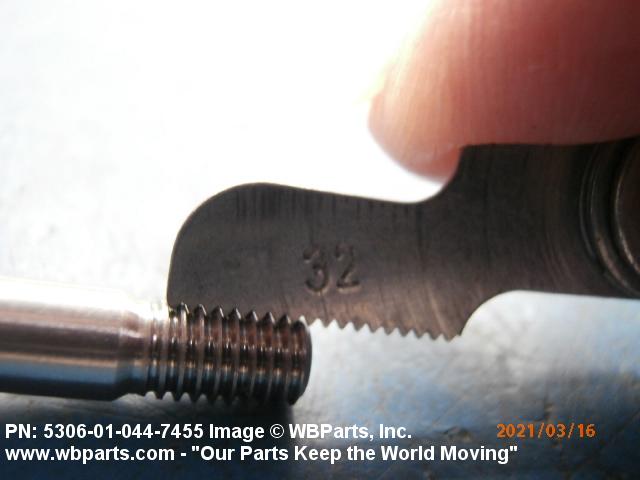

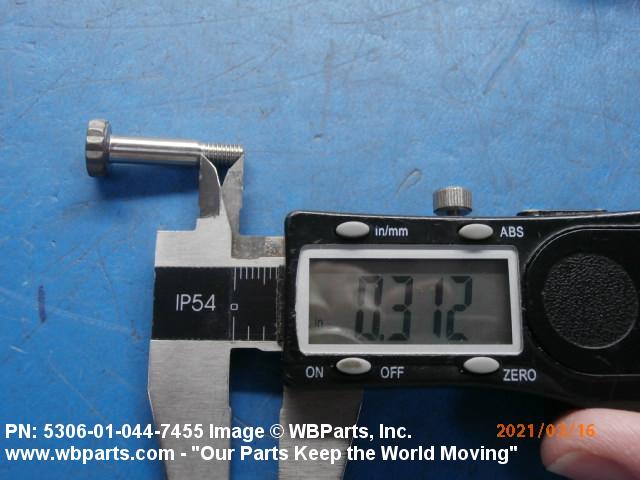

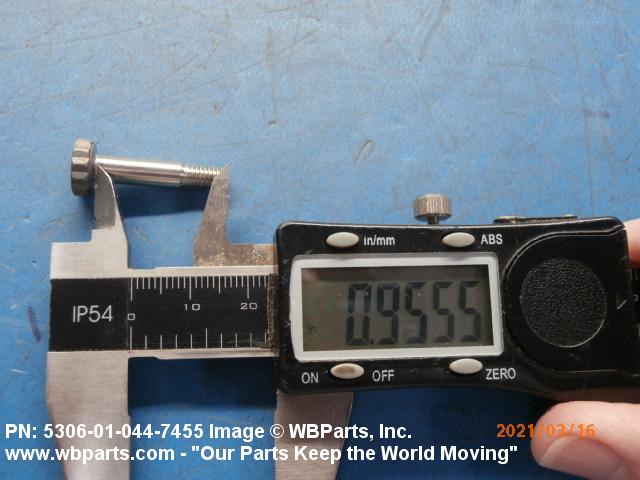

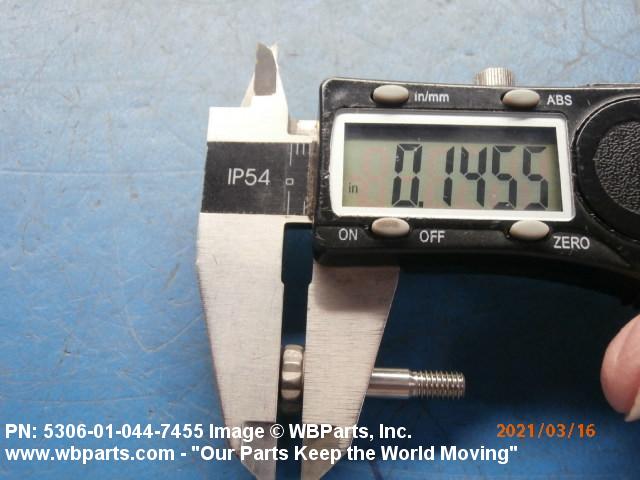

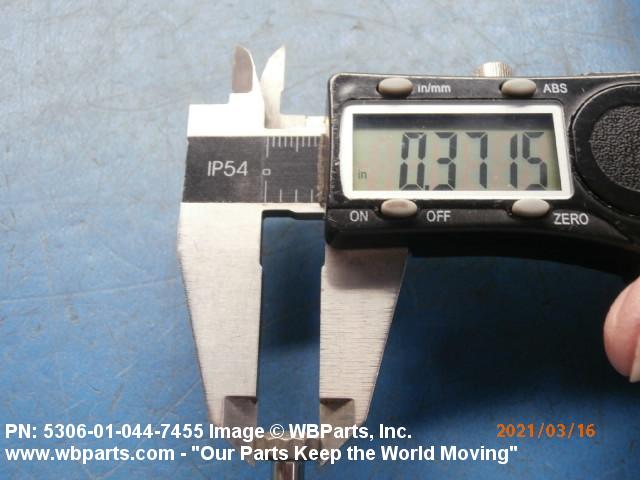

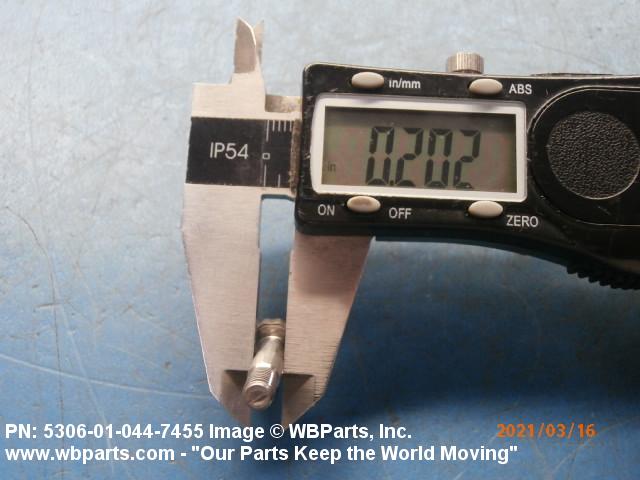

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.305 INCHES MINIMUM AND 0.372 INCHES MAXIMUM |
| FASTENER LENGTH | 0.940 INCHES MINIMUM AND 0.987 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C8 DOUBLE HEXAGON |
| HEAD HEIGHT | 0.130 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM FIRST SHOULDER |
| SPECIFICATION/STANDARD DATA | 76301-ST3M497 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-01-044-7455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-044-7455
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
