NSN 5306-01-045-6576 MB87412, MB87-4-12, AIC473412
Product Details | SHOULDER BOLT
5306-01-045-6576 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: MB87412, MB87-4-12, AIC473412, AIC473-4-12, BM3326412Y, BM3326-4-12Y, S111063412, S11-1063-4-12, ST3M607412, ST3M607-4-12, VAL23033412X, VAL23033-4-12X, VS3061412, VS3061-4-12, PBF1652412, PBF1652-4-12, 74328412Y, 74328-4-12Y, 5306-01-045-6576, 01-045-6576, 5306010456576, 010456576
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1977 | 01-045-6576 | 04905 ( BOLT, SHOULDER ) |

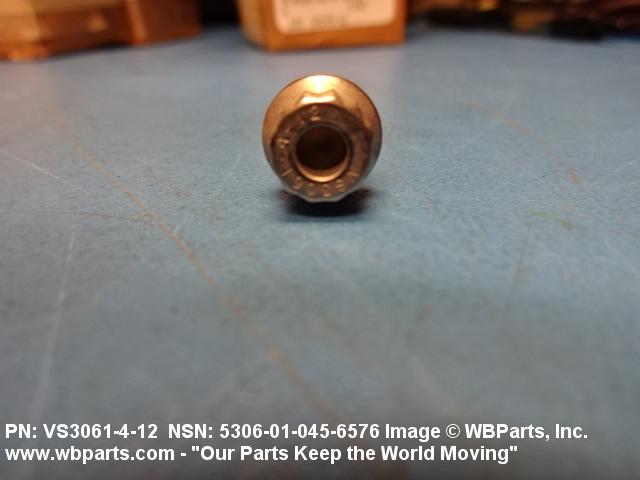

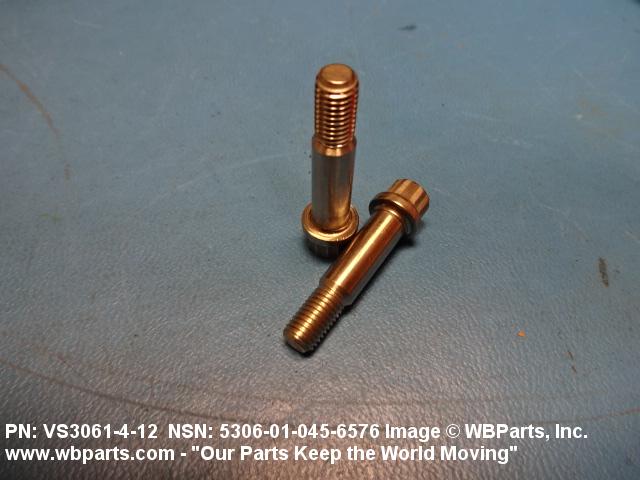

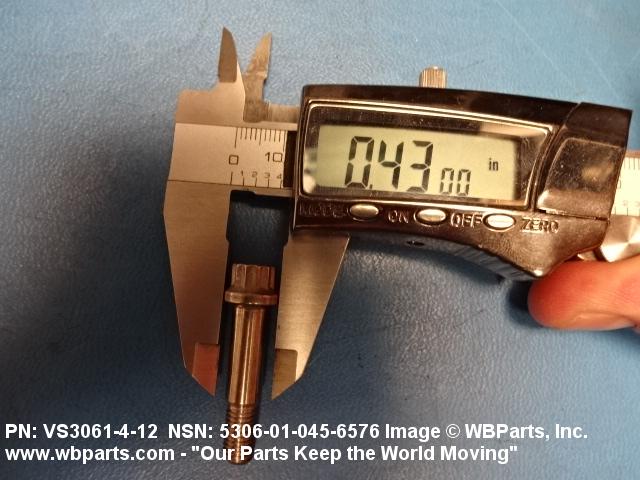

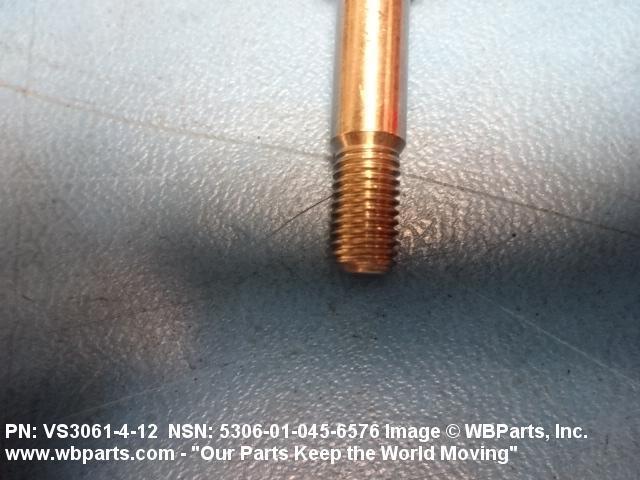

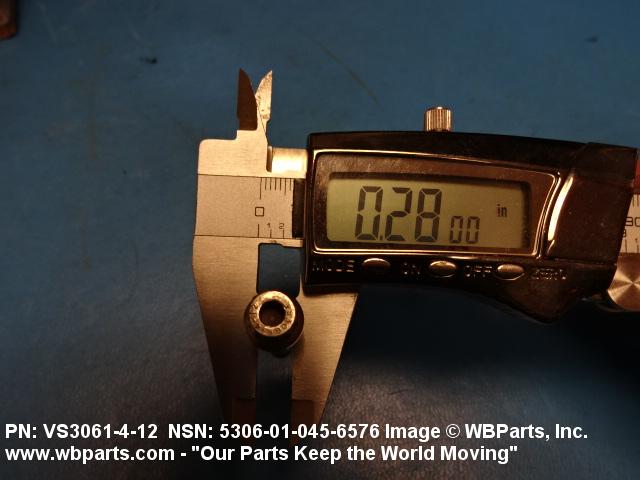

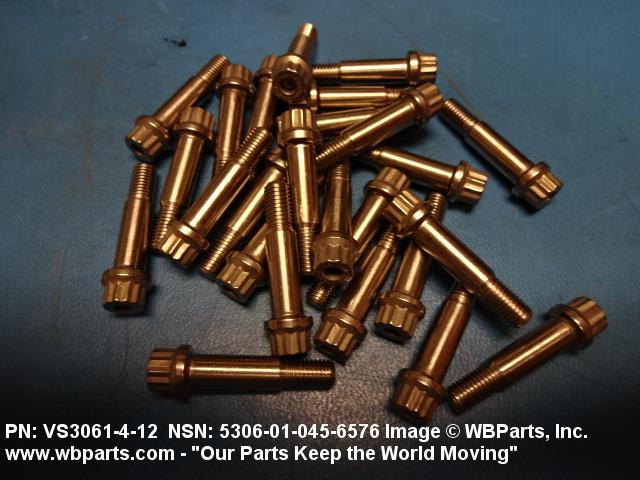

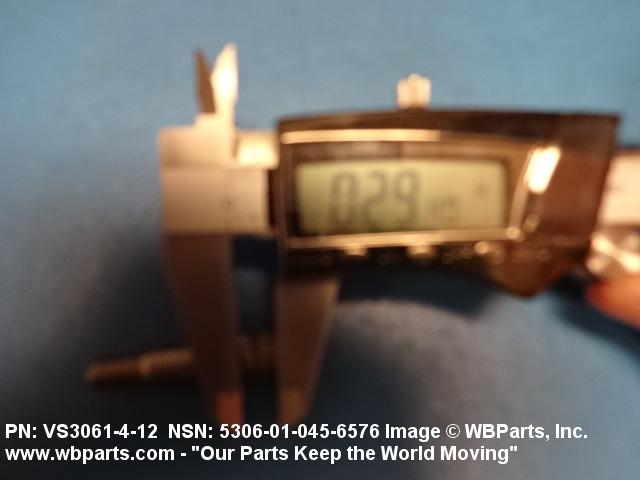

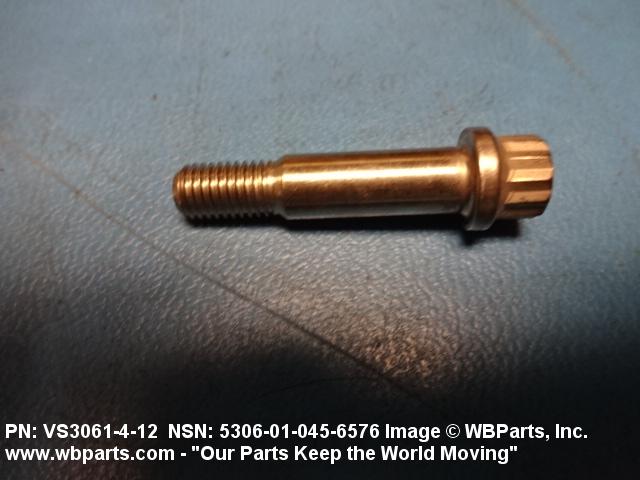

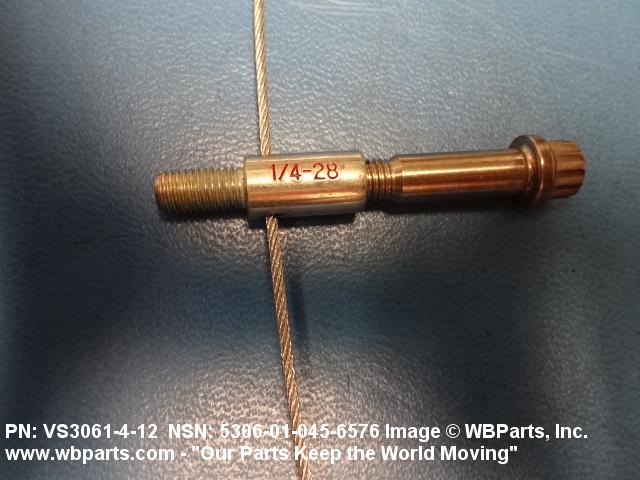

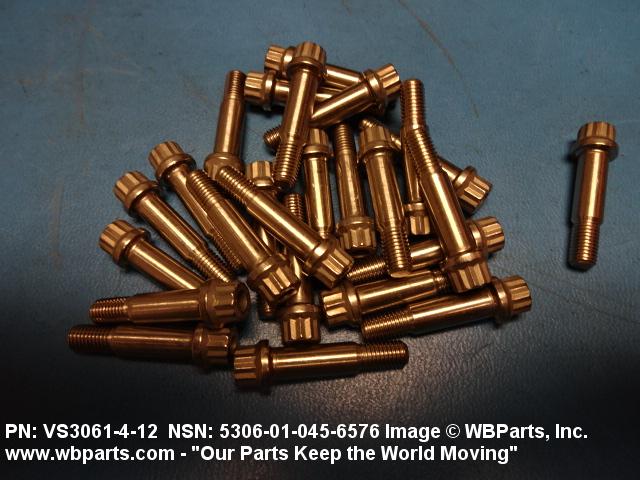

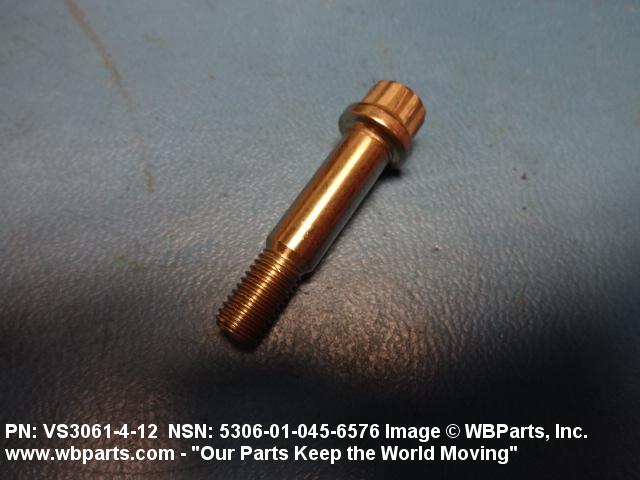

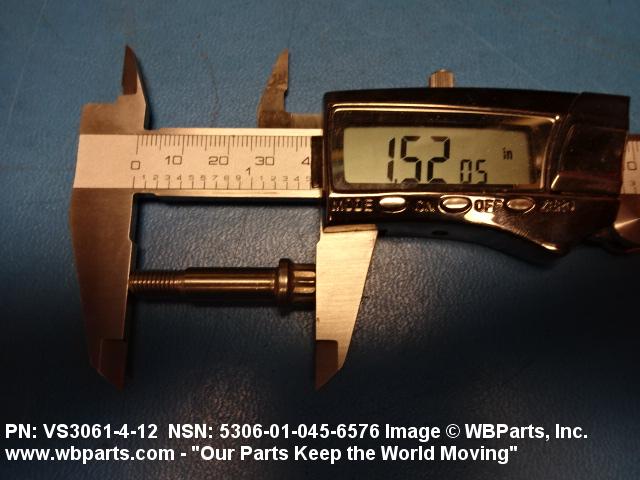

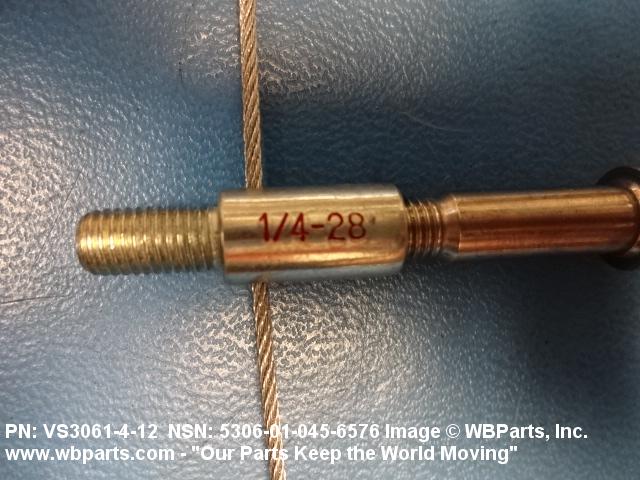

Drawings & Photos | NSN 5306-01-045-6576
Demand History | NSN 5306-01-045-6576
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74328-4-12Y | 2021-10-279 | 79 | DIBBS |
| AIC473-4-12 | 2021-10-279 | 79 | DIBBS |
| BM3326-4-12Y | 2021-10-279 | 79 | DIBBS |
| MB87-4-12 | 2021-10-279 | 79 | DIBBS |
| PBF1652-4-12 | 2021-10-279 | 79 | DIBBS |
| S11-1063-4-12 | 2021-10-279 | 79 | DIBBS |
| ST3M607-4-12 | 2021-10-279 | 79 | DIBBS |
| VAL23033-4-12X | 2021-10-279 | 79 | DIBBS |
| VS3061-4-12 | 2021-10-279 | 79 | DIBBS |
| 74328-4-12Y | 2021-05-129 | 46 | DIBBS |
| AIC473-4-12 | 2021-05-129 | 46 | DIBBS |
| BM3326-4-12Y | 2021-05-129 | 46 | DIBBS |
| MB87-4-12 | 2021-05-129 | 46 | DIBBS |
| PBF1652-4-12 | 2021-05-129 | 46 | DIBBS |
| S11-1063-4-12 | 2021-05-129 | 46 | DIBBS |
| ST3M607-4-12 | 2021-05-129 | 46 | DIBBS |
| VAL23033-4-12X | 2021-05-129 | 46 | DIBBS |
| VS3061-4-12 | 2021-05-129 | 46 | DIBBS |
| 5306-01-045-6576 | 2021-04-106 | 70 | US |
| 74328-4-12Y | 2021-04-98 | 70 | DIBBS |
| AIC473-4-12 | 2021-04-98 | 70 | DIBBS |
| BM3326-4-12Y | 2021-04-98 | 70 | DIBBS |
| MB87-4-12 | 2021-04-98 | 70 | DIBBS |
| PBF1652-4-12 | 2021-04-98 | 70 | DIBBS |
| S11-1063-4-12 | 2021-04-98 | 70 | DIBBS |
| ST3M607-4-12 | 2021-04-98 | 70 | DIBBS |
| VAL23033-4-12X | 2021-04-98 | 70 | DIBBS |
| VS3061-4-12 | 2021-04-98 | 70 | DIBBS |
| 74328-4-12Y | 2020-02-51 | 120 | DIBBS |
| AIC473-4-12 | 2020-02-51 | 120 | DIBBS |
| BM3326-4-12Y | 2020-02-51 | 120 | DIBBS |
| MB87-4-12 | 2020-02-51 | 120 | DIBBS |
| PBF1652-4-12 | 2020-02-51 | 120 | DIBBS |
| S11-1063-4-12 | 2020-02-51 | 120 | DIBBS |
| ST3M607-4-12 | 2020-02-51 | 120 | DIBBS |
| VAL23033-4-12X | 2020-02-51 | 120 | DIBBS |
| VS3061-4-12 | 2020-02-51 | 120 | DIBBS |
| 5306-01-045-6576 | 2018-11-318 | 180 | United States |
| 5306-01-045-6576 | 2018-10-281 | 180 | DIBBS |
| 5306-01-045-6576 | 2018-05-126 | 134 | DIBBS |
| 5306-01-045-6576 | 2018-02-44 | 28 | DIBBS |
| 5306-01-045-6576 | 2017-11-333 | 134 | DIBBS |
| 5306-01-045-6576 | 2017-10-295 | 25 | DIBBS |
| 5306-01-045-6576 | 2017-04-114 | 61 | DIBBS |
| 5306-01-045-6576 | 2017-04-106 | 61 | DIBBS |
| 5306-01-045-6576 | 2016-11-333 | 156 | DIBBS |
| 5306-01-045-6576 | 2015-08-222 | 403 | DIBBS |
| 5306-01-045-6576 | 2011-10-276 | 550 | DIBBS |
| 5306-01-045-6576 | 2010-09-267 | 20 | DIBBS |
| 5306-01-045-6576 | 2010-08-217 | 18 | DIBBS |
| 5306-01-045-6576 | 2010-06-162 | 13 | DIBBS |
| 5306-01-045-6576 | 2009-09-257 | 43 | DIBBS |
Cross Reference | NSN 5306-01-045-6576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74328-4-12Y | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| AIC473-4-12 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| BM3326-4-12Y | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MB87-4-12 | 73197 | HI-SHEAR CORPORATION |
| MB87-4-12 | L4528 | LISI AEROSPACE CANADA CORP |
| PBF1652-4-12 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| S11-1063-4-12 | 57928 | SONIC INDUSTRIES INC. |
| ST3M607-4-12 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ST3M607-4-12 | 76301 | BOEING COMPANY, THE DBA BOEING |
| VAL23033-4-12X | 06710 | VALLEY-TODECO, INC. |
| VS3061-4-12 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-045-6576
Related Products | NSN 5306-01-045-6576
Technical Data | NSN 5306-01-045-6576
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.443 INCHES MINIMUM AND 0.493 INCHES MAXIMUM |
| FASTENER LENGTH | 1.203 INCHES MINIMUM AND 1.233 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 23M112,FSCM 76301 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.304 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.059 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.280 INCHES MINIMUM AND 0.281 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM FIRST SHOULDER |
Restrictions/Controls & Freight Information | NSN 5306-01-045-6576
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-045-6576
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
